Heated / Cooled Seats

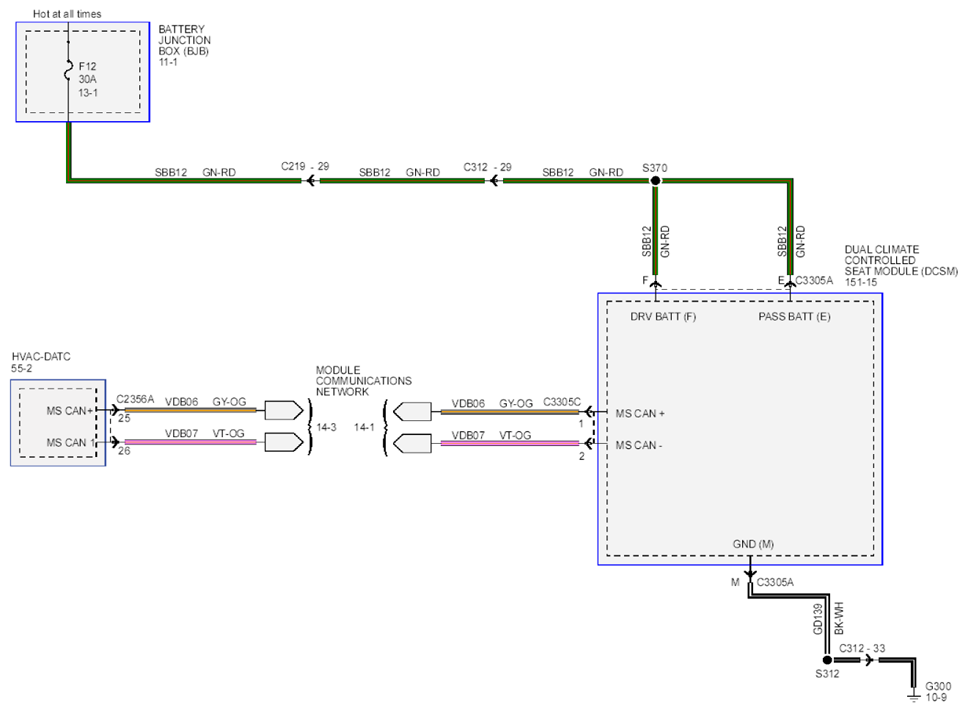

Fig 1: Heated / Cooled Seats Wiring Diagram (1 Of 3)
G07935805Courtesy of FORD MOTOR CO.

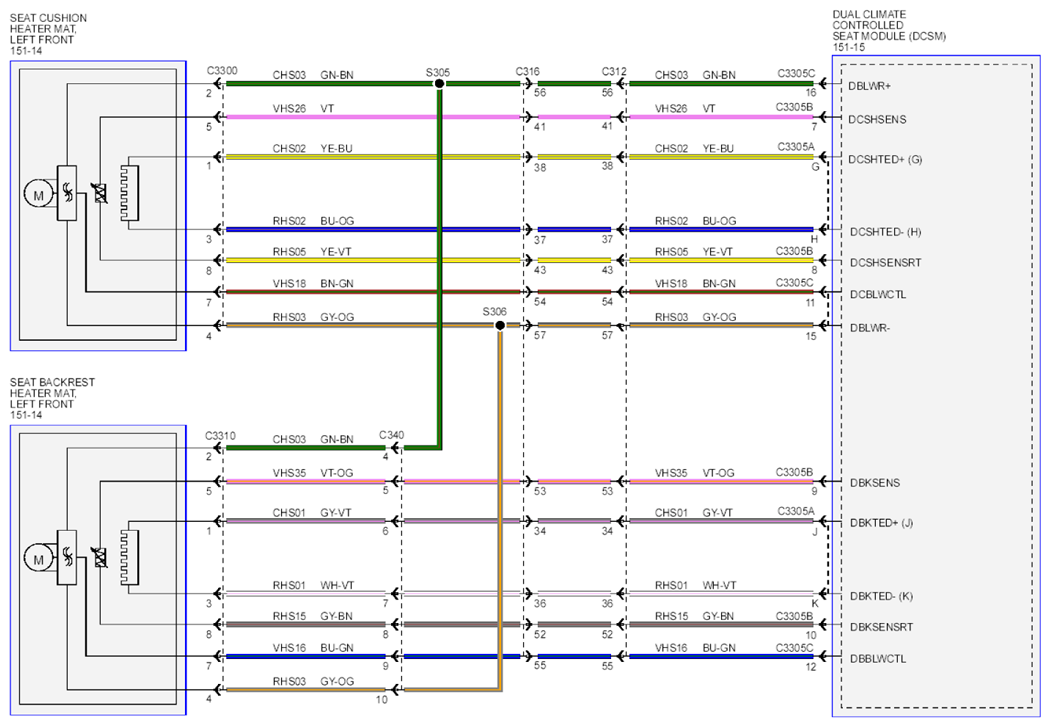

Fig 2: Heated / Cooled Seats Wiring Diagram (2 Of 3)
G07935806Courtesy of FORD MOTOR CO.

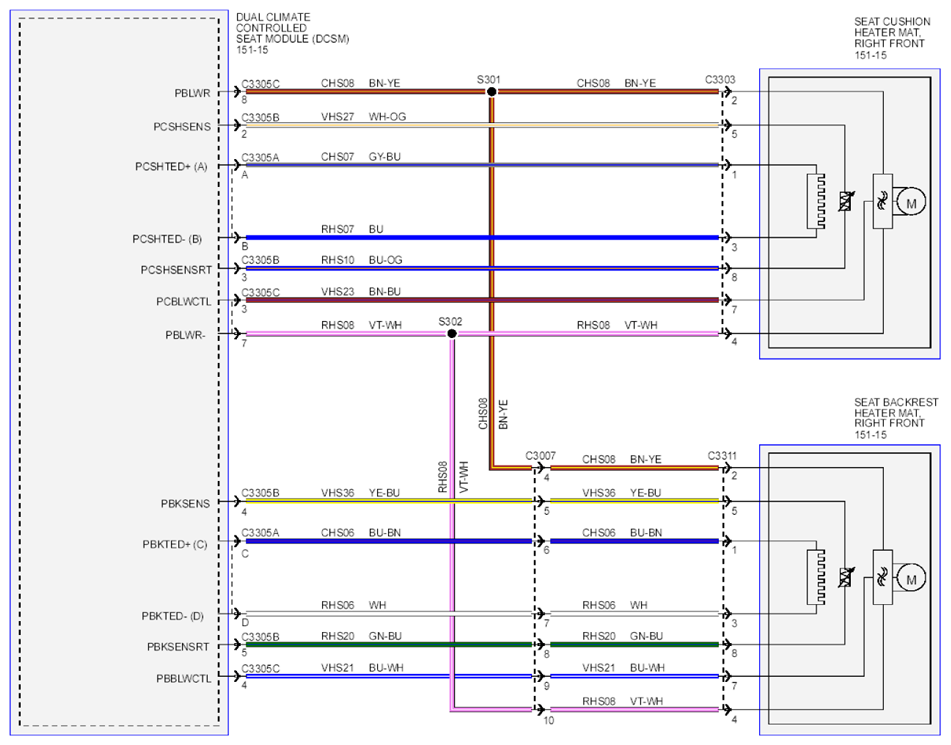

Fig 3: Heated / Cooled Seats Wiring Diagram (3 Of 3)
G07935807Courtesy of FORD MOTOR CO.
