G401, G402, G403, G045

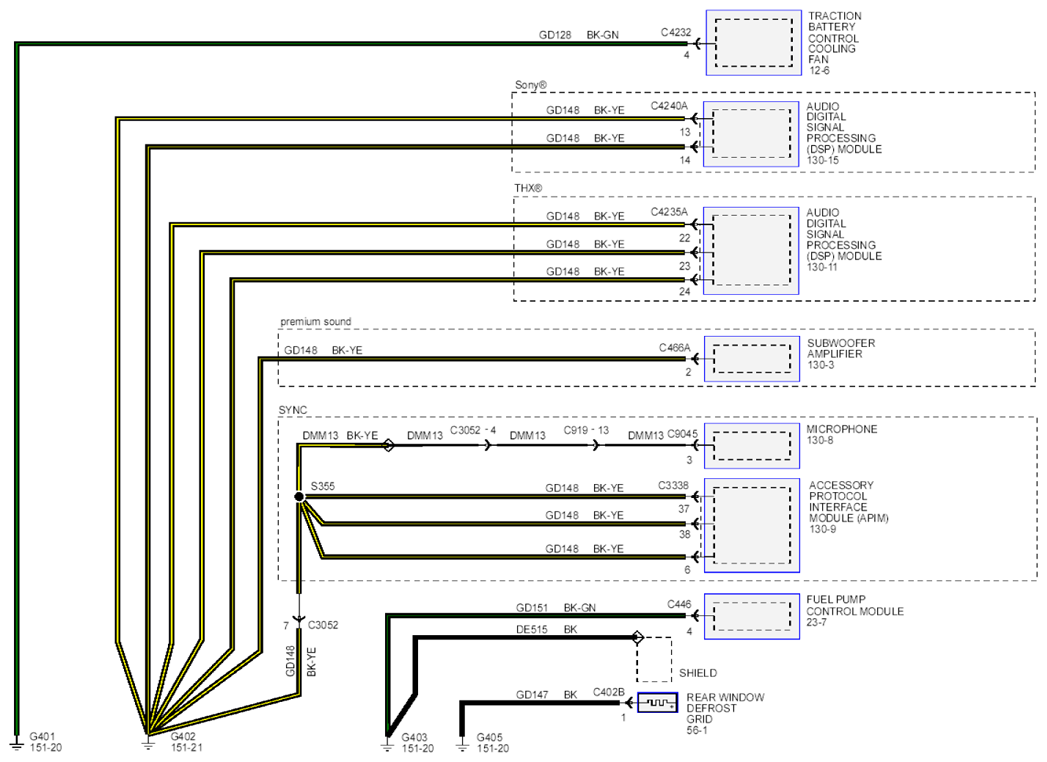

Fig 1: Grounds Circuit Diagram - G401, G402, G403, G045

G07935678

Courtesy of FORD MOTOR CO.
