G105, G106, G200, G201

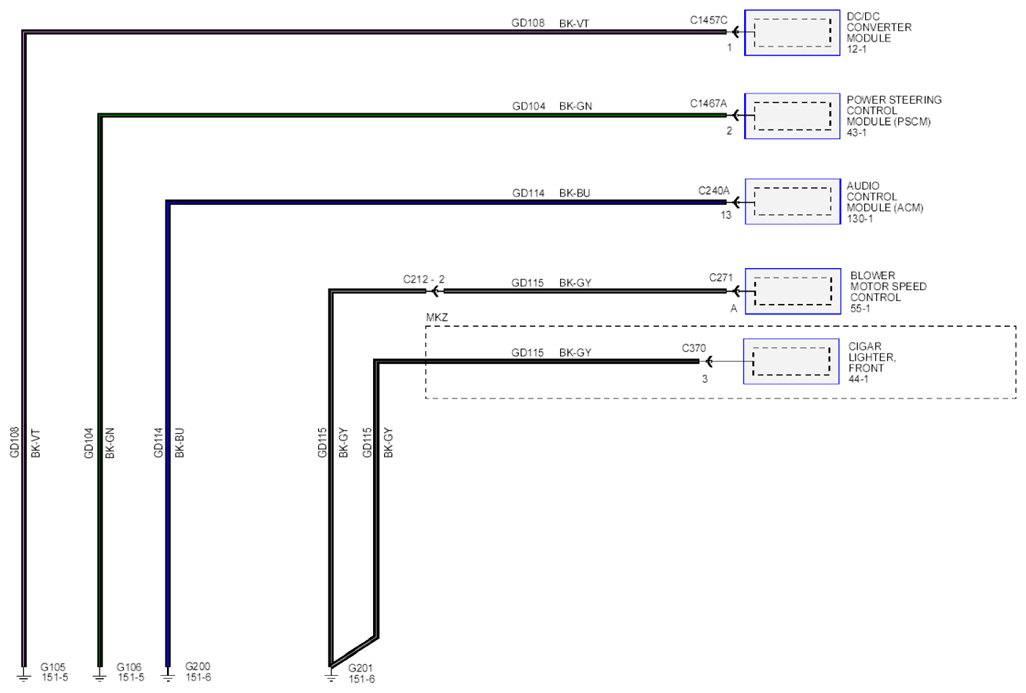

Fig 1: Grounds Circuit Diagram - G105, G106, G200, G201

G07935668

Courtesy of FORD MOTOR CO.
