2012 Fusion Hybrid/MKZ Hybrid Location Index: Connectors

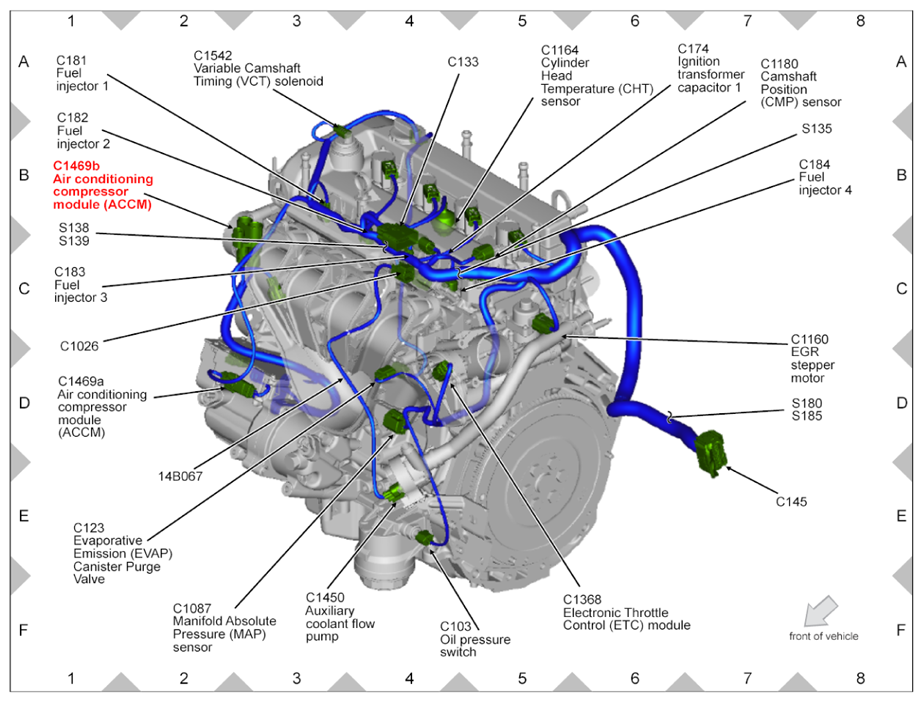

Fig 1: C103 Oil Pressure Switch Location - On Engine, LH Side, Above Oil Filter

Courtesy of FORD MOTOR CO.

Fig 2: C109 Knock Sensor (KS) Location - (2.5L) On Engine, Front

Courtesy of FORD MOTOR CO.

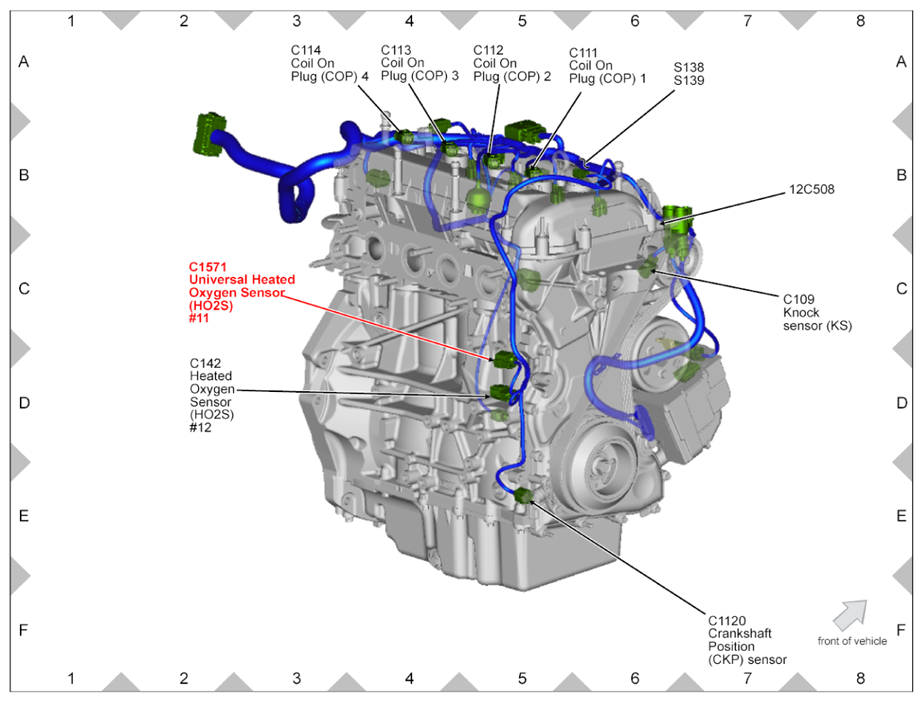

Fig 3: C111 Coil On Plug (COP) 1 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 4: C112 Coil On Plug (COP) 2 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 5: C113 Coil On Plug (COP) 3 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 6: C114 Coil On Plug (COP) 4 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 7: C123 Evaporative Emission (EVAP) Canister Purge Valve Location - On Engine, Rear Side Of Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 8: C124 Brake Fluid Level Switch Location - Left Hand Rear Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 9: C125 Windshield Wiper Motor Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

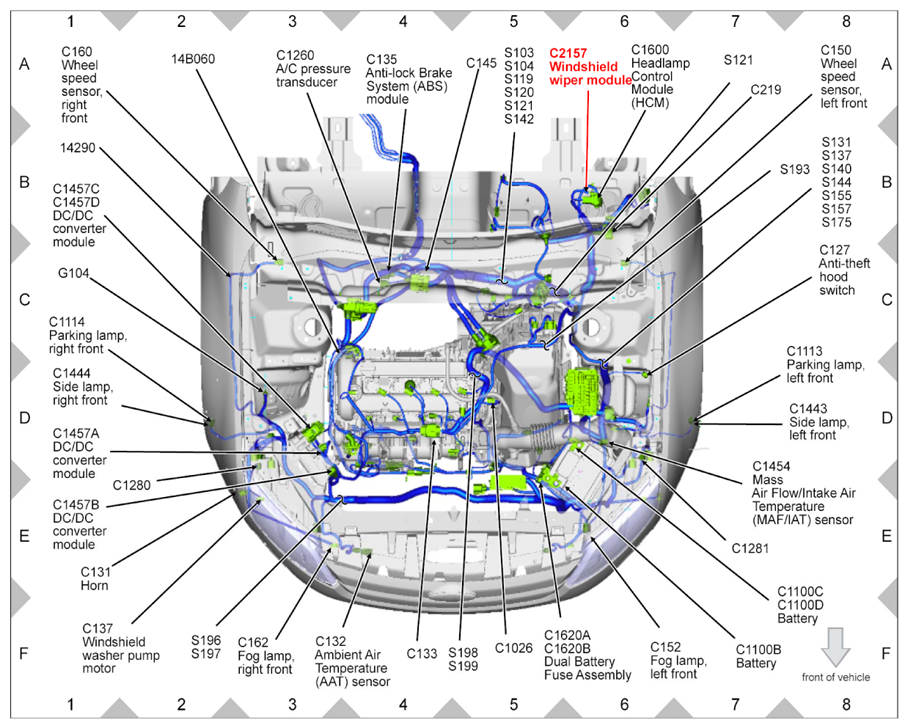

Fig 10: C127 Anti-Theft Hood Switch Location - Engine Compartment, Front, LH Side

Courtesy of FORD MOTOR CO.

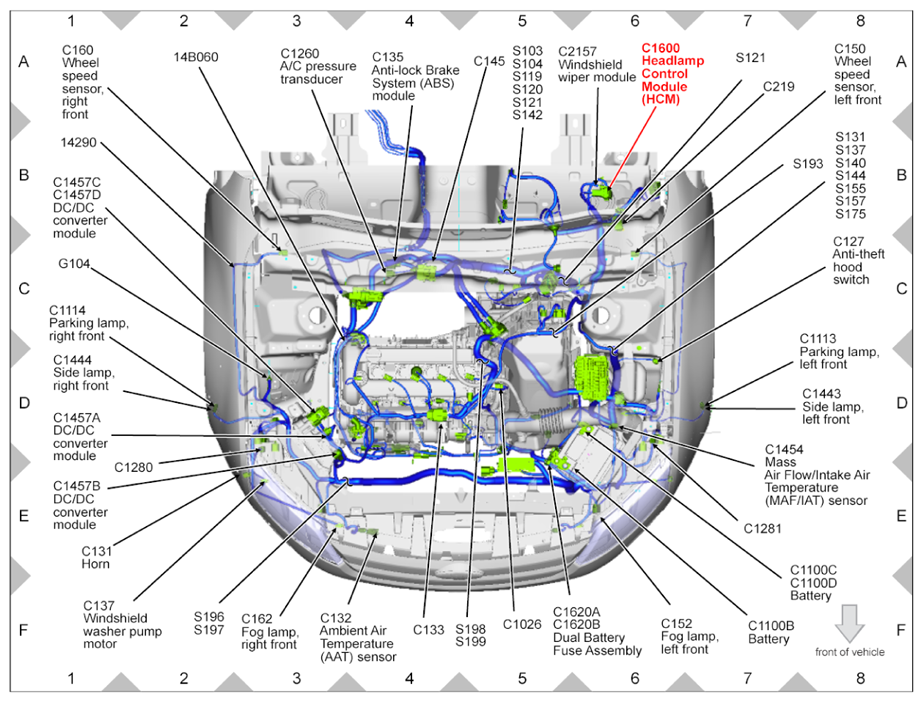

Fig 11: C131 Horn Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 12: C132 Ambient Air Temperature (AAT) Sensor Location - In Front Of Radiator

Courtesy of FORD MOTOR CO.

Fig 13: C133 Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 14: C135 Anti-Lock Brake System (ABS) Module Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 15: C137 Windshield Washer Pump Motor Location - Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 16: C142 Heated Oxygen Sensor (HO2S) #12 Location - Near Front Of Engine By Exhaust Manifold

Courtesy of FORD MOTOR CO.

Fig 17: C145 Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

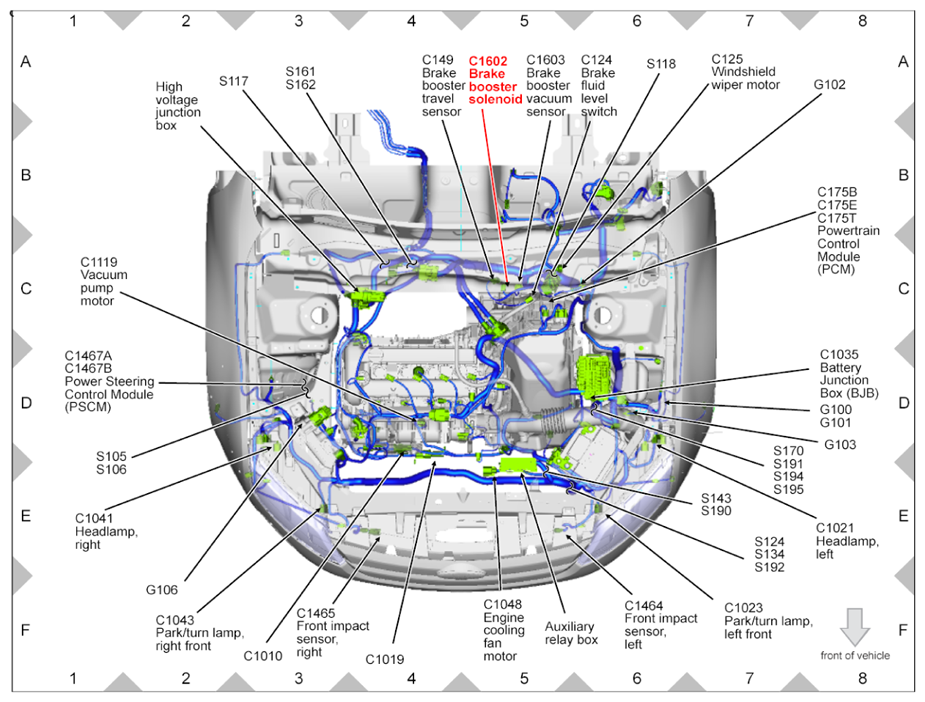

Fig 18: C149 Brake Booster Travel Sensor Location - Left Hand Rear Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 19: C150 Wheel Speed Sensor, Left Front Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 20: C152 Fog Lamp, Left Front Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 21: C160 Wheel Speed Sensor, Right Front Location - Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 22: C162 Fog Lamp, Right Front Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

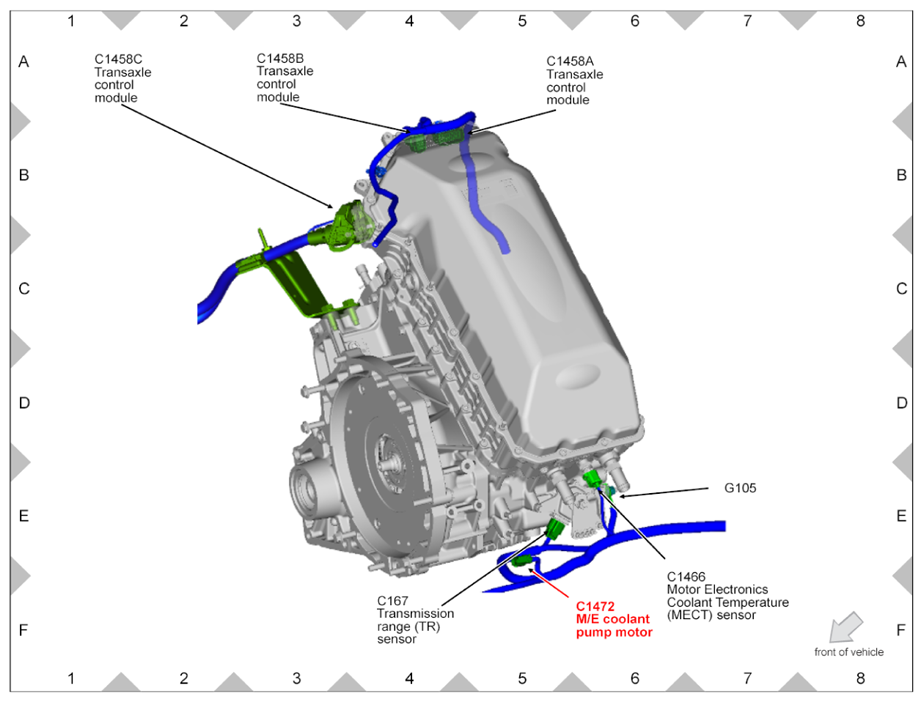

Fig 23: C167 Transmission Range (TR) Sensor Location - On Bottom Front Of Transaxle

Courtesy of FORD MOTOR CO.

Fig 24: C174 Ignition Transformer Capacitor 1 Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 25: C175B C175E C175T Powertrain Control Module (PCM) Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 26: C175B C175E C175T Powertrain Control Module (PCM) Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 27: C175B C175E C175T Powertrain Control Module (PCM) Location - Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 28: C181 Fuel Injector 1 Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 29: C182 Fuel Injector 2 Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 30: C183 Fuel Injector 3 Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 31: C184 Fuel Injector 4 Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

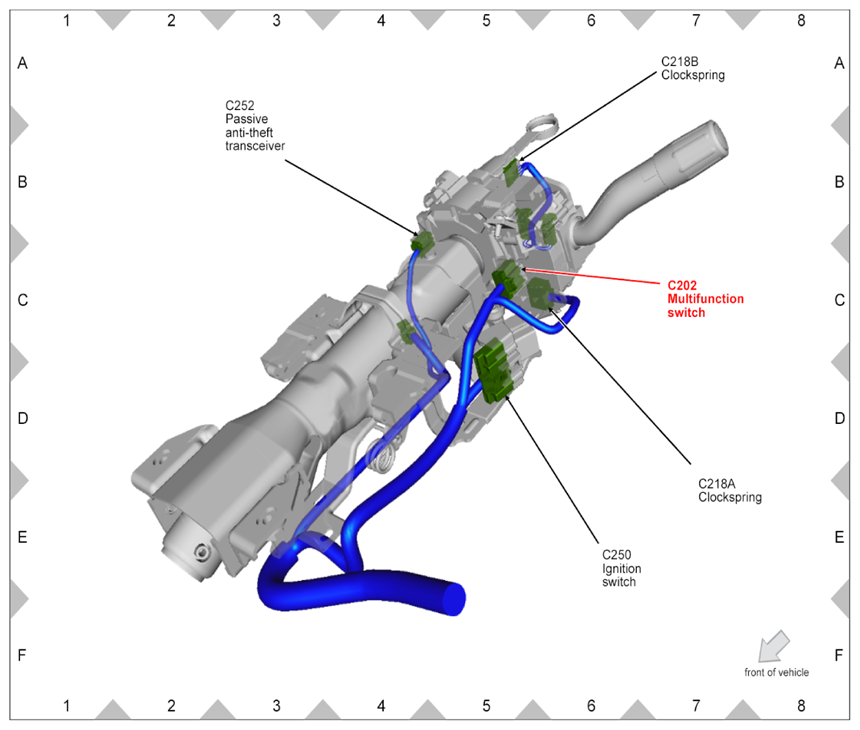

Fig 32: C202 Multifunction Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 33: C205 Main Light Switch Location - In Dash Panel, Far LH Side

Courtesy of FORD MOTOR CO.

Fig 34: C212 Location - Under Dash Panel, Top Of Passenger Side Footwell

Courtesy of FORD MOTOR CO.

Fig 35: C213 Location - Under Dash Panel, Top Of Passenger Side Footwell

Courtesy of FORD MOTOR CO.

Fig 36: C214 Location - LH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 37: C215 Location - LH A-Pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

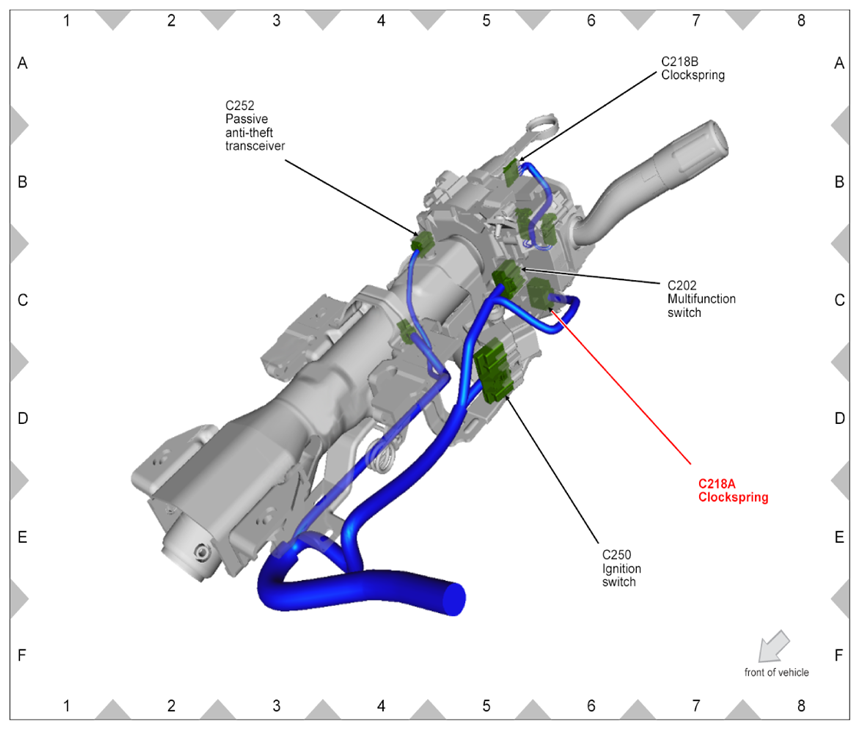

Fig 38: C218A Clock Spring Location - On Steering Column

Courtesy of FORD MOTOR CO.

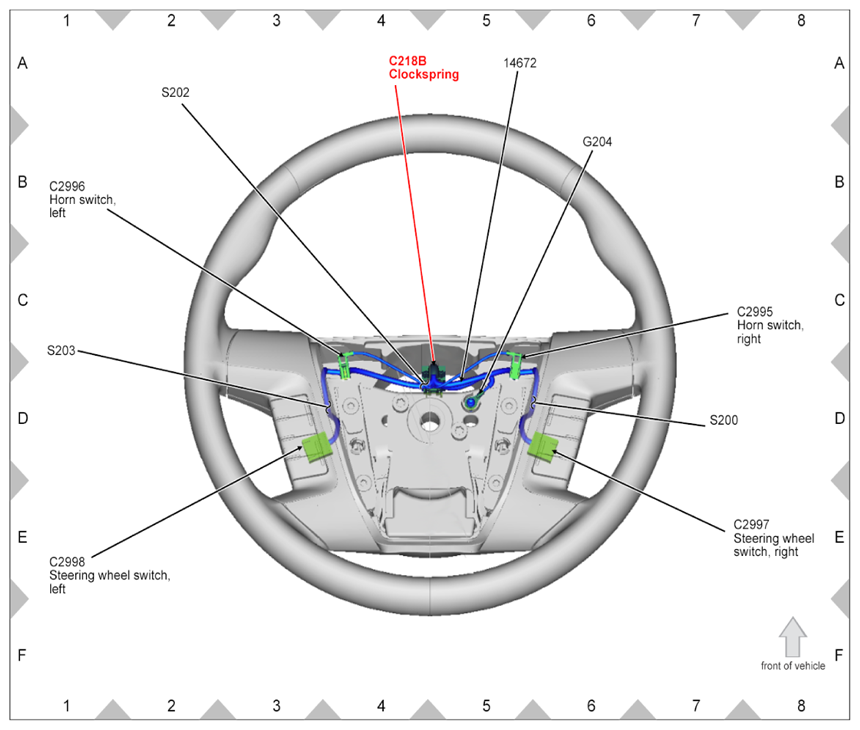

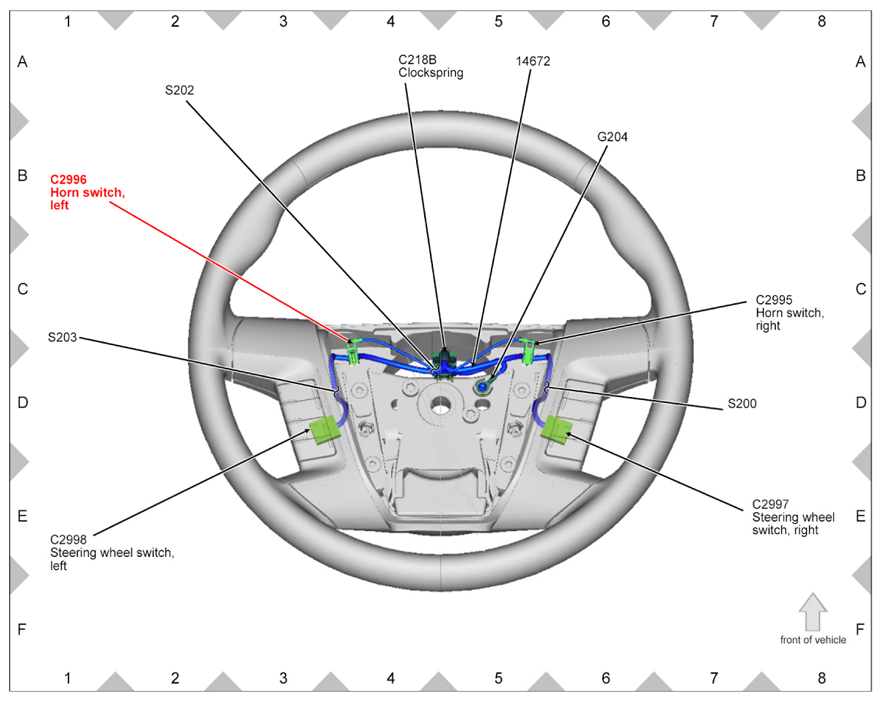

Fig 39: C218B Clockspring Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 40: C219 Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 41: C220 Instrument Panel Cluster (IPC) Location - In Dash Panel, Above Steering Column

Courtesy of FORD MOTOR CO.

Fig 42: C237 Location - RH A-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 43: C240A C240B Audio Control Module (ACM) Location - (THX Audio) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 44: C240A C240B Audio Control Module (ACM) Location - (THX Audio) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 45: C240C C240D Audio Control Module (ACM) Location - Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 46: C240C C240D Audio Control Module (ACM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 47: C250 Ignition Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 48: C251 Data Link Connector (DLC) Location - Under Dash Panel, In Driver Side Footwell

Courtesy of FORD MOTOR CO.

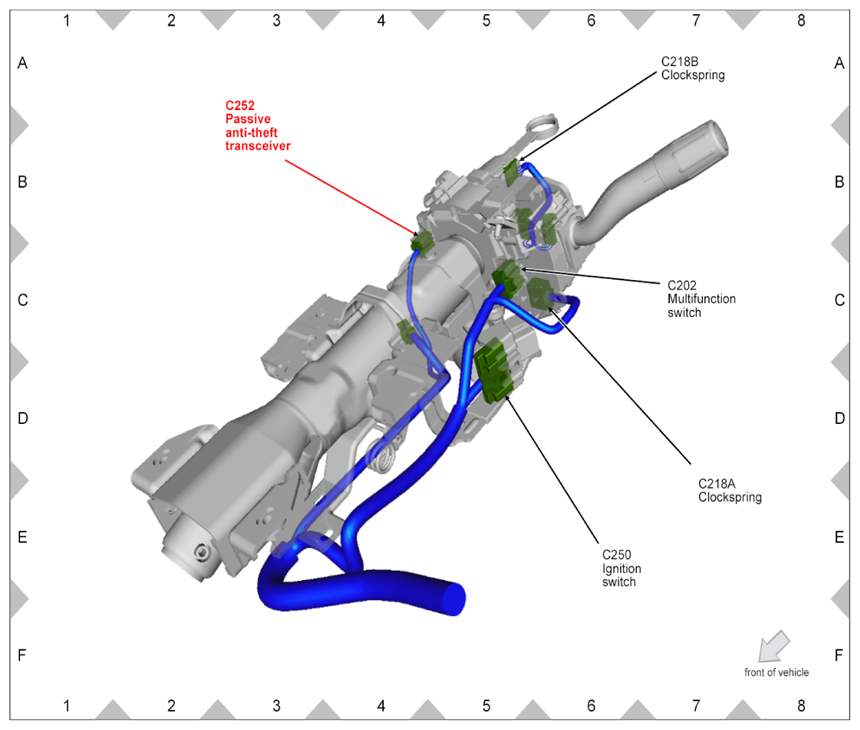

Fig 49: C252 Passive Anti-Theft Transceiver Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 50: C254 Glove Box Lamp Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

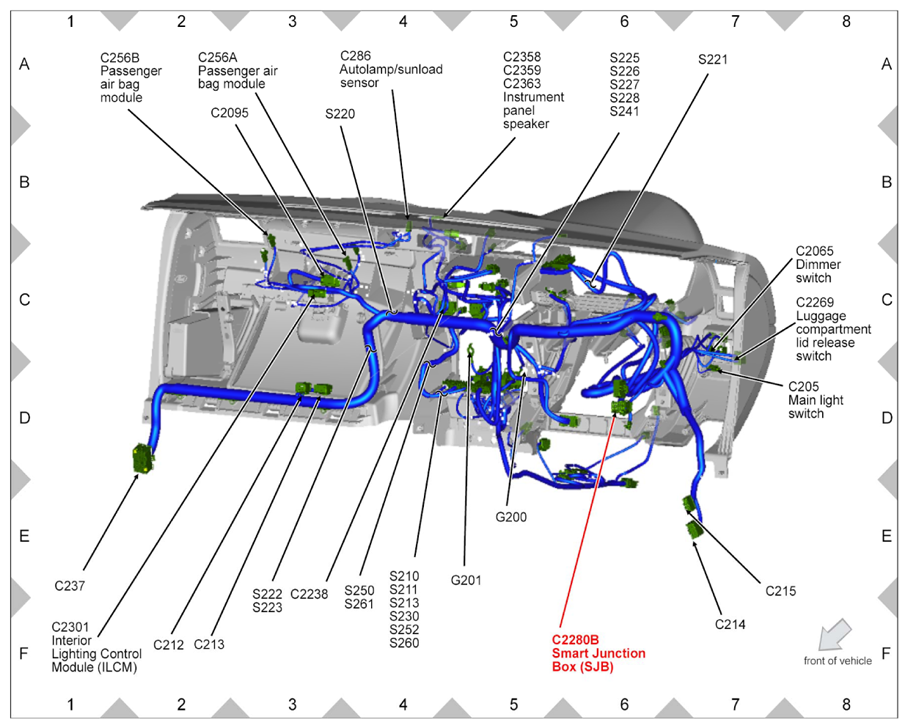

Fig 51: C256A Passenger Air Bag Module Location - Instrument Panel, Right Hand Side

Courtesy of FORD MOTOR CO.

Fig 52: C256B Passenger Air Bag Module Location - Instrument Panel, Right Hand Side

Courtesy of FORD MOTOR CO.

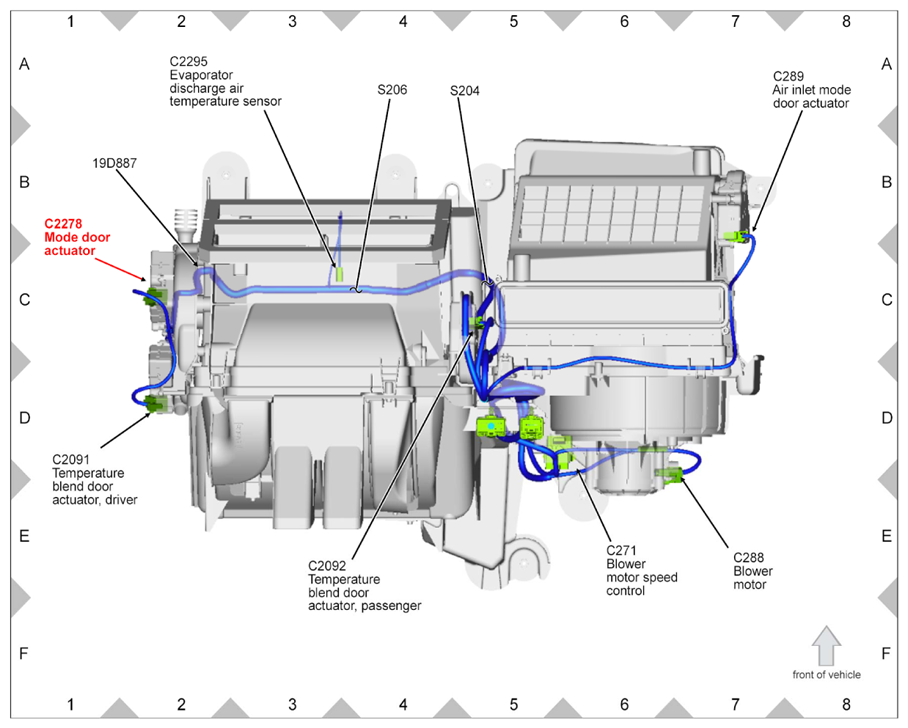

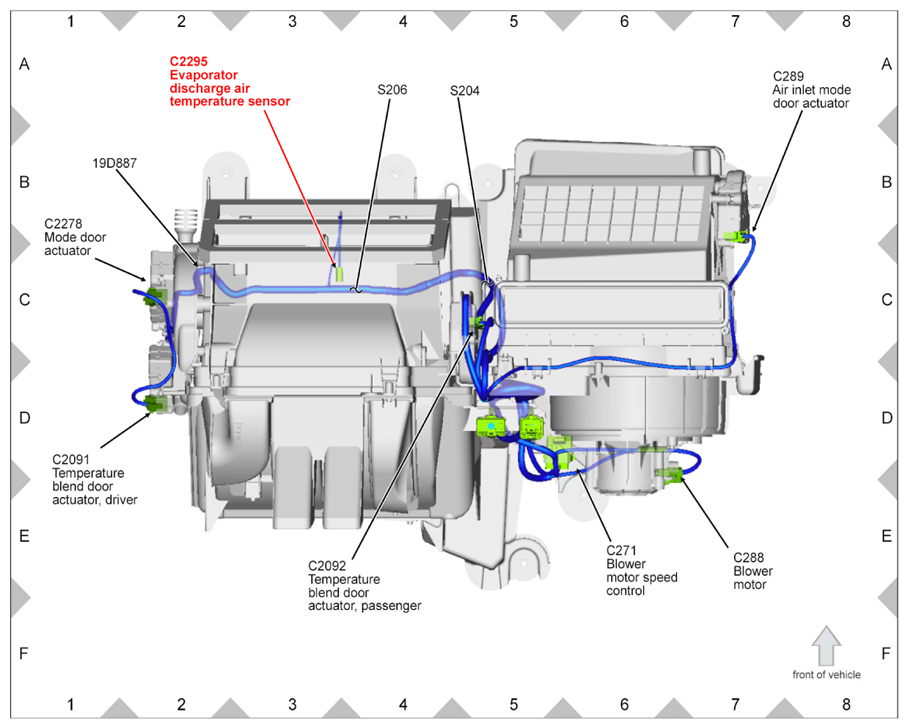

Fig 53: C271 Blower Motor Speed Control Location - (With Automatic A/C) Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 54: C278 Brake Pedal Position (BPP) Switch Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

Fig 55: C286 Autolamp/Sunload Sensor Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 56: C288 Blower Motor Location - Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 57: C289 Air Inlet Mode Door Actuator Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

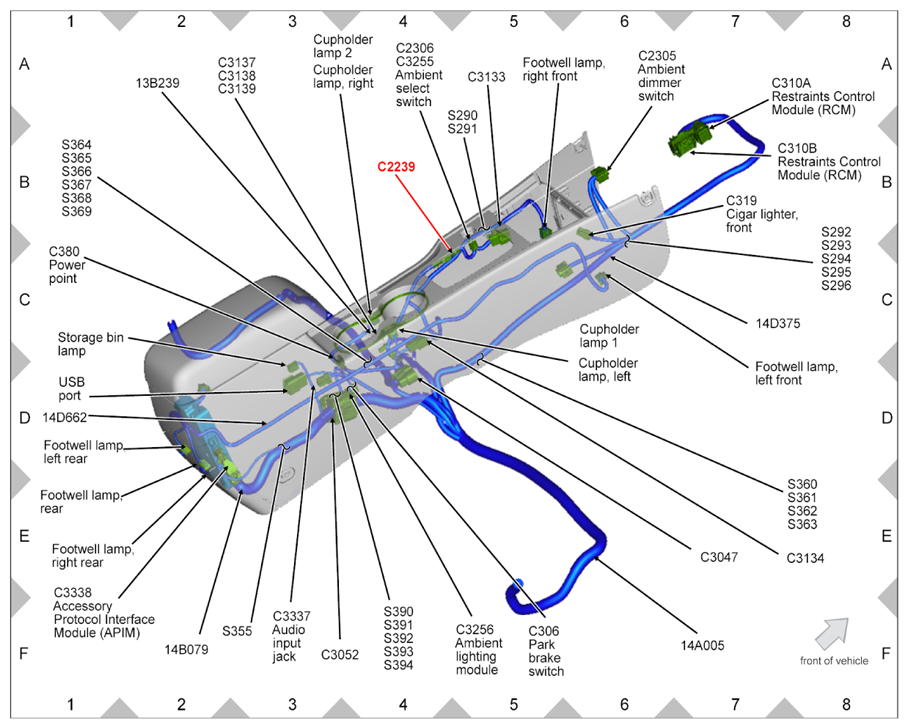

Fig 58: C306 Park Brake Switch Location - In Center Console, Bottom Center Left Side

Courtesy of FORD MOTOR CO.

Fig 59: C310A Restraints Control Module (RCM) Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 60: C310B Restraints Control (Module (RCM) Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

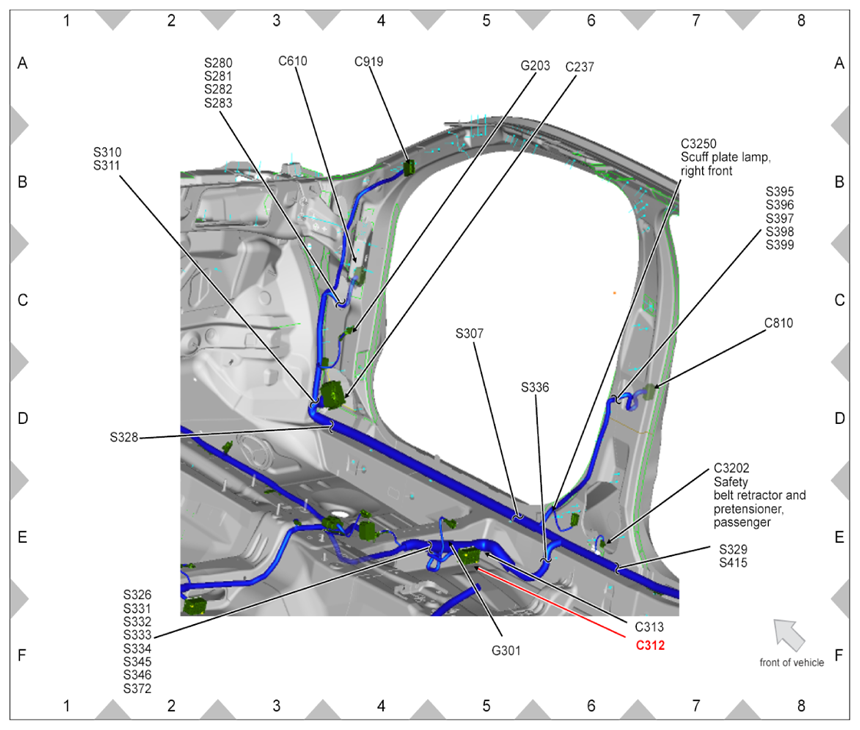

Fig 61: C312 Location - Vehicle Floor, Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 62: C313 Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 63: C314 C3007 Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 64: C315 Location - In Driver Seat Back

Courtesy of FORD MOTOR CO.

Fig 65: C316 Location - Vehicle Floor, Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 66: C316 Location - (With Side Air Curtains) Vehicle Floor, Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 67: C319 Cigar Lighter, Front Location - (Fusion) In Center Console, Top Front

Courtesy of FORD MOTOR CO.

Fig 68: C323 Safety Belt Retractor And Pretensioner, Driver Location - LH B-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 69: C327 Location - Vehicle Floor, Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 70: C328 Location - In Driver Seat Base

Courtesy of FORD MOTOR CO.

Fig 71: C330 C3190 Seat Control Switch, Passenger Side Front Location - In Passenger Seat Base, RH Side

Courtesy of FORD MOTOR CO.

Fig 72: C332 Passenger Seat Horizontal Motor Location - (4-Way Power Seat) In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 73: C334 Location - (With Heated Seats) In Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 74: C335 Location - (With Heated Seats) In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

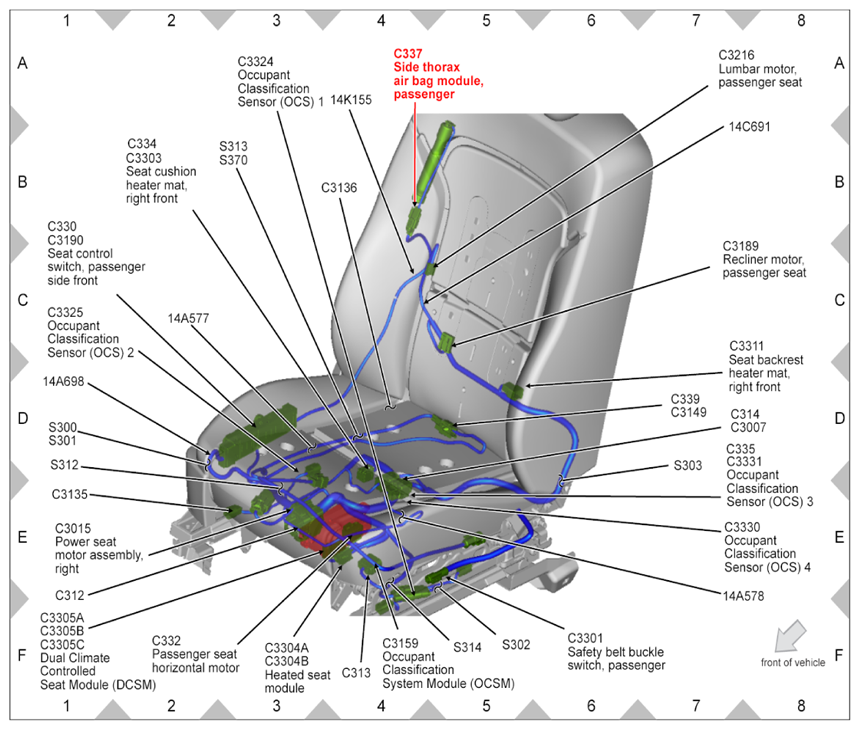

Fig 75: C337 Side Thorax Air Bag Module, Passenger Location - In Passenger Seat Backrest, RH Side

Courtesy of FORD MOTOR CO.

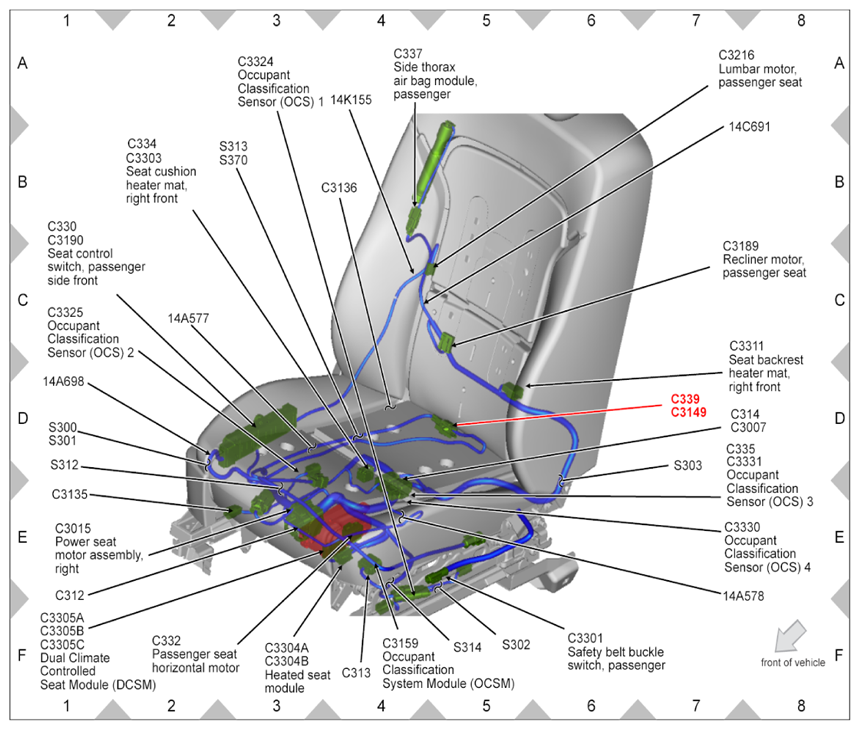

Fig 76: C339 C3149 Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 77: C340 C3049 Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

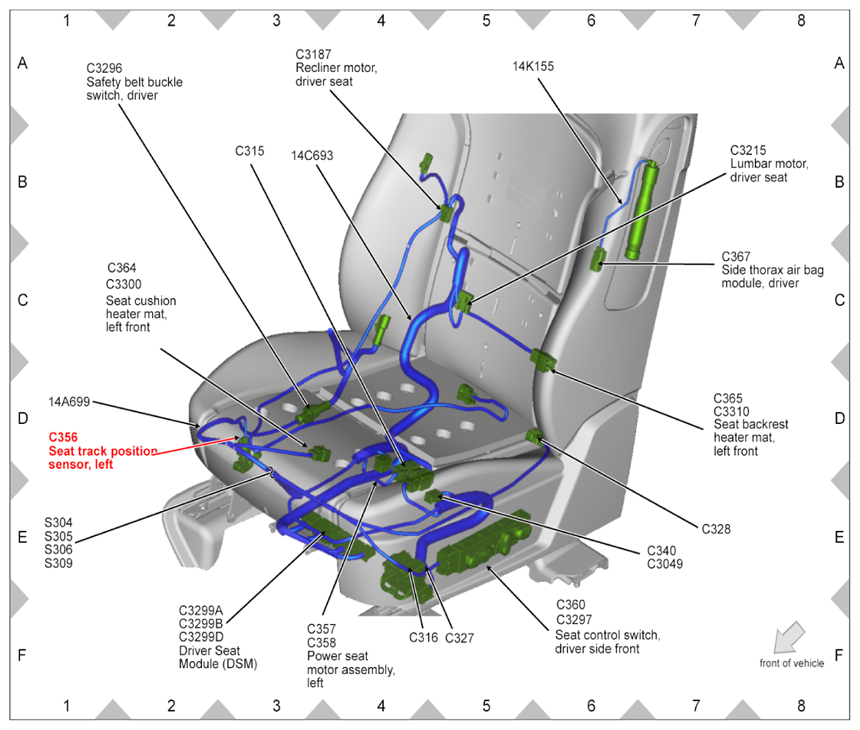

Fig 78: C356 Seat Track Position Sensor, Left Location - In Driver Seat Frame, Front

Courtesy of FORD MOTOR CO.

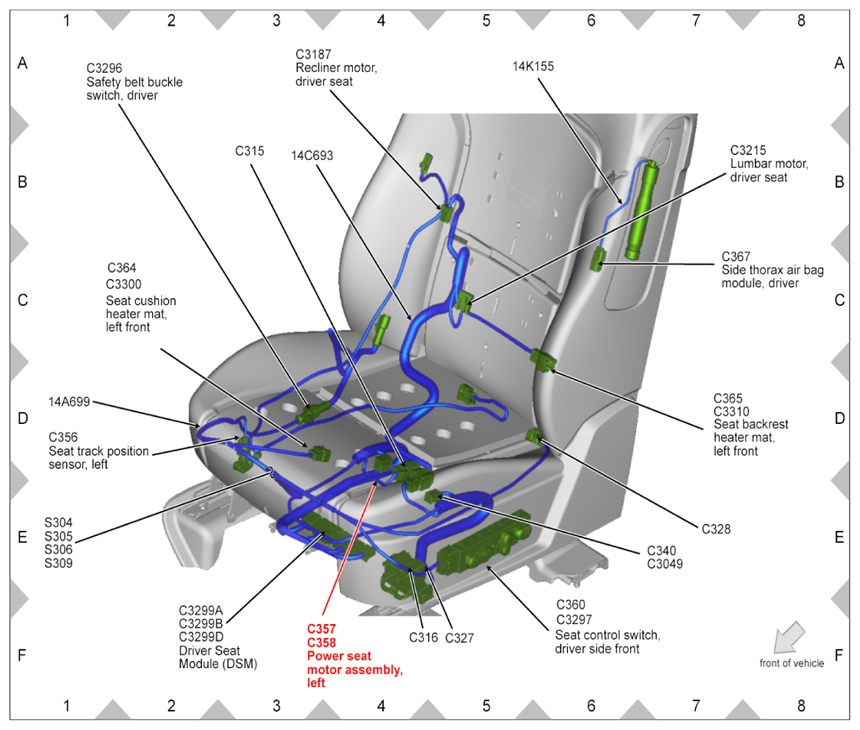

Fig 79: C357 C358 Power Seat Motor Assembly, Left Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 80: C357 C358 Power Seat Motor Assembly, Left Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 81: C360 Location - (10-Way Power Seats) In Driver Seat Base, LH Side

Courtesy of FORD MOTOR CO.

Fig 82: C364 Location - (With Heated Seats) In Driver Seat Base

Courtesy of FORD MOTOR CO.

Fig 83: C365 Location - (With Heated Seats) In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 84: C367 Side Thorax Air Bag Module, Driver Location - In Driver Seat Backrest, LH Side

Courtesy of FORD MOTOR CO.

Fig 85: C370 Cigar Lighter, Front Location - (MKZ) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 86: C380 Power Point Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 87: C402A Rear Window Defrost Grid Location - In Right C-Pillar

Courtesy of FORD MOTOR CO.

Fig 88: C402B Rear Window Defrost Grid Location - LH C-Pillar

Courtesy of FORD MOTOR CO.

Fig 89: C405 C406 C408 Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 90: C406 C408 Location - (Fusion) Rear Of Vehicle, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 91: C405 C406 C408 Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 92: C406 C408 Location - (Fusion) Rear Of Vehicle, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 93: C405 C406 C408 Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 94: C412 Park/Turn/Stop Lamp, Left Rear Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 95: C414 Lamp Assembly, Left Rear Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 96: C415 Park/Turn/Stop Lamp, Right Rear Location - (Fusion) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 97: C417 Lamp Assembly, Right Rear Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 98: C418 Park/Stop Lamp, Right Rear Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 99: C419 Park/Stop Lamp, Left Rear Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

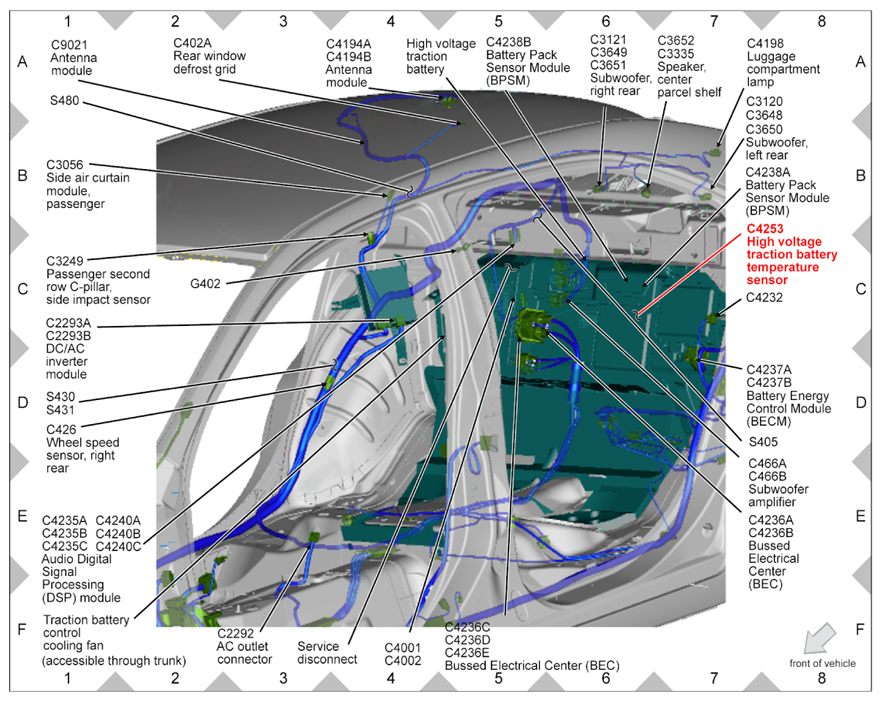

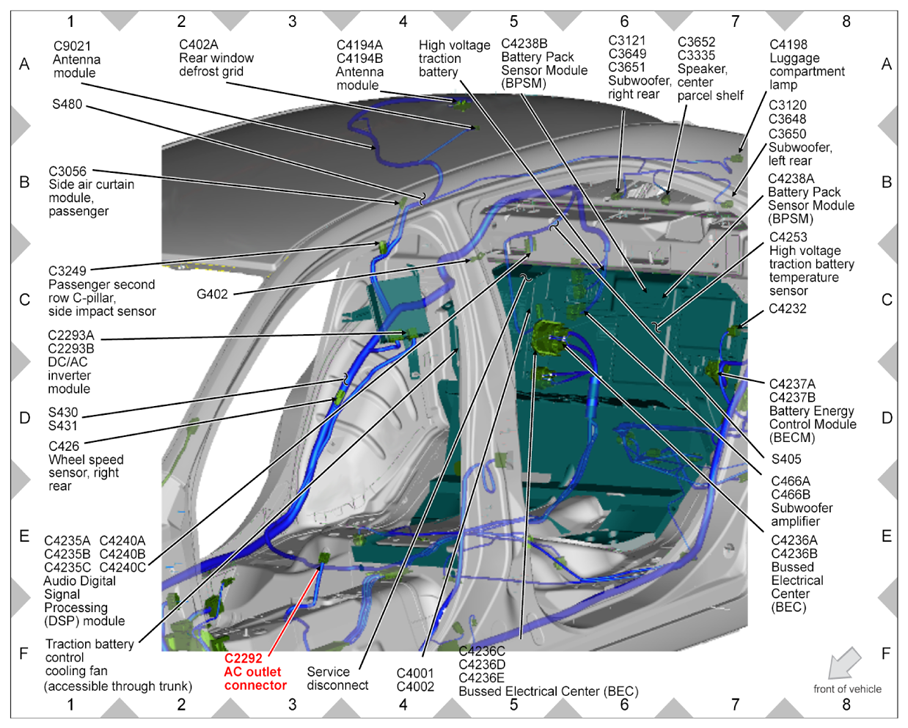

Fig 100: C426 Wheel Speed Sensor, Right Rear Location - In C-Pillar, Bottom

Courtesy of FORD MOTOR CO.

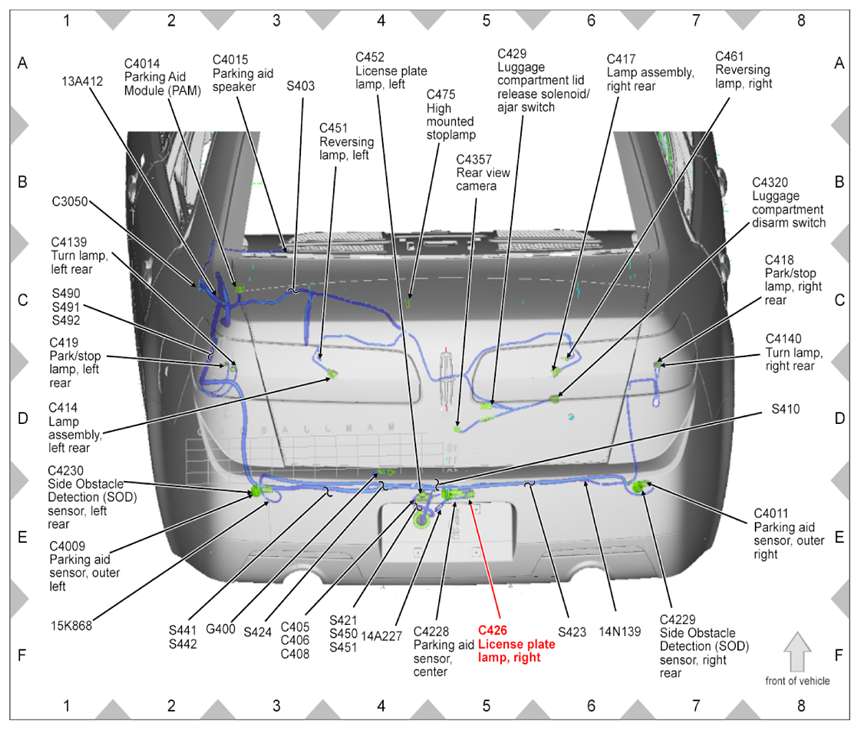

Fig 101: C426 License Plate Lamp, Right Location - (MKZ) Vehicle Rear End, Right Of Center

Courtesy of FORD MOTOR CO.

Fig 102: C429 Luggage Compartment Lid Release Solenoid/Ajar Switch Location - (Fusion) Luggage Compartment, Rear, Center

Courtesy of FORD MOTOR CO.

Fig 103: C429 Luggage Compartment Lid Release Solenoid/Ajar Switch Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 104: C433 Fuel Tank Unit Location - Top Of Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 105: C435 Fuel Tank Pressure (FTP) Sensor Location - On Fuel Tank

Courtesy of FORD MOTOR CO.

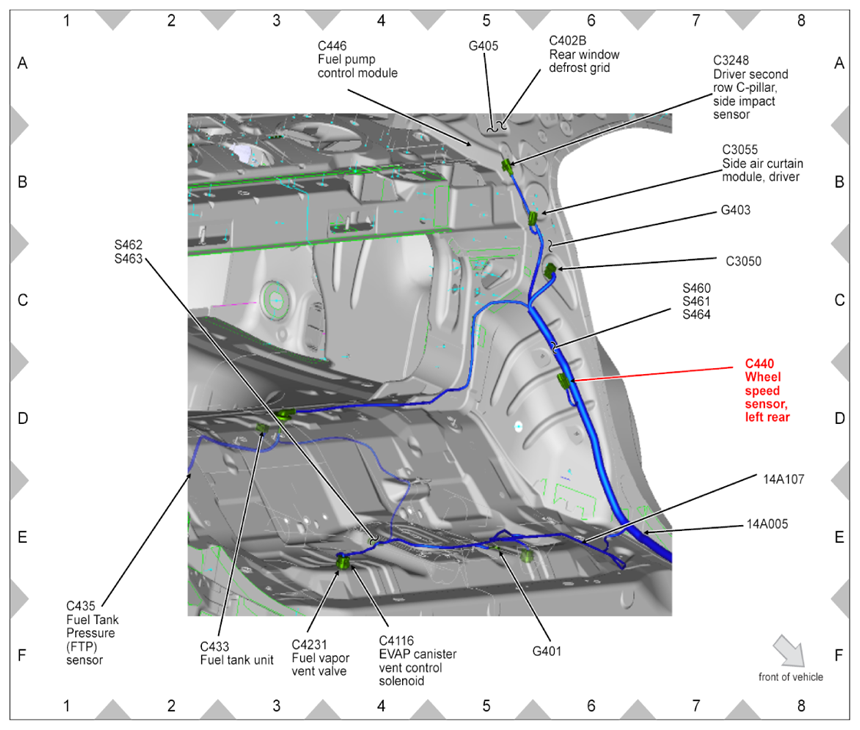

Fig 106: C440 Wheel Speed Sensor, Left Rear Location - Vehicle Underbody, Near Rear Axle, LH Side

Courtesy of FORD MOTOR CO.

Fig 107: C446 Fuel Pump Control Module Location - LH C-Pillar

Courtesy of FORD MOTOR CO.

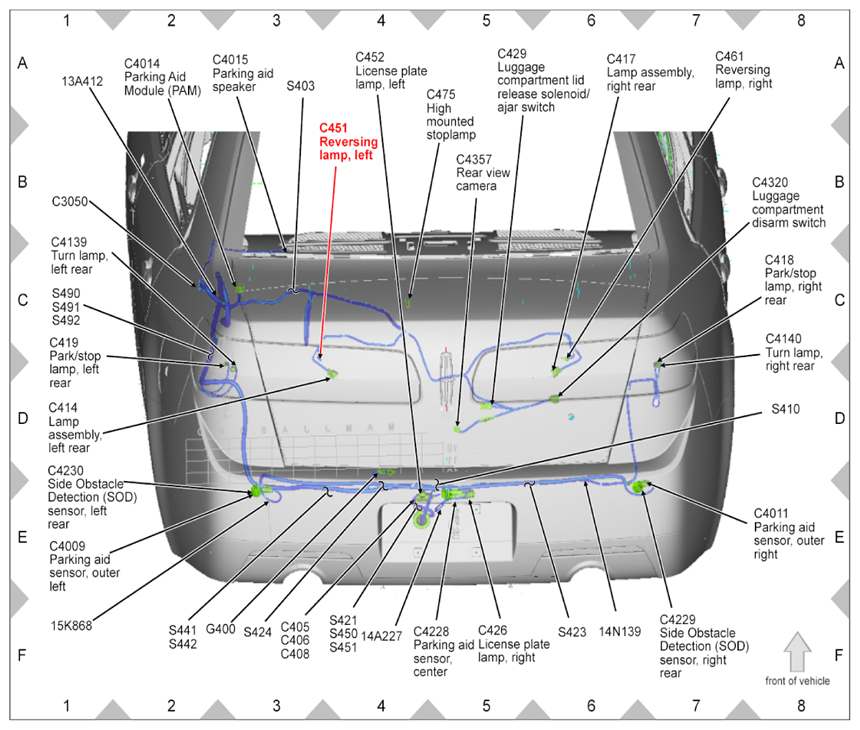

Fig 108: C451 Reversing Lamp, Left Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 109: C452 License Plate Lamp, Left Location - (Fusion) Rear Of Vehicle, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 110: C452 License Plate Lamp, Left Location - (MKZ) Vehicle Rear End, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 111: C461 Reversing Lamp, Right Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

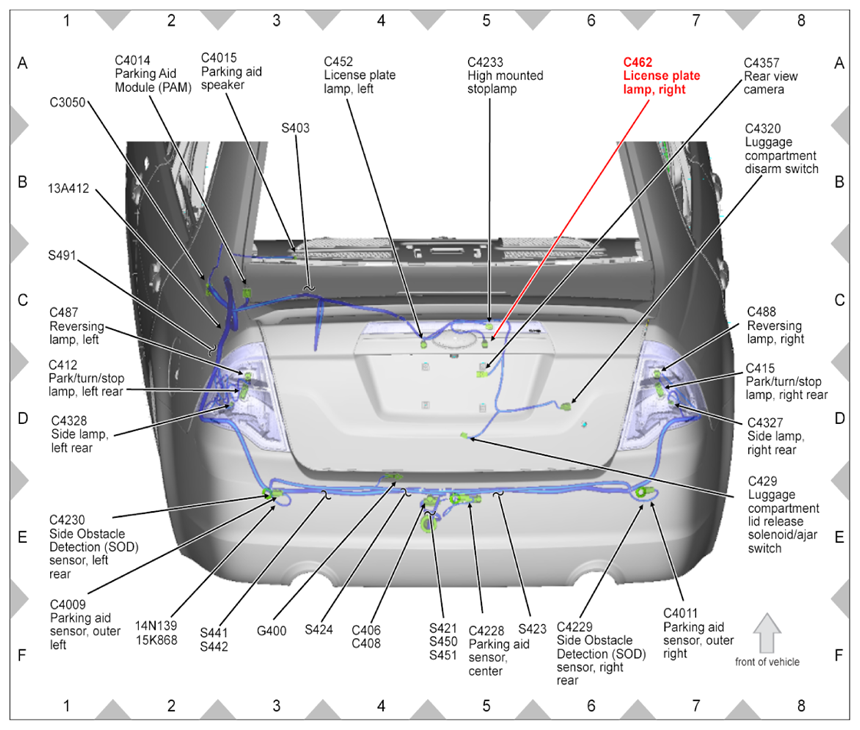

Fig 112: C462 License Plate Lamp, Right Location - (Fusion) Rear Of Vehicle, Right Of Center

Courtesy of FORD MOTOR CO.

Fig 113: C466A C466B Subwoofer Amplifier Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 114: C466A C466B Subwoofer Amplifier Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 115: C475 High Mounted Stoplamp Location - (MKZ) In Luggage Compartment

Courtesy of FORD MOTOR CO.

Fig 116: C487 Reversing Lamp, Left Location - (Fusion) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 117: C488 Reversing Lamp, Right Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 118: C503 Memory Set Switch Location - In Driver Door, Below Window

Courtesy of FORD MOTOR CO.

Fig 119: C505 Door Lock Switch, Driver Side Location - In Driver Door, Forward Side, Below Window

Courtesy of FORD MOTOR CO.

Fig 120: C510 Location - (Fusion) LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 121: C510 Location - (Fusion) LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 122: C511 Location - (MKZ) LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 123: C517 Exterior Rear View Mirror, LH Side Location - (Fusion) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 124: C522 Exterior Rear View Mirror, LH Side Location - (MKZ) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 125: C523 Speaker, Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 126: C525 Door Lock Actuator Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 127: C527 Exterior Rear View Mirror Switch Location - (Fusion) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 128: C527 Exterior Rear View Mirror Switch Location - (MKZ) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 129: C530 Keypad Switch Assembly Location - Driver Door Exterior

Courtesy of FORD MOTOR CO.

Fig 130: C535A Master Window Control Switch Location - In Driver Door, On Armrest

Courtesy of FORD MOTOR CO.

Fig 131: C535B Master Window Control Switch Location - In Driver Door, On Armrest

Courtesy of FORD MOTOR CO.

Fig 132: C540 Power Window Motor, Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 133: C567 Side Impact Sensor, Driver Front Door Location - In Drivers Door

Courtesy of FORD MOTOR CO.

Fig 134: C568A C568B Driver Door Module (DDM) Location - In Driver Door, Forward Side

Courtesy of FORD MOTOR CO.

Fig 135: C568A C568B Driver Door Module (DDM) Location - In Driver Door, Forward Side

Courtesy of FORD MOTOR CO.

Fig 136: C576 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Left Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 137: C578 Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 138: C591 Tweeter, Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 139: C603 Door Lock Actuator, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 140: C605 Door Lock Switch, Passenger Side Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 141: C608 C623 Power Window Motor, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 142: C610 Location - RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 143: C612 Speaker, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 144: C608 C623 Power Window Motor, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

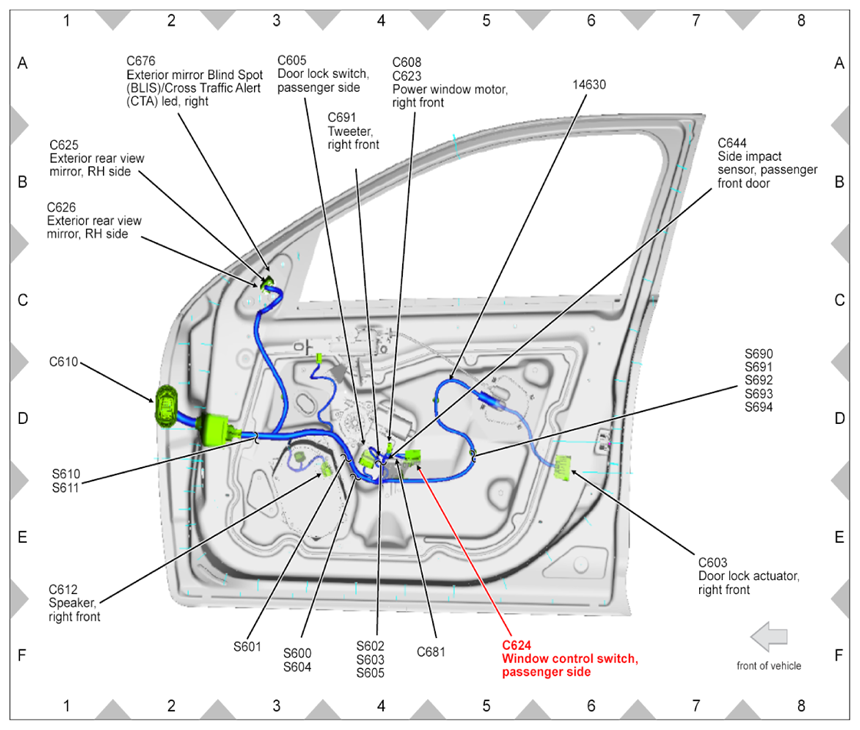

Fig 145: C624 Window Control Switch, Passenger Side Location - On Passenger Door Armrest

Courtesy of FORD MOTOR CO.

Fig 146: C625 Exterior Rear View Mirror, RH Side Location - (Fusion) Passenger Door Exterior

Courtesy of FORD MOTOR CO.

Fig 147: C626 Exterior Rear View Mirror, RH Side Location - (MKZ) Passenger Door Exterior

Courtesy of FORD MOTOR CO.

Fig 148: C644 Side Impact Sensor, Passenger Front Door Location - In Passenger Side Front Door

Courtesy of FORD MOTOR CO.

Fig 149: C676 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right Location - In Exterior Rear View Mirror, RH Side

Courtesy of FORD MOTOR CO.

Fig 150: C681 Location - On Passenger Door Armrest

Courtesy of FORD MOTOR CO.

Fig 151: C691 Tweeter, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 152: C701 Window Control Switch, Left Rear Location - On Left Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 153: C702 Speaker, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 154: C703 Power Window Motor, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

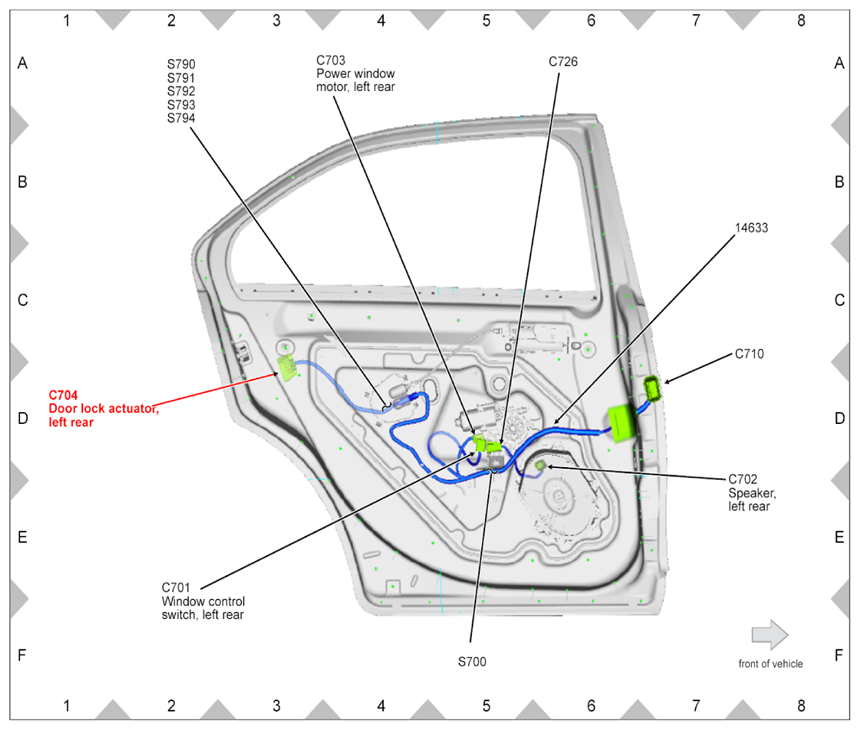

Fig 155: C704 Door Lock Actuator, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 156: C710 Location - LH B-Pilar

Courtesy of FORD MOTOR CO.

Fig 157: C726 Location - On Left Rear Door Armrest

Courtesy of FORD MOTOR CO.

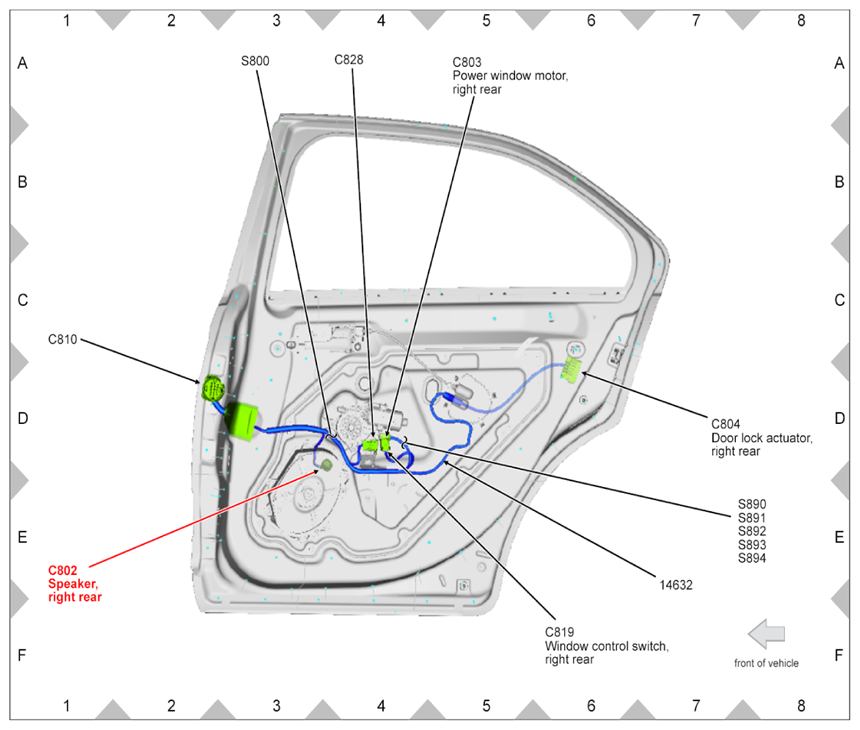

Fig 158: C802 Speaker, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 159: C803 Power Window Motor, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 160: C804 Door Lock Actuator, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 161: C810 Location - RH B-Pilar

Courtesy of FORD MOTOR CO.

Fig 162: C819 Window Control Switch, Right Rear Location - On Right Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 163: C828 Location - On Right Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 164: C901 Interior Lamp, Rear Location - In Roof Panel

Courtesy of FORD MOTOR CO.

Fig 165: C906 Vanity Mirror Lamp, Right Location - In Roof Panel, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 166: C907 Vanity Mirror Lamp, Left Location - In Roof Panel, Front, LH Side

Courtesy of FORD MOTOR CO.

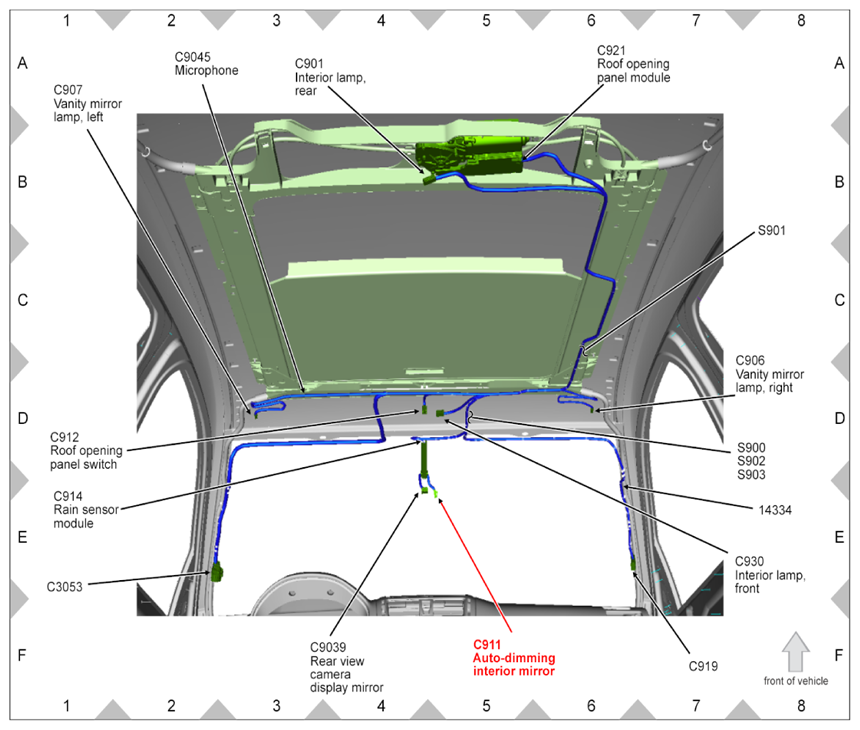

Fig 167: C911 Auto-Dimming Interior Mirror Location - On Interior Rear View Mirror

Courtesy of FORD MOTOR CO.

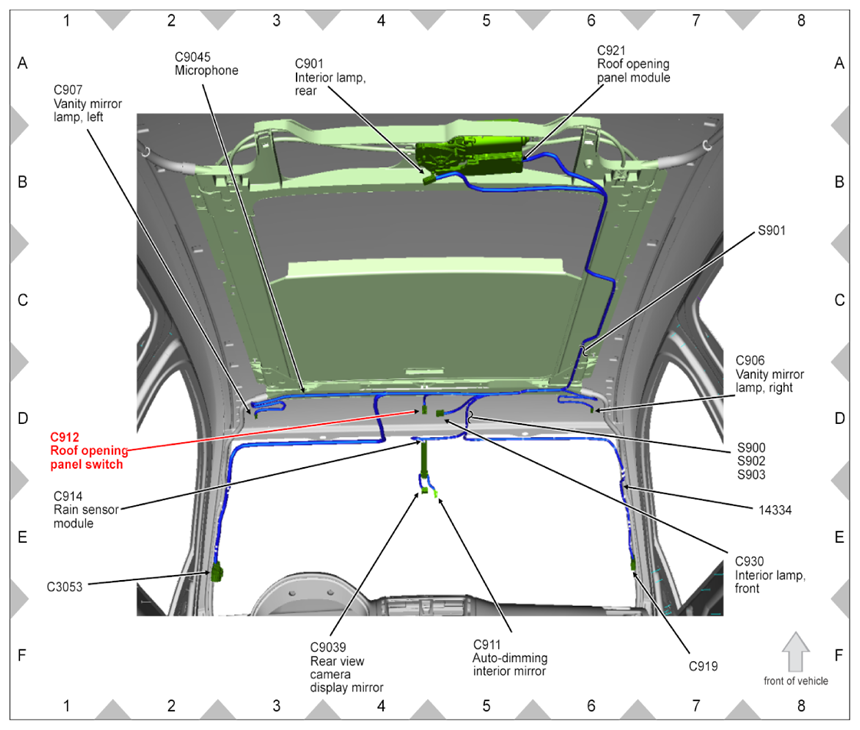

Fig 168: C912 Roof Opening Panel Switch Location - In Overhead Console

Courtesy of FORD MOTOR CO.

Fig 169: C914 Rain Sensor Module Location - On Windshield, Front Center

Courtesy of FORD MOTOR CO.

Fig 170: C919 Location - RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 171: C921 Roof Opening Panel Module Location - In Roof Panel, Behind Moonroof Panel

Courtesy of FORD MOTOR CO.

Fig 172: C930 Interior Lamp, Front Location - In Roof Panel, Behind Moonroof Panel

Courtesy of FORD MOTOR CO.

Fig 173: C1010 Location - Near Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 174: C1019 Location - (2.5L) Near Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 175: C1021 Headlamp, Left Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 176: C1023 Park/Turn Lamp, Left Front Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 177: C1026 Location - On Top Of Engine Near Transaxle

Courtesy of FORD MOTOR CO.

Fig 178: C1035 Battery Junction Box (BJB) Location - Left Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 179: C1041 Headlamp, Right Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 180: C1043 Park/Turn Lamp, Right Front Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 181: C1048 Engine Cooling Fan Motor Location - On Cooling Fan

Courtesy of FORD MOTOR CO.

Fig 182: C1087 Manifold Absolute Pressure (Map) Sensor Location - On Engine, Rear Side Of Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 183: C1100B Battery Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 184: C1100C C1100D Battery Location - Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 185: C1100C C1100D Battery Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 186: C1113 Parking Lamp, Left Front Location - (MKZ) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 187: C1114 Parking Lamp, Right Front Location - (MKZ) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 188: C1119 Vacuum Pump Motor Location - On Top Of Engine In Front

Courtesy of FORD MOTOR CO.

Fig 189: C1120 Crankshaft Position (CKP) Sensor Location - (2.5L) On Engine, Front, Near Crankshaft Pully

Courtesy of FORD MOTOR CO.

Fig 190: C1160 EGR Stepper Motor Location - On Engine, Rear Side Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 191: C1164 Cylinder Head Temperature (CHT) Sensor Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 192: C1180 Camshaft Position (CMP) Sensor Location - On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 193: C1260 A/C Pressure Transducer Location - Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

Fig 194: C1280 Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 195: C1281 Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 196: C1368 Electronic Throttle Control (ETC) Module Location - On Throttle Body

Courtesy of FORD MOTOR CO.

Fig 197: C1443 Side Lamp, Left Front Location - (Fusion) On Left Front Fender

Courtesy of FORD MOTOR CO.

Fig 198: C1444 Side Lamp, Right Front Location - (Fusion) On Right Front Fender

Courtesy of FORD MOTOR CO.

Fig 199: C1450 Auxiliary Coolant Flow Pump Location - On Lower Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 200: C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - Engine Compartment, LH Side, On Air Intake

Courtesy of FORD MOTOR CO.

Fig 201: C1457A DC/DC Converter Module Location - In Right Hand Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 202: C1457B DC/DC Converter Module Location - In Right Hand Front Corner Of Engine

Courtesy of FORD MOTOR CO.

Fig 203: C1457 C1457D DC/DC Converter Module Location - Right Hand Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 204: C1457C C1457D DC/DC Converter Module Location - In Right Hand Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 205: C1458A Transaxle Control Module Location - On Transaxle

Courtesy of FORD MOTOR CO.

Fig 206: C1458B Transaxle Control Module Location - On Transaxle

Courtesy of FORD MOTOR CO.

Fig 207: C1458C Transaxle Control Module Location - Transaxle

Courtesy of FORD MOTOR CO.

Fig 208: C1464 Front Impact Sensor, Left Location - On Front Of Radiator

Courtesy of FORD MOTOR CO.

Fig 209: C1465 Front Impact Sensor, Right Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 210: C1466 Motor Electronics Coolant Temperature (MECT) Sensor Location - On Transaxle

Courtesy of FORD MOTOR CO.

Fig 211: C1467A C1467B Power Steering Control Module (PSCM) Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 212: C1467A C1467B Power Steering Control Module (PSCM) Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 213: C1469A Air Conditioning Compressor Module (ACCM) Location - On Lower Front Of Engine

Courtesy of FORD MOTOR CO.

Fig 214: C1469B Air Conditioning Compressor Module (ACCM) Location - On Lower Front Of Engine

Courtesy of FORD MOTOR CO.

Fig 215: C1472 M/E Coolant Pump Motor Location - Near Bottom Front Of Transaxle

Courtesy of FORD MOTOR CO.

Fig 216: C1542 Variable Camshaft Timing (VCT) Solenoid Location - Top Of Engine, Front

Courtesy of FORD MOTOR CO.

Fig 217: C1571 Universal Heated Oxygen Sensor (HO2S) #11 Location - Near Front Of Engine By Exhaust Manifold

Courtesy of FORD MOTOR CO.

Fig 218: C1600 Headlamp Control Module (HCM) Location - (MKZ) Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 219: C1602 Brake Booster Solenoid Location - Left Hand Rear Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 220: C1603 Brake Booster Vacuum Sensor Location - Left Hand Rear Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 221: C1620A C1620B Dual Battery Fuse Assembly Location - On Battery

Courtesy of FORD MOTOR CO.

Fig 222: C1620A C1620B Dual Battery Fuse Assembly Location - On Battery

Courtesy of FORD MOTOR CO.

Fig 223: C2039 Hazard Flasher Switch Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 224: C2065 Dimmer Switch Location - In Dash Panel, Far LH Side

Courtesy of FORD MOTOR CO.

Fig 225: C2091 Temperature Blend Door Actuator, Driver Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 226: C2092 Temperature Blend Door Actuator, Passenger Location - Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 227: C2095 Location - Behind Instrument Panel, Right Hand Side

Courtesy of FORD MOTOR CO.

Fig 228: C2157 Windshield Wiper Module Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 229: C2238 Location - Behind Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 230: C2239 Location - In Center Console, Left Front

Courtesy of FORD MOTOR CO.

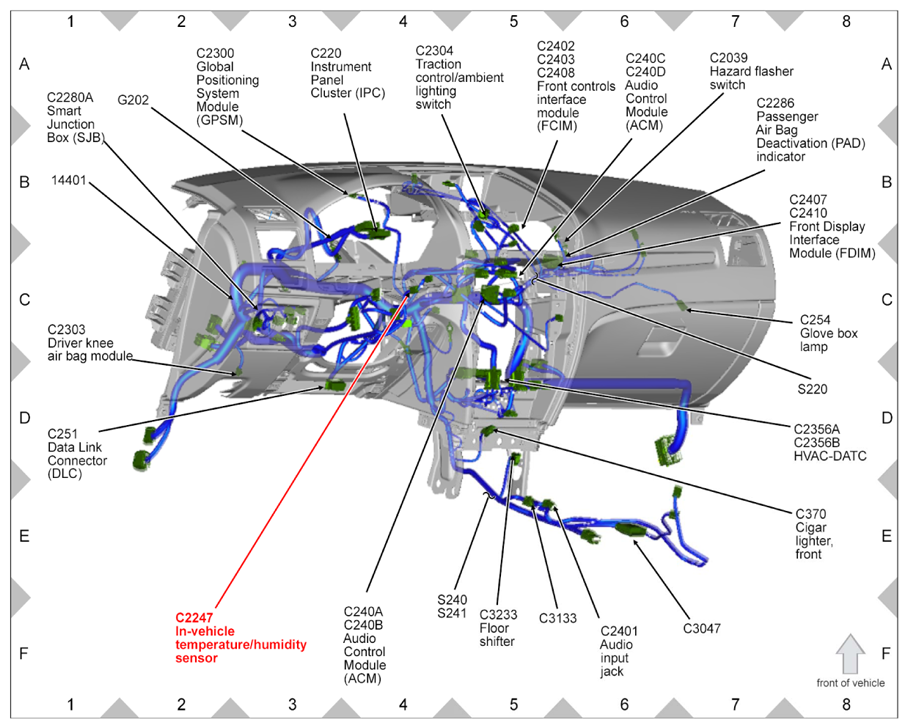

Fig 231: C2247 In-Vehicle Temperature/Humidity Sensor Location - Behind Dash Panel, Right Of Steering Column

Courtesy of FORD MOTOR CO.

Fig 232: C2269 Luggage Compartment Lid Release Switch Location - In Dash Panel, Far LH Side

Courtesy of FORD MOTOR CO.

Fig 233: C2278 Mode Door Actuator Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 234: C2280A Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 235: C2280B Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 236: C2280C Smart Junction Box (SJB) Location - Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 237: C2280D Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 238: C2280E C2280G Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 239: C2280F Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 240: C2280G Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 241: C2286 Passenger Air Bag Deactivation (Pad) Indicator Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 242: C2292 AC Outlet Connector Location - In Rear Of Center Console

Courtesy of FORD MOTOR CO.

Fig 243: C2293A C2293B DC/DC Inverter Module Location - On Right Rear Wheel Well

Courtesy of FORD MOTOR CO.

Fig 244: C2293A C2293B DC/AC Inverter Module Location - On Right Rear Wheel Well

Courtesy of FORD MOTOR CO.

Fig 245: C2295 Evaporator Discharge Air Temperature Sensor Location - Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 246: C2299 Brake Pedal Angle Sensor Location - Near Brake Pedal Lever

Courtesy of FORD MOTOR CO.

Fig 247: C2300 Global Positioning System Module (GPSM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 248: C2301 Interior Lighting Control Module (ILCM) Location - (MKZ) Right Side Of Dash Panel, Behind Glove Box

Courtesy of FORD MOTOR CO.

Fig 249: C2302 Accelerator Pedal Position (APP) Sensor Location - On Accelerator Pedal Support

Courtesy of FORD MOTOR CO.

Fig 250: C2303 Driver Knee Air Bag Module Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 251: C2304 Traction Control/Ambient Lighting Switch Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 252: C2305 Ambient Dimmer Switch Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 253: C2306 C3255 Ambient Select Switch Location - In Center Console

Courtesy of FORD MOTOR CO.

Fig 254: C2356A C2356B HVAC-DATC Location - (With Dual Zone Climate Control) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 255: C2356A C2356B HVAC-DATC Location - (With Dual Zone Climate Control) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 256: C2358 C2359 C2363 Instrument Panel Speaker Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 257: C2358 C2359 C2363 Instrument Panel Speaker Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 258: C2358 C2359 C2363 Instrument Panel Speaker Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 259: C2401 Audio Input Jack Location - Below Dash Panel, In Center Console

Courtesy of FORD MOTOR CO.

Fig 260: C2402 C2403 C2408 Front Controls Interface Module (FCIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 261: C2402 C2403 C2408 Front Controls Interface Module (FCIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 262: C2405 Simulator Cut-Off Valve Pressure Sensor Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

Fig 263: C2406 Simulator Cut-Off Valve Solenoid Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

Fig 264: C2407 C2410 Front Display Interface Module (FDIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 265: C2402 C2403 C2408 Front Controls Interface Module (FCIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 266: C2407 C2410 Front Display Interface Module (FDIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 267: C2995 Horn Switch, Right Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 268: C2996 Horn Switch Left Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 269: C2997 Steering Wheel Switch, Right Location - On Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 270: C2998 Steering Wheel Switch, Left Location - On Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 271: C314 C3007 Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 272: C3015 Power Seat Motor Assembly, Right Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 273: C3047 Location - In Center Console, Bottom Center

Courtesy of FORD MOTOR CO.

Fig 274: C340 C3049 Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 275: C3050 Location - Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

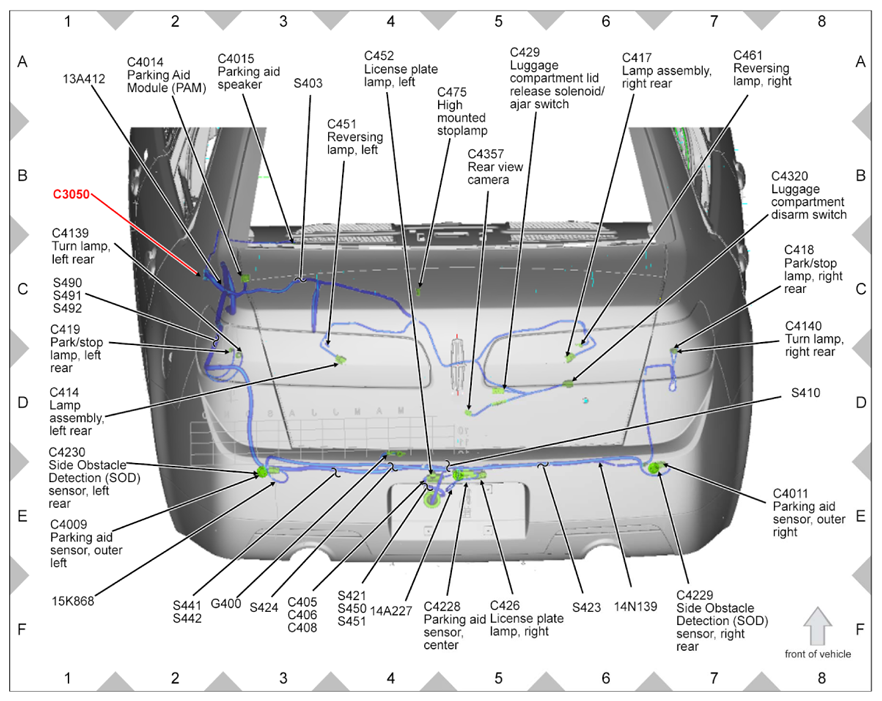

Fig 276: C3050 Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 277: C3050 Location - (MKZ) Luggage Compartment,

Courtesy of FORD MOTOR CO.

Fig 278: C3052 Location - In Center Console, Bottom Center Right Side

Courtesy of FORD MOTOR CO.

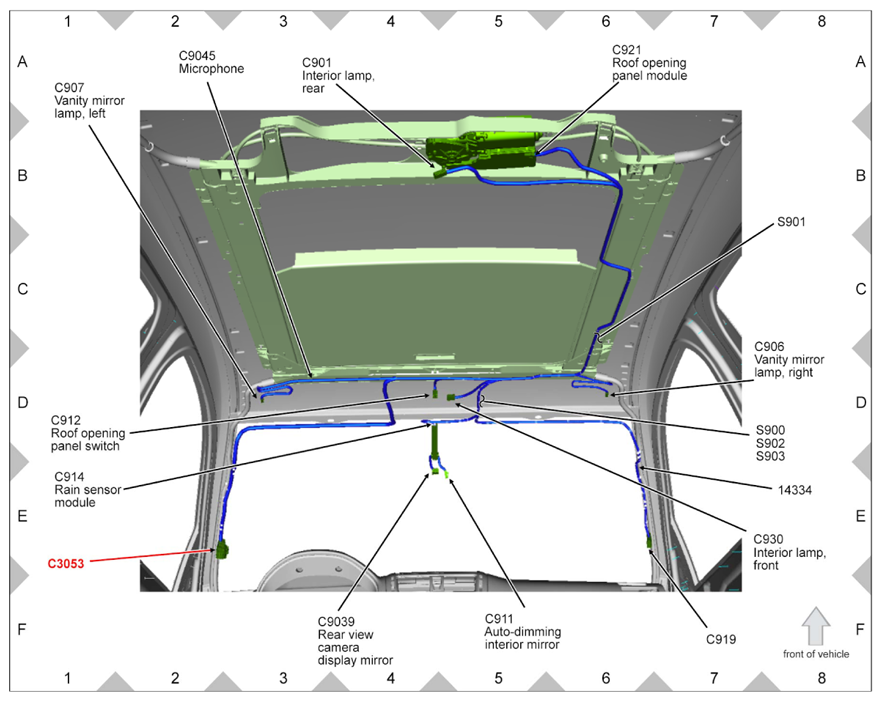

Fig 279: C3053 Location - LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 280: C3055 Side Air Curtain Module, Driver Location - LH C-Pillar

Courtesy of FORD MOTOR CO.

Fig 281: C3056 Side Air Curtain Module, Passenger Location - In Right C-Pillar

Courtesy of FORD MOTOR CO.

Fig 282: C3120 Location - (Premium Audio) Behind Rear Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 283: C3121 Location - (Premium Audio) Behind Rear Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 284: C3133 Location - Below Dash Panel, Center, Near Center Console

Courtesy of FORD MOTOR CO.

Fig 285: C3134 Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 286: C3135 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 287: C3136 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 288: C3137 C3138 C3139 Location - In Center Console Center Top Near Cupholder

Courtesy of FORD MOTOR CO.

Fig 289: C3137 C3138 C3139 Location - In Center Console, Center Top Near Cupholder

Courtesy of FORD MOTOR CO.

Fig 290: C3137 C3138 C3139 Location - In Center Console, Center Top Near Cupholder

Courtesy of FORD MOTOR CO.

Fig 291: C339 C3149 Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 292: C3159 Occupant Classification System Module (OCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 293: C3187 Recliner Motor, Driver Seat Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 294: C3189 Recliner Motor, Passenger Seat Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 295: C330 C3190 Seat Control Switch, Passenger Side Front Location - In Passenger Seat Base, RH Side

Courtesy of FORD MOTOR CO.

Fig 296: C3202 Safety Belt Retractor And Pretensioner, Passenger Location - RH B-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 297: C3215 Lumbar Motor, Driver Seat Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 298: C3216 Lumbar Motor, Passenger Seat Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 299: C3233 Floor Shifter Location - In Center Console

Courtesy of FORD MOTOR CO.

Fig 300: C3248 Driver Second Row C-Pillar, Side Impact Sensor Location - LH C-Pillar

Courtesy of FORD MOTOR CO.

Fig 301: C3249 Passenger Second Row C-Pillar, Side Impact Sensor Location - In Right C-Pillar

Courtesy of FORD MOTOR CO.

Fig 302: C3250 Scuff Plate Lamp, Right Front Location - (MKZ) RH B-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 303: C3251 Scuff Plate Lamp, Left Front Location - (MKZ) In Left Scuff Plate

Courtesy of FORD MOTOR CO.

Fig 304: C2306 C3255 Ambient Select Switch Location - In Center Console

Courtesy of FORD MOTOR CO.

Fig 305: C3256 Ambient Lighting Module Location - In Center Console, Bottom Center

Courtesy of FORD MOTOR CO.

Fig 306: C3296 Safety Belt Buckle Switch, Driver Location - Driver Seat Base, RH Side

Courtesy of FORD MOTOR CO.

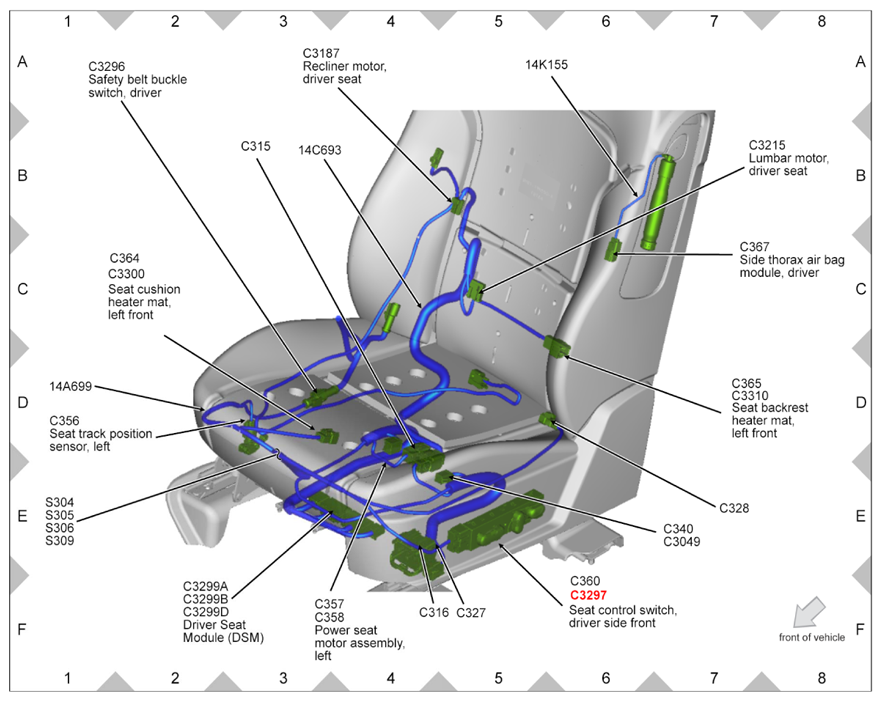

Fig 307: C3297 Location - (With Memory Seats) In Driver Seat Base, LH Side

Courtesy of FORD MOTOR CO.

Fig 308: C3299A C3299B C3299D Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 309: C3299A C3299B C3299D Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 310: C3299A C3299B C3299D Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 311: C3300 Location - (With Heated / Cooled Seats) In Driver Seat Base

Courtesy of FORD MOTOR CO.

Fig 312: C3301 Safety Belt Buckle Switch, Passenger Location - In Passenger Seat Base, LH Side

Courtesy of FORD MOTOR CO.

Fig 313: C3303 Location - (With Heated / Cooled Seats) In Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 314: C3304A C3304B Heated Seat Module Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 315: C3304A C3304B Heated Seat Module Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 316: C3305A C3305B C3305C Dual Climate Controlled Seat Module (DCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 317: C3305A C3305B C3305C Dual Climate Controlled Seat Module (DCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 318: C3305A C3305B C3305C Dual Climate Controlled Seat Module (DCSM) Location - Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 319: C3310 Location - (With Heated / Cooled Seats) In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 320: C3311 Location - (With Heated / Cooled Seats) In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 321: C3324 Occupant Classification Sensor (OCS) 1 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 322: C3325 Occupant Classification Sensor (OCS) 2 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 323: C3330 Occupant Classification Sensor (OCS) 4 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 324: C3331 Occupant Classification Sensor (OCS) 3 Location - (With Heated / Cooled Seats) On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 325: C3335 Speaker, Center Parcel Shelf Location - (THX Audio) Behind Rear Seats, Center

Courtesy of FORD MOTOR CO.

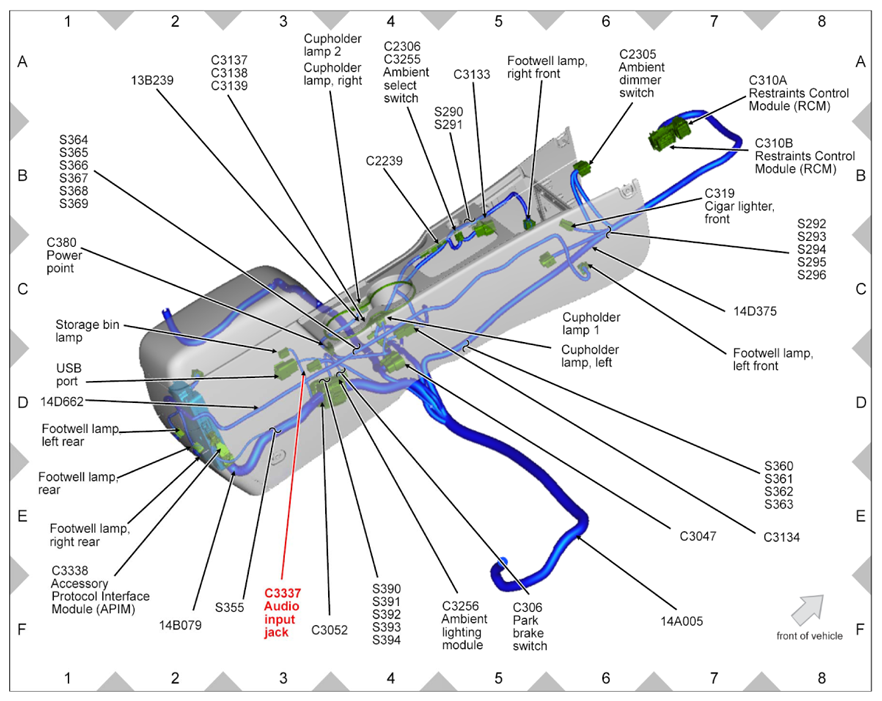

Fig 326: C3337 Audio Input Jack Location - (SYNC) In Center Console, Near Storage Bin

Courtesy of FORD MOTOR CO.

Fig 327: C333B Accessory Protocol Interface Module (APIM) Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 328: C3648 Location - (Sony Audio) Behind Rear Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 329: C3649 Location - (Sony Audio) Behind Rear Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 330: C3650 Subwoofer, Left Rear Location - (THX Audio) Behind Rear Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 331: C3651 Subwoofer Right Rear Location - (THX Audio) Behind Rear Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 332: C3652 Location - Behind Rear Seats, Center

Courtesy of FORD MOTOR CO.

Fig 333: C4001 C4002 Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 334: C4001 C4002 Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 335: C4009 Parking Aid Sensor, Outer Left Location - (Fusion) Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 336: C4009 Parking Aid Sensor, Outer Left Location - (MKZ) Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 337: C4011 Parking Aid Sensor, Outer Right Location - (Fusion) Vehicle Rear End, Right

Courtesy of FORD MOTOR CO.

Fig 338: C4011 Parking Aid Sensor, Outer Right Location - (MKZ) Vehicle Rear End, Right

Courtesy of FORD MOTOR CO.

Fig 339: C4014 Parking Aid Module (PAM) Location - (Fusion) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 340: C4014 Parking Aid Module (PAM) Location - (MKZ) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 341: C4015 Parking Aid Speaker Location - (Fusion) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 342: C4015 Parking Aid Speaker Location - (MKZ) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

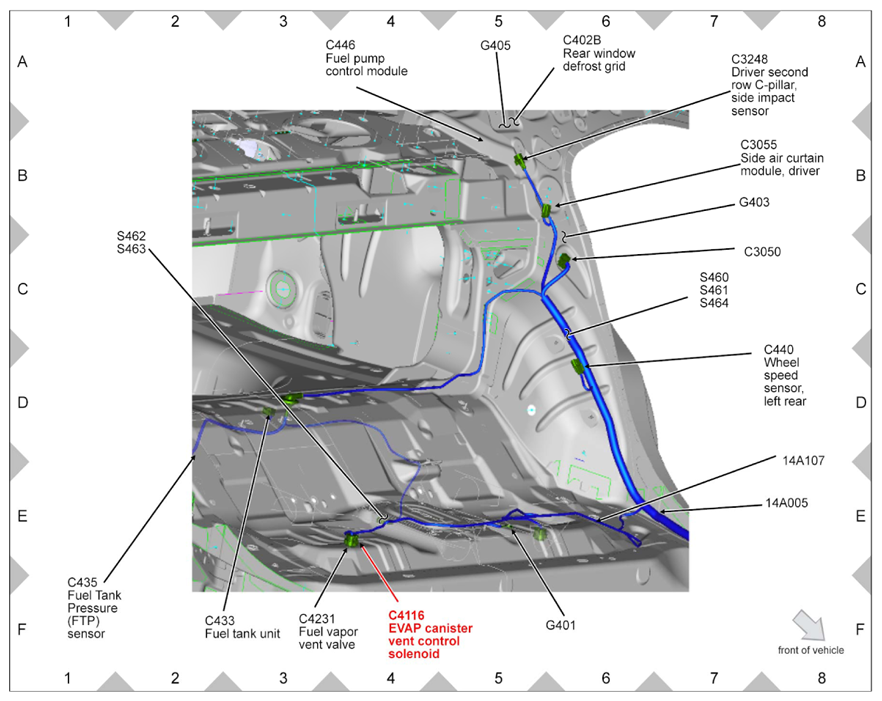

Fig 343: C4116 EVAP Canister Vent Control Solenoid Location - Vehicle Underbody, Rear, Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 344: C4139 Turn Lamp Left Rear Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 345: C4140 Turn Lamp, Right Rear Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 346: C4194A C4194B Antenna Module Location - In Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 347: C4194A C4194B Antenna Module Location - In Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 348: C4198 Luggage Compartment Lamp Location - In Luggage Compartment

Courtesy of FORD MOTOR CO.

Fig 349: C4228 Parking Aid Sensor, Center Location - (Fusion) Vehicle Rear End, Center (MKZ)

Courtesy of FORD MOTOR CO.

Fig 350: C4228 Parking Aid Sensor, Center Location - Vehicle Rear End, Center (Fusion)

Courtesy of FORD MOTOR CO.

Fig 351: C4229 Side Obstacle Detection (SOD) Sensor, Right Rear Location - Vehicle Rear End, Right (MKZ)

Courtesy of FORD MOTOR CO.

Fig 352: C4229 Side Obstacle Detection (SOD) Sensor, Right Rear Location - Vehicle Rear End, Right (Fusion)

Courtesy of FORD MOTOR CO.

Fig 353: C4230 Side Obstacle Detection (SOD) Sensor, Left Rear Location - Vehicle Rear End, Left (MKZ)

Courtesy of FORD MOTOR CO.

Fig 354: C4230 Side Obstacle Detection (SOD) Sensor, Left Rear Location - Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 355: C4231 Fuel Vapor Vent Valve Location - Vehicle Underbody, Rear, Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 356: C4232 Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 357: C4233 High Mounted Stoplamp Location - (Fusion) In Rear Spoiler

Courtesy of FORD MOTOR CO.

Fig 358: C4235A C4235B C4235C Audio Digital Signal Processing (DSP) Module Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 359: C4235A C4235B C4235C Audio Digital Signal Processing (DSP) Module Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 360: C4235A C4235B C4235C Audio Digital Signal Processing (DSP) Module Location - Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 361: C4236A C4236B Bussed Electrical Center (BEC) Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 362: C4236A C4236B Bussed Electrical Center (BEC) Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 363: C4236C C4236D C4236E Bussed Electrical Center (BEC) Location - Rear Seat

Courtesy of FORD MOTOR CO.

Fig 364: C4236C C4236D C4236E Bussed Electrical Center (BEC) Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 365: C4236C C4236D C4236E Bussed Electrical Center (BEC) Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 366: C4237A C4237B Battery Energy Control Module (BECM) Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 367: C4237A C4237B Battery Energy Control Module (BECM) Location - Behind Rear Seat

Courtesy of FORD MOTOR CO.

Fig 368: C4238A Battery Pack Sensor Module (BPSM) Location - In Battery Pack

Courtesy of FORD MOTOR CO.

Fig 369: C4238B Battery Pack Sensor Module (BPSM) Location - In Battery Pack

Courtesy of FORD MOTOR CO.

Fig 370: C4240 A C4240B C4240C Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 371: C4240A C4240B C4240C Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 372: C4240A C4240B C4240C Location - Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 373: C4253 High Voltage Traction Battery Temperature Sensor Location - Traction Battery

Courtesy of FORD MOTOR CO.

Fig 374: C4320 Luggage Compartment Disarm Switch Location - (Fusion) Luggage Compartment, Rear, RH Side

Courtesy of FORD MOTOR CO.

Fig 375: C4320 Luggage Compartment Disarm Switch Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 376: C4327 Side Lamp, Right Rear Location - (Fusion) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 377: C4328 Side Lamp, Left Rear Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 378: C4357 Rear View Camera Location - (Fusion) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 379: C4357 Rear View Camera Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 380: C9021 Antenna Module Location - Rear Of Roof

Courtesy of FORD MOTOR CO.

Fig 381: C9039 Rear View Camera Display Mirror Location - On Interior Rear View Mirror

Courtesy of FORD MOTOR CO.

Fig 382: C9045 Microphone Location - In Roof Panel, Front, LH Side

Courtesy of FORD MOTOR CO.
