2012 Fusion/MKZ Location Index: Connectors

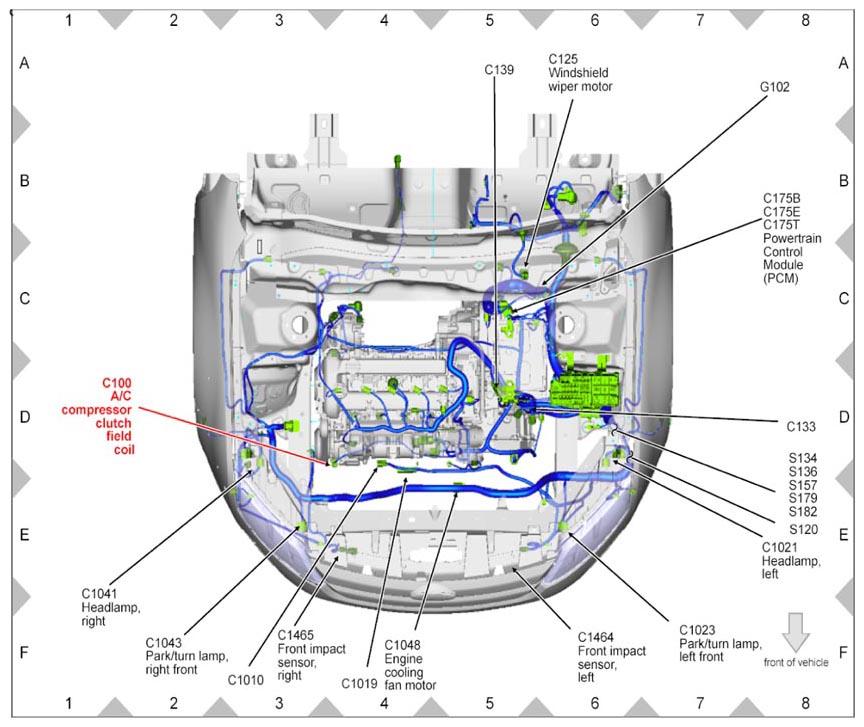

Fig 1: C100 A/C Compressor Clutch Field Coil Location - (2.5L) On A/C Compressor

Courtesy of FORD MOTOR CO.

Fig 2: C100 A/C Compressor Clutch Field Coil Location - (3.5L) Engine Compartment, LH Side, Near Battery

Courtesy of FORD MOTOR CO.

Fig 3: C100 A/C Compressor Clutch Field Coil Location - (MKZ) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

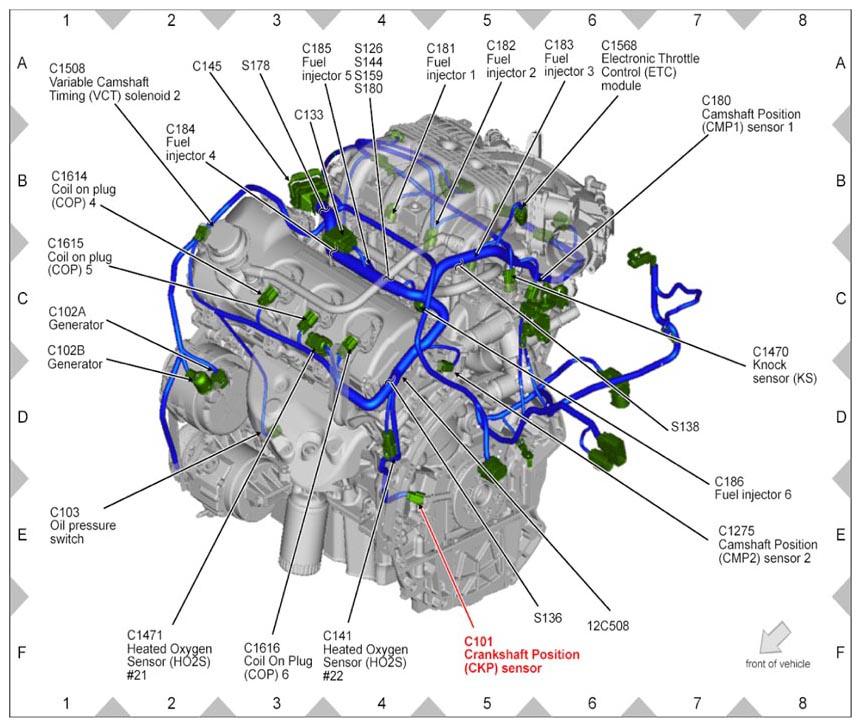

Fig 4: C101 A/C Crankshaft Position (CKP) Sensor Location - (3.0L) Front Of Engine, Near Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Fig 5: C101 A/C Crankshaft Position (CKP) Sensor Location - (3.5L) Front Of Engine, Near Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Fig 6: C102A Generator Location - (2.5L) On Front Of Engine

Courtesy of FORD MOTOR CO.

Fig 7: C102A Generator Location - (3.0L) Front Of Engine, LH Side

Courtesy of FORD MOTOR CO.

Fig 8: C102A C102B Generator Location - (3.0L) On Engine, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 9: C102A C102B Generator Location - (3.5L) Front Bottom Of Engine

Courtesy of FORD MOTOR CO.

Fig 10: C102A Generator Location - (3.5L) On Engine, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 11: C102B Generator Location - (2.5L) Front Of Engine

Courtesy of FORD MOTOR CO.

Fig 12: C102A C102B Generator Location - (3.0L) On Engine, Front, LH Side

Courtesy of FORD MOTOR CO.

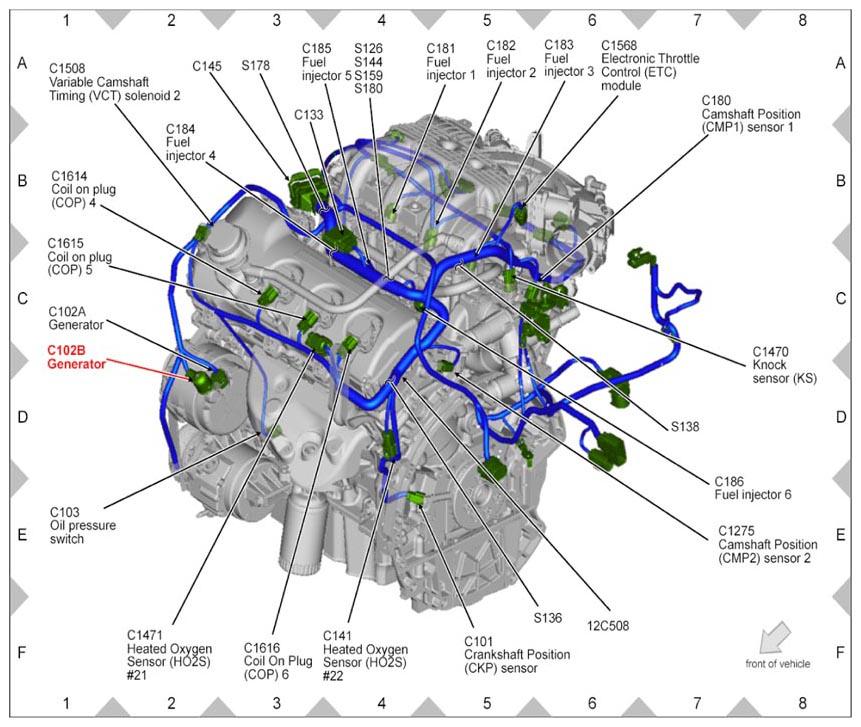

Fig 13: C102A C102B Generator Location - (3.5L) Front Bottom Of Engine

Courtesy of FORD MOTOR CO.

Fig 14: C102B Generator Location - (3.5L) On Engine, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 15: C103 Oil Pressure Switch Location - (2.5L) On Engine, LH Side, Above Oil Filter

Courtesy of FORD MOTOR CO.

Fig 16: C103 Oil Pressure Switch Location - (3.0L) LH Side Of Engine Block, Near Oil Filter

Courtesy of FORD MOTOR CO.

Fig 17: C103 Oil Pressure Switch Location - (3.5L) LH Side Of Engine Block, Near Oil Filter

Courtesy of FORD MOTOR CO.

Fig 18: C107 Cylinder Head Temperature (CHT) Sensor Location - (3.0L) On Top Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 19: C108 Knock Sensor 2 (KS2) Location - (3.0L) On Rear Of Engine Under Intake

Courtesy of FORD MOTOR CO.

Fig 20: C109 Knock Sensor 1 (KS1) Location - (3.0L) On Top Rear Of Engine Under Intake

Courtesy of FORD MOTOR CO.

Fig 21: C100 Location - (3.0L) On Top Of Engine, To Fuel Injector Harness

Courtesy of FORD MOTOR CO.

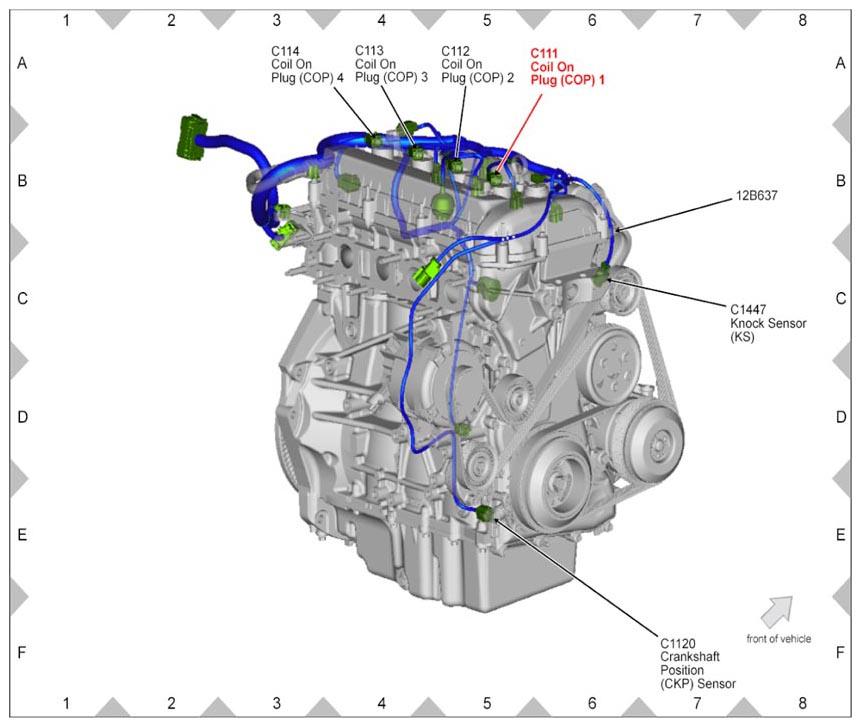

Fig 22: C111 Coil On Plug (COP) 1 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

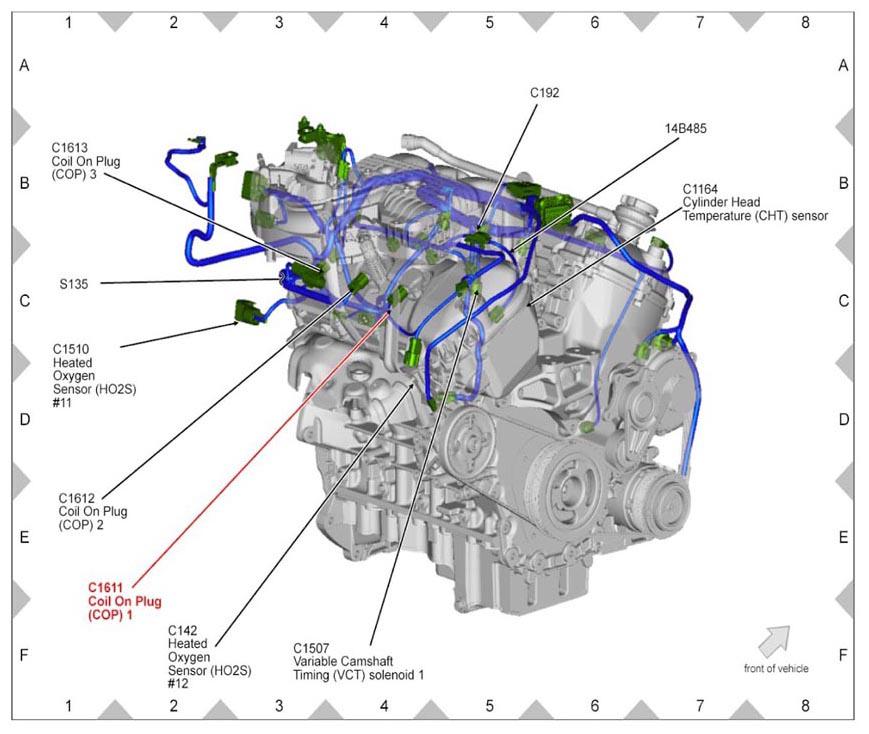

Fig 23: C111 Coil On Plug (COP) 1 Location - (3.0L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 24: C112 Coil On Plug (COP) 2 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 25: C112 Coil On Plug (COP) 2 Location - (3.0L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

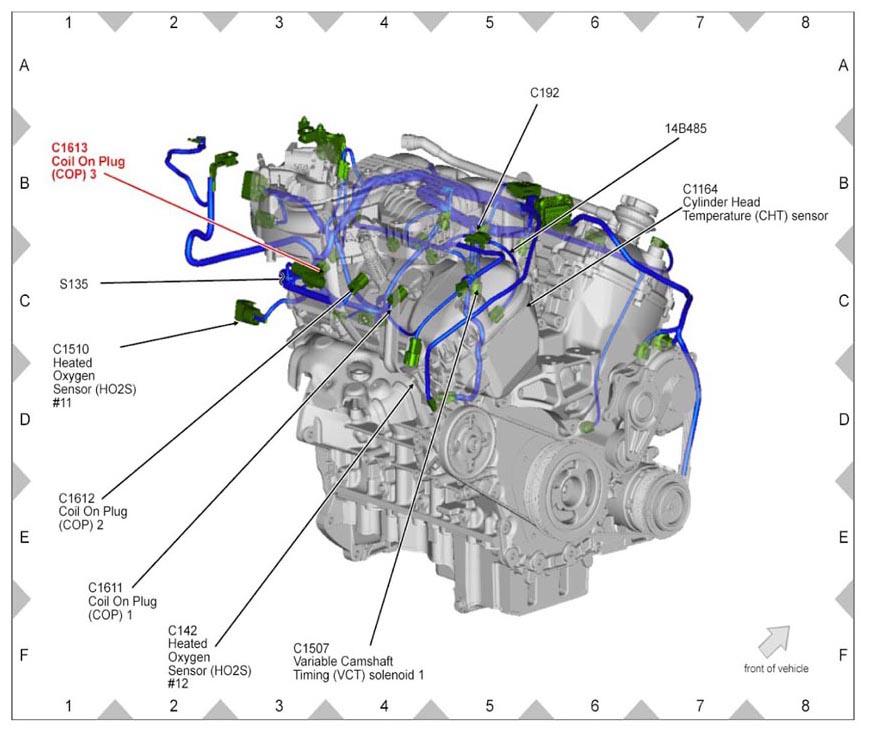

Fig 26: C113 Coil On Plug (COP) 3 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 27: C113 Coil On Plug (COP) 3 Location - (3.0L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

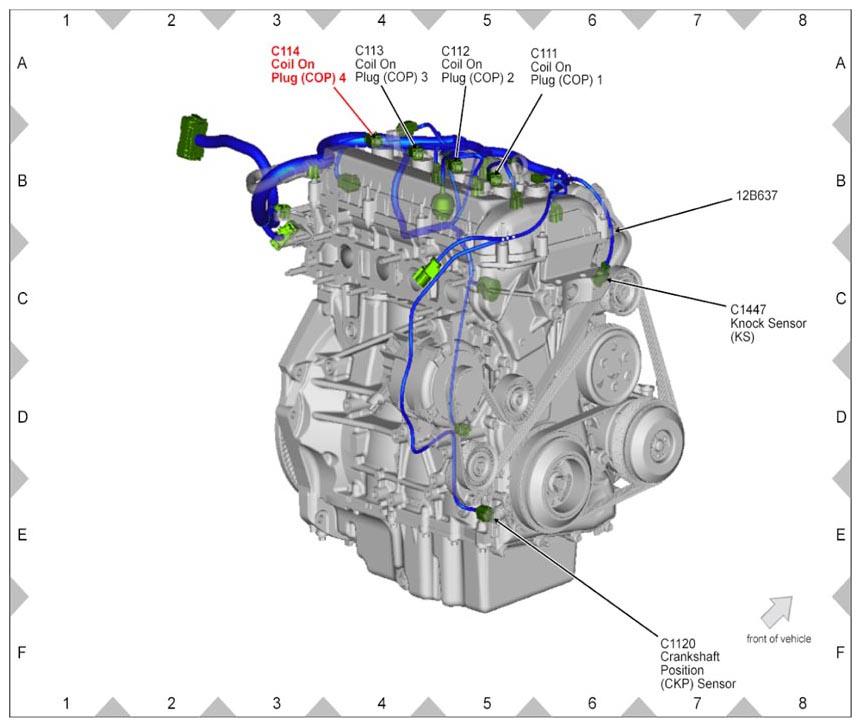

Fig 28: C114 Coil On Plug (COP) 4 Location - (2.5L) Top Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 29: C114 Coil On Plug (COP) 4 Location - (3.0L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

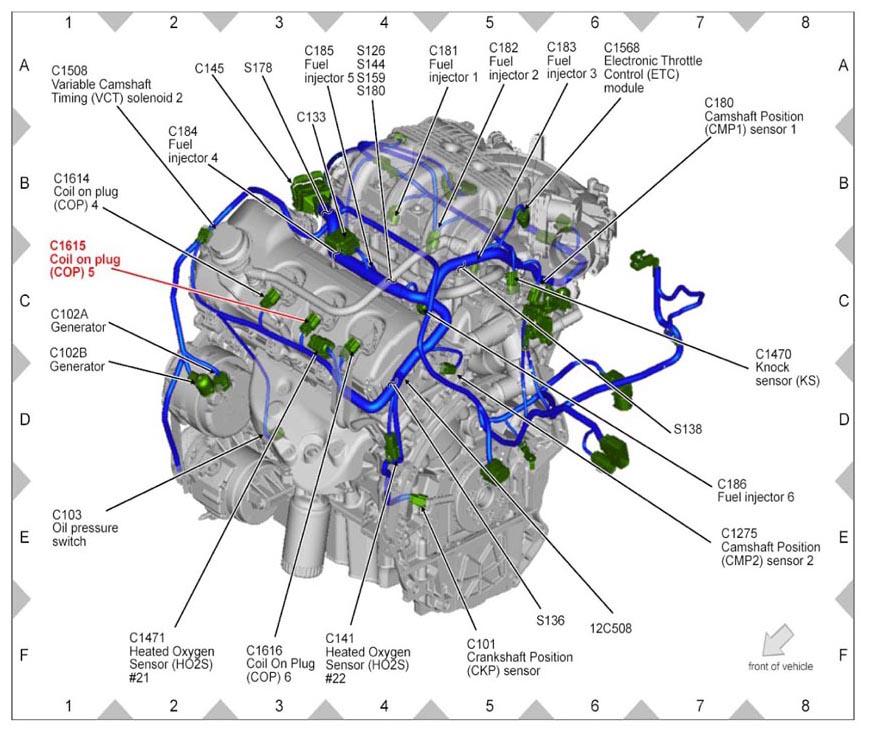

Fig 30: C115 Coil On Plug (COP) 5 Location - (3.0L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 31: C116 Coil On Plug (COP) 6 Location - (3.0L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

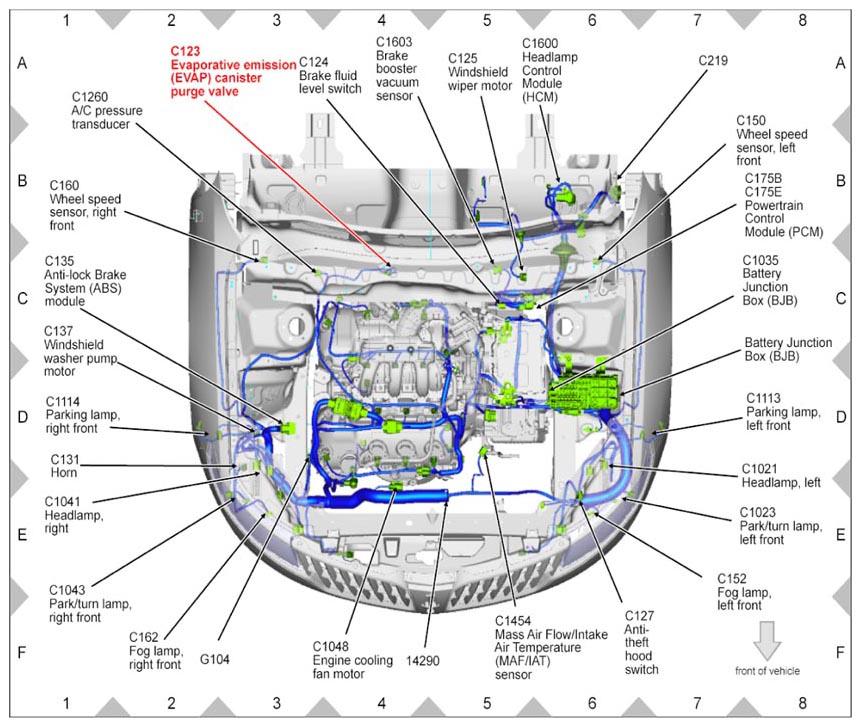

Fig 32: C123 Evaporative Emission (EVAP) Canister Purge Valve Location - (3.5L) Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 33: C124 Brake Fluid Level Switch Location - (2.5L) On Brake Fluid Reservoir

Courtesy of FORD MOTOR CO.

Fig 34: C124 Brake Fluid Level Switch Location - (3.0L) On Brake Fluid Reservoir

Courtesy of FORD MOTOR CO.

Fig 35: C124 Brake Fluid Level Switch Location - (3.5L) On Brake Fluid Reservoir

Courtesy of FORD MOTOR CO.

Fig 36: C125 Windshield Wiper Motor Location - (2.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 37: C125 Windshield Wiper Motor Location - (3.0L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 38: C125 Windshield Wiper Motor Location - (3.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 39: C127 Antit-heft Hood Switch Location - (2.5L) Engine Compartment, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 40: C127 Anti-theft Hood Switch Location - (3.0L) Engine Compartment, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 41: C127 Anti-theft Hood Switch Location - (3.5L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 42: C131 Horn Location - (2.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 43: C131 Horn Location - (3.0L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 44: C131 Horn Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 45: C132 Ambient Air Temperature (AAT) Sensor Location - (2.5L) In Front Of Radiator

Courtesy of FORD MOTOR CO.

Fig 46: C132 Ambient Air Temperature (AAT) Sensor Location - (3.0L) In Front Of Radiator

Courtesy of FORD MOTOR CO.

Fig 47: C132 Ambient Air Temperature (AAT) Sensor Location - (3.5L) In Front Of Radiator

Courtesy of FORD MOTOR CO.

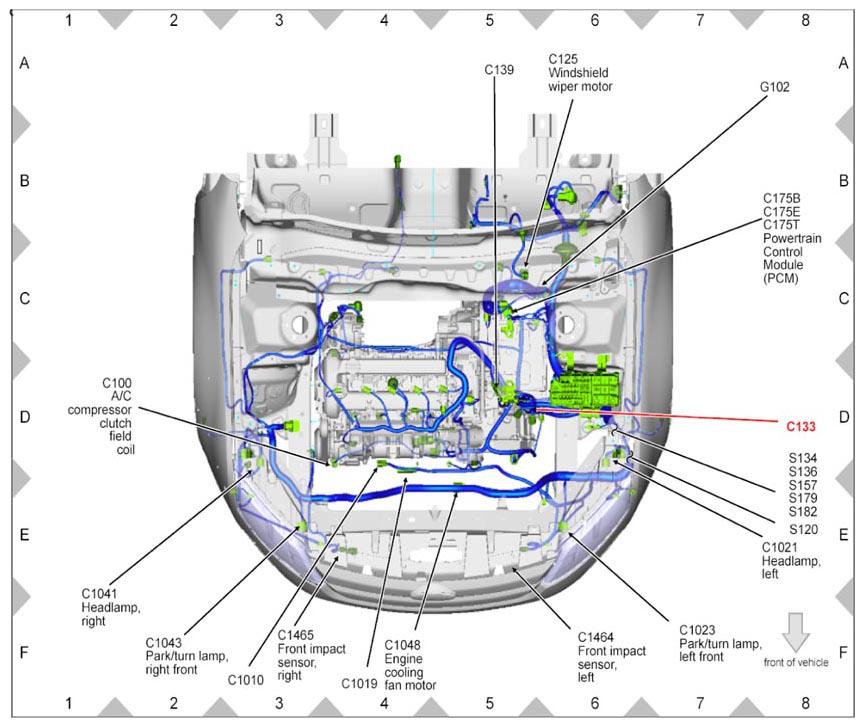

Fig 48: C133 Location - (2.5L) Engine Compartment, LH Side, Below BJB

Courtesy of FORD MOTOR CO.

Fig 49: C133 Location - (3.0L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 50: C133 Location - (3.0L) Near Battery

Courtesy of FORD MOTOR CO.

Fig 51: C133 Location - (3.5L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 52: C133 Location - (3.5L) On Front Of Engine Near Injectors

Courtesy of FORD MOTOR CO.

Fig 53: C135 Anti-lock Brake System (ABS) Module Location - (2.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 54: C135 Anti-lock Brake System (ABS) Module Location - (3.0L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 55: C135 Anti-lock Brake System (ABS) Module Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

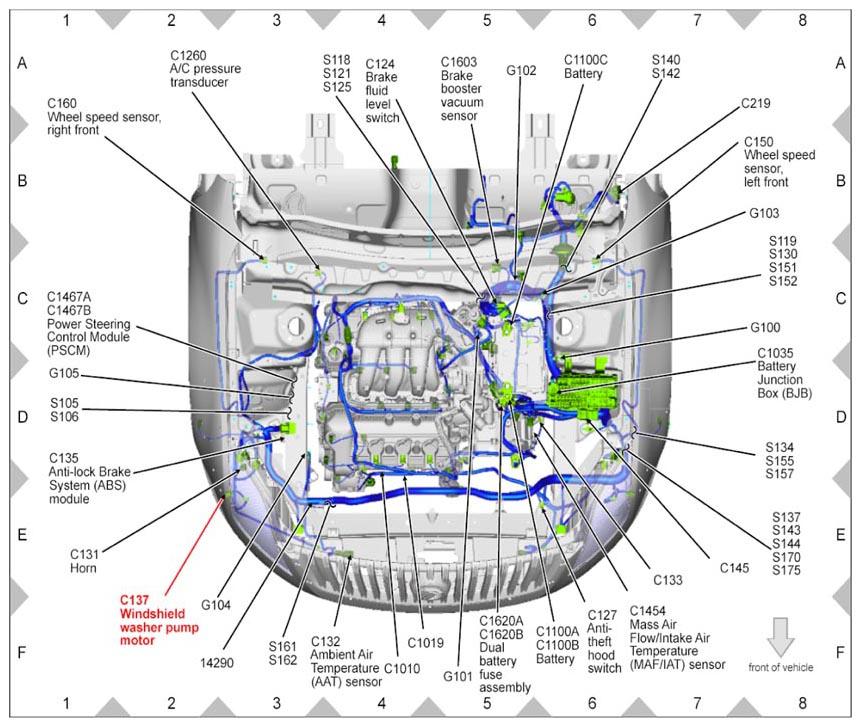

Fig 56: C137 Windshield Washer Pump Motor Location - (2.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 57: C137 Windshield Washer Pump Motor Location - (3.0L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 58: C137 Windshield Washer Pump Motor Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 59: C139 Location - (2.5L) Near Battery Positive Post

Courtesy of FORD MOTOR CO.

Fig 60: C139 Location - (3.0L) Engine Compartment, LH Side, Below BJB

Courtesy of FORD MOTOR CO.

Fig 61: C140 Location - (3.5L) Engine Compartment, LH Side, Near BJB

Courtesy of FORD MOTOR CO.

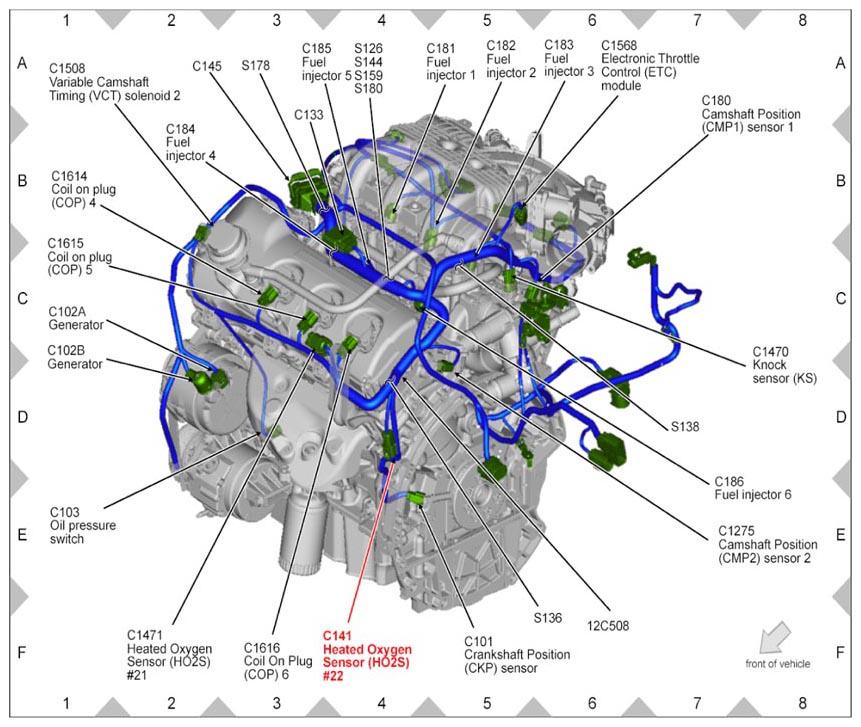

Fig 62: C141 Heated Oxygen Sensor (HO2S) #22 Location - (3.0L) Left Exhaust Manifold

Courtesy of FORD MOTOR CO.

Fig 63: C141 Heated Oxygen Sensor (HO2S) #22 Location - (3.5L) On Exhaust System, LH Side, Downstream

Courtesy of FORD MOTOR CO.

Fig 64: C142 Heated Oxygen Sensor (HO2S) #12 Location - (2.5L) On Exhaust System, Upstream

Courtesy of FORD MOTOR CO.

Fig 65: C142 Heated Oxygen Sensor (HO2S) #12 Location - (3.0L) On Exhaust System, RH Side, Upstream

Courtesy of FORD MOTOR CO.

Fig 66: C142 Heated Oxygen Sensor (HO2S) #12 Location - (3.5L) On Exhaust System, RH Side, Upstream

Courtesy of FORD MOTOR CO.

Fig 67: C144 Location - (3.5L) Engine Compartment, LH Side, Near BJB

Courtesy of FORD MOTOR CO.

Fig 68: C145 Location - (2.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 69: C145 Location - (3.0L) Engine, Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 70: C145 Location - (3.5L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 71: C145 Location - (3.5L) Top Front Of Engine

Courtesy of FORD MOTOR CO.

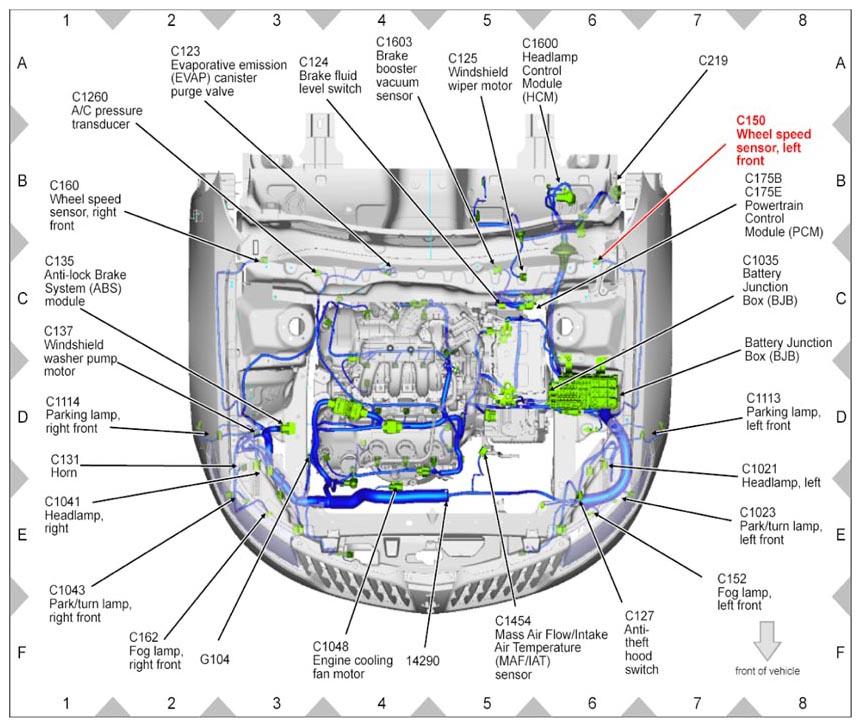

Fig 72: C150 Wheel Speed Sensor, Left Front Location - (2.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 73: C150 Wheel Speed Sensor, Left Front Location - (3.0L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 74: C150 Wheel Speed Sensor, Left Front Location - (3.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 75: C152 Fog Lamp, Left Front Location - (2.5L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 76: C152 Fog Lamp, Left Front Location - (3.0L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 77: C152 Fog Lamp, Left Front Location - (3.5L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 78: C160 Wheel Speed Sensor, Right Front Location - (2.5L) Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 79: C160 Wheel Speed Sensor, Right Front Location - (3.0L) Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 80: C160 Wheel Speed Sensor, Right Front Location - (3.5L) Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 81: C162 Fog Lamp, Right Front Location - (2.5L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 82: C162 Fog Lamp, Right Front Location - (3.0L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

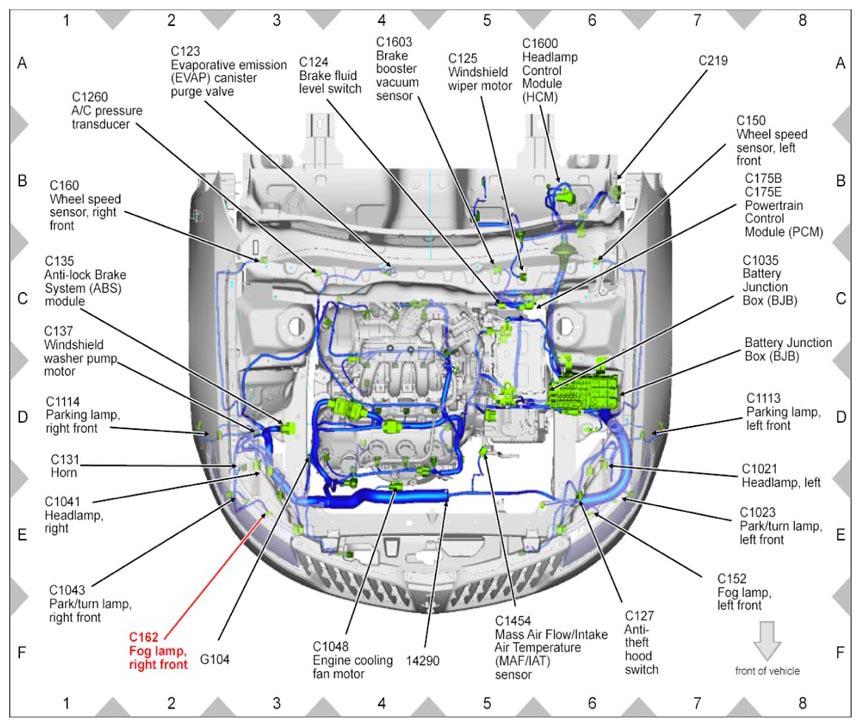

Fig 83: C162 Fog Lamp, Right Front Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 84: C169 Reversing Lamps Switch Location - (2.5L Manual Transmission) On Transaxle, Front

Courtesy of FORD MOTOR CO.

Fig 85: C171 Heated Oxygen Sensor (HO2S) #11 Location - (2.5L) On Exhaust System, Downstream

Courtesy of FORD MOTOR CO.

Fig 86: C171 Heated Oxygen Sensor (HO2S) #11 Location - (Manual Transmission) On Exhaust System, Downstream

Courtesy of FORD MOTOR CO.

Fig 87: C172 Universal Heated Oxygen Sensor (HO2S) #21 Location - (3.0L) On Exhaust System, LH Side, Downstream

Courtesy of FORD MOTOR CO.

Fig 88: C174 Ignition Transformer Capacitor Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 89: C174 Ignition Transformer Capacitor Location - (3.0L) On Top Of Engine Near Front

Courtesy of FORD MOTOR CO.

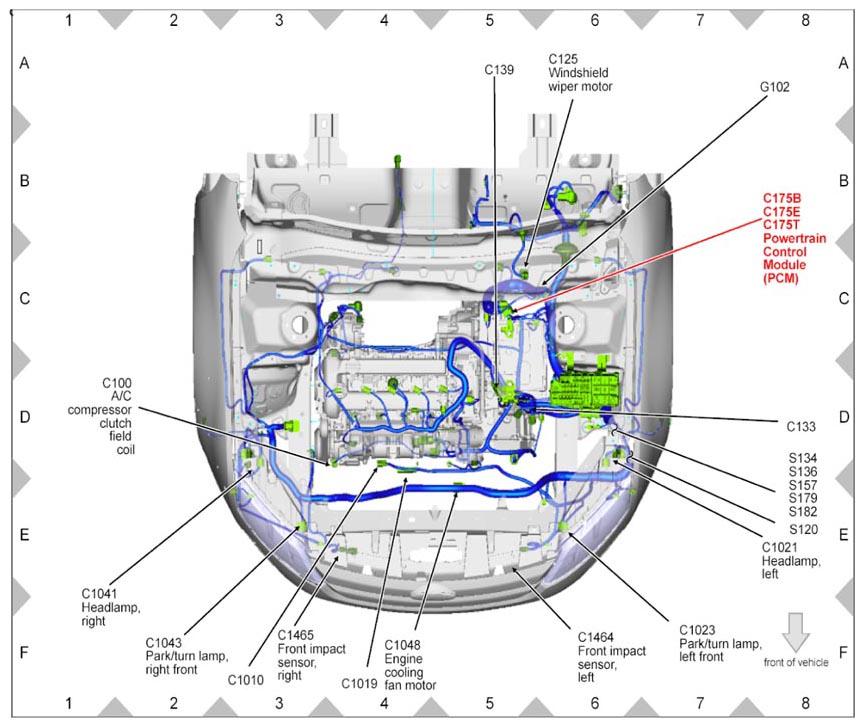

Fig 90: C175B C175E C175T Powertrain Control Module (PCM) Location - (2.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 91: C175B C175E C175T Powertrain Control Module (PCM) Location - (3.0L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 92: C175B C175E Powertrain Control Module (PCM) Location - (3.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 93: C175B C175E C175T Powertrain Control Module (PCM) Location - (2.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 94: C175B C175E C175T Powertrain Control Module (PCM) Location - (3.0L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 95: C175B C175E Powertrain Control Module (PCM) Location - (3.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 96: C175B C175E C175T Powertrain Control Module (PCM) Location - (2.5L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 97: C175B C175E C175T Powertrain Control Module (PCM) Location - (3.0L) Engine Compartment, LH Side, Rear

Courtesy of FORD MOTOR CO.

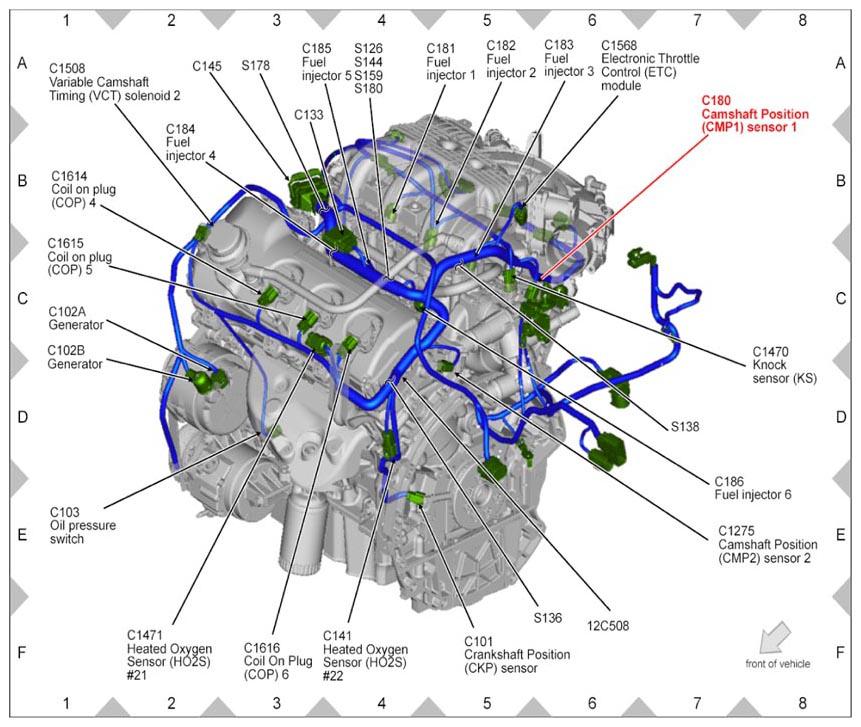

Fig 98: C180 Camshaft Position (CMP1) Sensor 1 Location - (3.5L) On RH Cylinder Head, Front

Courtesy of FORD MOTOR CO.

Fig 99: C181 Fuel Injector 1 Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 100: C181 Fuel Injector 1 Location - (3.0L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 101: C181 Fuel Injector 1 Location - (3.5L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 102: C182 Fuel Injector 2 Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 103: C182 Fuel Injector 2 Location - (3.0L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 104: C182 Fuel Injector 2 Location - (3.5L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

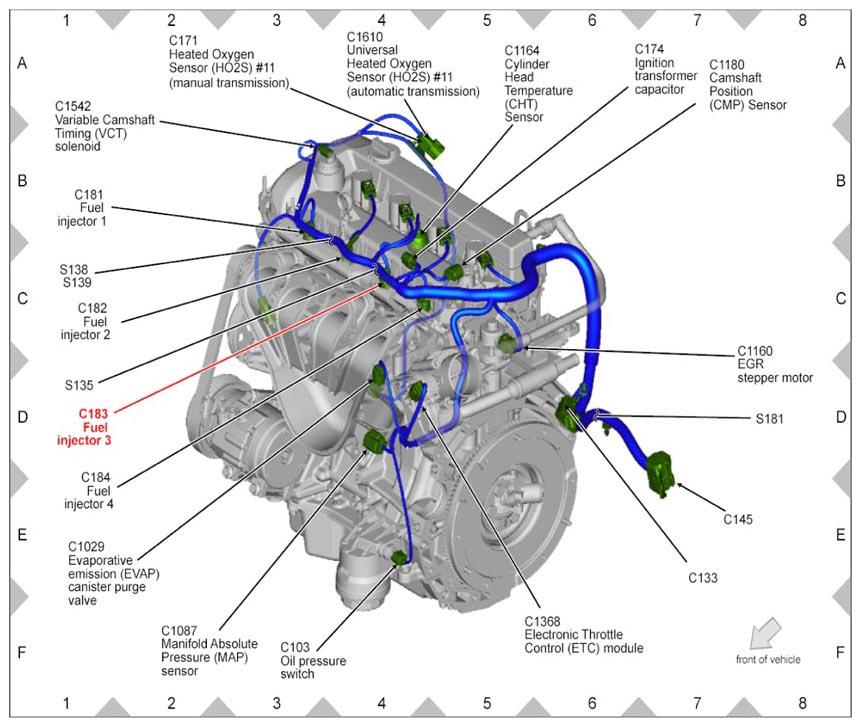

Fig 105: C183 Fuel Injector 3 Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 106: C183 Fuel Injector 3 Location - (3.0L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 107: C183 Fuel Injector 3 Location - (3.5L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 108: C184 Fuel Injector 4 Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 109: C184 Fuel Injector 4 Location - (3.0L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 110: C184 Fuel Injector 4 Location - (3.5L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 111: C185 Fuel Injector 5 Location - (3.0L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 112: C185 Fuel Injector 5 Location - (3.5L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 113: C186 Fuel Injector 6 Location - (3.0L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 114: C186 Fuel Injector 6 Location - (3.5L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 115: C190 Heated Positive Crankcase Ventilation (PCV) Valve Location - (3.0L) On Top Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 116: C192 Location - (3.5L) On Engine, Top

Courtesy of FORD MOTOR CO.

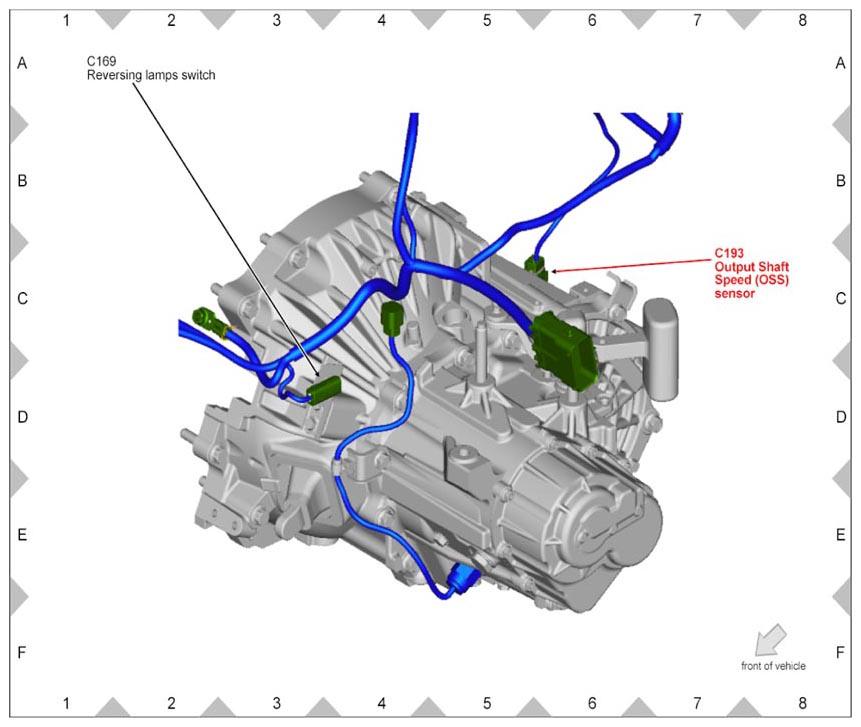

Fig 117: C193 Output Shaft Speed (OSS) Sensor Location - (2.5L Manual Transmission) On Transaxle, Rear

Courtesy of FORD MOTOR CO.

Fig 118: C197A Starter Motor Location - (2.5L) On Engine, LH Side, Bottom

Courtesy of FORD MOTOR CO.

Fig 119: C197A C197B Starter Motor Location - (3.0L) On Engine, Rear, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 120: C197A C197B Starter Motor Location - (3.5L) Engine Compartment, LH Side, Near Battery

Courtesy of FORD MOTOR CO.

Fig 121: C197B Starter Motor Location - (2.5L) On Engine, LH Side, Bottom

Courtesy of FORD MOTOR CO.

Fig 122: C197A C197B Starter Motor Location - (3.0L) On Engine, Rear, RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 123: C197A C197B Starter Motor Location - (3.5L) Engine Compartment, LH Side, Near Battery

Courtesy of FORD MOTOR CO.

Fig 124: C202 Multifunction Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 125: C205 Main Light Switch Location - In Dash Panel, Far LH Side

Courtesy of FORD MOTOR CO.

Fig 126: C210 C212 Location - Under Dash Panel, Top Of Passenger Side Footwell

Courtesy of FORD MOTOR CO.

Fig 127: C211 C213 Location - Under Dash Panel, Top Of Passenger Side Footwell

Courtesy of FORD MOTOR CO.

Fig 128: C210 C212 Location - Under Dash Panel, Top Of Passenger Side Footwell

Courtesy of FORD MOTOR CO.

Fig 129: C211 C213 Location - Under Dash Panel, Top Of Passenger Side Footwell

Courtesy of FORD MOTOR CO.

Fig 130: C214 Location - LH A-pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 131: C215 Location - LH A-pillar, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 132: C218A Clockspring Location - On Steering Column

Courtesy of FORD MOTOR CO.

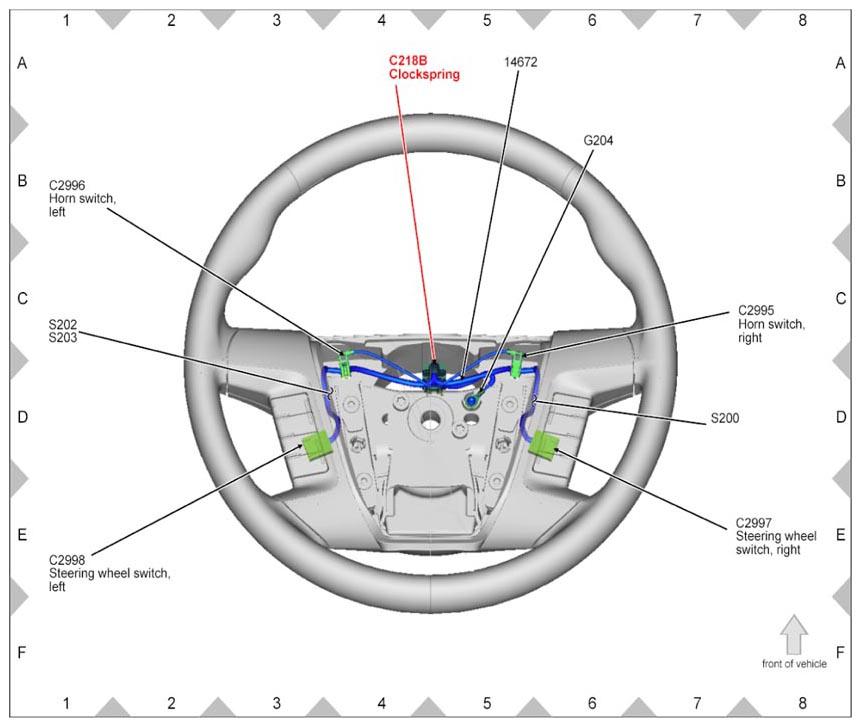

Fig 133: C218B Clockspring Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 134: C219 Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 135: C219 Location - (2.5L) Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 136: C219 Location - (3.0L) Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 137: C219 Location - (3.5L) Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

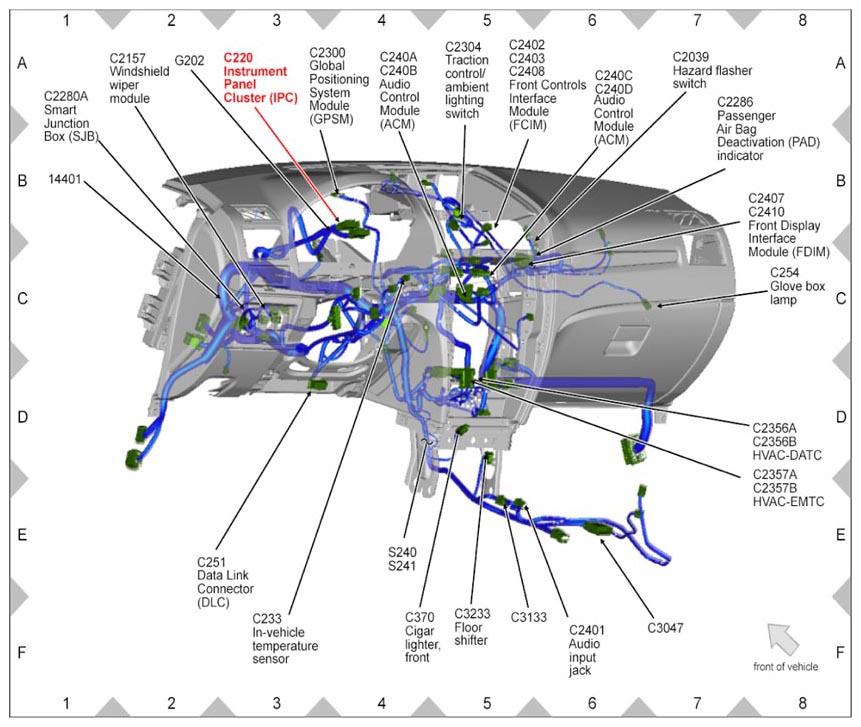

Fig 138: C220 Instrument Panel Cluster (IPC) Location - In Dash Panel, Above Steering Column

Courtesy of FORD MOTOR CO.

Fig 139: C226 Steering Angle Sensor Module (SASM) Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 140: C233 In-Vehicle Temperature Sensor Location - In Dash Panel, Left Center

Courtesy of FORD MOTOR CO.

Fig 141: C237 Location - RH A-pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 142: C240A C240B Audio Control Module (ACM) Location - (THX Audio) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 143: C240A C240B Audio Control Module (ACM) Location - (THX Audio) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 144: C240C C240D Audio Control Module (ACM) Location - (THX Audio) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 145: C240C C240D Audio Control Module (ACM) Location - (THX Audio) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 146: C248 Location - (3.5L) Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

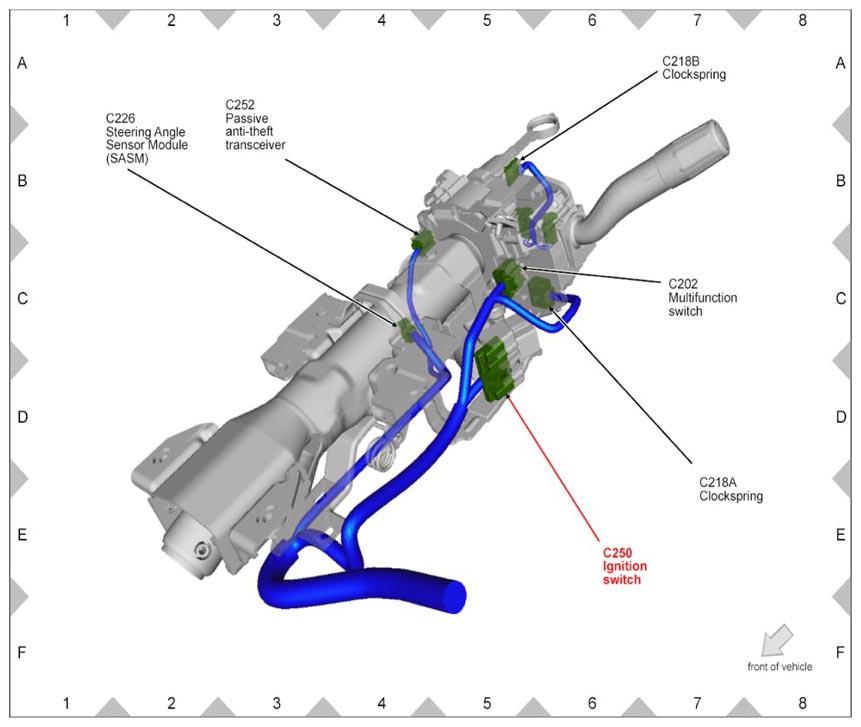

Fig 147: C250 Ignition Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

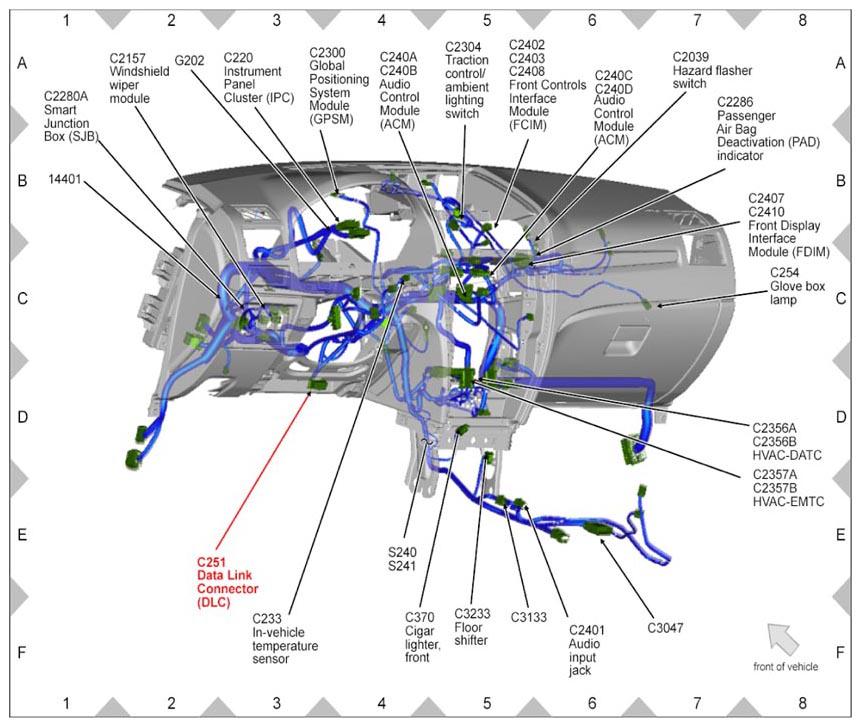

Fig 148: C251 Data Link Connector (DLC) Location - Under Dash Panel, In Driver Side Footwell

Courtesy of FORD MOTOR CO.

Fig 149: C252 Passive Anti-Theft Transceiver Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 150: C254 Glove Box Lamp Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 151: C256A Passenger Air Bag Module Location - Instrument Panel, Right Hand Side

Courtesy of FORD MOTOR CO.

Fig 152: C256B Passenger Air Bag Module Location - Instrument Panel, Right Hand Side

Courtesy of FORD MOTOR CO.

Fig 153: C271 Blower Motor Speed Control Location - (With Automatic A/C) Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 154: C278 Brake Pedal Position (BPP) Switch Location - On Brake Pedal Support

Courtesy of FORD MOTOR CO.

Fig 155: C282 Inertia Fuel Shutoff (IFS) Switch Location - RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 156: C286 Autolamp/Sunload Sensor Location - (With Automatic A/C) Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 157: C287 Autolamp Sensor Location - (With Manual A/C) Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 158: C288 Blower Motor Location - Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

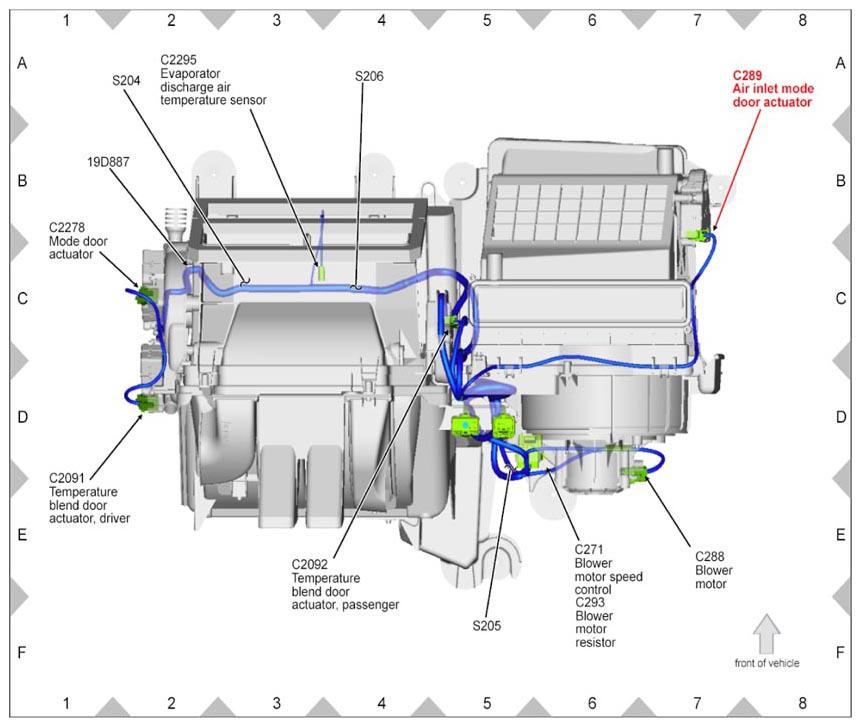

Fig 159: C289 Air Inlet Mode Door Actuator Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 160: C293 Blower Motor Resistor Location - (With Manual A/C) Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

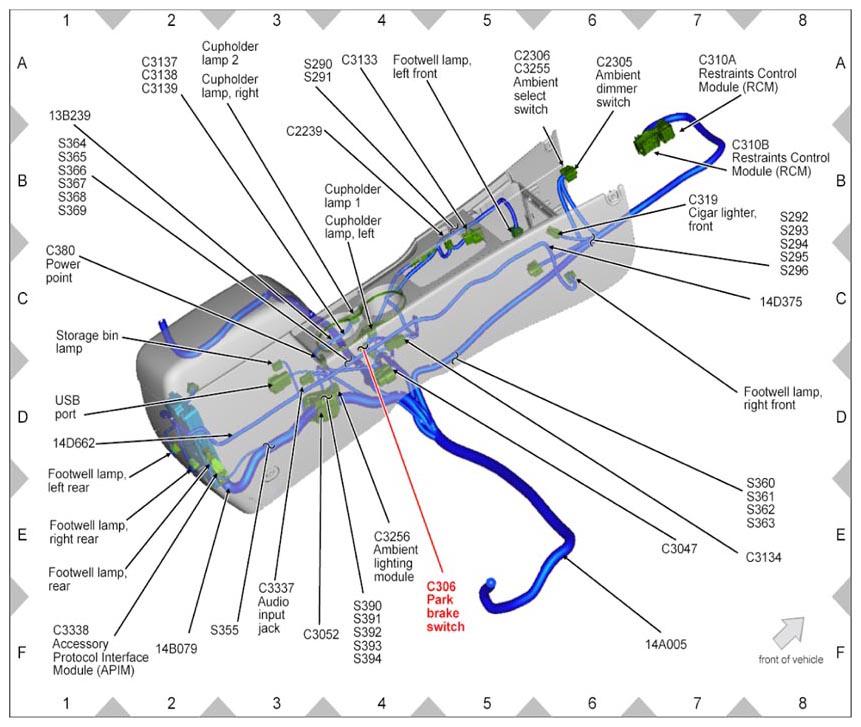

Fig 161: C306 Park Brake Switch Location - In Center Console, Bottom Center Left Side

Courtesy of FORD MOTOR CO.

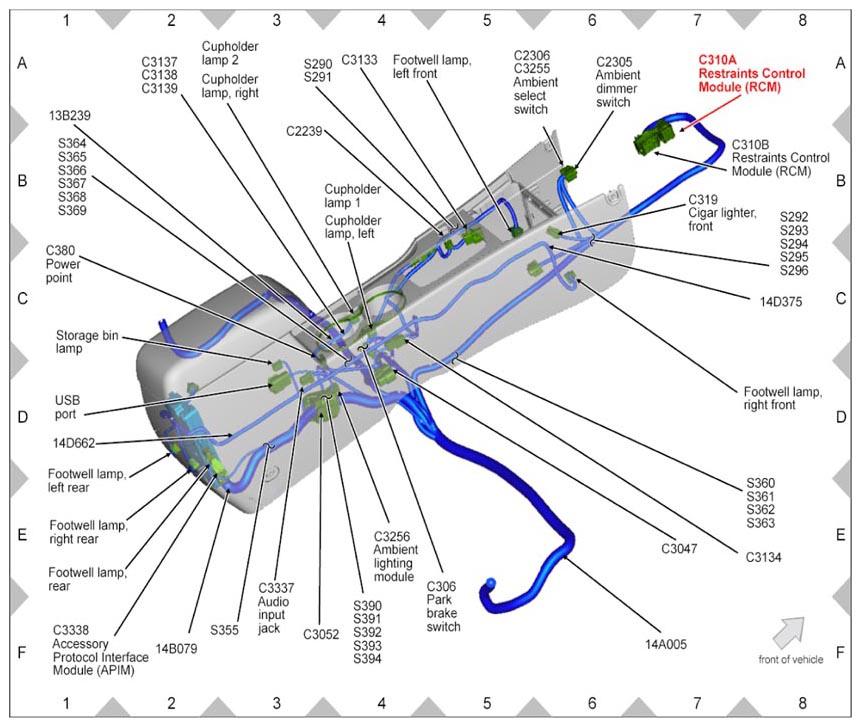

Fig 162: C310A Restraints Control Module (RCM) Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 163: C310B Restraints Control Module (RCM) Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 164: C312 Location - Vehicle Floor, Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 165: C313 Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 166: C314 C3007 Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

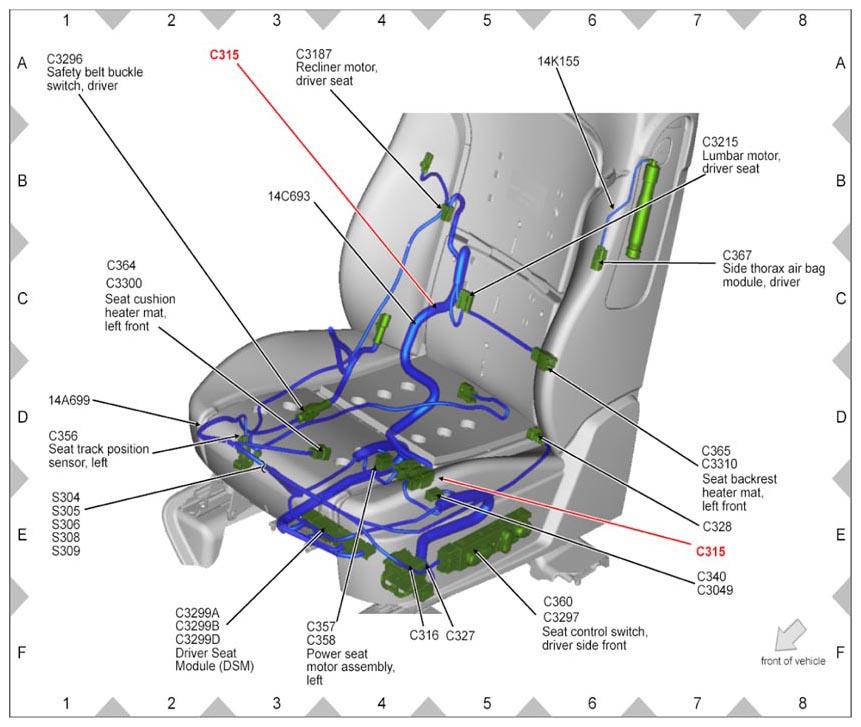

Fig 167: C315 Location - In Driver Seat Back

Courtesy of FORD MOTOR CO.

Fig 168: C316 Location - Vehicle Floor, Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 169: C316 Location - (With Side Air Curtains) Vehicle Floor, Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 170: C319 Cigar Lighter, Front Location - (Fusion) In Center Console, Top Front

Courtesy of FORD MOTOR CO.

Fig 171: C323 Safety Belt Retractor And Pretensioner, Driver Location - LH B-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 172: C327 Location - Vehicle Floor, Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 173: C328 Location - In Driver Seat Base

Courtesy of FORD MOTOR CO.

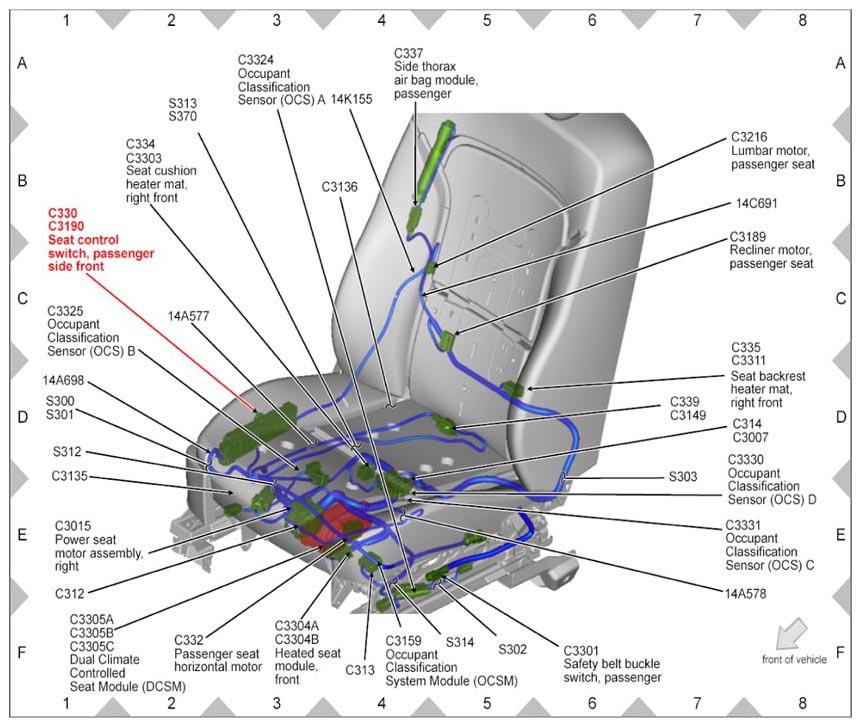

Fig 174: C330 C3190 Seat Control Switch, Passenger Side Front Location - In Passenger Seat Base, RH Side

Courtesy of FORD MOTOR CO.

Fig 175: C332 Passenger Seat Horizontal Motor Location - (4-Way Power Seat) In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 176: C334 C3303 Seat Cushion Heater Mat, Right Front Location - (With Heated Seats) In Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 177: C335 C3311 Seat Backrest Heater Mat, Right Front Location - (With Heated Seats) In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 178: C337 Side Thorax Air Bag Module, Passenger Location - In Passenger Seat Backrest, RH Side

Courtesy of FORD MOTOR CO.

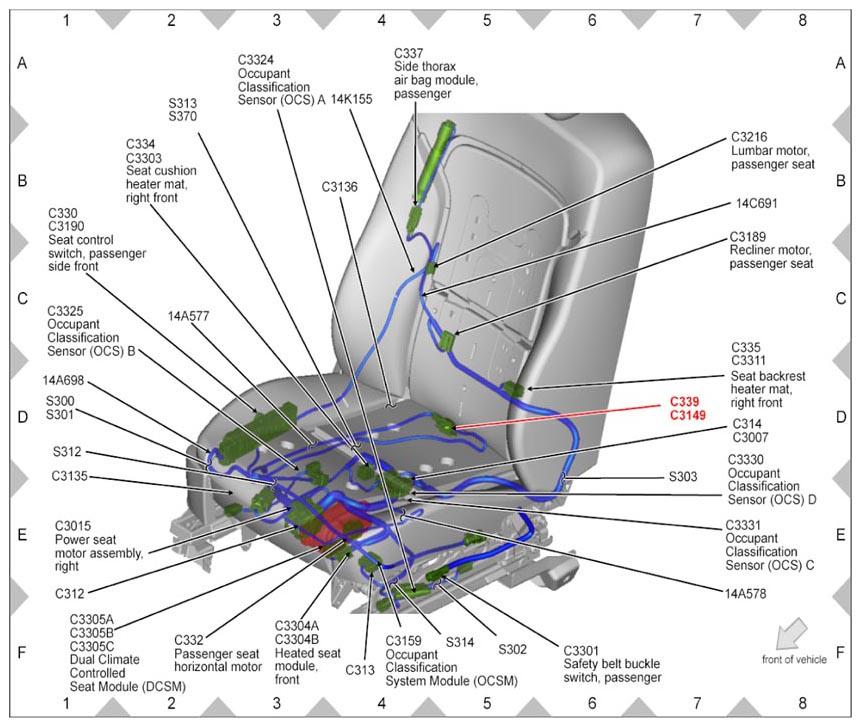

Fig 179: C339 C3149 Location - (4-Way Power Seat) In Passenger Seat Base

Courtesy of FORD MOTOR CO.

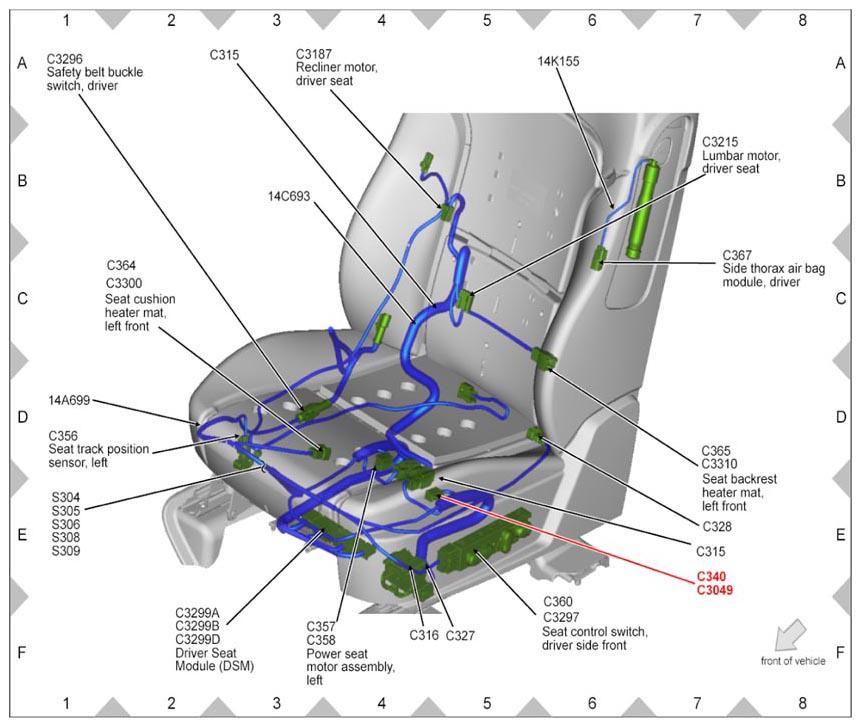

Fig 180: C340 C3049 Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 181: C356 Seat Track Position Sensor, Left Location - In Driver Seat Frame, Front

Courtesy of FORD MOTOR CO.

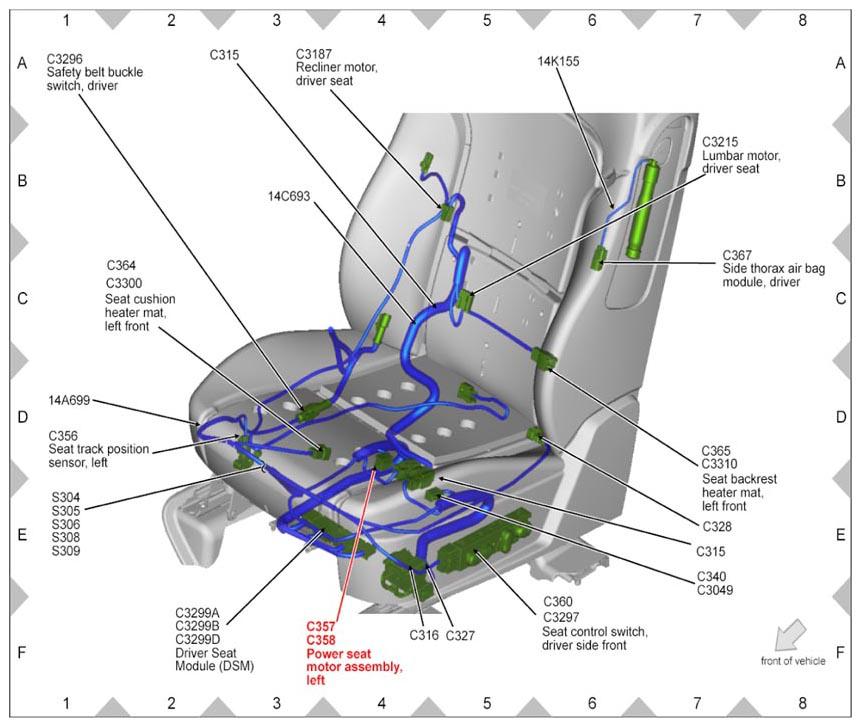

Fig 182: C357 C358 Power Seat Motor Assembly, Left Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 183: C357 C358 Power Seat Motor Assembly, Left Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 184: C360 C3297 Seat Control Switch Driver Side Front Location - (10-Way Power Seats) In Driver Seat Base, LH Side

Courtesy of FORD MOTOR CO.

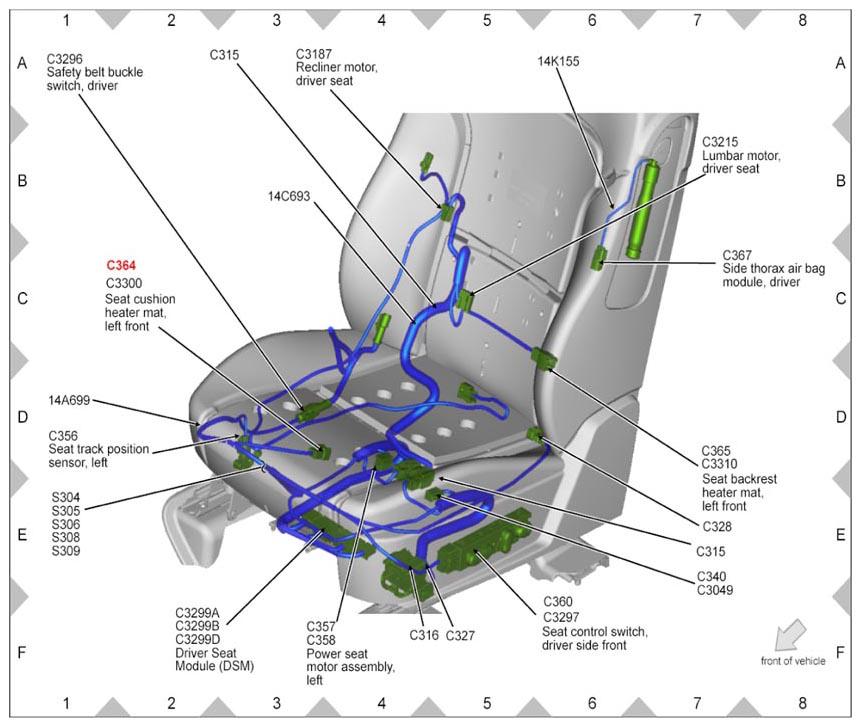

Fig 185: C364 C3300 Seat Cushion Heater Mat, Left Front Location - (With Heated Seats) In Driver Seat Base

Courtesy of FORD MOTOR CO.

Fig 186: C365 C3310 Seat Backrest Heater Mat, Left Front Location - (With Heated Seats) In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 187: C367 Side Thorax Air Bag Module, Driver Location - In Driver Seat Backrest, LH Side

Courtesy of FORD MOTOR CO.

Fig 188: C378 Cigar Lighter, Front Location - (MKZ) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 189: C380 Power Point Location - Under Center Console

Courtesy of FORD MOTOR CO.

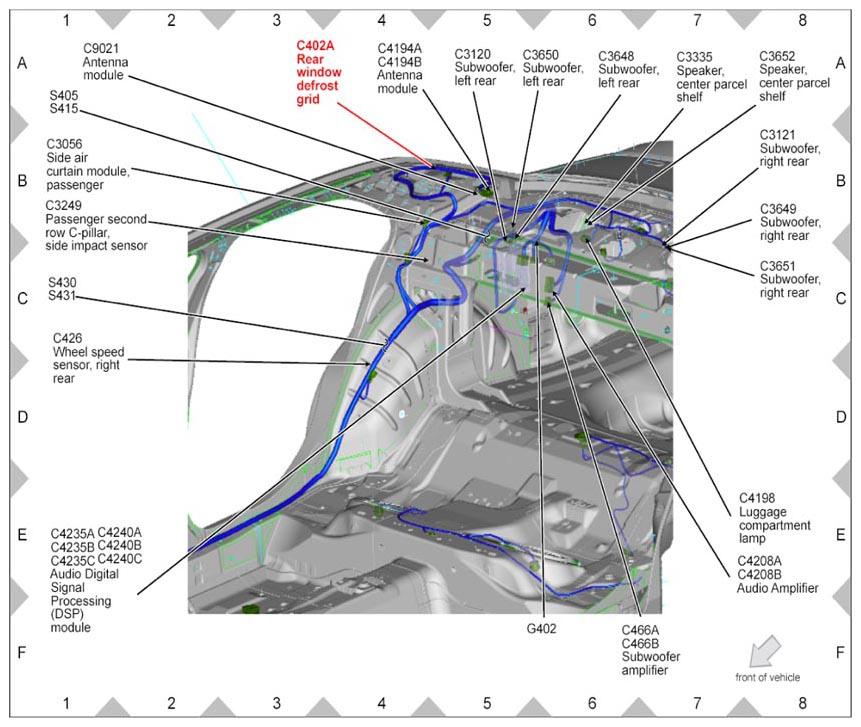

Fig 190: C402A Rear Window Defrost Grid Location - In Right C-Pillar

Courtesy of FORD MOTOR CO.

Fig 191: C402B Rear Window Defrost Grid Location - In C-Pillar, LH Side

Courtesy of FORD MOTOR CO.

Fig 192: C406 C408 Location - (Fusion) Rear Of Vehicle, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 193: C406 C408 Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 194: C406 C408 Location - (Fusion) Rear Of Vehicle, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 195: C406 C408 Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 196: C412 Park/Turn/Stop Lamp, Left Rear Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 197: C414 Lamp Assembly Left Rear Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 198: C415 Park/Turn/Stop Lamp, Right Rear Location - (Fusion) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

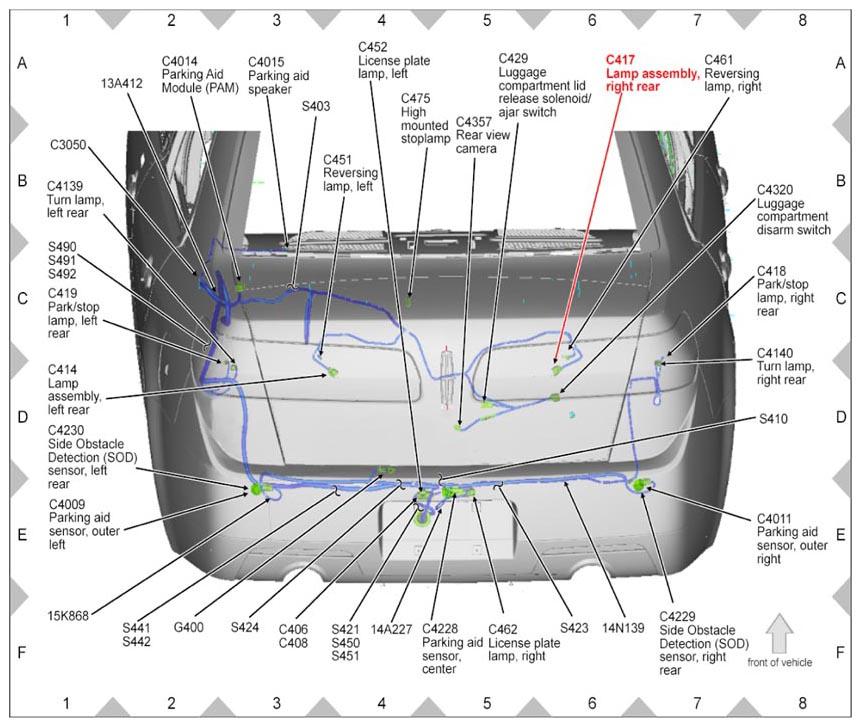

Fig 199: C417 Lamp Assembly, Right Rear Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 200: C418 Park/Stop Lamp, Right Rear Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 201: C419 Park/Stop Lamp, Left Rear Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 202: C426 Wheel Speed Sensor, Right Rear Location - In C-Pillar, Bottom

Courtesy of FORD MOTOR CO.

Fig 203: C429 Luggage Compartment Lid Release Solenoid/Ajar Switch Location - (Fusion) Luggage Compartment, Rear, Center

Courtesy of FORD MOTOR CO.

Fig 204: C429 Luggage Compartment Lid Release Solenoid/Ajar Switch Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

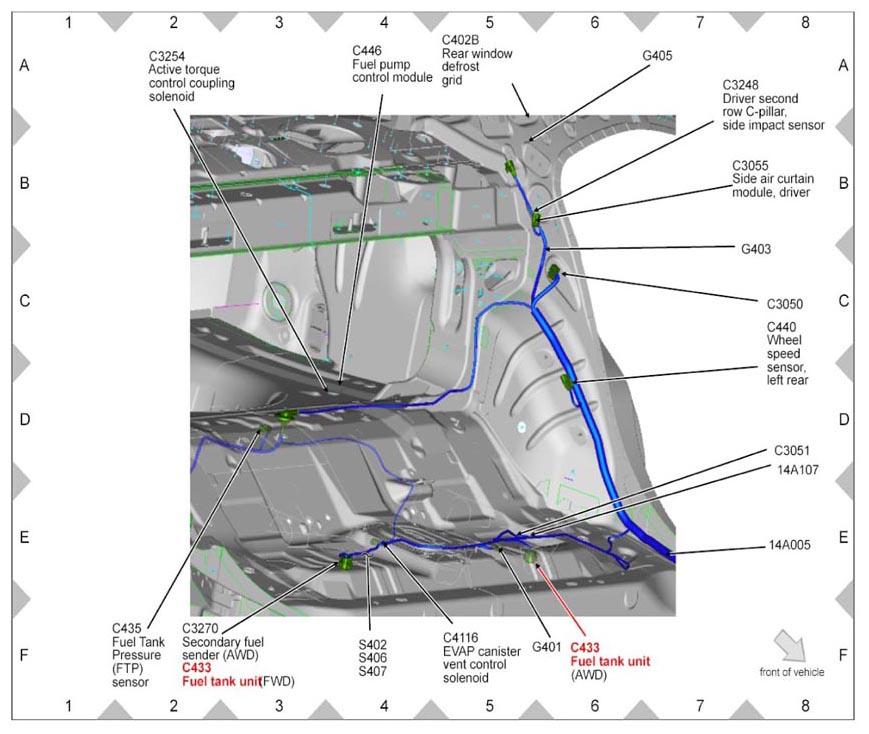

Fig 205: C433 Fuel Tank Unit Location - (AWD) Top Of Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 206: C433 Fuel Tank Unit Location - (FWD) Top Of Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 207: C435 Fuel Tank Pressure (FTP) Sensor Location - (MKZ) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 208: C440 Wheel Speed Sensor, Left Rear Location - (MKZ) Vehicle Underbody, Near Rear Axle, LH Side

Courtesy of FORD MOTOR CO.

Fig 209: C446 Fuel Pump Control Module Location - In Trunk, Left Rear Wheel Well

Courtesy of FORD MOTOR CO.

Fig 210: C451 Reversing Lamp, Left Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 211: C452 License Plate Lamp, Left Location - (Fusion) Rear Of Vehicle, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 212: C452 License Plate Lamp, Left Location - (MKZ) Vehicle Rear End, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 213: C461 Reversing Lamp, Right Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 214: C462 License Plate Lamp, Right Location - (Fusion) Rear Of Vehicle, Right Of Center

Courtesy of FORD MOTOR CO.

Fig 215: C462 License Plate Lamp, Right Location - (MKZ) Vehicle Rear End, Right Of Center

Courtesy of FORD MOTOR CO.

Fig 216: C466A C466B Subwoofer Amplifier Location - Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 217: C466A C466B Subwoofer Amplifier Location - Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 218: C475 High Mounted Stoplamp Location - (MKZ) In Luggage Compartment

Courtesy of FORD MOTOR CO.

Fig 219: C487 Reversing Lamp, Left Location - (Fusion) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 220: C488 Reversing Lamp, Right Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

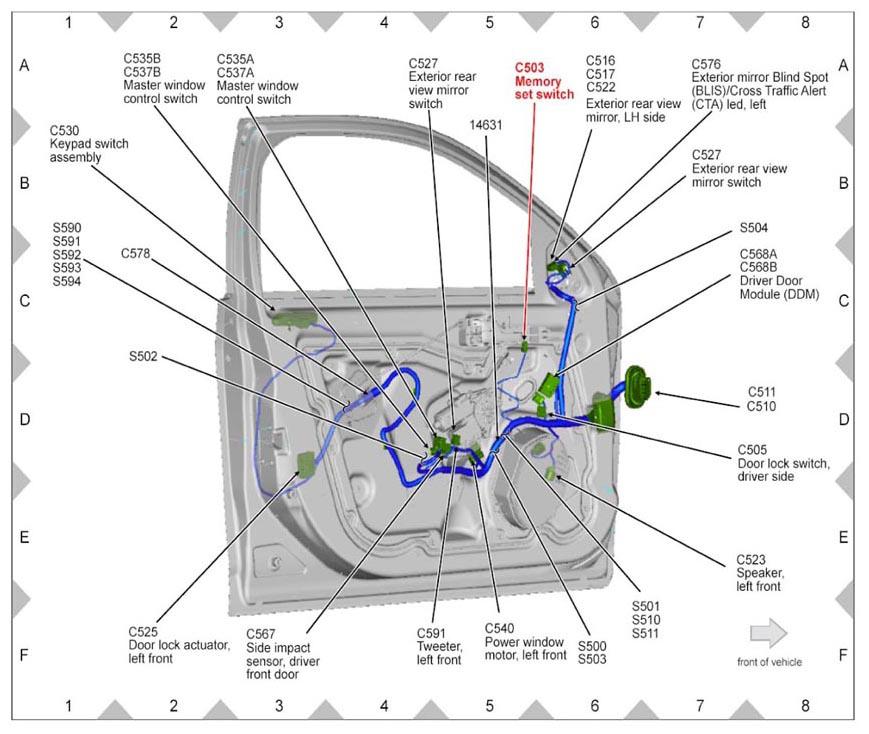

Fig 221: C503 Memory Set Switch Location - In Driver Door, Below Window

Courtesy of FORD MOTOR CO.

Fig 222: C505 Door Lock Switch, Driver Side Location - In Driver Door, Forward Side, Below Window

Courtesy of FORD MOTOR CO.

Fig 223: C510 Location - LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 224: C510 Location - (Fusion) LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 225: C511 Location - (MKZ) LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 226: C516 Location - (With Base Mirrors) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 227: C517 Location - (With Heated Mirrors) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 228: C522 Location - (With Memory Mirrors) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 229: C523 Speaker, Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 230: C525 Door Lock Actuator, Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 231: C527 Exterior Rear View Mirror Switch Location - (Fusion) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 232: C527 Exterior Rear View Mirror Switch Location - (MKZ) In Driver Door

Courtesy of FORD MOTOR CO.

Fig 233: C530 Keypad Switch Assembly Location - Driver Door Exterior

Courtesy of FORD MOTOR CO.

Fig 234: C535A C537A Master Window Control Switch Location - In Driver Door, On Armrest

Courtesy of FORD MOTOR CO.

Fig 235: C535B C537B Master Window Control Switch Location - In Driver Door, On Armrest

Courtesy of FORD MOTOR CO.

Fig 236: C535A C537A Master Window Control Switch Location - In Driver Door, On Armrest

Courtesy of FORD MOTOR CO.

Fig 237: C535B C537B Master Window Control Switch Location - In Driver Door, On Armrest

Courtesy of FORD MOTOR CO.

Fig 238: C540 Power Window Motor, Left Front Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 239: C567 Side Impact Sensor, Driver Front Door Location - In Drivers Door

Courtesy of FORD MOTOR CO.

Fig 240: C568A C568B Driver Door Module (DDM) Location - In Driver Door, Forward Side

Courtesy of FORD MOTOR CO.

Fig 241: C568A C568B Driver Door Module (DDM) Location - In Driver Door, Forward Side

Courtesy of FORD MOTOR CO.

Fig 242: C576 Exterior Mirror Blind Spot (BLIS) Cross Traffic Alert (CTA) Led, Left Location - In Exterior Rear View Mirror, LH Side

Courtesy of FORD MOTOR CO.

Fig 243: C578 Location - In Driver Door

Courtesy of FORD MOTOR CO.

Fig 244: C591 Tweeter, Left Front Location - (THX)In Driver Door

Courtesy of FORD MOTOR CO.

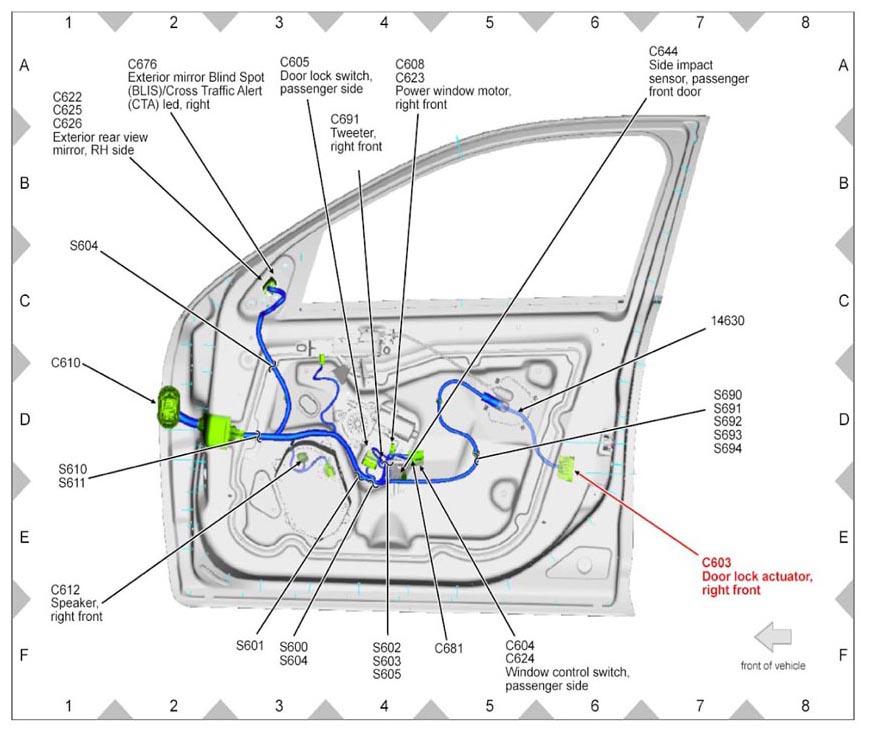

Fig 245: C603 Door Lock Actuator, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 246: C604 C624 Window Control Switch, Passenger Side Location - On Passenger Door Armrest

Courtesy of FORD MOTOR CO.

Fig 247: C605 Door Lock Switch, Passenger Side Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 248: C608 C623 Power Window Motor, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 249: C610 Location - RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 250: C612 Speaker, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 251: C622 C625 C626 Exterior Rear View Mirror, RH Side Location - Passenger Door Exterior

Courtesy of FORD MOTOR CO.

Fig 252: C608 C623 Power Window Motor, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 253: C604 C624 Window Control Switch, Passenger Side Location - On Passenger Door Armrest

Courtesy of FORD MOTOR CO.

Fig 254: C622 C625 C626 Exterior Rear View Mirror, RH Side Location - Passenger Door Exterior

Courtesy of FORD MOTOR CO.

Fig 255: C622 C625 C626 Exterior Rear View Mirror, RH Side Location - Passenger Door Exterior

Courtesy of FORD MOTOR CO.

Fig 256: C644 Side Impact Sensor, Passenger Front Door Location - In Passenger Side Front Door

Courtesy of FORD MOTOR CO.

Fig 257: C676 Exterior Mirror Blind Spot (BLIS)/Cross Traffic Alert (CTA) Led, Right Location - In Exterior Rear View Mirror, RH Side

Courtesy of FORD MOTOR CO.

Fig 258: C681 Location - On Passenger Door Armrest

Courtesy of FORD MOTOR CO.

Fig 259: C691 Tweeter, Right Front Location - In Passenger Door

Courtesy of FORD MOTOR CO.

Fig 260: C701 Window Control Switch, Left Rear Location - On Left Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 261: C702 Speaker, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 262: C703 Power Window Motor, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 263: C704 Door Lock Actuator, Left Rear Location - In Left Rear Door

Courtesy of FORD MOTOR CO.

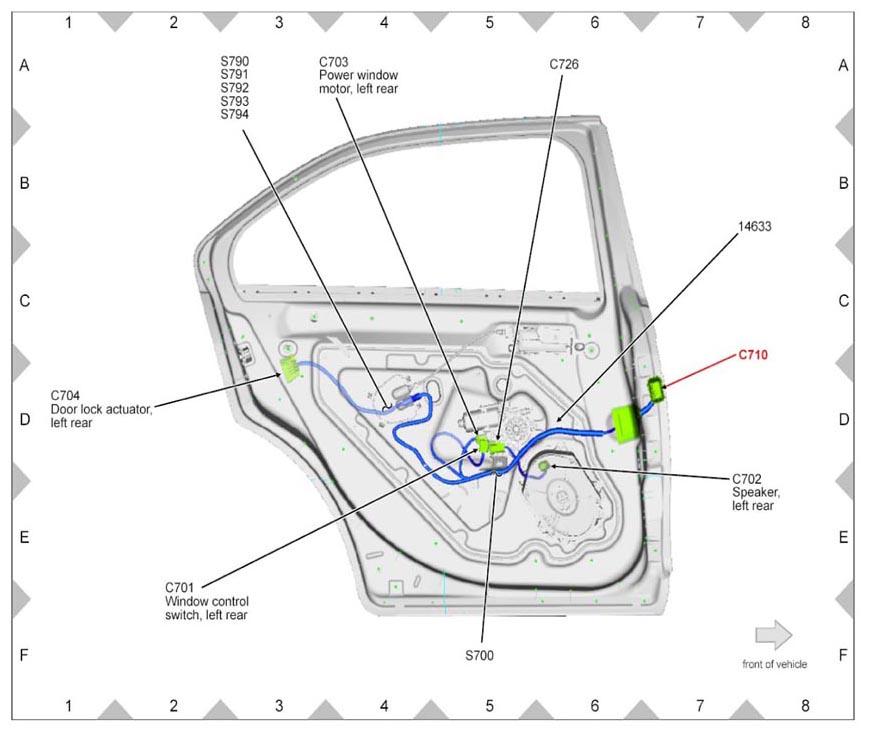

Fig 264: C710 Location - LH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 265: C726 Location - On Left Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 266: C802 Speaker, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 267: C803 Power Window Motor, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 268: C804 Door Lock Actuator, Right Rear Location - In Right Rear Door

Courtesy of FORD MOTOR CO.

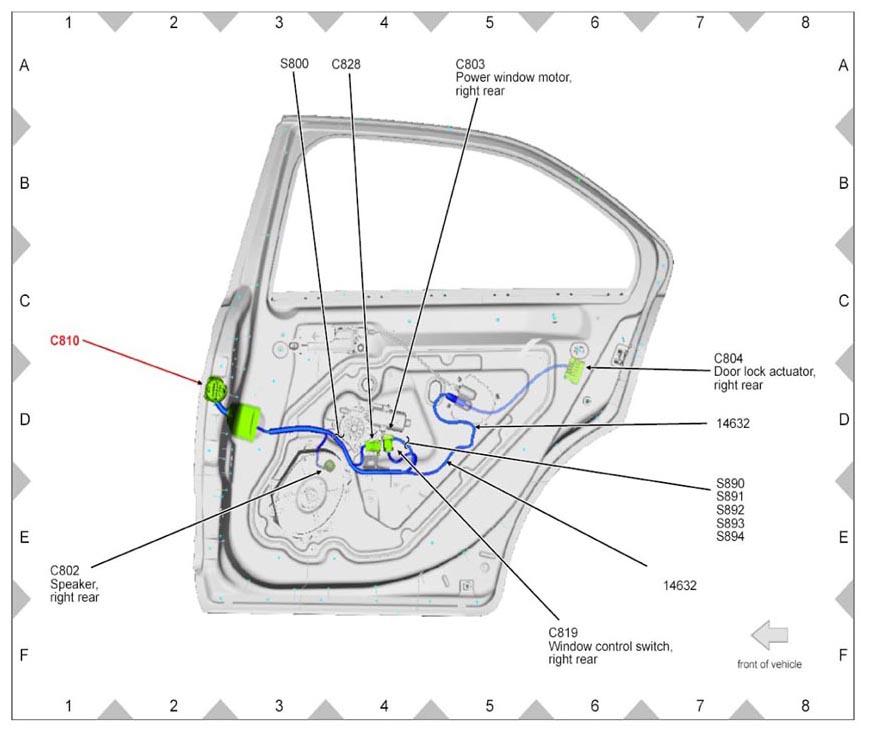

Fig 269: C810 Location - RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 270: C819 Window Control Switch, Right Rear Location - On Right Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 271: C828 Location - On Right Rear Door Armrest

Courtesy of FORD MOTOR CO.

Fig 272: C901 Interior Lamp, Rear Location - In Roof Panel

Courtesy of FORD MOTOR CO.

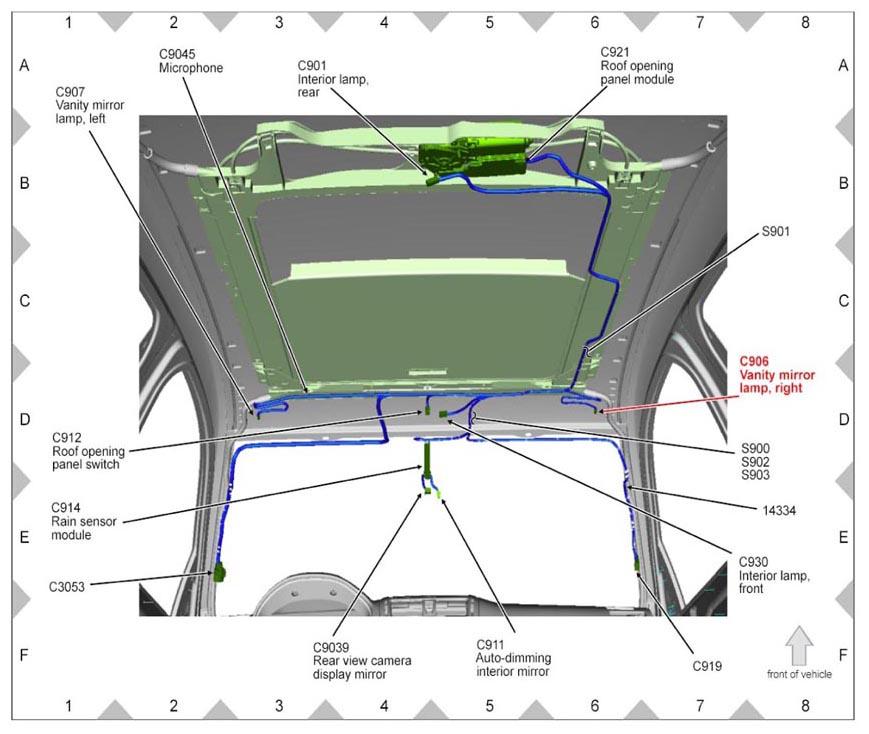

Fig 273: C906 Vanity Mirror Lamp, Right Location - In Roof Panel, Front, RH Side

Courtesy of FORD MOTOR CO.

Fig 274: C907 Vanity Mirror Lamp, Left Location - In Roof Panel, Front, LH Side

Courtesy of FORD MOTOR CO.

Fig 275: C911 Auto-Dimming Interior Mirror Location - On Interior Rear View Mirror

Courtesy of FORD MOTOR CO.

Fig 276: C912 Roof Opening Panel Switch Location - In Overhead Console

Courtesy of FORD MOTOR CO.

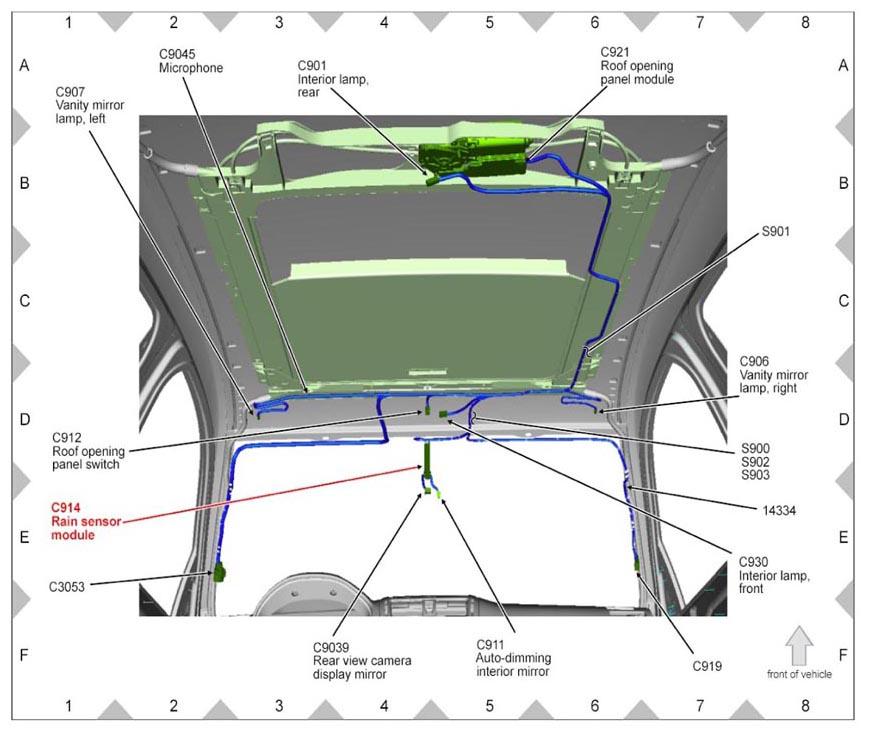

Fig 277: C914 Rain Sensor Module Location - On Windshield, Front Center

Courtesy of FORD MOTOR CO.

Fig 278: C919 Location - RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 279: C921 Roof Opening Panel Module Location - In Roof Panel, Behind Moonroof Panel

Courtesy of FORD MOTOR CO.

Fig 280: C930 Interior Lamp, Front Location - In Roof Panel, Behind Moonroof Panel

Courtesy of FORD MOTOR CO.

Fig 281: C1010 Location - (2.5L) Near Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

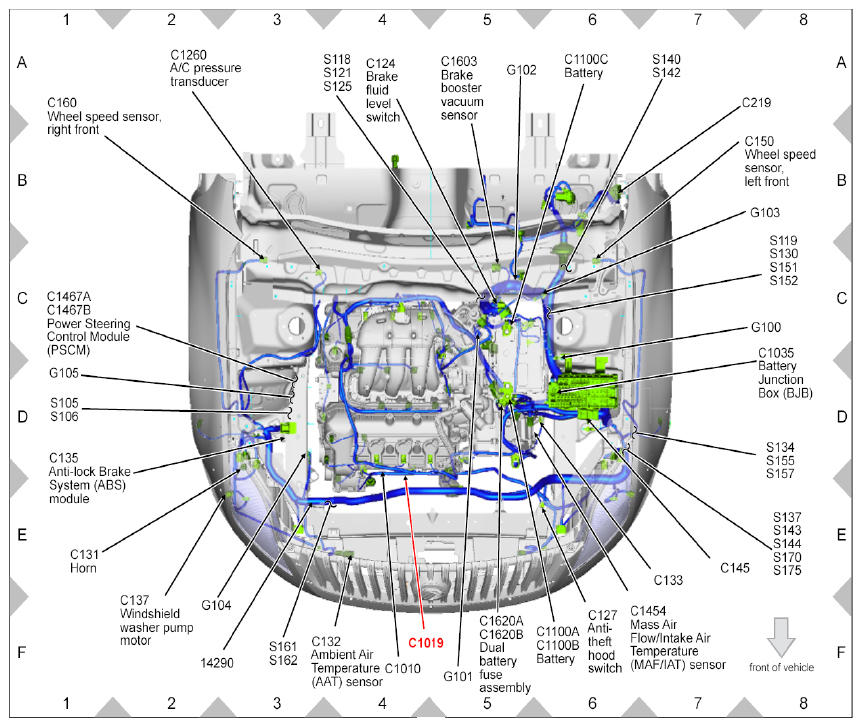

Fig 282: C1010 Location - (3.0L) Near Engine In Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 283: C1019 Location - (2.5L) Near Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 284: C1019 Location - (3.0L) Near Engine In Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 285: C1021 Headlamp, Left Location - (2.5L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 286: C1021 Headlamp, Left Location - (3.0L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 287: C1021 Headlamp, Left Location - (3.5L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 288: C1023 Park/Turn Lamp, Left Front Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

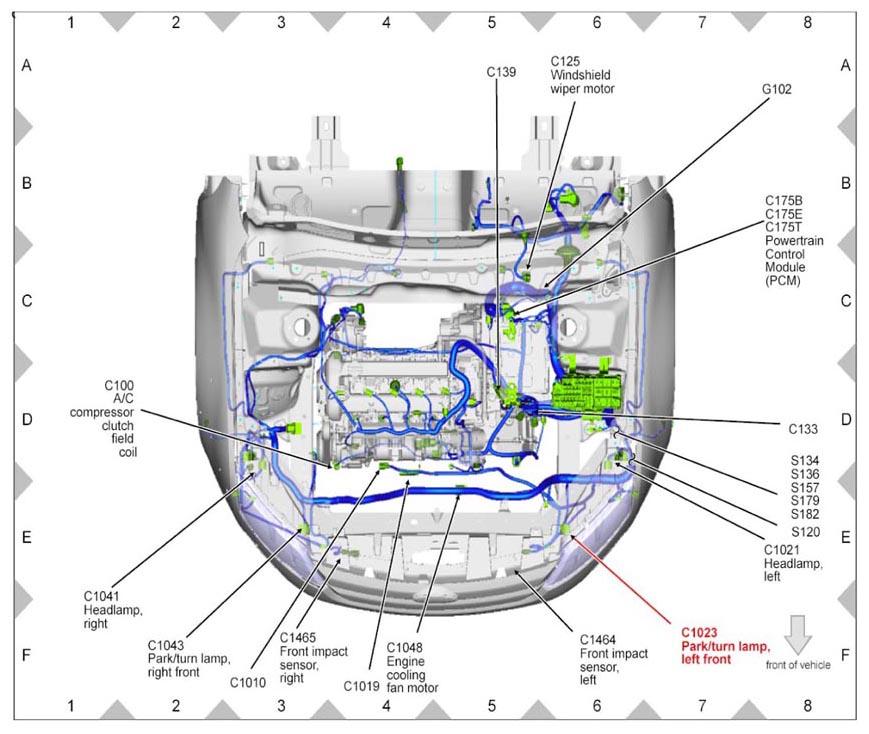

Fig 289: C1023 Park/Turn Lamp, Left Front Location - (2.5L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 290: C1023 Park/Turn Lamp, Left Front Location - (3.5L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

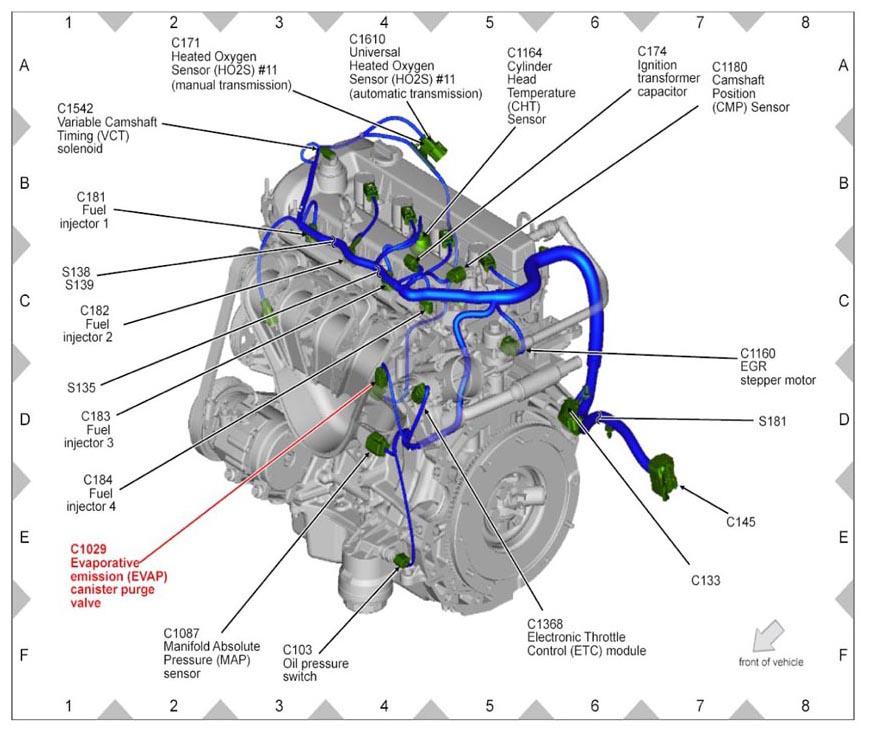

Fig 291: C1029 Evaporative Emission (EVAP) Canister Purge Valve Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 292: C1029 Evaporative Emission (EVAP) Canister Purge Valve Location - (3.0L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 293: C1035 Battery Junction Box (BJB) Location - (2.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

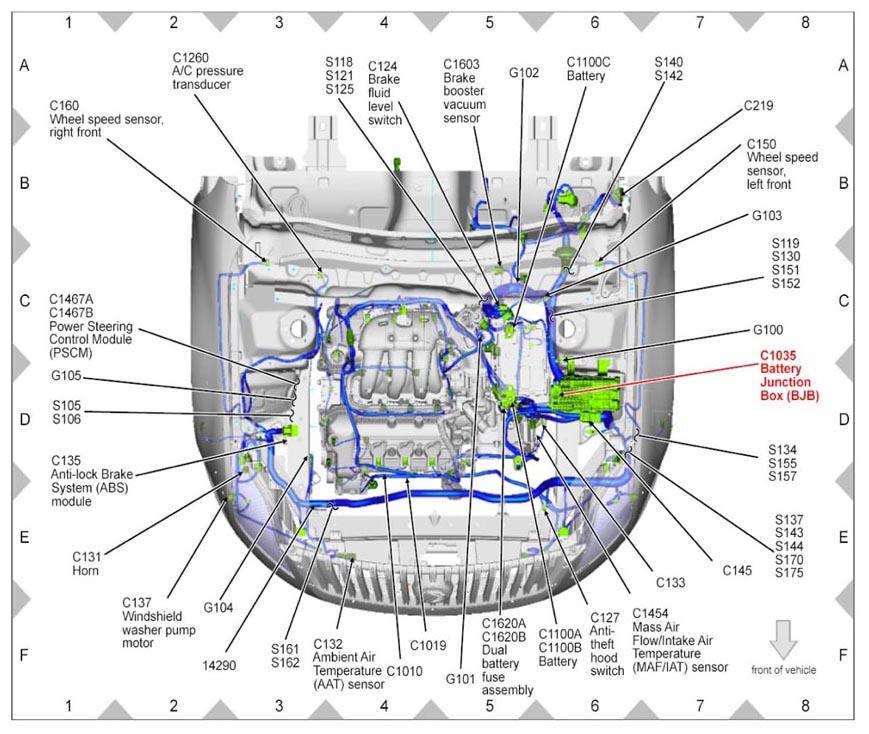

Fig 294: C1035 Battery Junction Box (BJB) Location - (3.0L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 295: C1035 Battery Junction Box (BJB) Location - (3.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

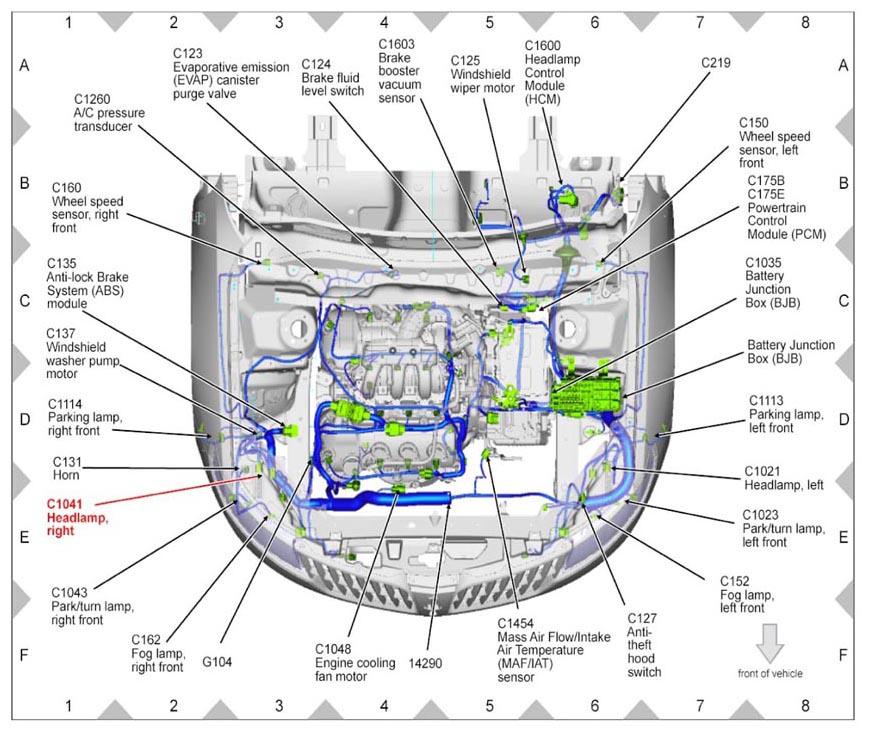

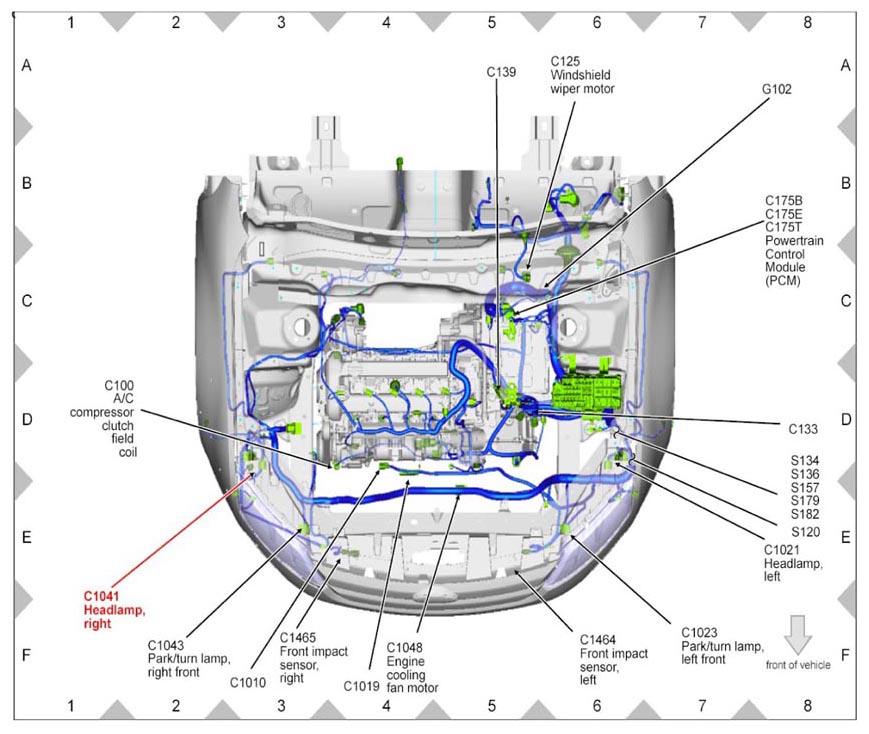

Fig 296: C1041 Headlamp, Right Location - (2.5L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 297: C1041 Headlamp, Right Location - (3.0L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 298: C1041 Headlamp, Right Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

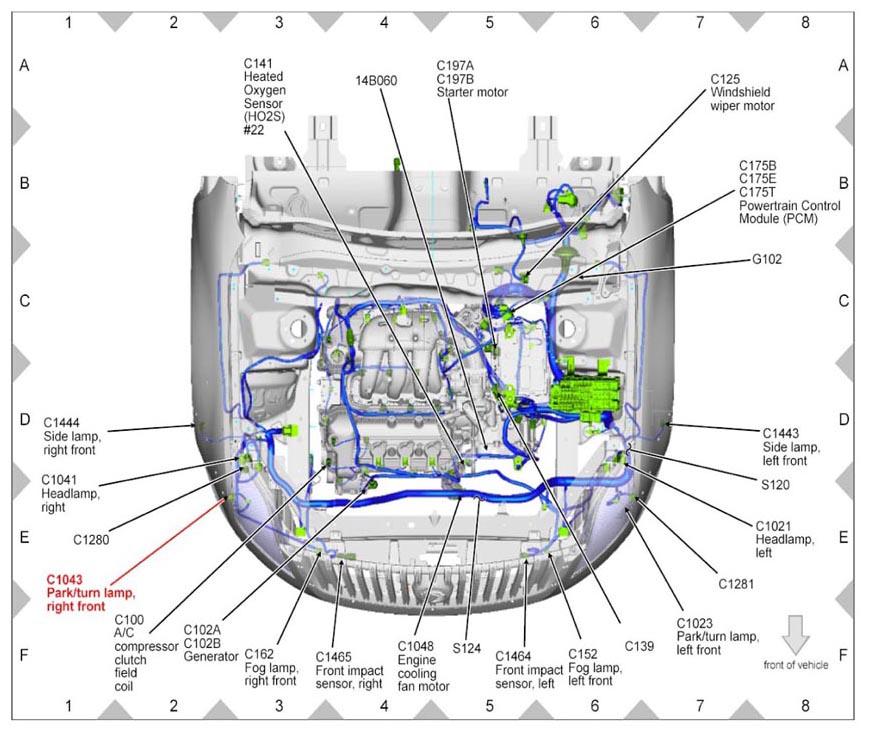

Fig 299: C1043 Park/Turn Lamp, Right Front Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 300: C1043 Park/Turn Lamp, Right Front Location - (2.5L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 301: C1043 Park/Turn Lamp, Right Front Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 302: C1048 Engine Cooling Fan Motor Location - (2.5L) Behind Radiator

Courtesy of FORD MOTOR CO.

Fig 303: C1048 Engine Cooling Fan Motor Location - (3.0L) On Cooling Fan

Courtesy of FORD MOTOR CO.

Fig 304: C1048 Engine Cooling Fan Motor Location - (3.5L) Behind Radiator

Courtesy of FORD MOTOR CO.

Fig 305: C1087 Manifold Absolute Pressure (MAP) Sensor Location - (2.5L) On Engine, Rear Side Of Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 306: C1100A C1100B Battery Location - (2.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 307: C1100A C1100B Battery Location - (3.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 308: C1100A C1100B Battery Location - (MKZ) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 309: C1100A C1100B Battery Location - (2.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 310: C1100A C1100B Battery Location - (3.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 311: C1100A C1100B Battery Location - (MKZ) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

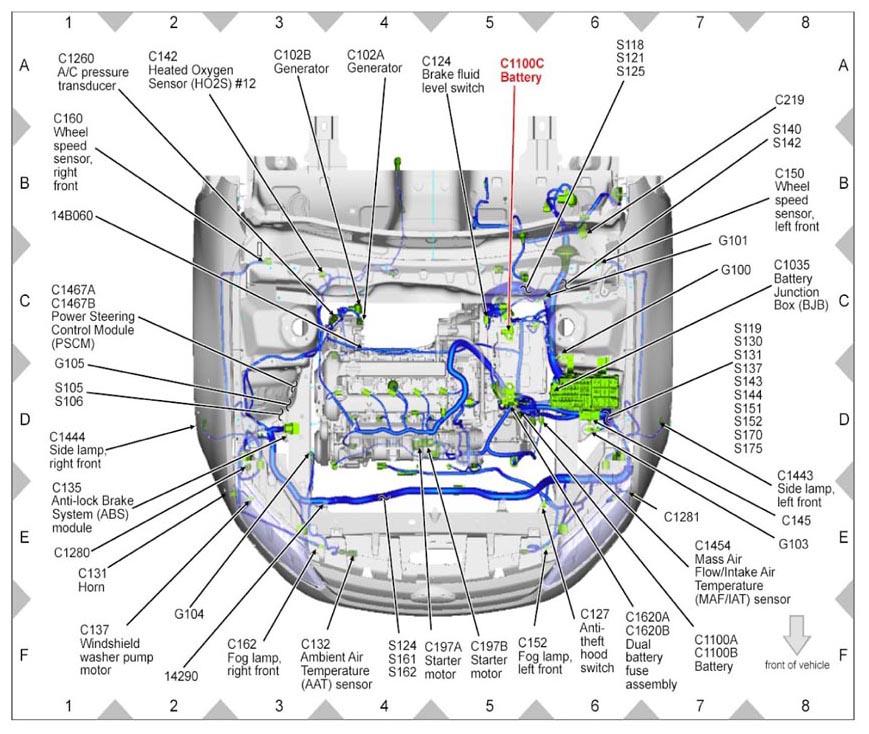

Fig 312: C1100C Battery Location - (2.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 313: C1100C Battery Location - (3.0L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 314: C1100C Battery Location - (3.5L) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

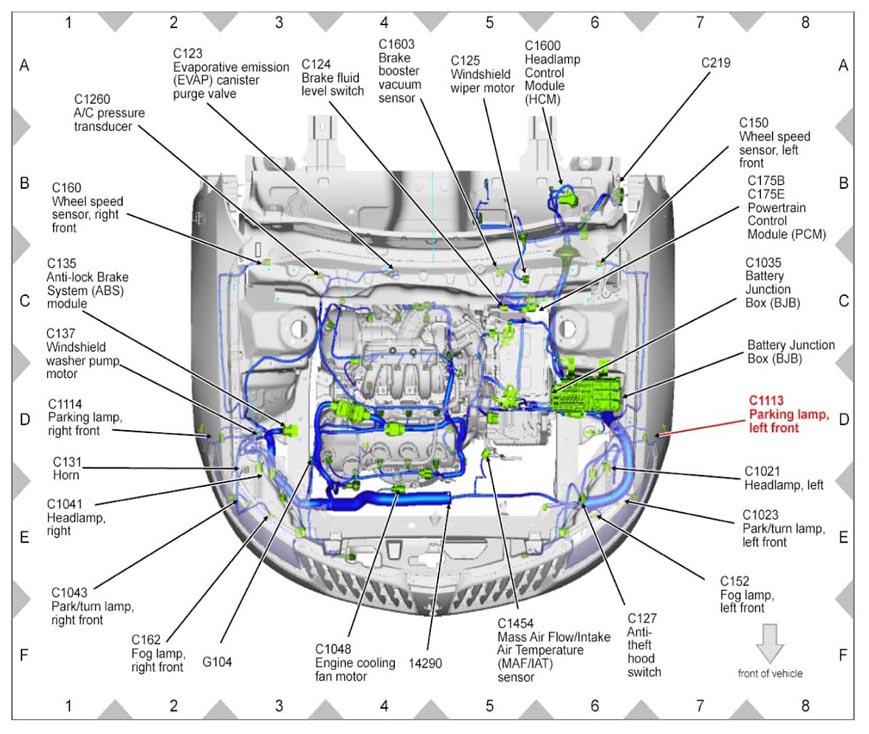

Fig 315: C1113 Parking Lamp, Left Front Location - (3.5L) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 316: C1114 Parking Lamp, Right Front Location - (3.5L) Engine Compartment, RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 317: C1120 Crankshaft Position (CKP) Sensor Location - (2.5L) On Engine, Front, Near Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Fig 318: C1121 Power Steering Pressure (PSP) Switch Location - (3.5L) Engine Compartment, RH Side, Rear

Courtesy of FORD MOTOR CO.

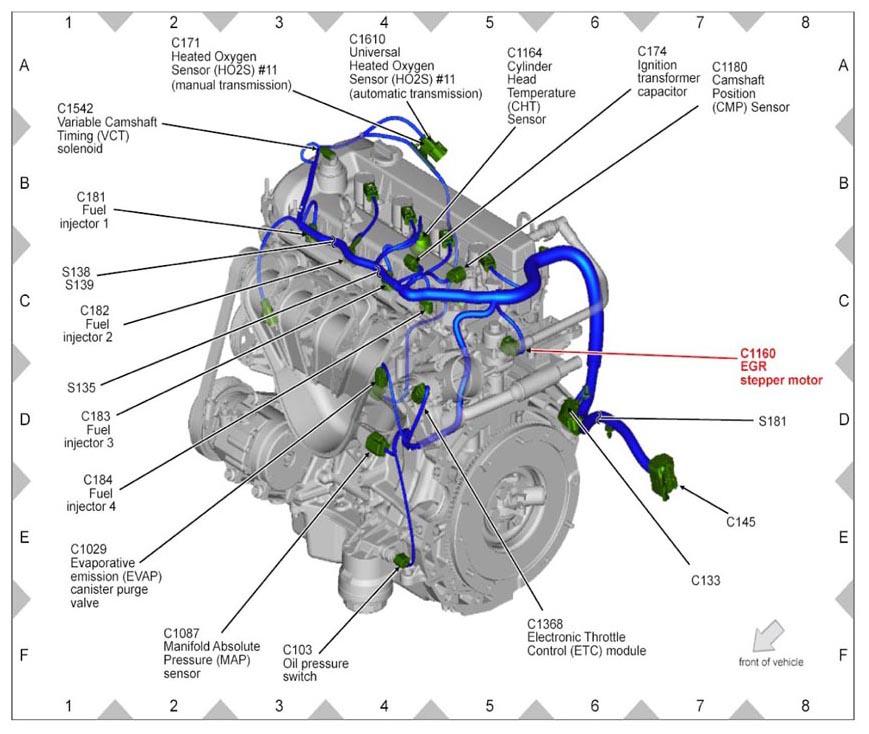

Fig 319: C1160 EGR Stepper Motor Location - (2.5L) On Engine, Rear Side Of Cylinder Head

Courtesy of FORD MOTOR CO.

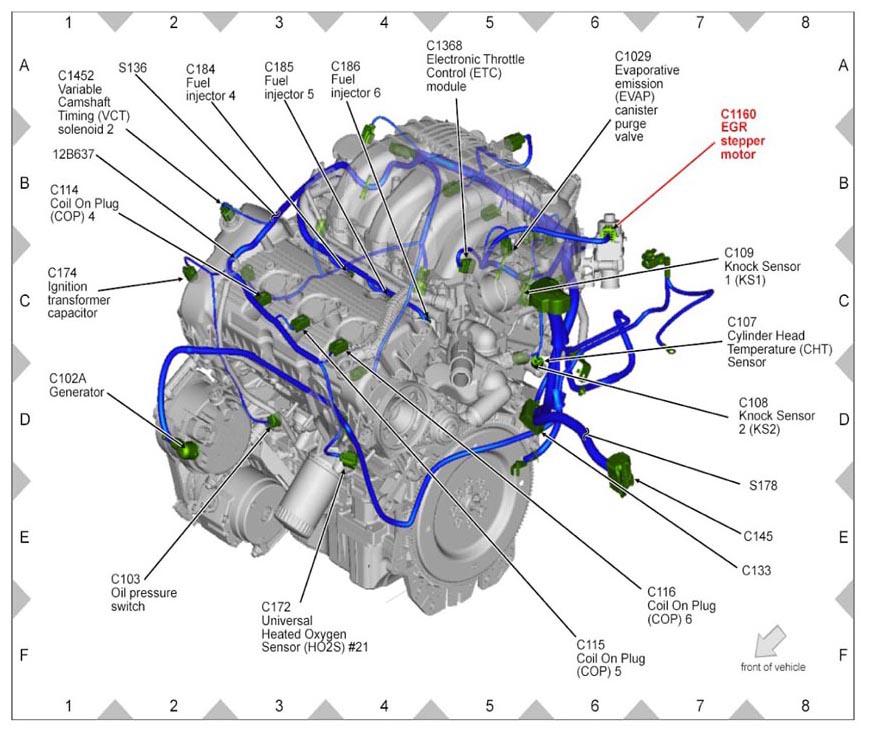

Fig 320: C1160 EGR Stepper Motor Location - (3.0L) On Top Of Engine

Courtesy of FORD MOTOR CO.

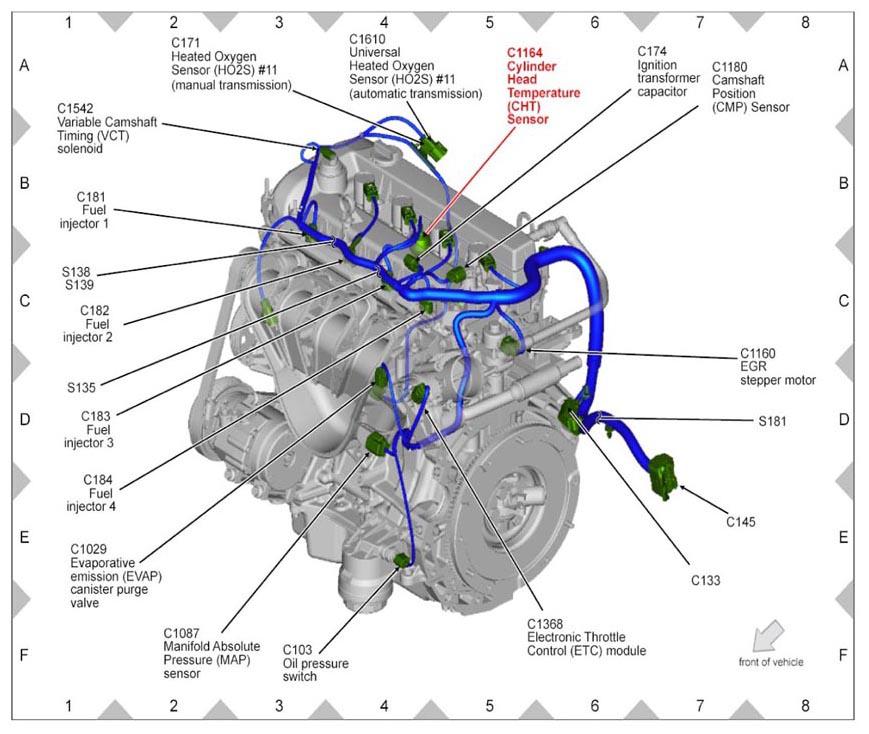

Fig 321: C1164 Cylinder Head Temperature (CHT) Sensor Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 322: C1164 Cylinder Head Temperature (CHT) Sensor Location - (3.5L) On Engine, Rear, Near Thermostat Housing

Courtesy of FORD MOTOR CO.

Fig 323: C1180 Camshaft Position (CMP) Sensor Location - (2.5L) On Top Of Engine

Courtesy of FORD MOTOR CO.

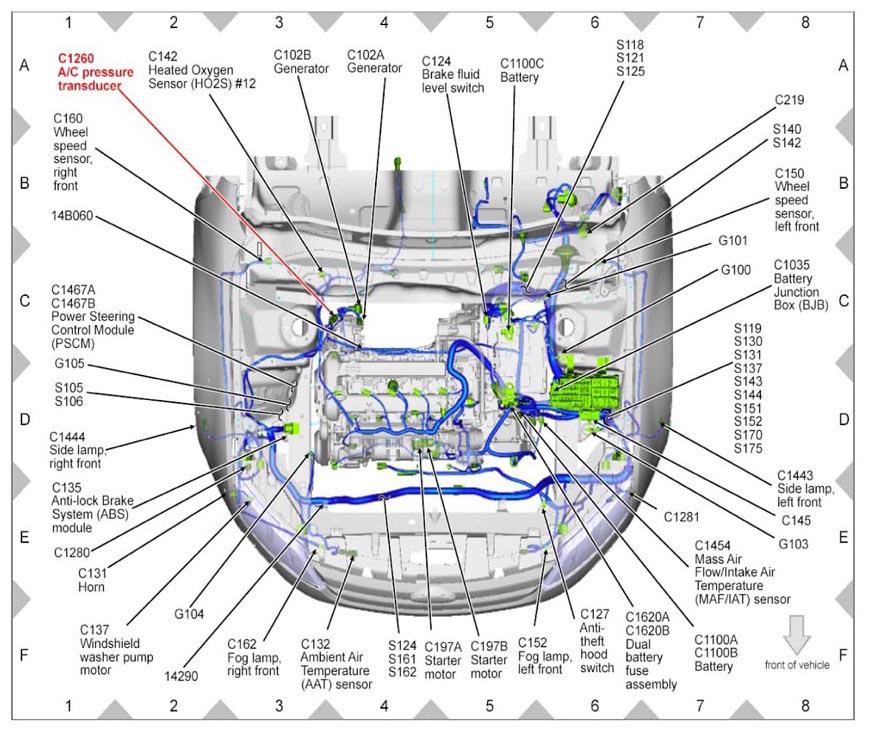

Fig 324: C1260 A/C Pressure Transducer Location - (2.5L) Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

Fig 325: C1260 A/C Pressure Transducer Location - (3.0L) Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

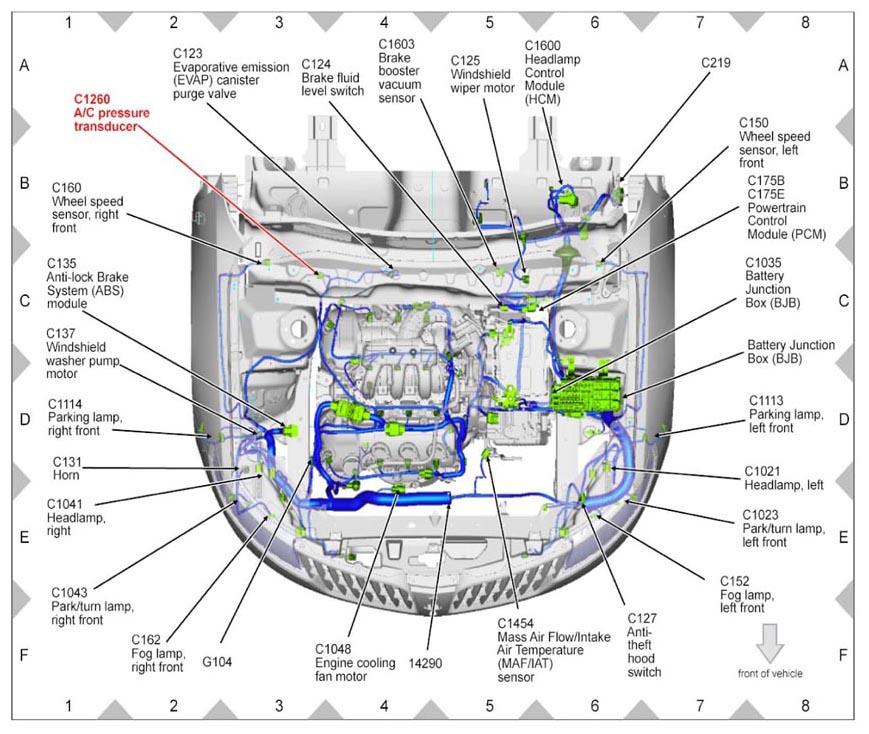

Fig 326: C1260 A/C Pressure Transducer Location - (3.5L) Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

Fig 327: C1275 Camshaft Position (CMP2) Sensor 2 Location - (3.5L) On LH Cylinder Head, Front

Courtesy of FORD MOTOR CO.

Fig 328: C1280 Location - (2.5L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

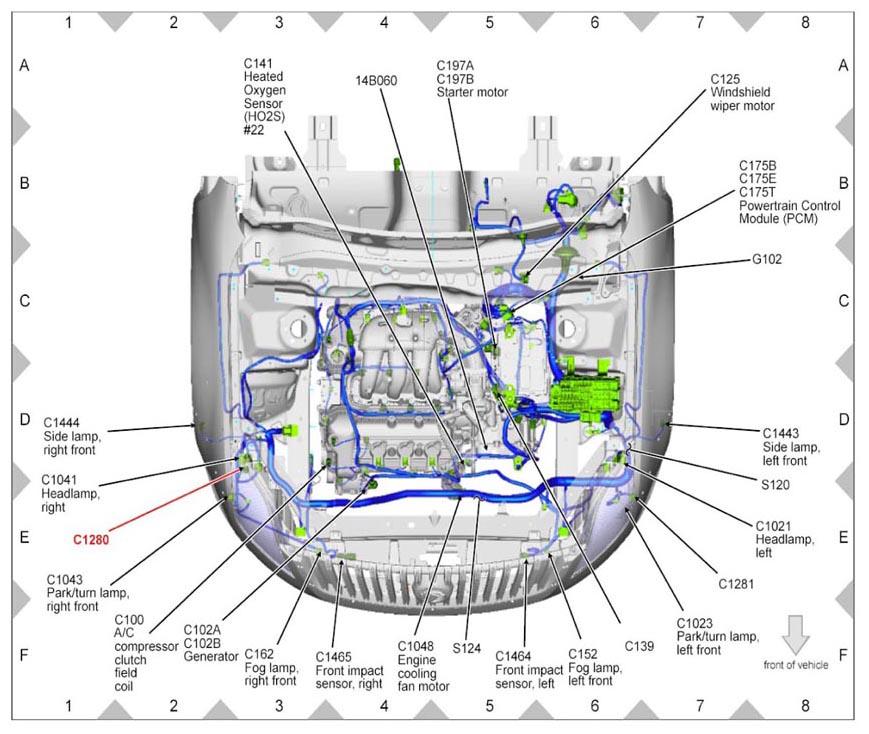

Fig 329: C1280 Location - (3.0L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 330: C1281 Location - (2.5L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 331: C1281 Location - (3.0L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 332: C1366 Camshaft Position (CMP1) Sensor 1 Location - (3.0L) On RH Cylinder Head, Front

Courtesy of FORD MOTOR CO.

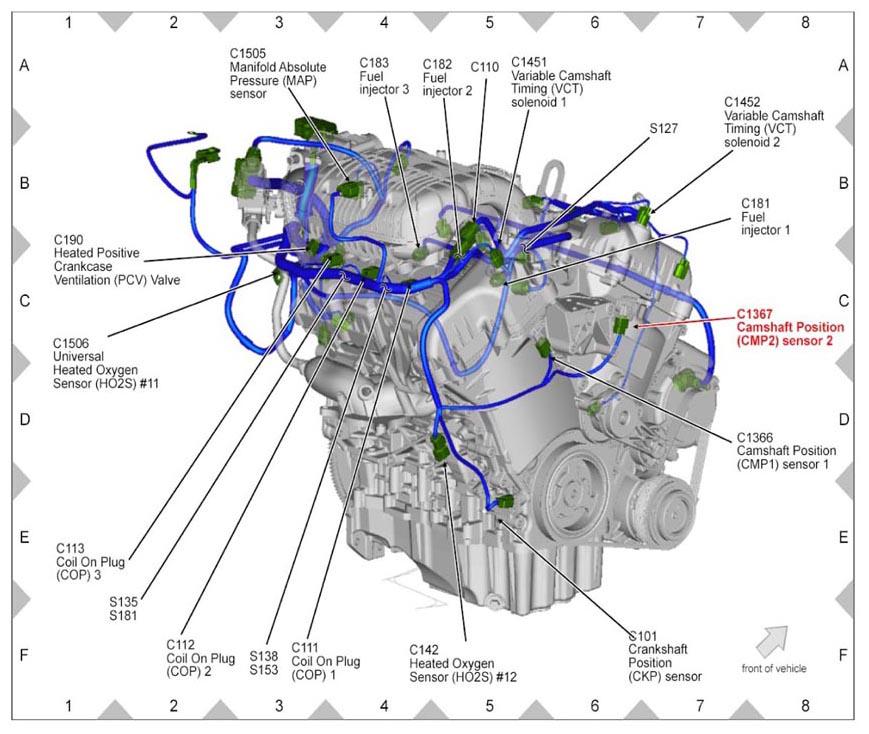

Fig 333: C1367 Camshaft Position (CMP2) Sensor 2 Location - (3.0L) On LH Cylinder Head, Front

Courtesy of FORD MOTOR CO.

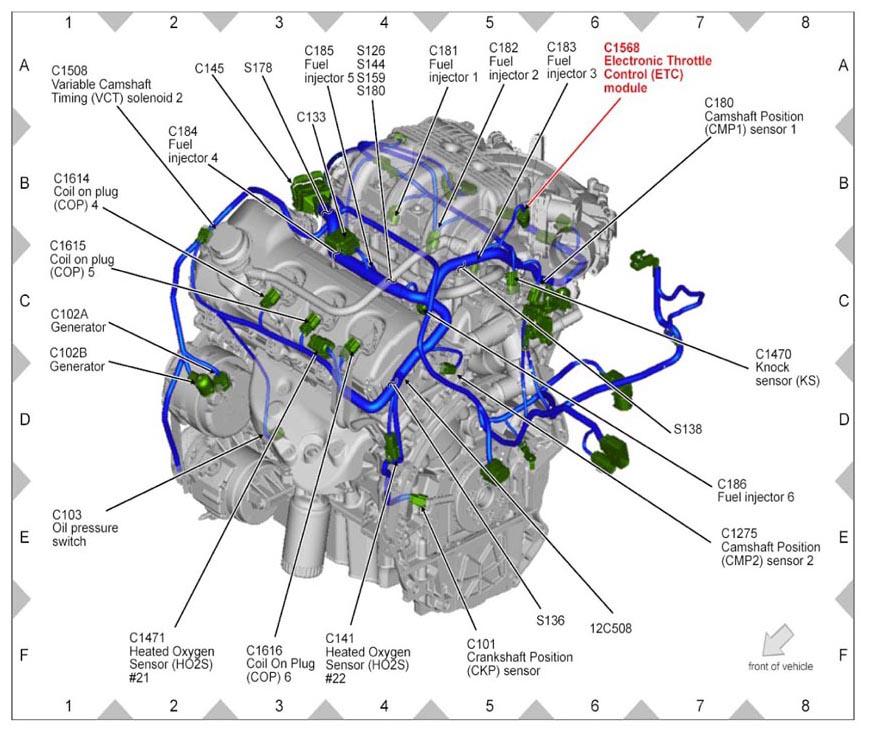

Fig 334: C1368 Electronic Throttle Control (ETC) Module Location - (2.5L) On Throttle Body

Courtesy of FORD MOTOR CO.

Fig 335: C1368 Electronic Throttle Control (ETC) Module Location - (3.0L) On Throttle Body

Courtesy of FORD MOTOR CO.

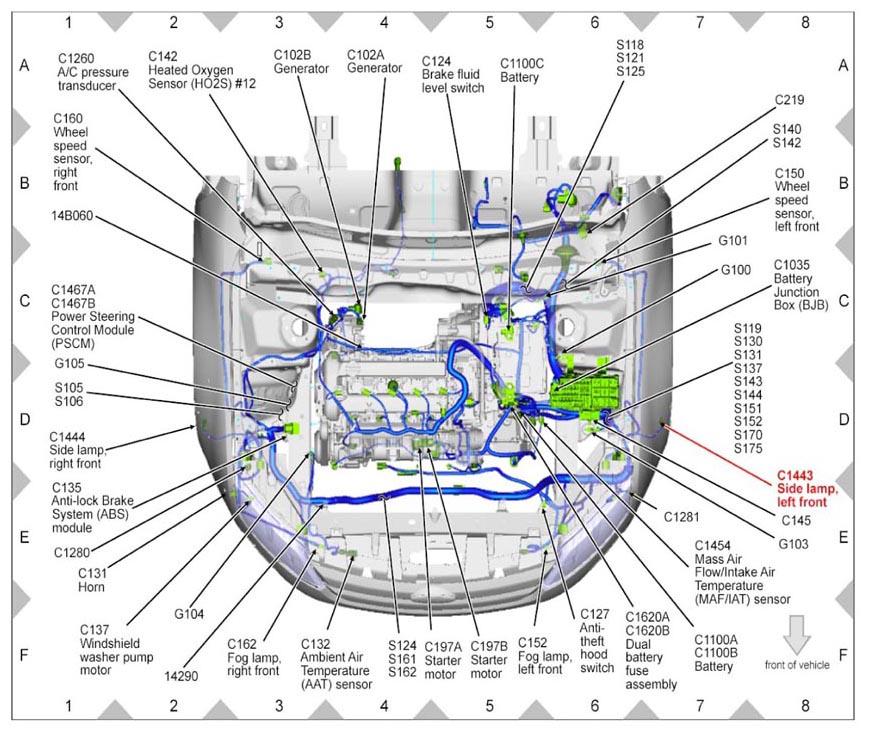

Fig 336: C1443 Side Lamp, Left Front Location - (2.5L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 337: C1443 Side Lamp, Left Front Location - (3.0L) Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

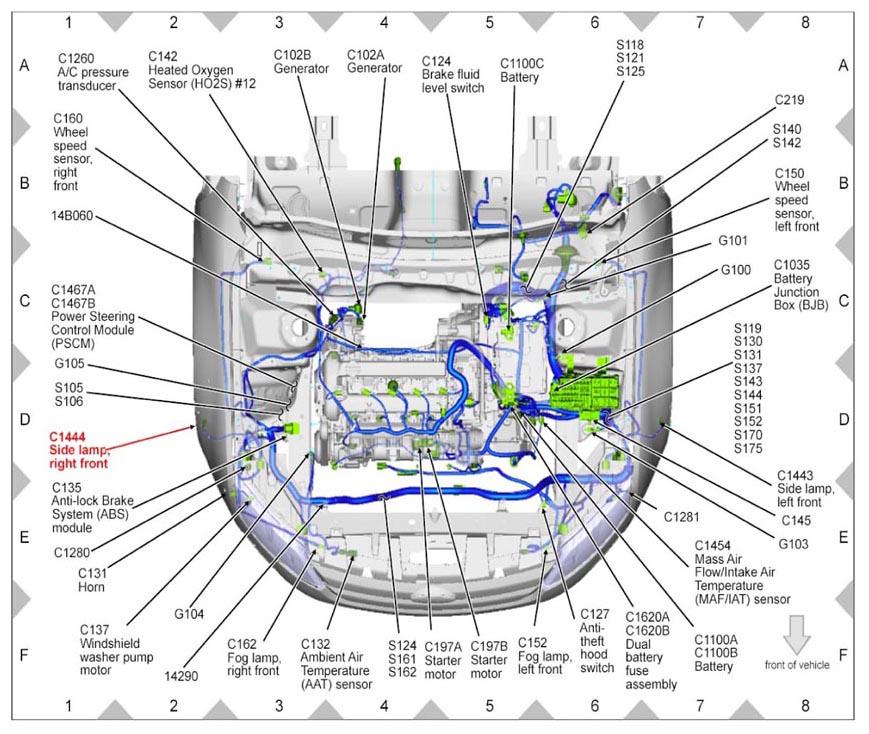

Fig 338: C1444 Side Lamp, Right Front Location - (2.5L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 339: C1444 Side Lamp, Right Front Location - (3.0L) Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

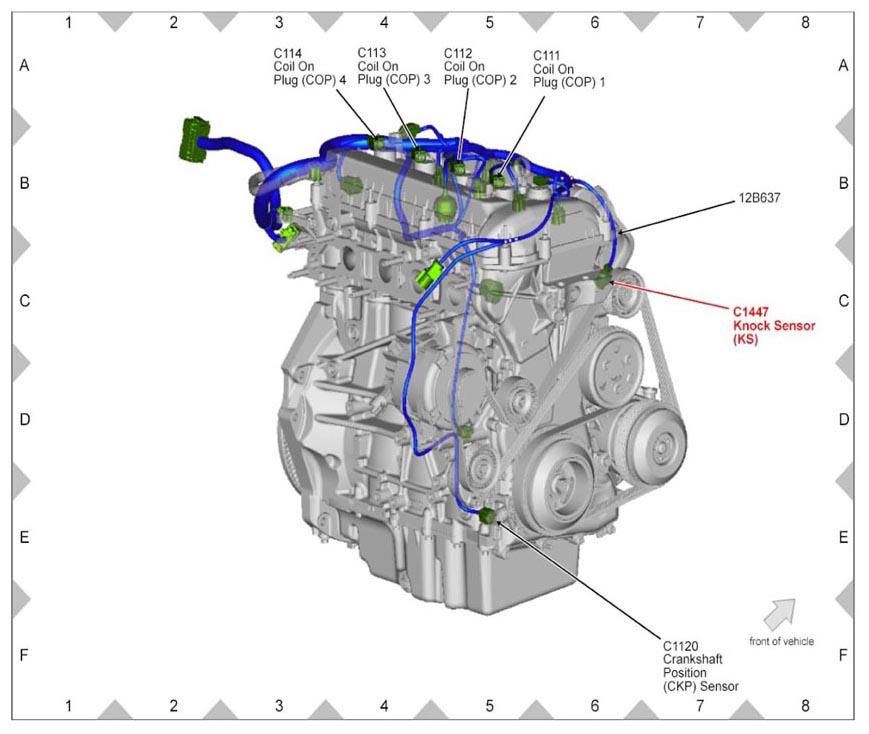

Fig 340: C1447 Knock Sensor (KS) Location - (2.5L) On Engine, Front

Courtesy of FORD MOTOR CO.

Fig 341: C1451 Variable Camshaft Timing (VCT) Solenoid 1 Location - (3.0L) On RH Valve Cover, Front

Courtesy of FORD MOTOR CO.

Fig 342: C1452 Variable Camshaft Timing (VCT) Solenoid 2 Location - (3.0L) Front Of Engine

Courtesy of FORD MOTOR CO.

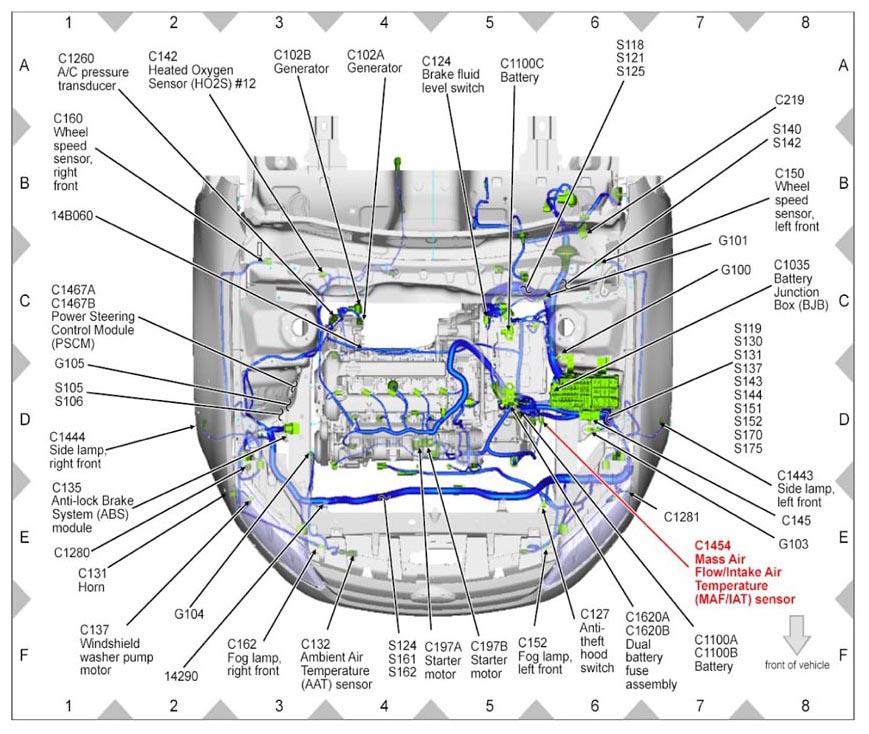

Fig 343: C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (2.5L) Engine Compartment, LH Side, On Air Intake

Courtesy of FORD MOTOR CO.

Fig 344: C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (3.0L) Engine Compartment, LH Side, On Air Intake

Courtesy of FORD MOTOR CO.

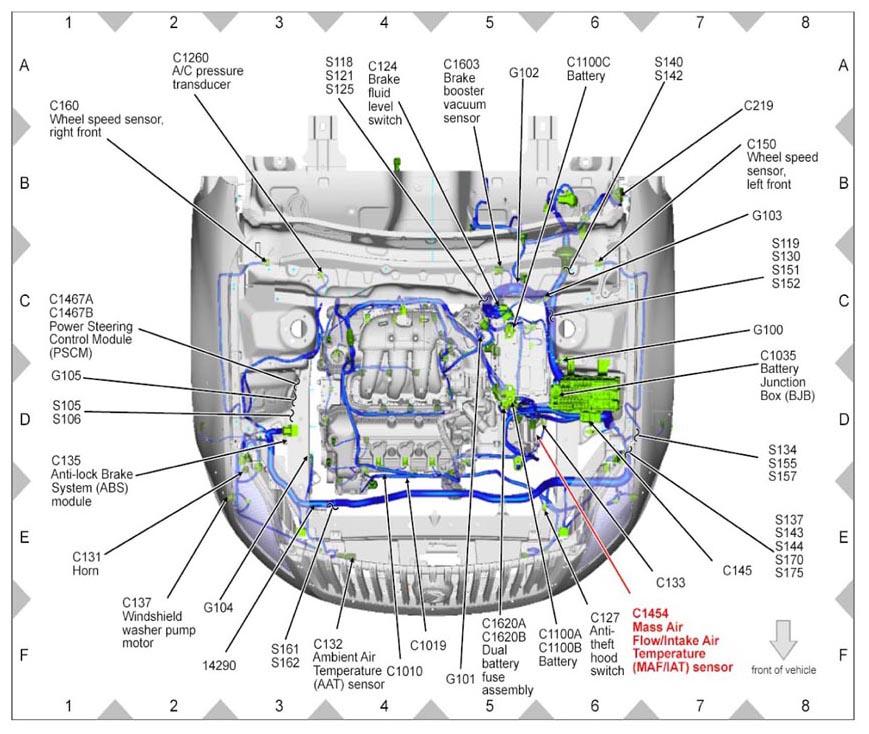

Fig 345: C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (3.5L) Engine Compartment, LH Side, On Air Intake

Courtesy of FORD MOTOR CO.

Fig 346: C1464 Front Impact Sensor, Left Location - (2.5L) On Front Of Radiator

Courtesy of FORD MOTOR CO.

Fig 347: C1464 Front Impact Sensor, Left Location - (3.0L) On Front Of Radiator

Courtesy of FORD MOTOR CO.

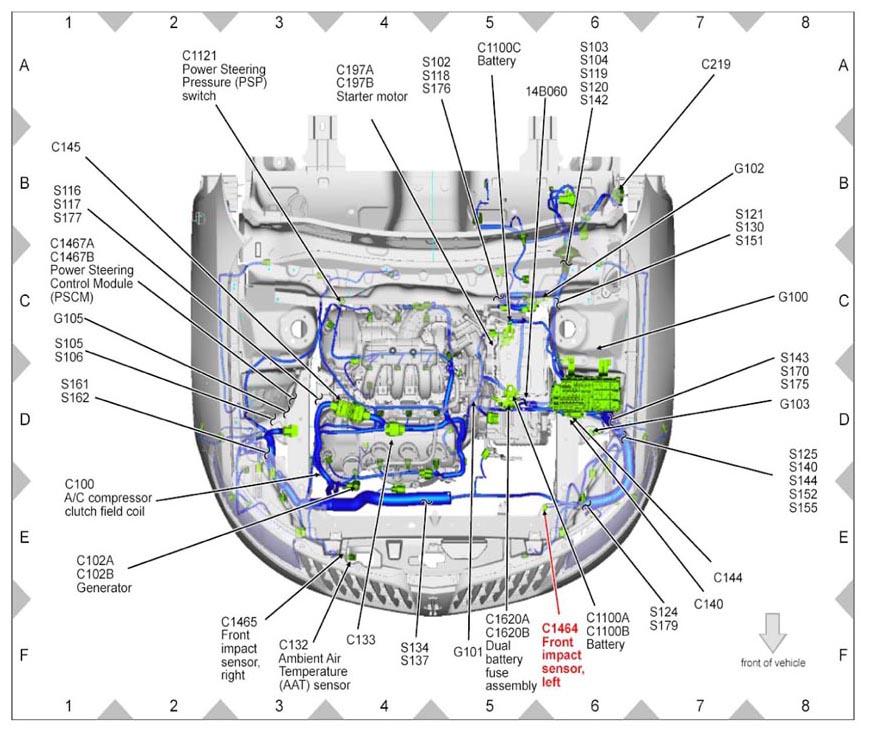

Fig 348: C1464 Front Impact Sensor, Left Location - (3.5L) Left Front Of Vehicle Near Radiator

Courtesy of FORD MOTOR CO.

Fig 349: C1465 Front Impact Sensor, Right Location - (2.5L) On Front Of Radiator

Courtesy of FORD MOTOR CO.

Fig 350: C1465 Front Impact Sensor, Right Location - (3.0L) On Front Of Radiator

Courtesy of FORD MOTOR CO.

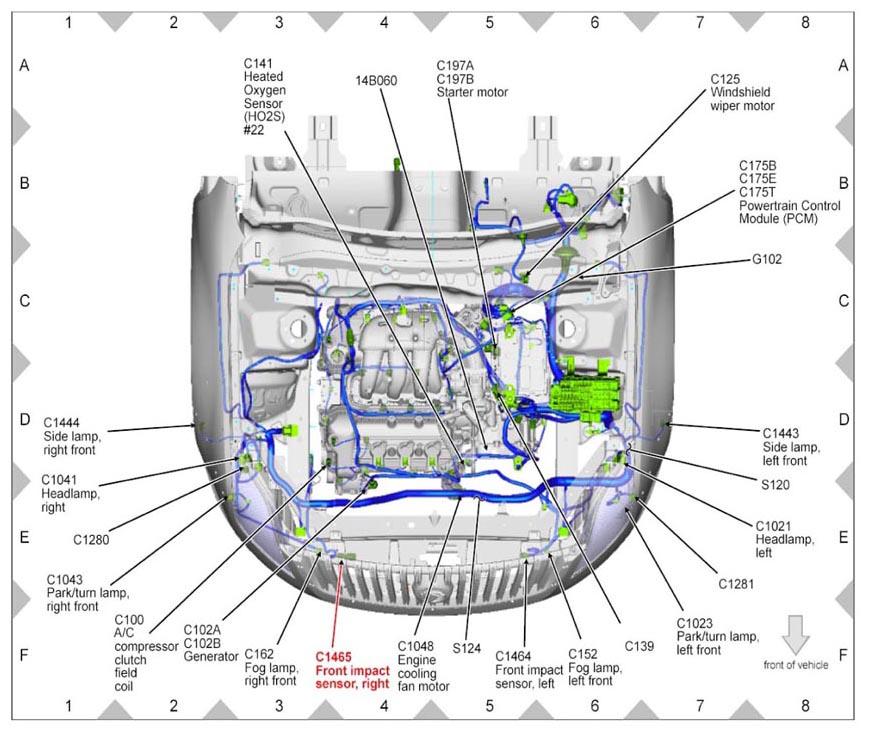

Fig 351: C1465 Front Impact Sensor, Right Location - (3.5L) Right Front Of Vehicle Near Radiator

Courtesy of FORD MOTOR CO.

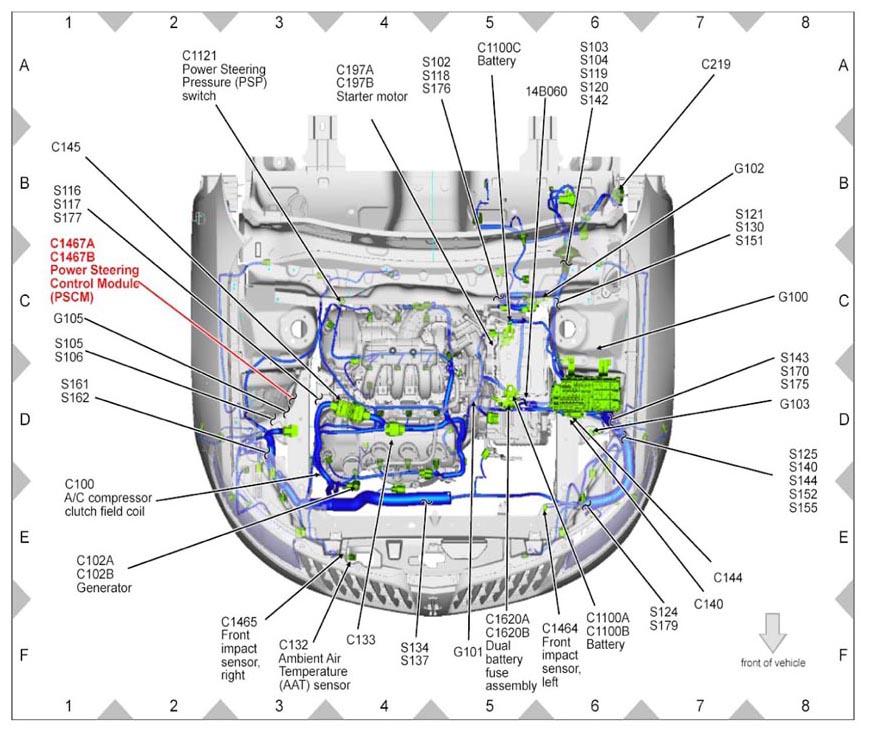

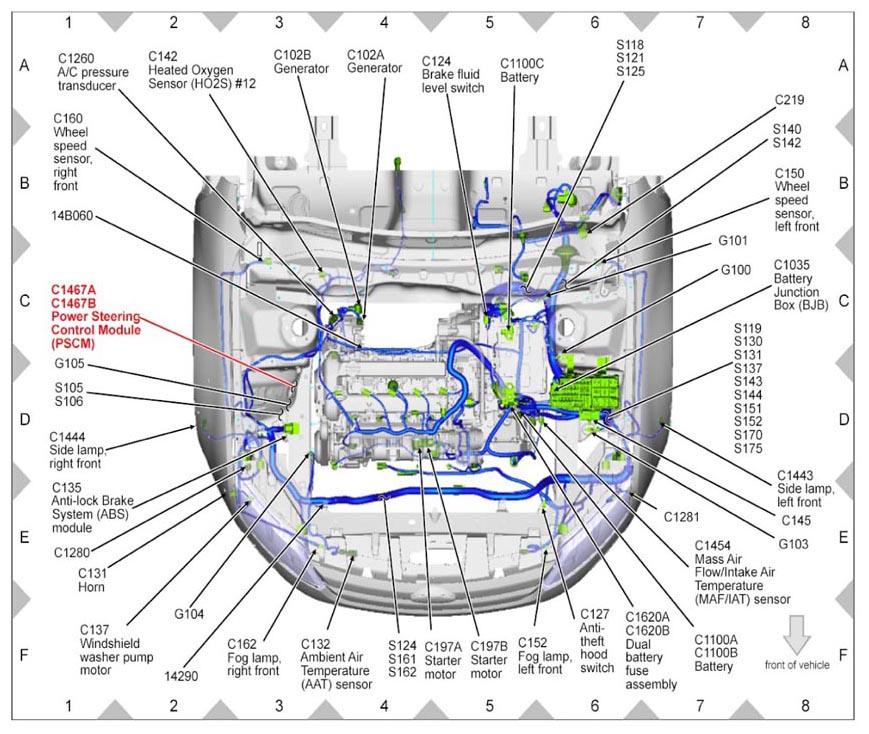

Fig 352: C1467A C1467B Power Steering Control Module (PSCM) Location - (2.5L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 353: C1467A C1467B Power Steering Control Module (PSCM) Location - (3.0L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

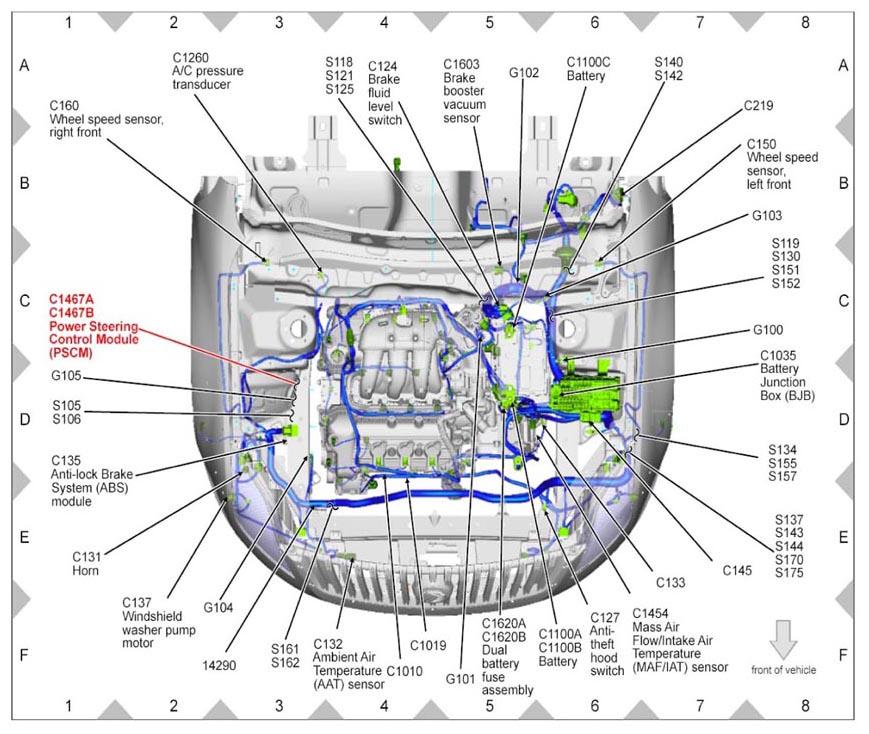

Fig 354: C1467A C1467B Power Steering Control Module (PSCM) Location - (3.5L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 355: C1467A C1467B Power Steering Control Module (PSCM) Location - (2.5L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 356: C1467A C1467B Power Steering Control Module (PSCM) Location - (3.0L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 357: C1467A C1467B Power Steering Control Module (PSCM) Location - (3.5L) Engine Compartment, RH Side

Courtesy of FORD MOTOR CO.

Fig 358: C1470 Knock Sensor (KS) Location - (3.5L) On Engine, Top, Rear

Courtesy of FORD MOTOR CO.

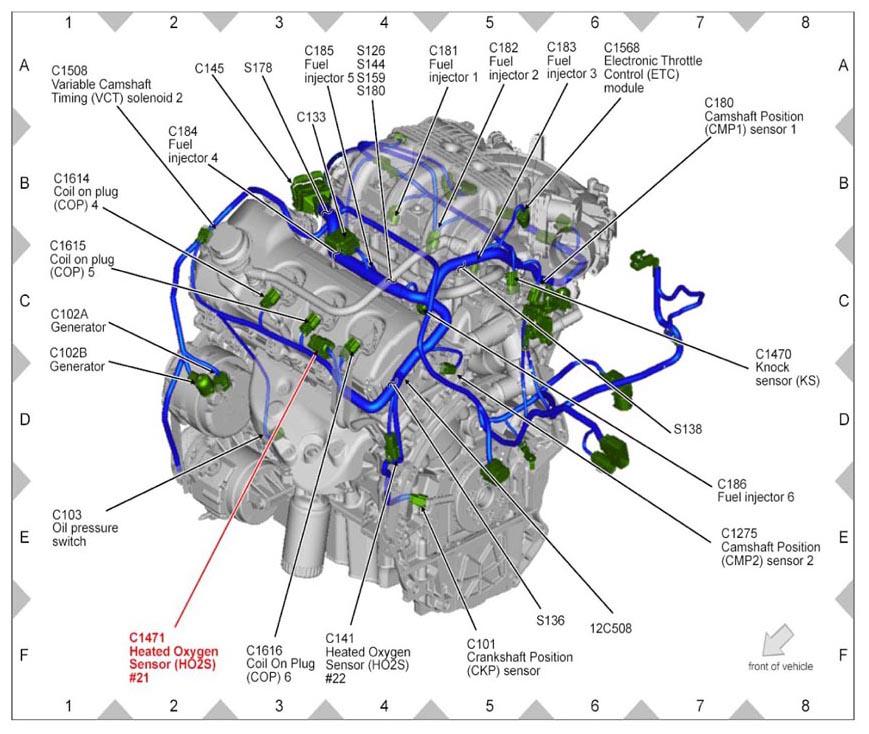

Fig 359: C1471 Heated Oxygen Sensor (HO2S) #21 Location - (3.5L) On Exhaust System, LH Side, Downstream

Courtesy of FORD MOTOR CO.

Fig 360: C1505 Manifold Absolute Pressure (MAP) Sensor Location - (3.0L) On Engine, Top, Rear

Courtesy of FORD MOTOR CO.

Fig 361: C1506 Universal Heated Oxygen Sensor (HO2S) #11 Location - (3.0L) On Exhaust System, RH Side, Downstream

Courtesy of FORD MOTOR CO.

Fig 362: C1507 Variable Camshaft Timing (VCT) Solenoid 1 Location - (3.5L) On RH Valve Cover, Front

Courtesy of FORD MOTOR CO.

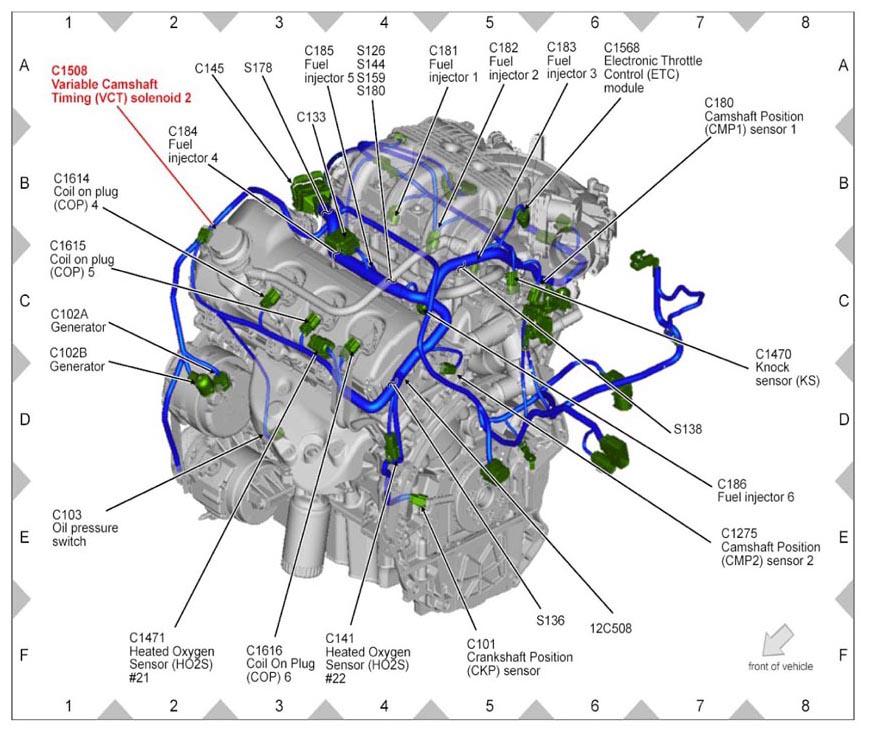

Fig 363: C1508 Variable Camshaft Timing (VCT) Solenoid 2 Location - (3.5L) On LH Valve Cover, Front

Courtesy of FORD MOTOR CO.

Fig 364: C1510 Heated Oxygen Sensor (HO2S) #11 Location - (3.5L) On Exhaust System, RH Side, Downstream

Courtesy of FORD MOTOR CO.

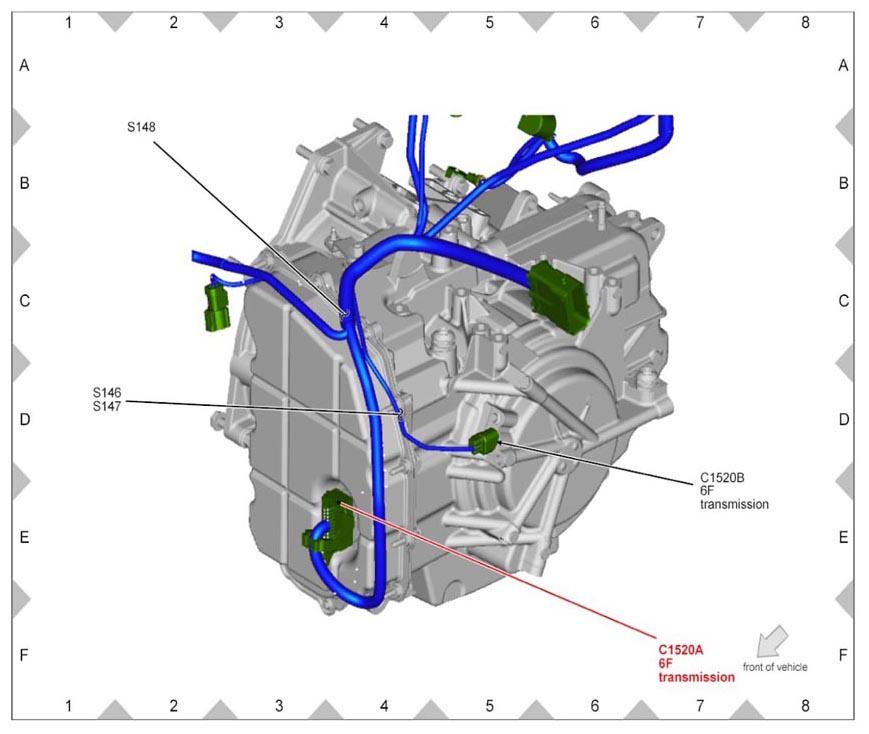

Fig 365: C1520A 6F Transmission Location - (2.5L - Automatic Transmission) On Transaxle, LH Side

Courtesy of FORD MOTOR CO.

Fig 366: C1520A 6F Transmission Location - (3.0L) On Transaxle, Front Bottom

Courtesy of FORD MOTOR CO.

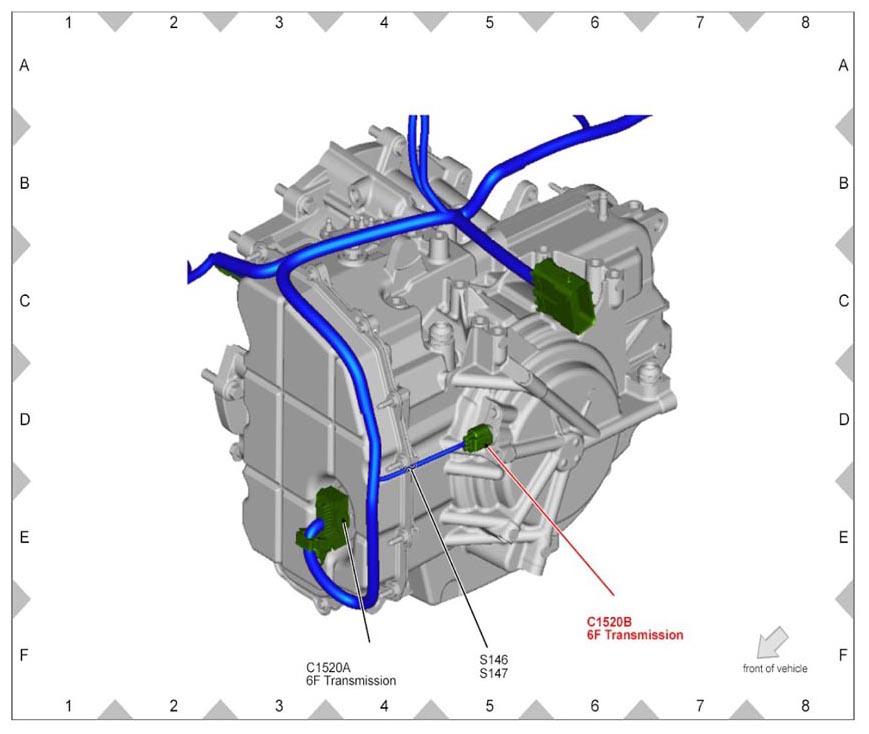

Fig 367: C1520B 6F Transmission Location - (2.5L - Automatic Transmission) On Transaxle, LH Side

Courtesy of FORD MOTOR CO.

Fig 368: C1520B 6F Transmission Location - (3.0L) On Transaxle, Driver Side

Courtesy of FORD MOTOR CO.

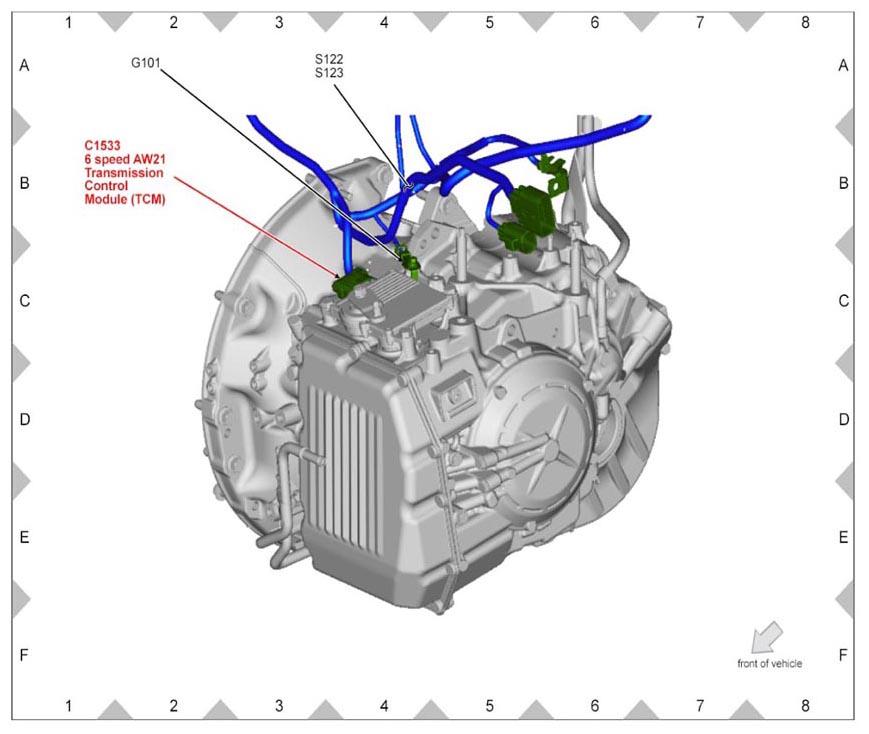

Fig 369: C1533 6 Speed AW21 Transmission Control Module (TCM) Location - (3.5L) Top Of Transmission

Courtesy of FORD MOTOR CO.

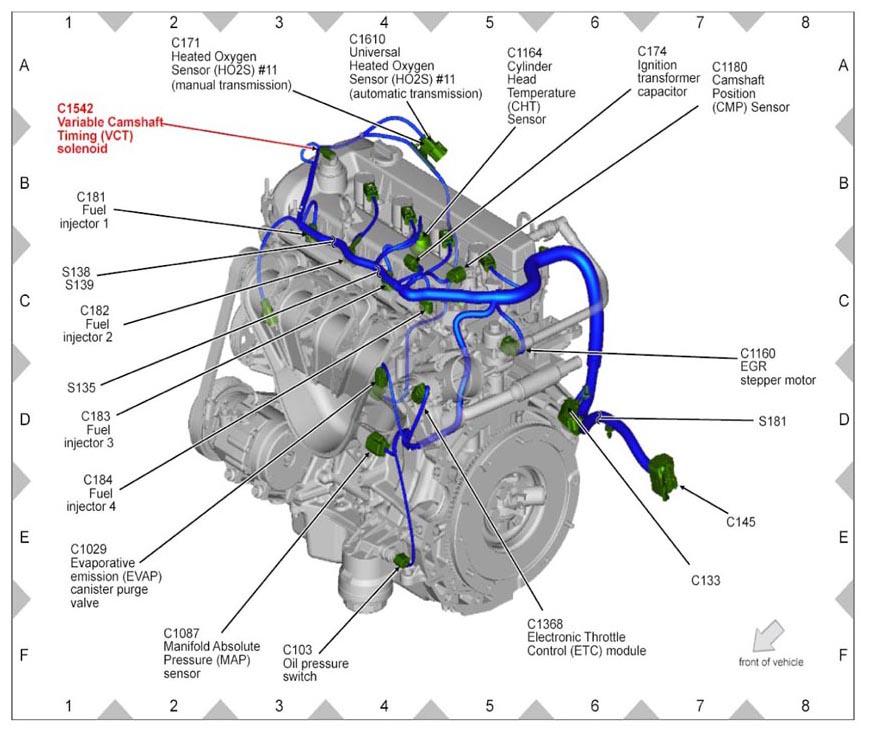

Fig 370: C1542 Variable Camshaft Timing (VCT) Solenoid Location - (2.5L) Top Of Engine, Front

Courtesy of FORD MOTOR CO.

Fig 371: C1568 Electronic Throttle Control (ETC) Module Location - (3.5L) On Throttle Body

Courtesy of FORD MOTOR CO.

Fig 372: C1600 Headlamp Control Module (HCM) Location - (3.5L) Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 373: C1603 Brake Booster Vacuum Sensor Location - (3.0L) On Brake Booster

Courtesy of FORD MOTOR CO.

Fig 374: C1603 Brake Booster Vacuum Sensor Location - (3.5L) On Brake Booster

Courtesy of FORD MOTOR CO.

Fig 375: C1610 Universal Heated Oxygen Sensor (HO2S) #11 Location - (2.5L) On Exhaust System, Downstream

Courtesy of FORD MOTOR CO.

Fig 376: C1610 Universal Heated Oxygen Sensor (HO2S) #11 Location - (Automatic Transmission) On Exhaust System, Downstream

Courtesy of FORD MOTOR CO.

Fig 377: C1611 Coil On Plug (COP) 1 Location - (3.5L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 378: C1612 Coil On Plug (COP) 2 Location - (3.5L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 379: C1613 Coil On Plug (COP) 3 Location - (3.5L) On RH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 380: C1614 Coil On Plug (COP) 4 Location - (3.5L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 381: C1615 Coil On Plug (COP) 5 Location - (3.5L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 382: C1616 Coil On Plug (COP) 6 Location - (3.5L) On LH Cylinder Head

Courtesy of FORD MOTOR CO.

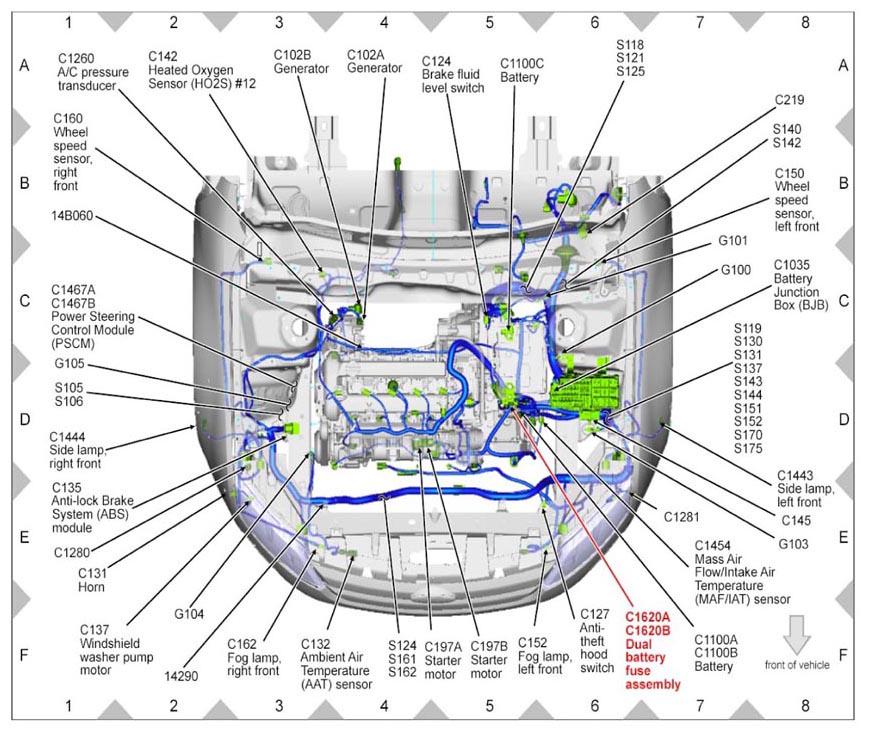

Fig 383: C1620A C1620 Dual Battery Fuse Assembly Location - (2.5L) On Battery

Courtesy of FORD MOTOR CO.

Fig 384: C1620A C1620 Dual Battery Fuse Assembly Location - (3.0L) On Battery

Courtesy of FORD MOTOR CO.

Fig 385: C1620A C1620 Dual Battery Fuse Assembly Location - (3.5L) On Battery

Courtesy of FORD MOTOR CO.

Fig 386: C1620A C1620 Dual Battery Fuse Assembly Location - (2.5L) On Battery

Courtesy of FORD MOTOR CO.

Fig 387: C1620A C1620 Dual Battery Fuse Assembly Location - (3.0L) On Battery

Courtesy of FORD MOTOR CO.

Fig 388: C1620A C1620 Dual Battery Fuse Assembly Location - (3.5L) On Battery

Courtesy of FORD MOTOR CO.

Fig 389: C2039 Hazard Flasher Switch Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 390: C2302 C2040 Accelerator Pedal Position (APP) Sensor Location - On Accelerator Pedal Support

Courtesy of FORD MOTOR CO.

Fig 391: C2065 Dimmer Switch Location - In Dash Panel, Far LH Side

Courtesy of FORD MOTOR CO.

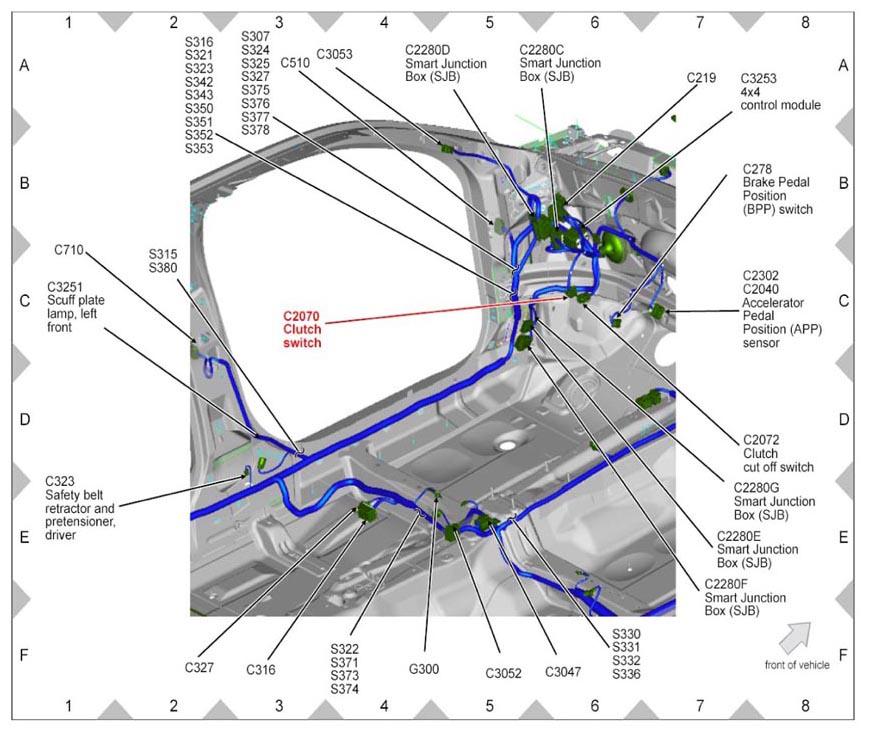

Fig 392: C2070 Clutch Switch Location - On Clutch Pedal Support

Courtesy of FORD MOTOR CO.

Fig 393: C2072 Clutch Cut Off Switch Location - On Clutch Pedal Support

Courtesy of FORD MOTOR CO.

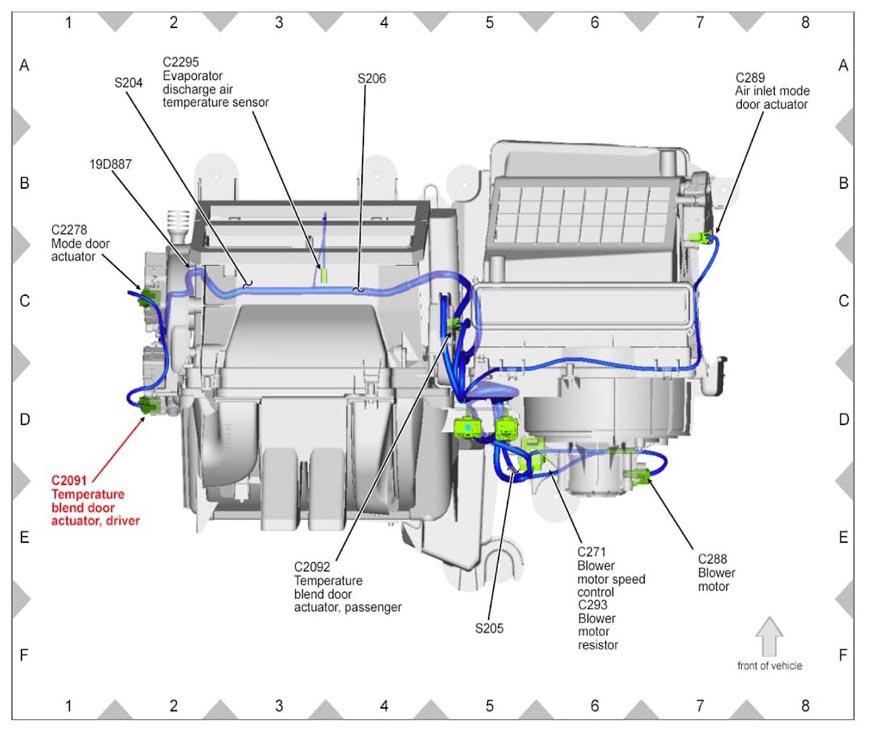

Fig 394: C2091 Temperature Blend Door Actuator, Driver Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

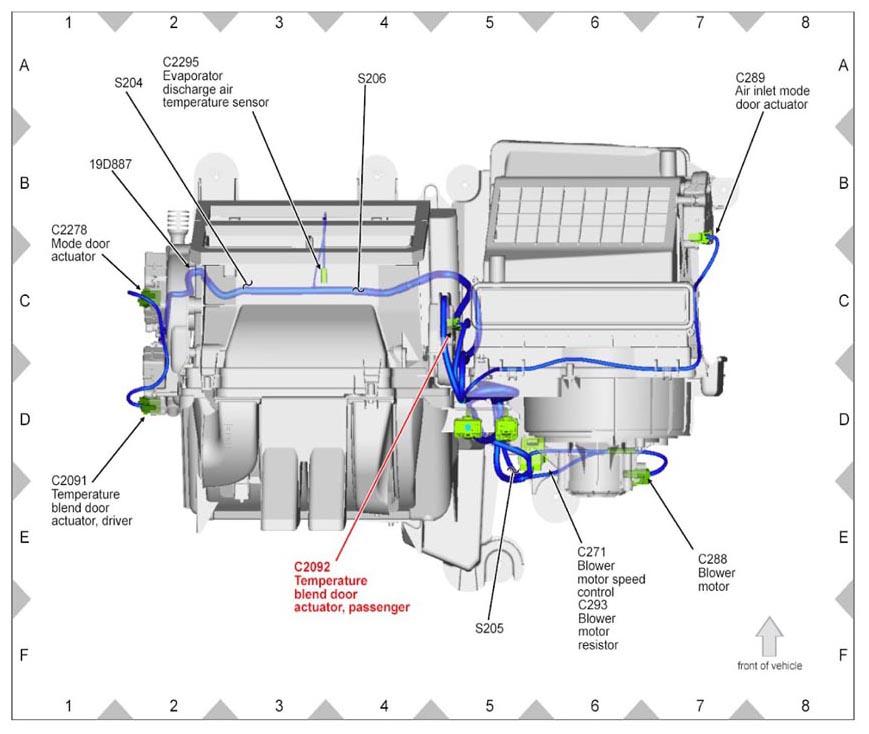

Fig 395: C2091 Temperature Blend Door Actuator, Passenger Location - Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 396: C2095 Location - Behind Instrument Panel, Right Hand Side

Courtesy of FORD MOTOR CO.

Fig 397: C2157 Windshield Wiper Module Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 398: C2238 Location - Behind Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 399: C2239 Location - In Center Console, Left Front

Courtesy of FORD MOTOR CO.

Fig 400: C2269 Luggage Compartment Lid Release Switch Location - In Dash Panel, Far LH Side

Courtesy of FORD MOTOR CO.

Fig 401: C2278 Mode Door Actuator Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 402: C2280A Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 403: C2280B Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 404: C2280C Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 405: C2280D Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 406: C2280E Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 407: C2280F Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 408: C2280G Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 409: C2286 Passenger Air Bag Deactivation (PAD) Indicator Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 410: C2295 Evaporator Discharge Air Temperature Sensor Location - Behind Dash Panel, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 411: C2300 Global Positioning System Module (GPSM) Location - Behind Instrument Cluster

Courtesy of FORD MOTOR CO.

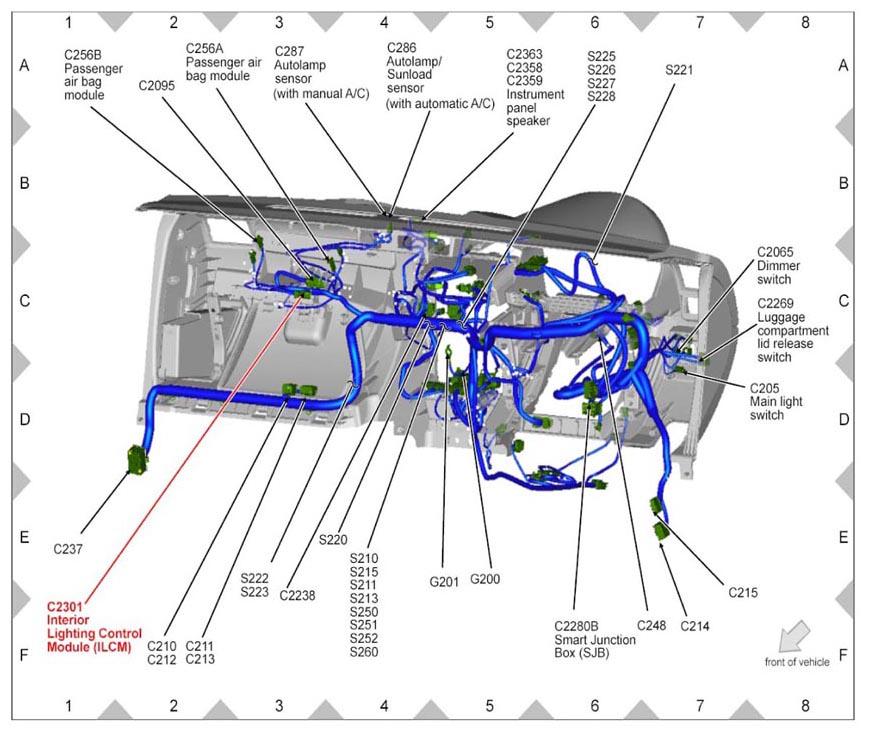

Fig 412: C2301 Interior Lighting Control Module (ILCM) Location - (MKZ) Right Side Of Dash Panel, Behind Glove Box

Courtesy of FORD MOTOR CO.

Fig 413: C2302 C2040 Accelerator Pedal Position (APP) Sensor Location - On Accelerator Pedal Support

Courtesy of FORD MOTOR CO.

Fig 414: C2304 Traction Control/Ambient Lighting Switch Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 415: C2305 Ambient Dimmer Switch Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 416: C2306 C3255 Ambient Select Switch Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 417: C2356A C2356B HVAC-DATC Location - (With Dual Zone Climate Control) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 418: C2356A C2356B HVAC-DATC Location - (With Dual Zone Climate Control) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 419: C2357A C2357B HVAC-EMTC Location - (With Manual A/C) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 420: C2357A C2357B HVAC-EMTC Location - (With Manual A/C) In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 421: C2363 C2358 C2359 Instrument Panel Speaker Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 422: C2363 C2358 C2359 Instrument Panel Speaker Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 423: C2363 C2358 C2359 Instrument Panel Speaker Location - Top Of Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 424: C2401 Audio Input Jack Location - Below Dash Panel, In Center Console

Courtesy of FORD MOTOR CO.

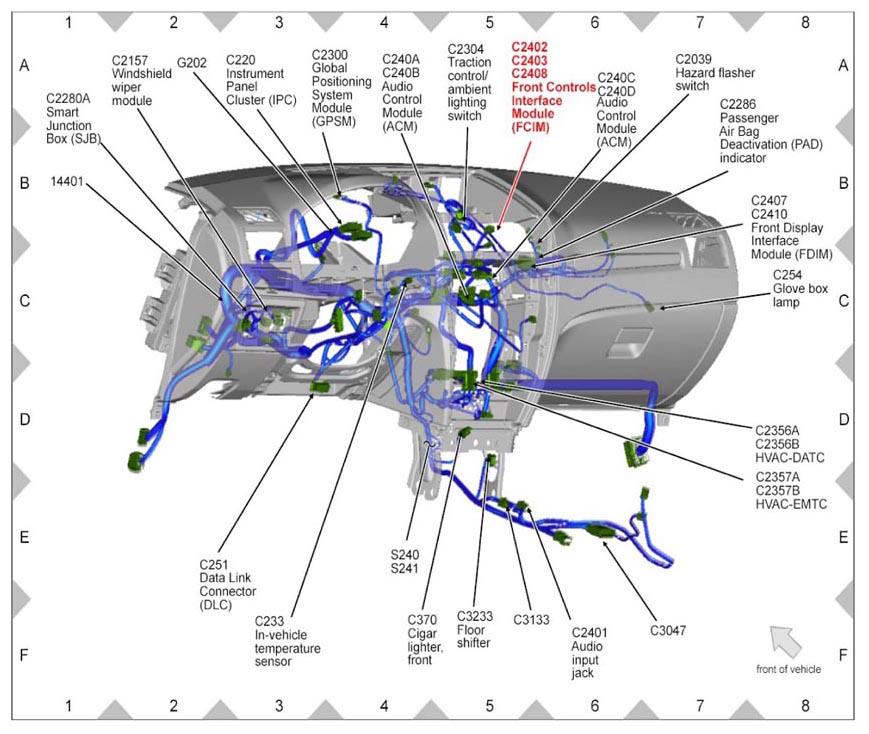

Fig 425: C2402 C2403 C2408 Front Controls Interface Module (FCIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 426: C2402 C2403 C2408 Front Controls Interface Module (FCIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 427: C2407 C2410 Front Display Interface Module (FDIM) Location

Courtesy of FORD MOTOR CO.

Fig 428: C2402 C2403 C2408 Front Controls Interface Module (FCIM) Location - In Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 429: C2407 C2410 Front Display Interface Module (FDIM) Location

Courtesy of FORD MOTOR CO.

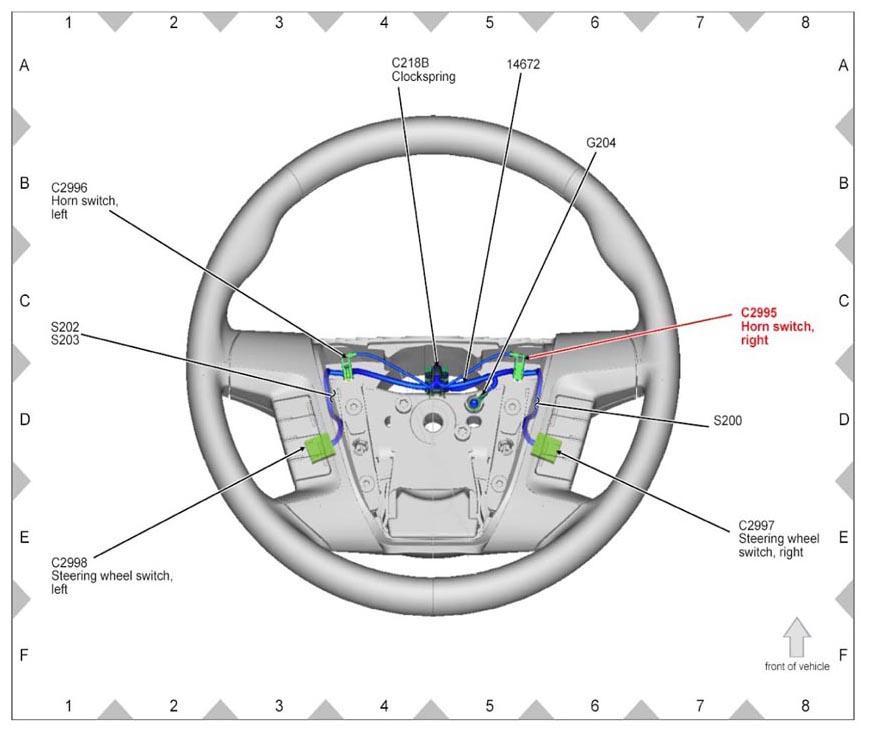

Fig 430: C2995 Horn Switch, Right Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 431: C2996 Horn Switch, Left Location - In Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 432: C2997 Steering Wheel Switch, Right Location - On Steering Wheel

Courtesy of FORD MOTOR CO.

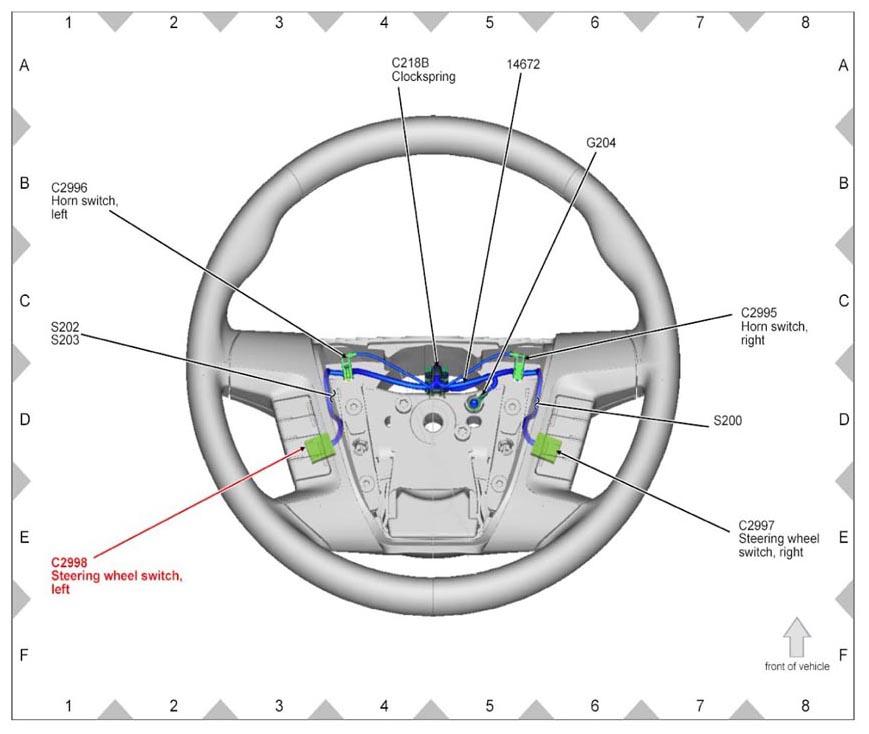

Fig 433: C2998 Steering Wheel Switch, Left Location - On Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 434: C314 C3007 Location - In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 435: C3015 Power Seat Motor Assembly, Right Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 436: C3047 Location - In Center Console, Bottom Center

Courtesy of FORD MOTOR CO.

Fig 437: C340 C3049 Location - In Driver Seat Frame

Courtesy of FORD MOTOR CO.

Fig 438: C3050 Location - Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 439: C3050 Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 440: C3050 Location - (MKZ) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 441: C3051 Location - (AWD) Under Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 442: C3052 Location - In Center Console, Bottom Center Right Side

Courtesy of FORD MOTOR CO.

Fig 443: C3053 Location - LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 444: C3055 Side Air Curtain Module, Driver Location - (MKZ) LH C-Pillar

Courtesy of FORD MOTOR CO.

Fig 445: C3056 Side Air Curtain Module, Passenger Location - In Right C-Pillar

Courtesy of FORD MOTOR CO.

Fig 446: C3120 Subwoofer, Left Rear Location - (Premium Audio) Behind Rear Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 447: C3121 Subwoofer, Right Rear Location - (Premium Audio) Behind Rear Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 448: C3133 Location - Below Dash Panel, Center, Near Center Console

Courtesy of FORD MOTOR CO.

Fig 449: C3134 Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 450: C3135 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 451: C3136 Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 452: C3137 C3138 C3139 Location - In Center Console, Center Top Near Cupholder

Courtesy of FORD MOTOR CO.

Fig 453: C3137 C3138 C3139 Location - In Center Console, Center Top Near Cupholder

Courtesy of FORD MOTOR CO.

Fig 454: C3137 C3138 C3139 Location - In Center Console, Center Top Near Cupholder

Courtesy of FORD MOTOR CO.

Fig 455: C339 C3149 Location - (4-Way Power Seat) In Passenger Seat Base

Courtesy of FORD MOTOR CO.

Fig 456: C3159 Occupant Classification System Module (OCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 457: C3187 Recliner Motor, Driver Seat Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 458: C3189 Recliner Motor, Passenger Seat Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 459: C330 C3190 Seat Control Switch, Passenger Side Front Location - In Passenger Seat Base, RH Side

Courtesy of FORD MOTOR CO.

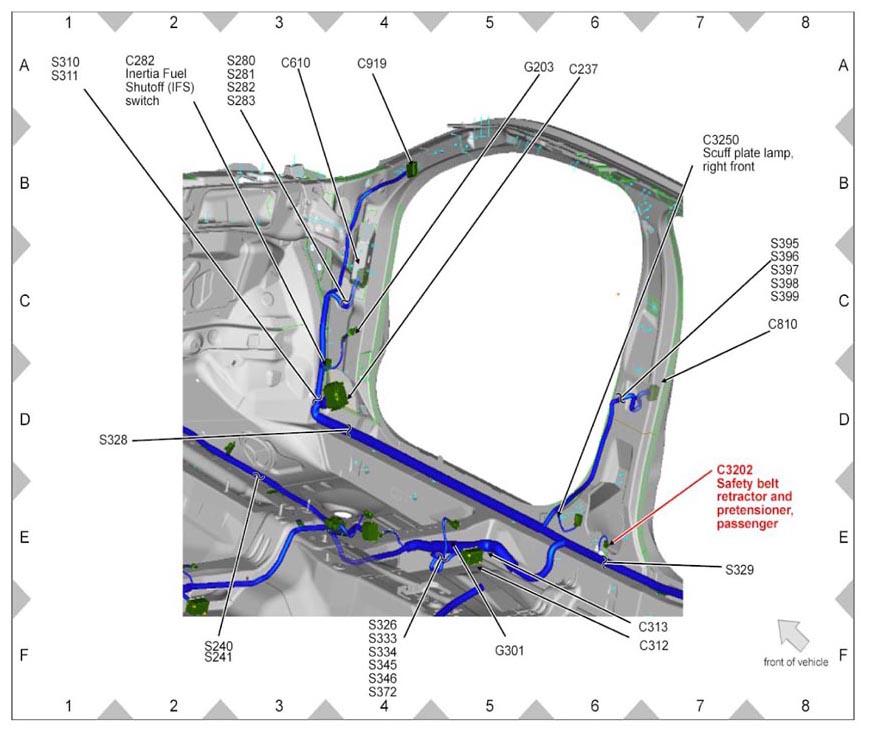

Fig 460: C3202 Safety Belt, Retractor And Pretensioner, Passenger Location - RH B-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

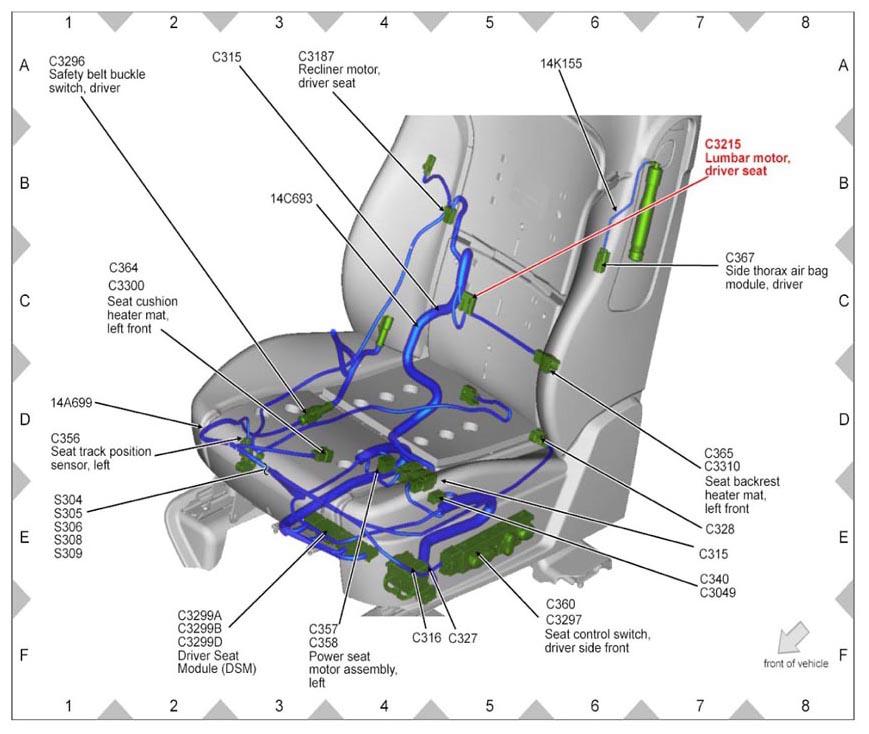

Fig 461: C3215 Lumbar Motor, Driver Seat Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 462: C3216 Lumbar Motor, Driver Passenger Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 463: C3233 Floor Shifter Location - In Center Console

Courtesy of FORD MOTOR CO.

Fig 464: C3248 Driver Second Row C-Pillar, Side Impact Sensor Location - LH C-Pillar

Courtesy of FORD MOTOR CO.

Fig 465: C3249 Passenger Second Row C-Pillar, Side Impact Sensor Location - In Right C-Pillar

Courtesy of FORD MOTOR CO.

Fig 466: C3250 Scuff Plate Lamp, Right Front Location - (MKZ) RH B-Pillar, Near Vehicle Floor

Courtesy of FORD MOTOR CO.

Fig 467: C3251 Scuff Plate Lamp, Left Front Location - (MKZ) In Left Scuff Plate

Courtesy of FORD MOTOR CO.

Fig 468: C3253 4x4 Control Module Location - Behind Left Hand Side Of Dash

Courtesy of FORD MOTOR CO.

Fig 469: C3254 Active Torque Control Coupling Solenoid Location - In Trunk, Left Rear Wheel Well

Courtesy of FORD MOTOR CO.

Fig 470: C2306 C3255 Ambient Select Switch Location - Vehicle Floor, Center, Below Dash Panel

Courtesy of FORD MOTOR CO.

Fig 471: C3256 Ambient Lighting Switch Location - In Center Console, Bottom Center

Courtesy of FORD MOTOR CO.

Fig 472: C3270 Secondary Fuel Sender (AWD) Location - (AWD) Top Of Fuel Tank

Courtesy of FORD MOTOR CO.

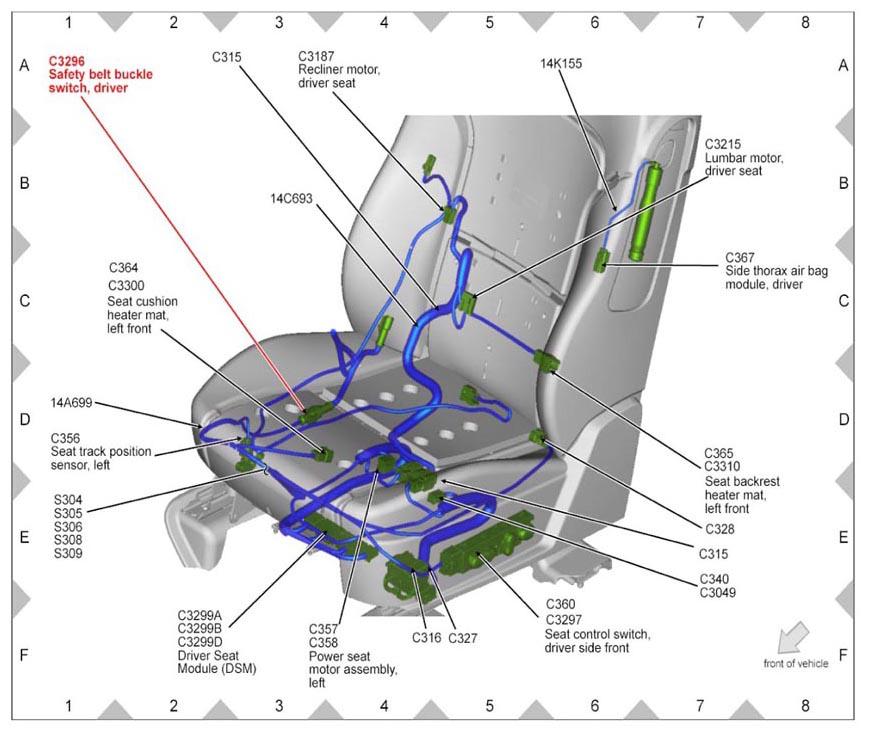

Fig 473: C3296 Safety Belt Buckle Switch, Driver Location - Driver Seat Base, RH Side

Courtesy of FORD MOTOR CO.

Fig 474: C3297 Location - (With Memory Seats) In Driver Seat Base, LH Side

Courtesy of FORD MOTOR CO.

Fig 475: C3299A C3299B C3299D Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 476: C3299A C3299B C3299D Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 477: C3299A C3299B C3299D Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 478: C3300 Location - (With Heated / Cooled Seats) In Driver Seat Base

Courtesy of FORD MOTOR CO.

Fig 479: C3301 Safety Belt Buckle Switch, Passenger Location - In Passenger Seat Base, LH Side

Courtesy of FORD MOTOR CO.

Fig 480: C3303 Location - (With Heated / Cooled Seats) In Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 481: C3304A C3304B Heated Seat Module, Front Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 482: C3304A C3304B Heated Seat Module, Front Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

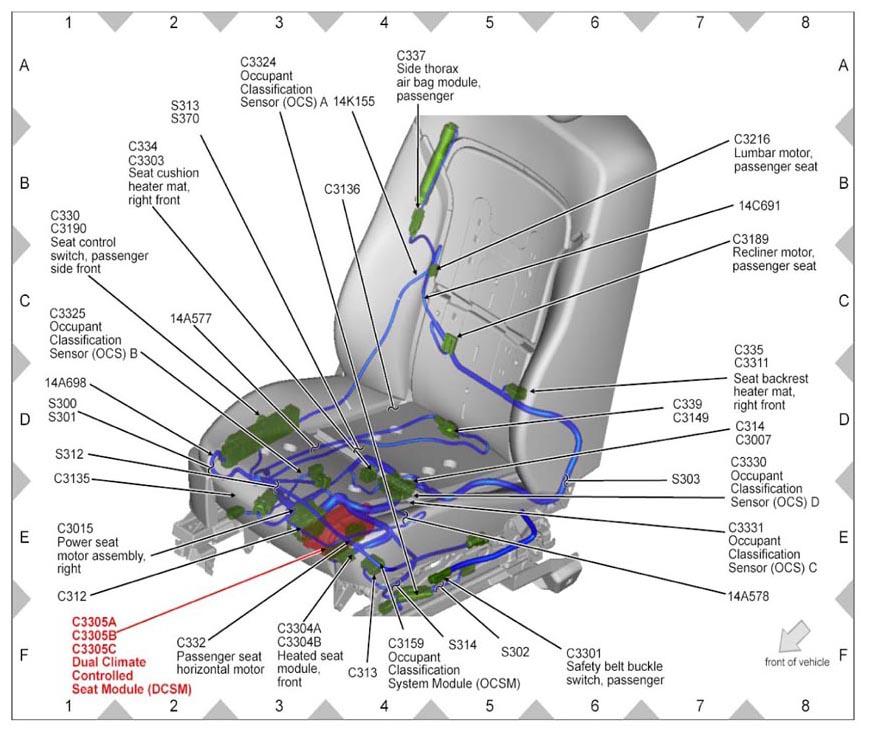

Fig 483: C3305A C3305B C3305C Dual Climate Controlled Seat Module (DCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 484: C3305A C3305B C3305C Dual Climate Controlled Seat Module (DCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 485: C3305A C3305B C3305C Dual Climate Controlled Seat Module (DCSM) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 486: C3310 Location - (With Heated / Cooled Seats) In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 487: C3311 Location - (With Heated / Cooled Seats) In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 488: C3324 Occupant Classification Sensor (OCS) Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 489: C3325 Occupant Classification Sensor (OCS) B Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 490: C3330 Occupant Classification Sensor (OCS) D Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 491: C3331 Occupant Classification Sensor (OCS) C Location - On Passenger Seat Frame

Courtesy of FORD MOTOR CO.

Fig 492: C3335 Speaker, Center Parcel Shelf Location - (THX Audio) Behind Rear Seats, Center

Courtesy of FORD MOTOR CO.

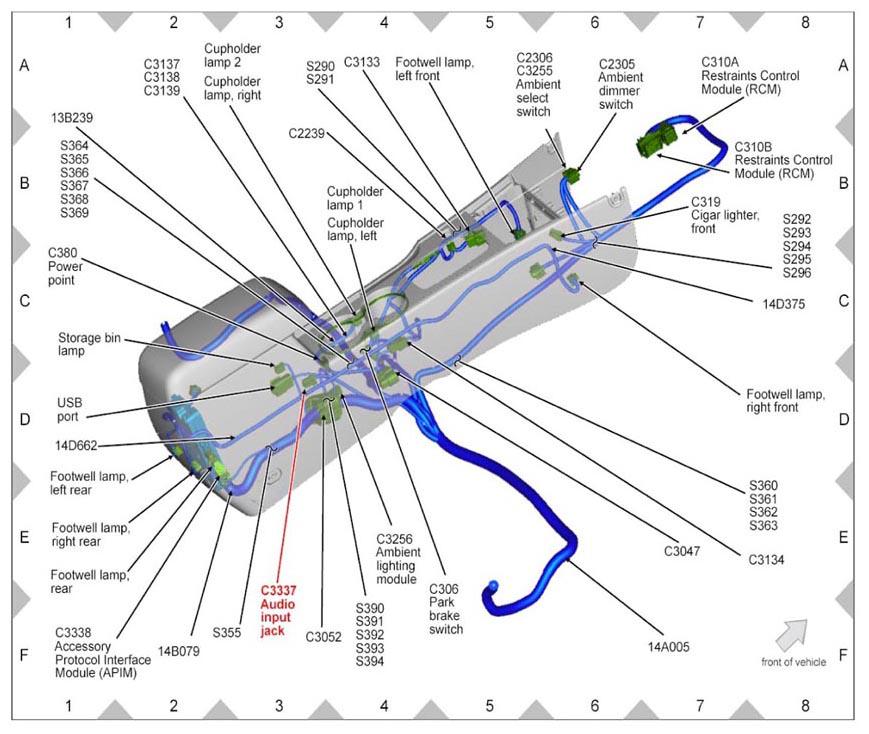

Fig 493: C3337 Audio Input Jack Location - (SYNC) In Center Console, Near Storage Bin

Courtesy of FORD MOTOR CO.

Fig 494: C3338 Accessory Protocol Interface Module (APIM) Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

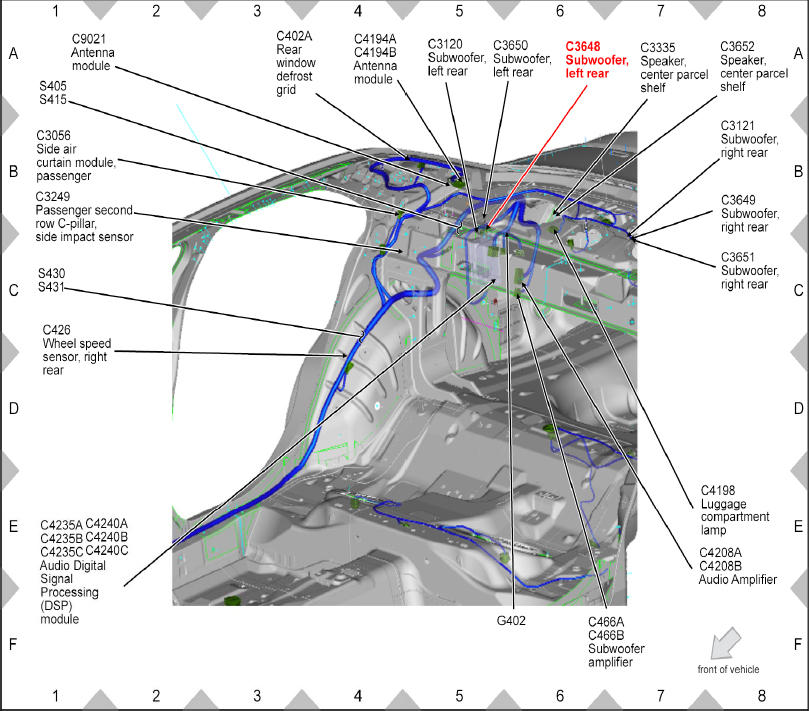

Fig 495: C3648 Subwoofer, Left Rear Location - (Sony Audio) Behind Rear Seats, LH Side

Courtesy of FORD MOTOR CO.

Fig 496: C3649 Subwoofer, Right Rear Location - (Sony Audio) Behind Rear Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 497: C3650 Subwoofer, Left Rear Location - (THX Audio) Behind Rear Seats, LH Side

Courtesy of FORD MOTOR CO.

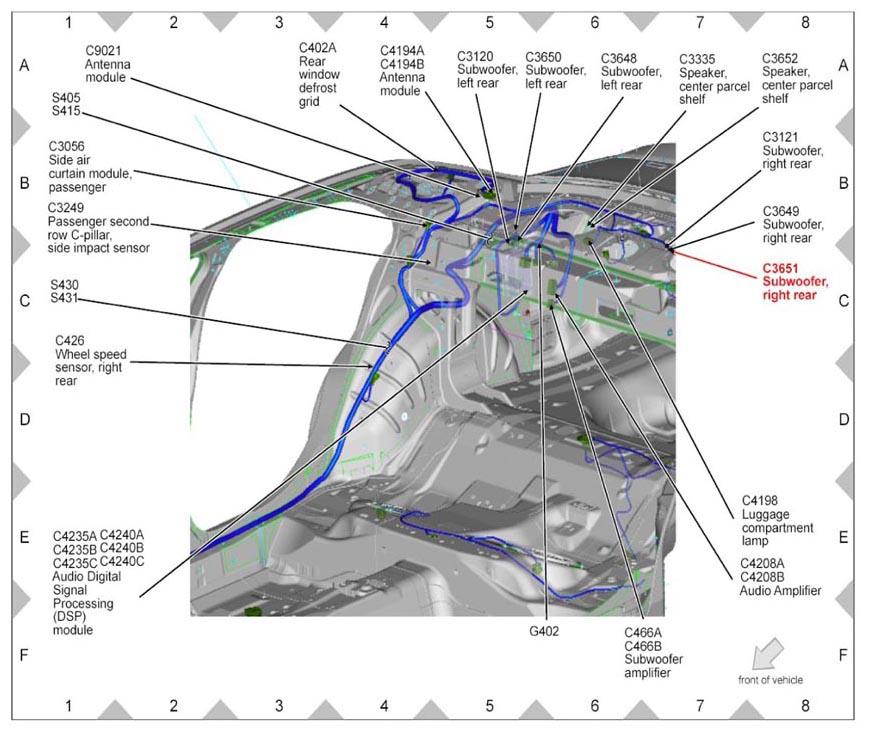

Fig 498: C3651 Subwoofer, Right Rear Location - (THX Audio) Behind Rear Seats, RH Side

Courtesy of FORD MOTOR CO.

Fig 499: C3652 Speaker, Center Parcel Shelf Location - (Sony Audio) Behind Rear Seats, Center

Courtesy of FORD MOTOR CO.

Fig 500: C4009 Parking Aid Sensor, Outer Left Location - (Fusion) Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 501: C4009 Parking Aid Sensor, Outer Left Location - (MKZ) Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 502: C4011 Parking Aid Sensor, Outer Right Location - (Fusion) Vehicle Rear End, Right

Courtesy of FORD MOTOR CO.

Fig 503: C4011 Parking Aid Sensor, Outer Right Location - (MKZ) Vehicle Rear End, Right

Courtesy of FORD MOTOR CO.

Fig 504: C4014 Parking Aid Module (PAM) Location - (Fusion) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 505: C4014 Parking Aid Module (PAM) Location - (MKZ) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

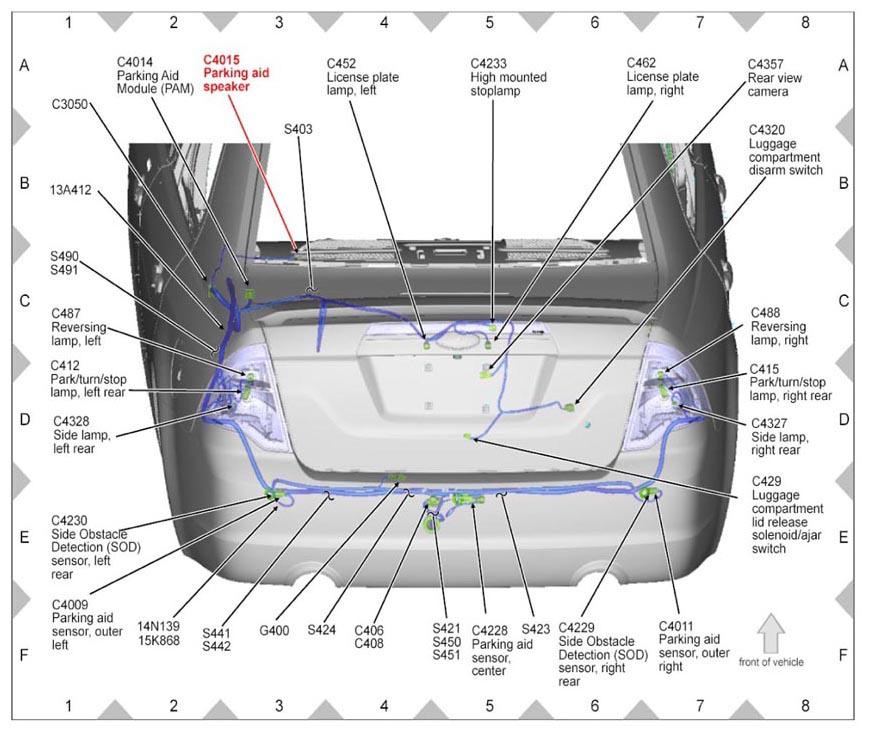

Fig 506: C4015 Parking Aid Speaker Location - (Fusion) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 507: C4015 Parking Aid Speaker Location - (MKZ) Luggage Compartment, Left

Courtesy of FORD MOTOR CO.

Fig 508: C4116 EVAP Canister Vent Control Solenoid Location - (MKZ) Vehicle Underbody, Rear, Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 509: C4139 Turn Lamp, Left Rear Location - (MKZ) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

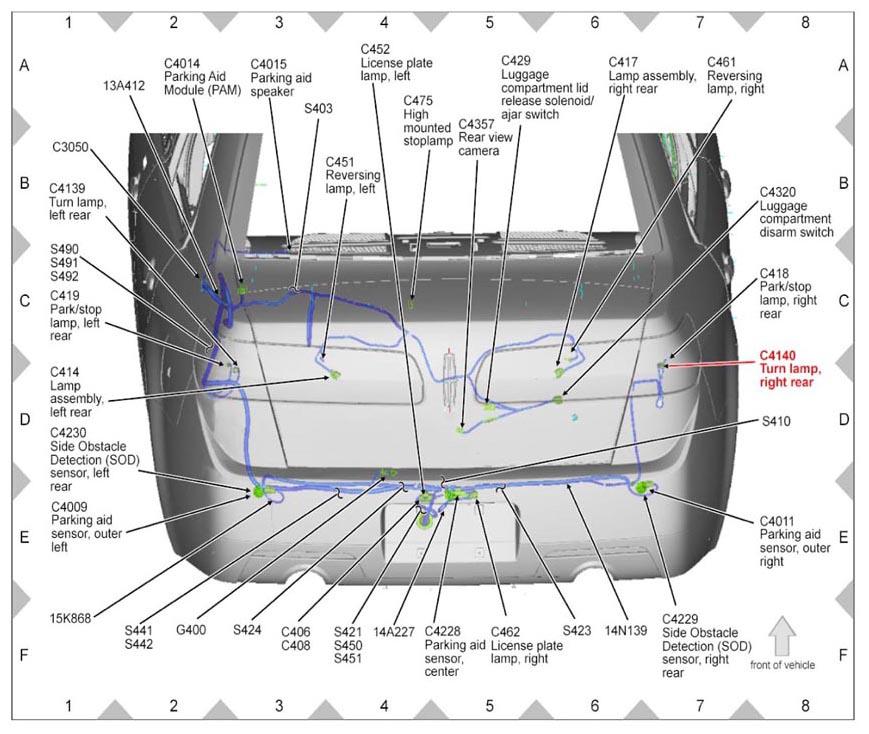

Fig 510: C4140 Turn Lamp, Right Rear Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 511: C4194A C4194B Antenna Module Location - In Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 512: C4194A C4194B Antenna Module Location - In Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 513: C4198 Luggage Compartment Lamp Location - In Luggage Compartment

Courtesy of FORD MOTOR CO.

Fig 514: C4208A C4208B Audio Amplifier Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 515: C4208A C4208B Audio Amplifier Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

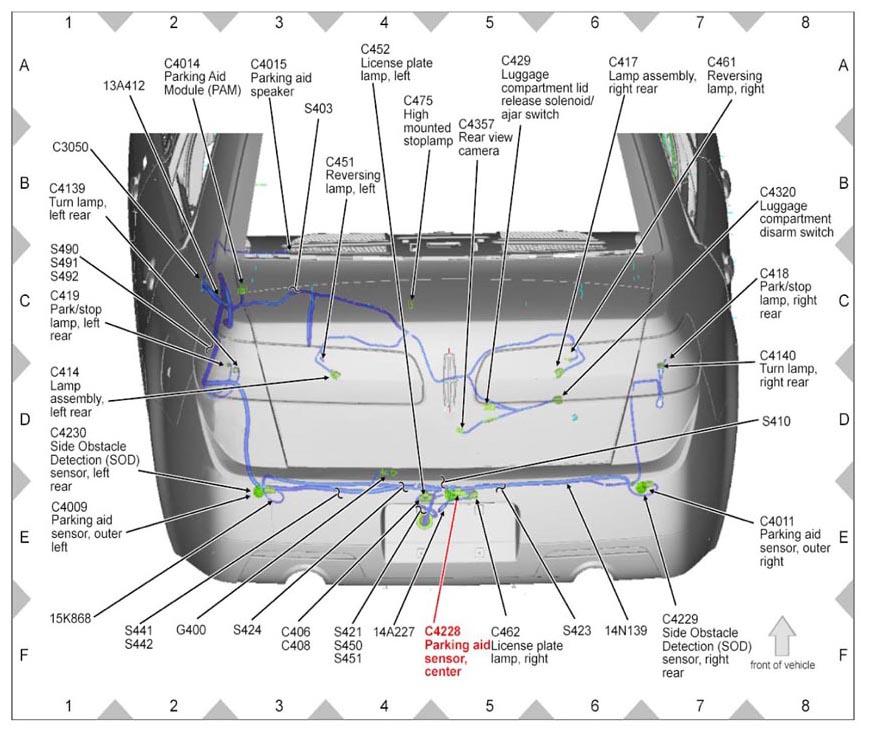

Fig 516: C4228 Parking Aid Sensor, Center Location - (Fusion) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 517: C4228 Parking Aid Sensor, Center Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 518: C4229 Side Obstacle Detection (SOD) Sensor, Right Rear Location - (Fusion) Vehicle Rear End, Right

Courtesy of FORD MOTOR CO.

Fig 519: C4229 Side Obstacle Detection (SOD) Sensor, Right Rear Location - (MKZ) Vehicle Rear End, Right

Courtesy of FORD MOTOR CO.

Fig 520: C4230 Side Obstacle Detection (SOD) Sensor, Left Rear Location - (Fusion) Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 521: C4230 Side Obstacle Detection (SOD) Sensor, Left Rear Location - (MKZ) Vehicle Rear End, Left

Courtesy of FORD MOTOR CO.

Fig 522: C4233 High Mounted Stoplamp Location - (Fusion) In Rear Spoiler

Courtesy of FORD MOTOR CO.

Fig 523: C4235A C4235B C4235C Audio Digital Signal Processing (DSP) Module Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 524: C4235A C4235B C4235C Audio Digital Signal Processing (DSP) Module Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 525: C4235A C4235B C4235C Audio Digital Signal Processing (DSP) Module Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

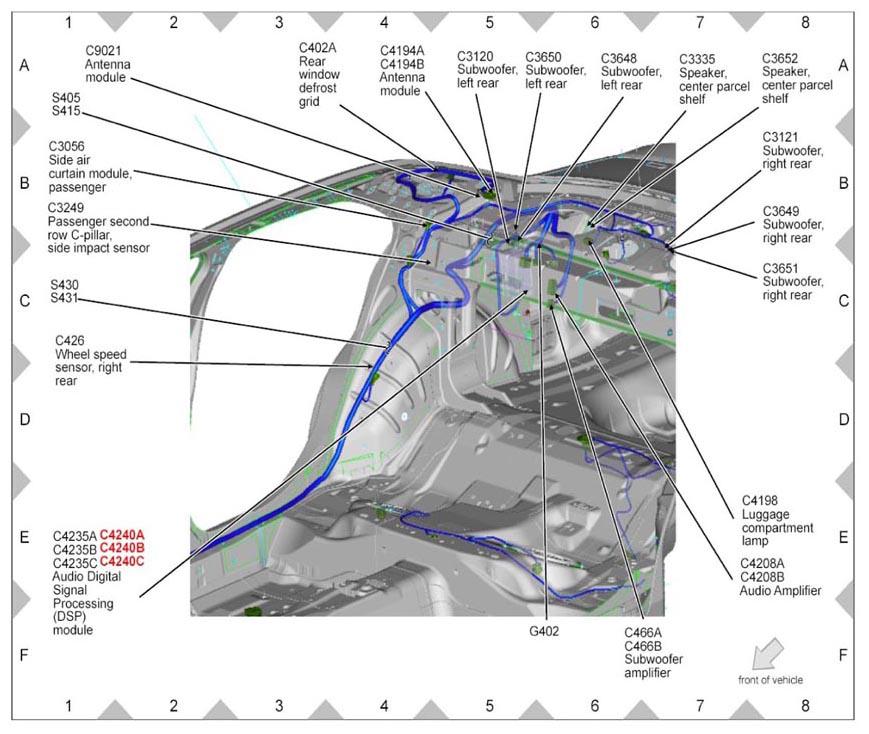

Fig 526: C4240A C4240B C4240C Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 527: C4240A C4240B C4240C Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

Fig 528: C4240A C4240B C4240C Location - Luggage Compartment, Right

Courtesy of FORD MOTOR CO.

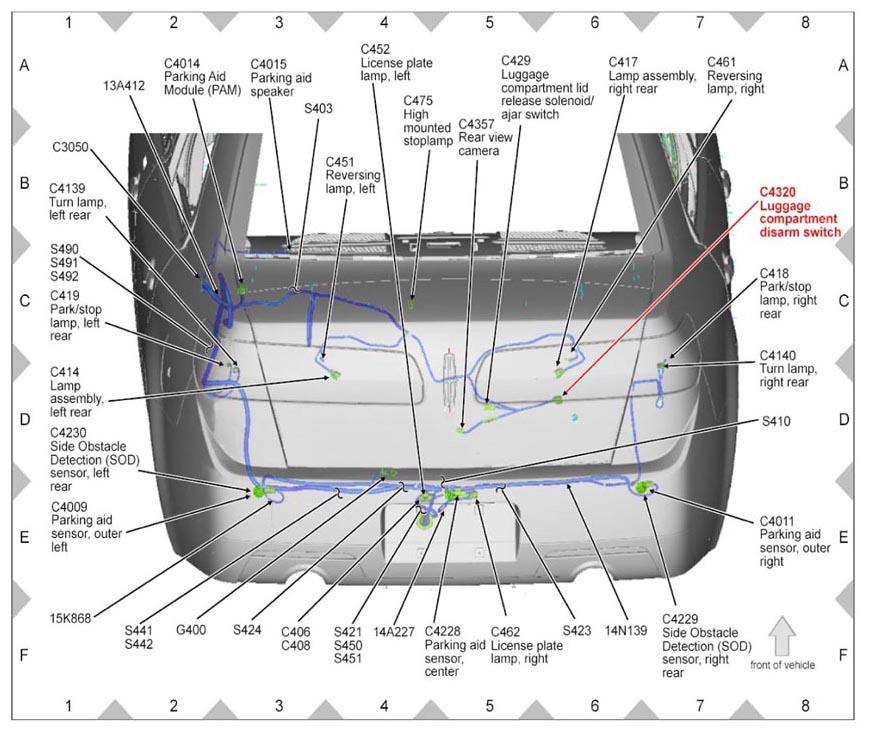

Fig 529: C4320 Luggage Compartment Disarm Switch Location - (Fusion) Luggage Compartment, Rear, RH Side

Courtesy of FORD MOTOR CO.

Fig 530: C4320 Luggage Compartment Disarm Switch Location - (MKZ) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 531: C4327 Side Lamp, Right Rear Location - (Fusion) Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 532: C4328 Side Lamp, Left Rear Location - (Fusion) Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

Fig 533: C4357 Rear View Camera Location - (Fusion) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 534: C4357 Rear View Camera Location - (MKZ) Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 535: C9021 Antenna Module Location - Rear Of Roof

Courtesy of FORD MOTOR CO.

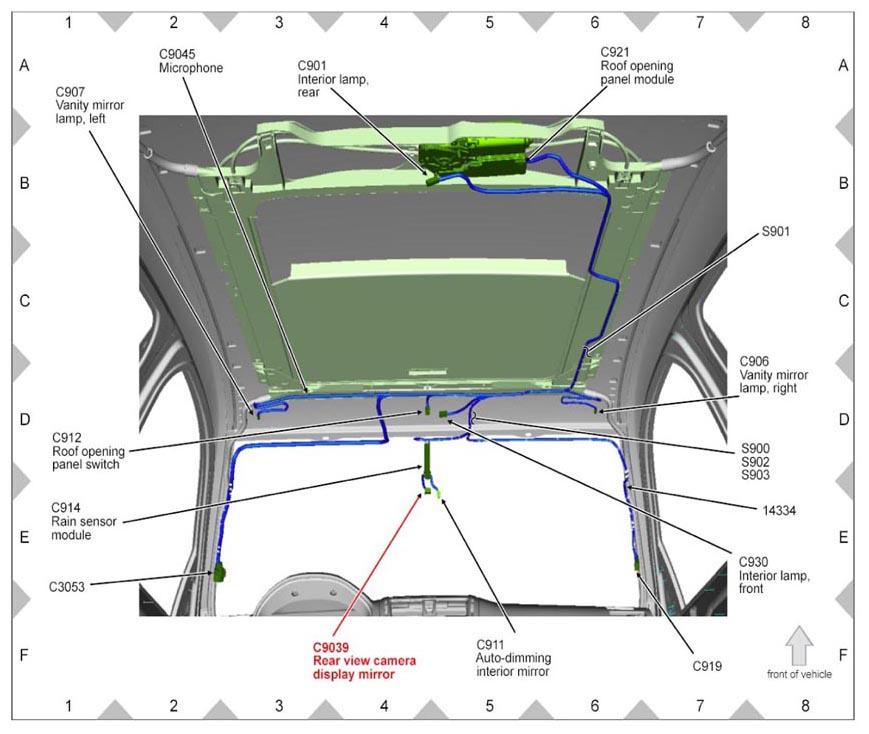

Fig 536: C9039 Rear View Camera Display Mirror Location - On Interior Rear View Mirror

Courtesy of FORD MOTOR CO.

Fig 537: C9045 Microphone Location - In Roof Panel, Front, LH Side

Courtesy of FORD MOTOR CO.
