Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Transmission Controls
Transmission Controls

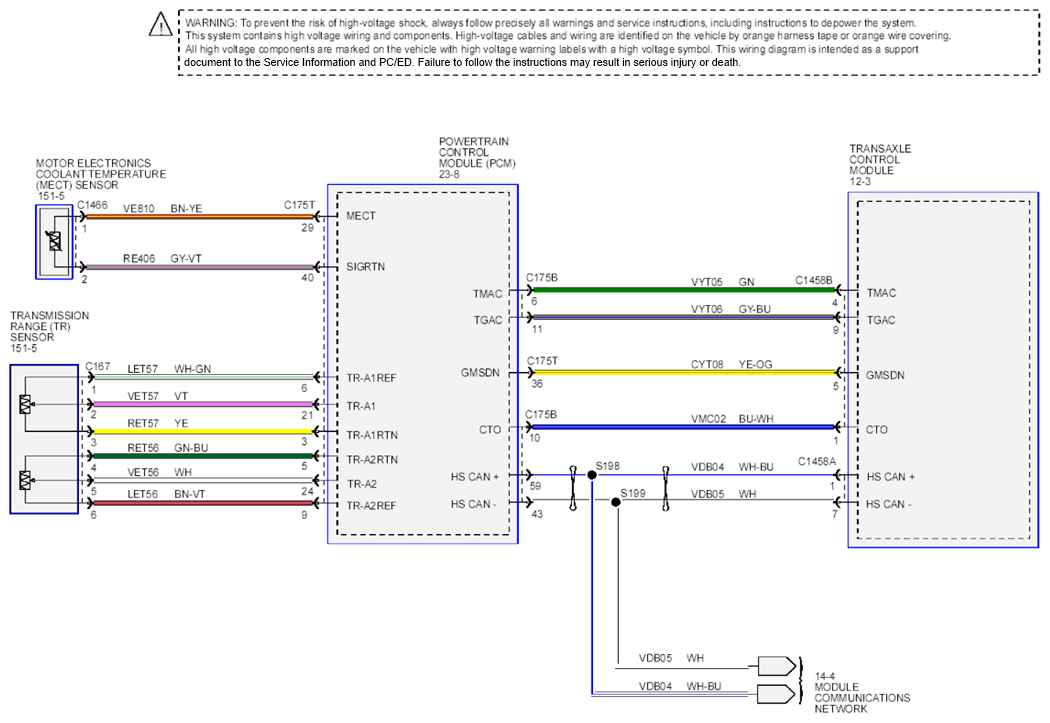

Fig 1: Transmission Controls Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

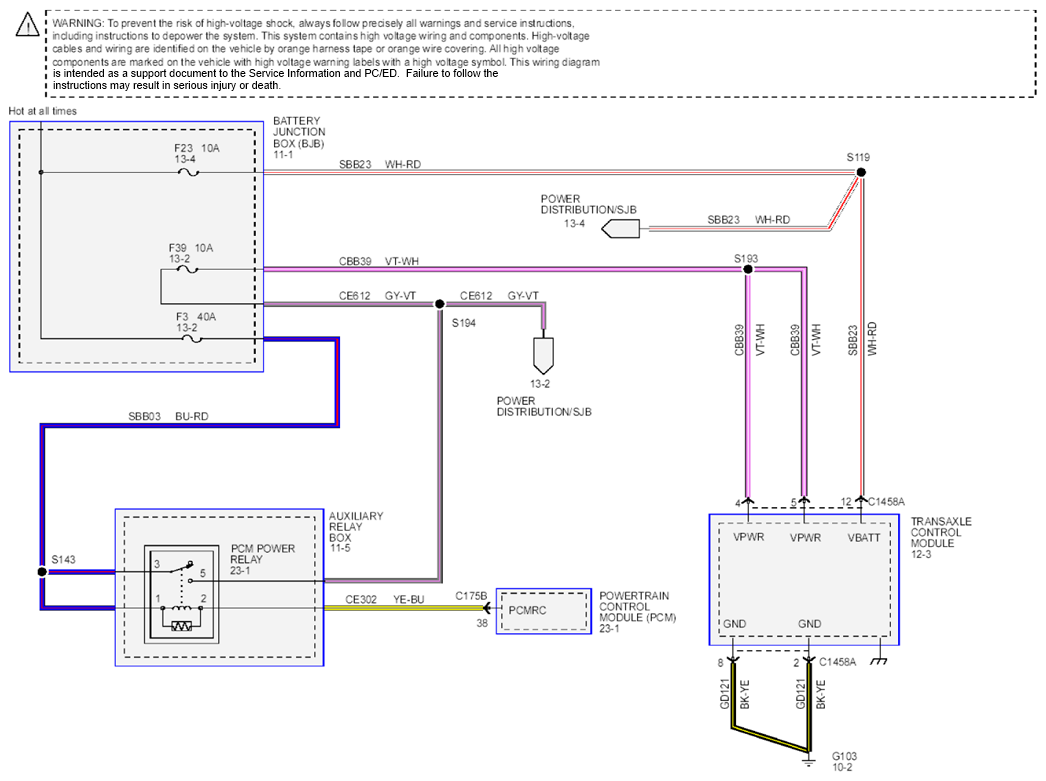

Fig 2: Transmission Controls Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
