Electronic Engine Controls

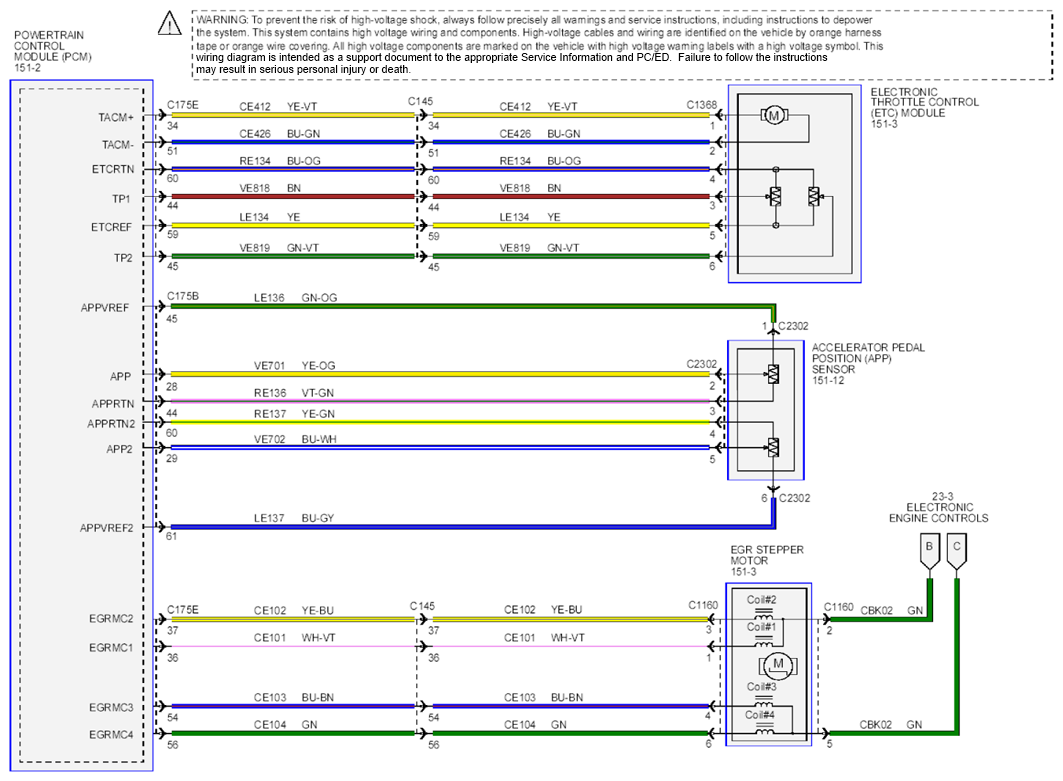

Fig 1: Electronic Engine Controls Wiring Diagrams (1 Of 8)

Courtesy of FORD MOTOR CO.

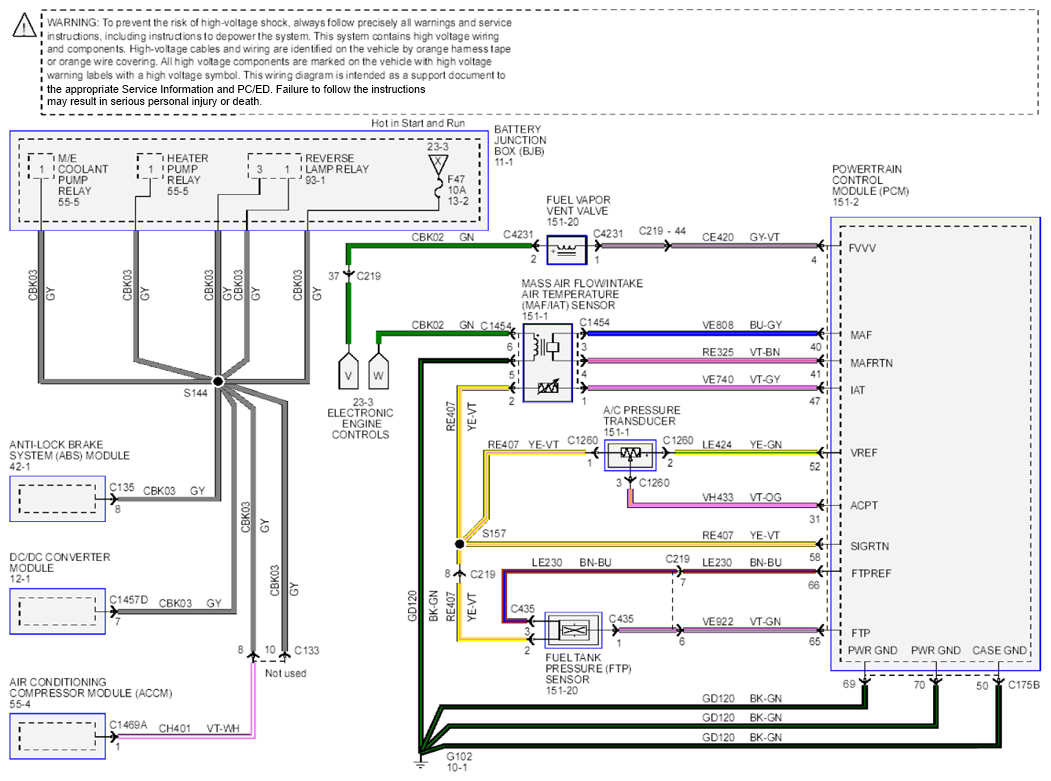

Fig 2: Electronic Engine Controls Wiring Diagrams (2 Of 8)

Courtesy of FORD MOTOR CO.

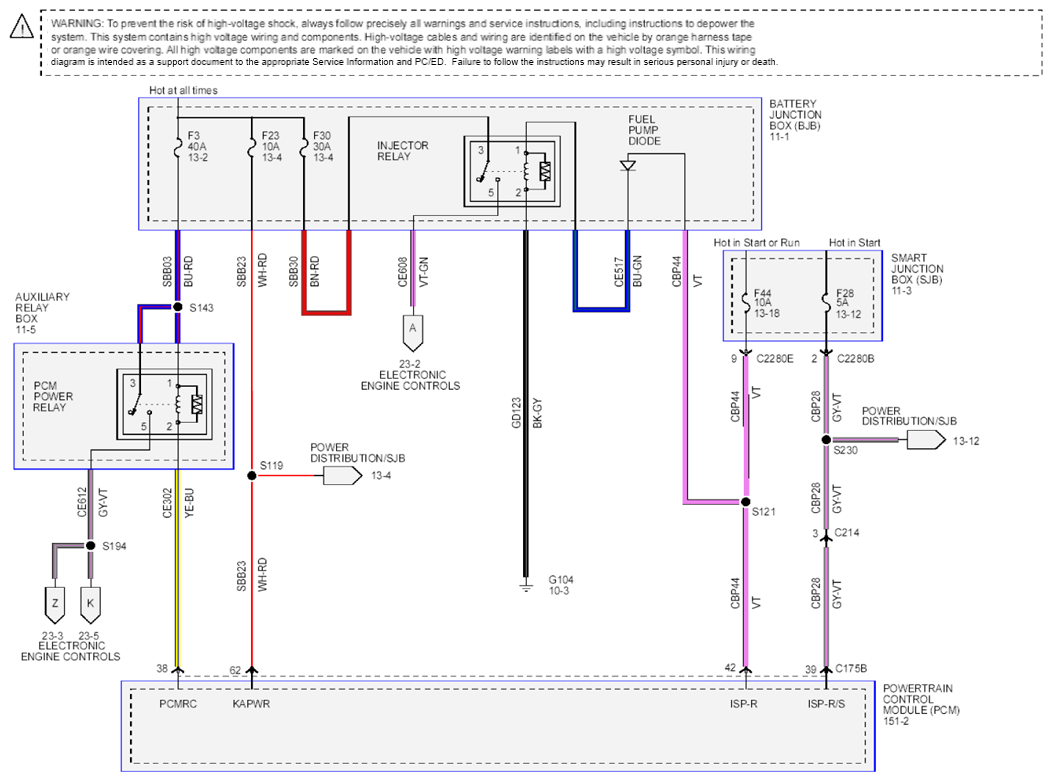

Fig 3: Electronic Engine Controls Wiring Diagrams (3 Of 8)

Courtesy of FORD MOTOR CO.

Fig 4: Electronic Engine Controls Wiring Diagrams (4 Of 8)

Courtesy of FORD MOTOR CO.

Fig 5: Electronic Engine Controls Wiring Diagrams (5 Of 8)

Courtesy of FORD MOTOR CO.

Fig 6: Electronic Engine Controls Wiring Diagrams (6 Of 8)

Courtesy of FORD MOTOR CO.

Fig 7: Electronic Engine Controls Wiring Diagrams (7 Of 8)

Courtesy of FORD MOTOR CO.

Fig 8: Electronic Engine Controls Wiring Diagrams (8 Of 8)

Courtesy of FORD MOTOR CO.
