OEM Ground Distribution (Hybrid): Grounds: G300

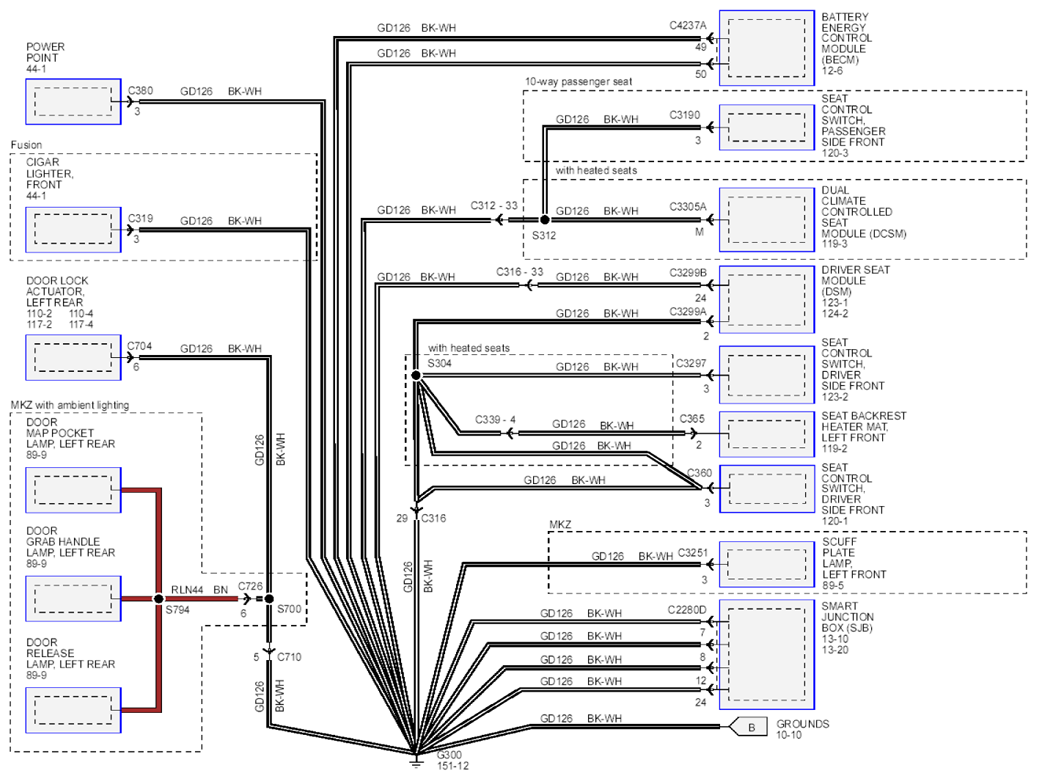

Fig 1: Grounds Circuit Diagram - G300 (1 Of 2)
Courtesy of FORD MOTOR CO.

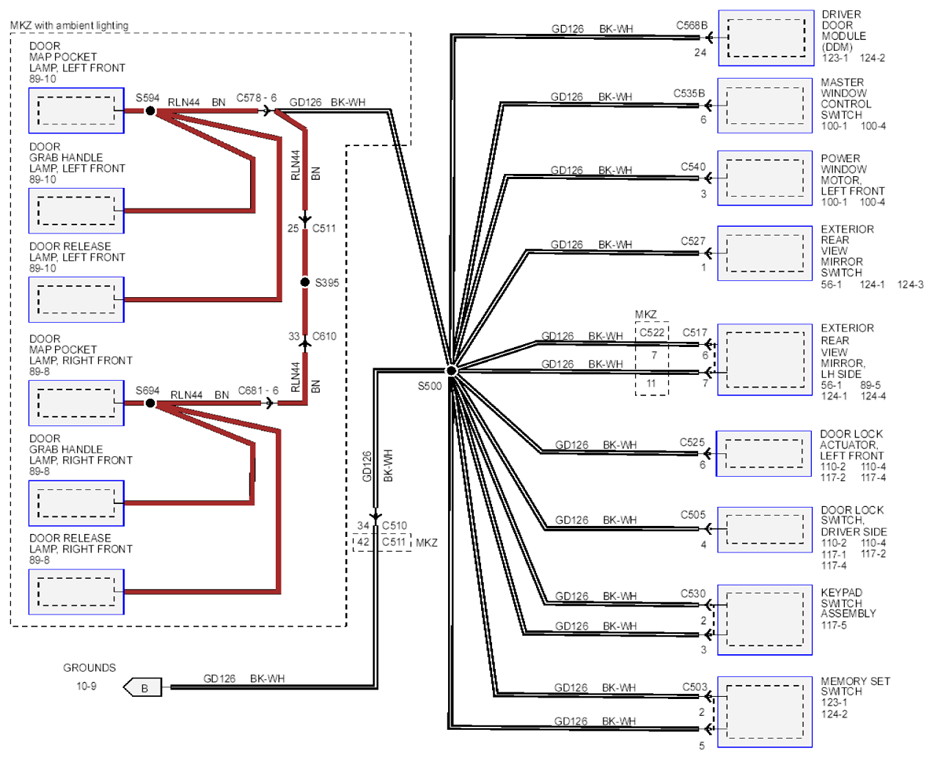

Fig 2: Grounds Circuit Diagram - G300 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
