OEM Ground Distribution (Hybrid): Grounds: G203

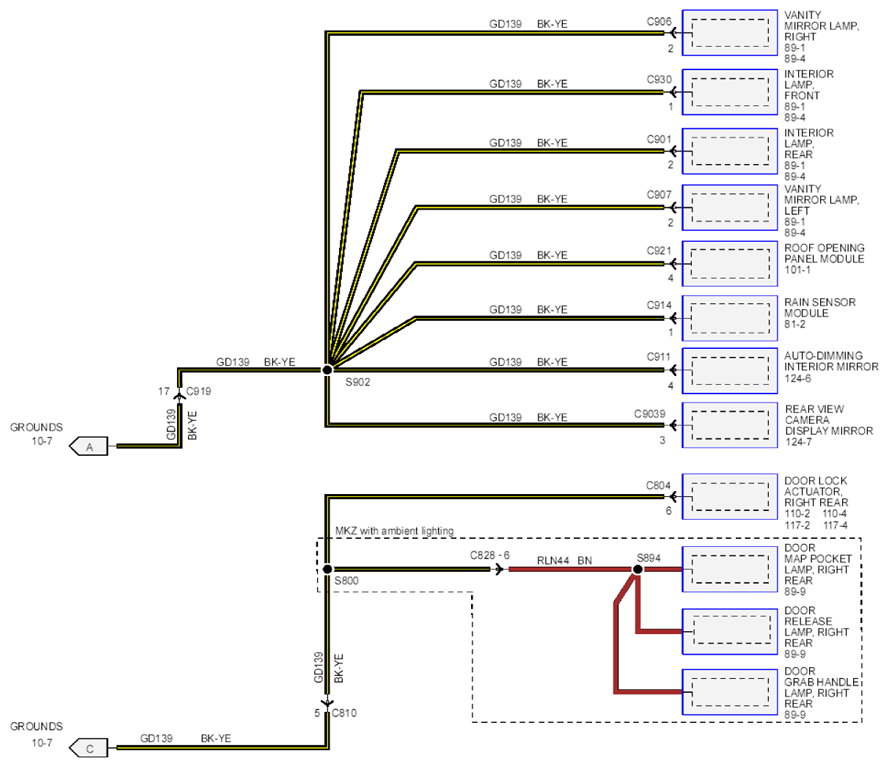

Fig 1: Grounds Circuit Diagram - G203 (1 Of 2)
Courtesy of FORD MOTOR CO.

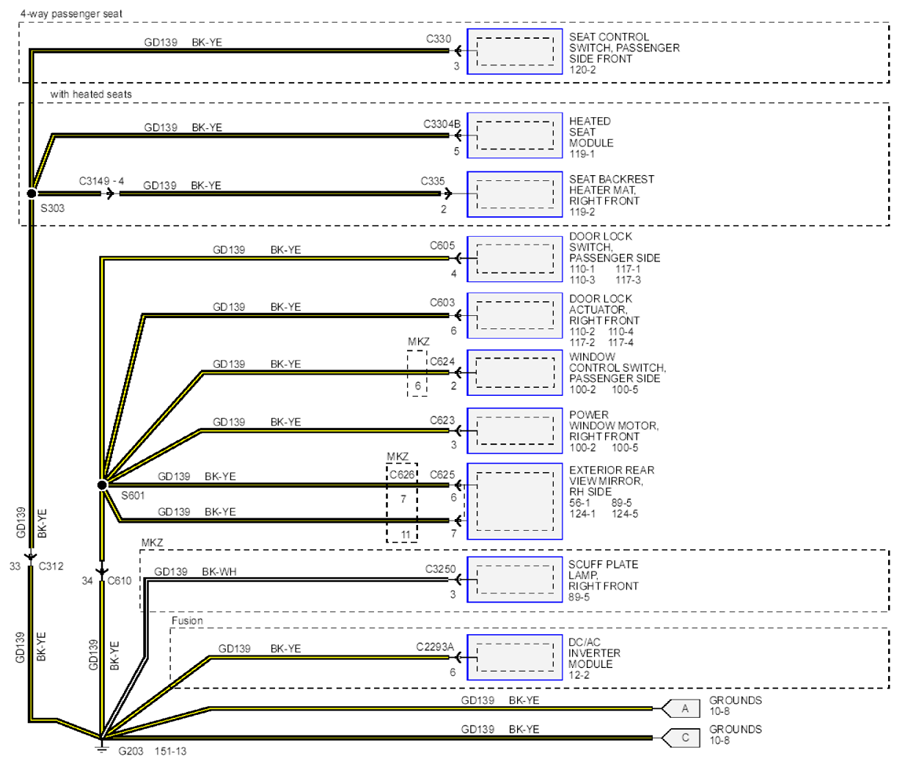

Fig 2: Grounds Circuit Diagram - G203 (2 Of 2)
Courtesy of FORD MOTOR CO.
