OEM Ground Distribution (Hybrid): Grounds: G202

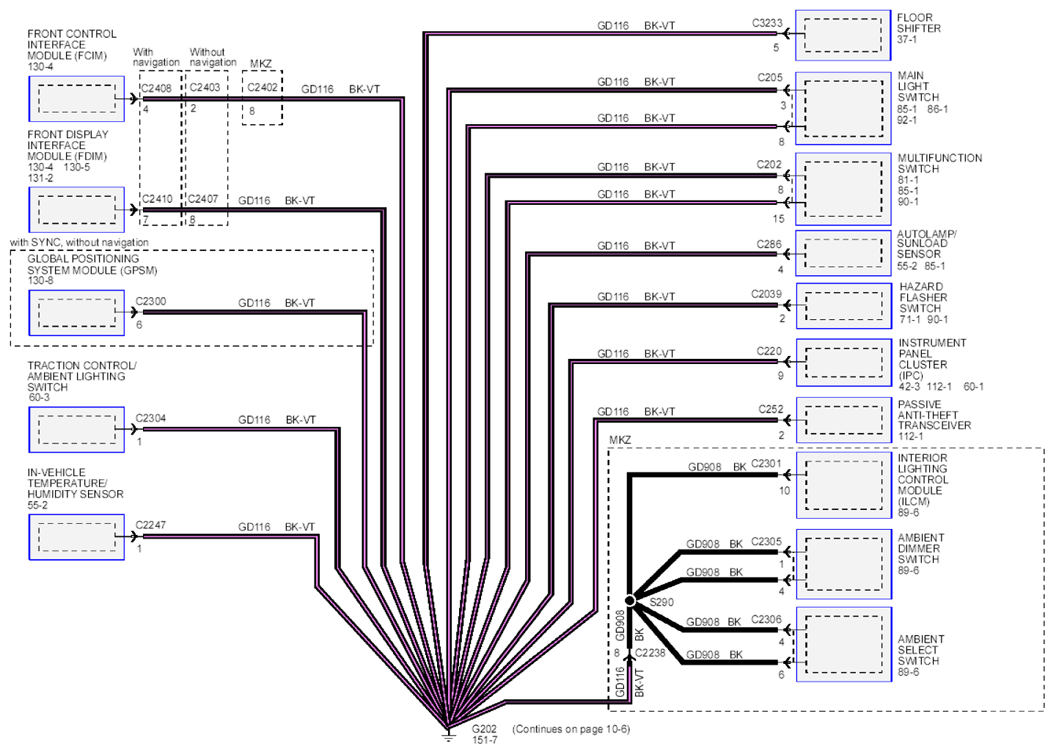

Fig 1: Grounds Circuit Diagram - G202

G07935669

Courtesy of FORD MOTOR CO.
