OEM Ground Distribution (Hybrid): Grounds: G104

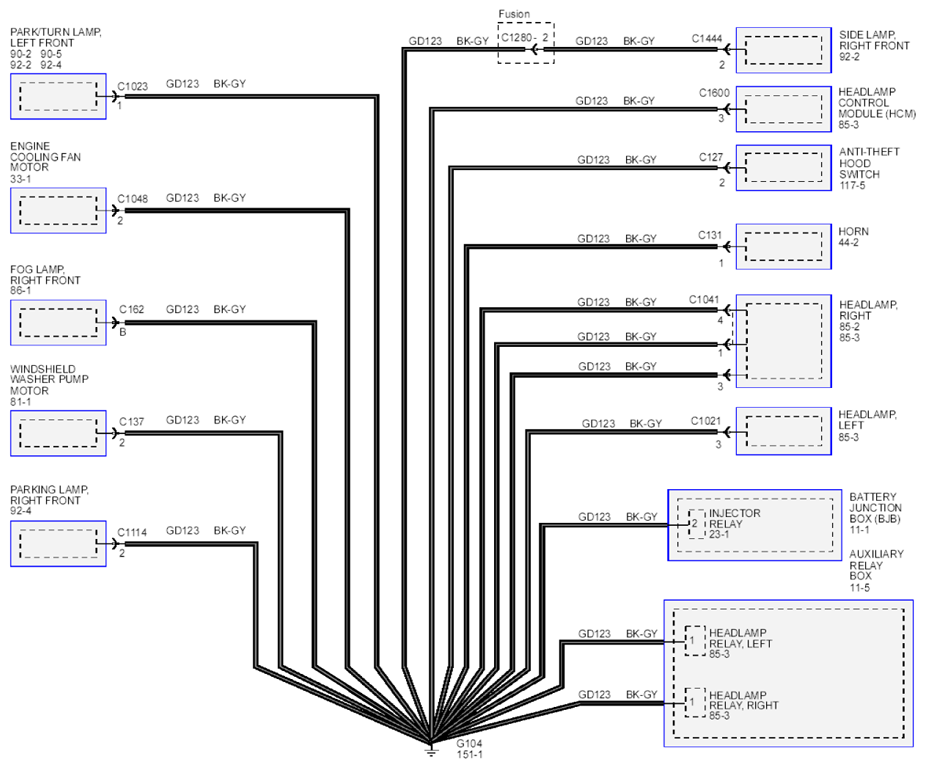

Fig 1: Grounds Circuit Diagram - G104

G07935667

Courtesy of FORD MOTOR CO.
