Battery Junction Box (BJB)
NOTE:
For component location, see OEM COMPONENT HARNESS LOCATION CHARTS (HYBRID)
article.

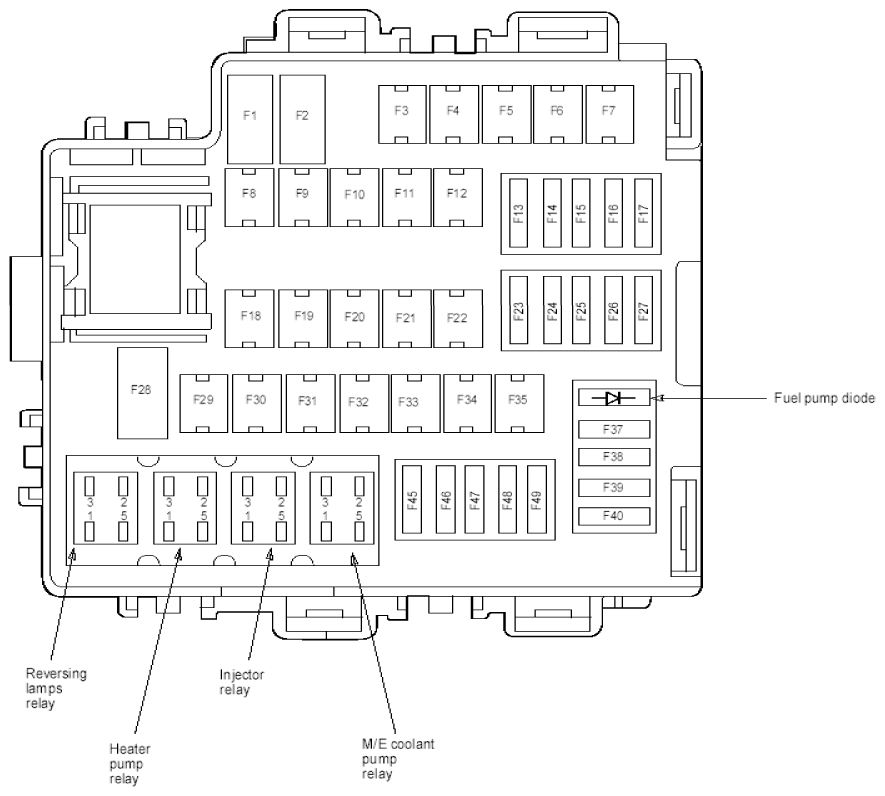

BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| M/E coolant pump relay |
| Injector Relay |
| Heater pump relay |
| Reversing lamps relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 50 | Power Steering Control Module (PSCM) |
| F2 | 50 | Power Steering Control Module (PSCM) |
| F3 | 40 | Auxiliary relay box - PCM power relay |
| F4 | - | Not used |
| F5 | - | Not used |
| F6 | 40 | Auxiliary relay box - Defrost relay |
| F7 | 30 | Auxiliary relay box - Vacuum pump cut-off relay |
| F8 | 50 | Anti-lock Brake System (ABS) module |
| F9 | 20 | Windshield wiper module |
| F10 | 30 | Anti-lock Brake System (ABS) module |
| F11 | - | Not used |
| F12 | 30 | Climate controlled seat module |
| F13 | 15 | Heater pump relay, M/E coolant pump relay |
| F14 | - | Not used |
| F15 | - | Not used |
| F16 | - | Not used |
| F17 | 10 | Battery Energy Control Module (BECM) |
| F18 | 30 | DC/AC Inverter module |
| F19 | - | Not used |
| F20 | 20 | Audio Digital Signal Processing (DSP) module, Audio amplifier |
| F21 | 20 | Audio Digital Signal Processing (DSP) module, Audio amplifier |
| F22 | 20 | Power point, console |
| F23 | 10 | Powertrain Control Module (PCM), EVAP canister vent solenoid, Traction Control Module |
| F24 | - | Not used |
| F25 | - | Not used |
| F26 | 15 | Auxiliary relay box - Headlamp relay, left |
| F27 | 15 | Auxiliary relay box - Headlamp relay, right |
| F28 | 60 | Engine cooling fan motor |
| F29 | 20 | Cigar lighter, front |
| F30 | 30 | Injector relay |
| F31 | 30 | Seat control switch, passenger side front |
| F32 | 30 | Seat control switch, driver side front, Driver seat module |
| F33 | 20 | Roof opening panel module |
| F34 | - | Not used |
| F35 | 40 | Auxiliary relay box - Blower motor relay |
| F36 | - | Fuel Pump diode |
| F37 | 5 | Anti-lock Brake System (ABS) module |
| F38 | 10 | Exterior rear view mirror, LH and RH |
| F39 | 10 | Transaxle Control Module |
| F40 | 10 | Powertrain Control Module (PCM) |
| F45 | 15 | Fuel injectors, Powertrain Control Module (PCM) |
| F46 | 15 | Coil on Plugs, Ignition transformer capacitor 1 |
| F47 | 10 | Reverse lamp relay, Heater pump relay, M/E coolant pump relay, Air Conditioning Compressor Module, ABS module, DC/DC converter module |
| F48 | 20 | Fuel pump relay, Battery Energy Control Module (BECM) |
| F49 | 15 | Variable Camshaft Timing (VCT) solenoid, EGR stepper motor, Heated Oxygen Sensor (HO2S) #11, 12, Brake Pedal Position (BPP) switch, Mass Air Flow/Intake Air Temperature (MAF/IAT), Vapor blocking valve, EVAP canister purge valve |
