Auxiliary Relay Box

NOTE: For component location, see OEM COMPONENT HARNESS LOCATION CHARTS (HYBRID) article.

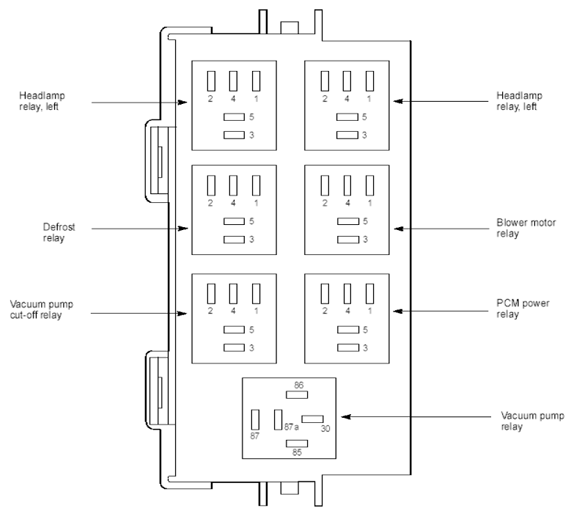

Fig 1: Auxiliary Relay Box
G07935795Courtesy of FORD MOTOR CO.
AUXILIARY RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Vacuum pump cut-off Relay
Defrost Relay
Headlamp Relay, left
Headlamp Relay, left
Blower motor relay
PCM Power Relay
Vacuum pump relay
