Smart Junction Box (SJB)

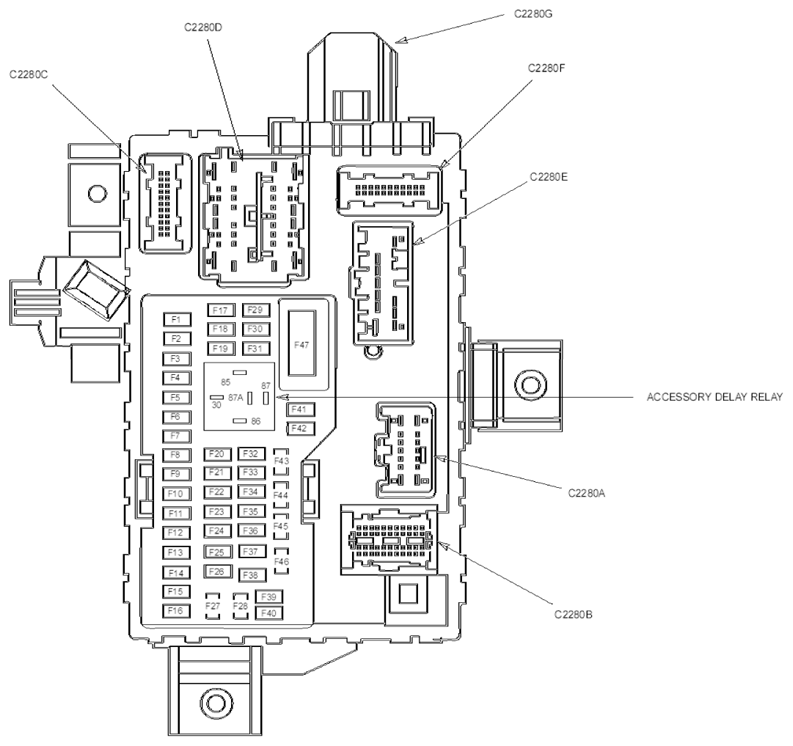

SMART JUNCTION BOX (SJB) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ACCESSORY DELAY RELAY |
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, left front |
| F2 | 15 | Brake Pedal Position (BPP) switch |
| F3 | 15 | Traction Battery Control Module cooling fan |
| F4 | 30 | Power window motor, right front |
| F5 | 10 | SJB logic, Keypad switch assembly, Floor shifter |
| F6 | 20 | Park/Turn lamp, left front and right front, Turn lamp, left rear and right rear, Park/Turn/Stop lamp, left rear and right rear |
| F7 | 10 | Headlamp, left, Headlamp relay, left |
| F8 | 10 | Headlamp, right, Headlamp relay, right |
| F9 | 15 | Interior lamp, front and rear |
| F10 | 15 | Exterior rear view mirror LH and RH side, SJB logic, Dimmer switch, Traction control/Ambient lighting switch, Hazard flasher switch, Luggage compartment lid release switch, Message center switch, Clockspring, Main light switch, Floor Shifter |
| F11 | 10 | Not used |
| F12 | 7.5 | Exterior rear view mirror switch |
| F13 | 5 | Accessory Protocol Interface Module (APIM) |
| F14 | 10 | Front Control Interface Module (FCIM), Ambient lighting module, Front Display Interface Module (FDIM), Global Positioning System Module (GPSM) |
| F15 | 10 | HVAC-DATC |
| F16 | 15 | Not used |
| F17 | 20 | All lock relay, All unlock relay, Driver unlock relay, Luggage compartment lid relay, Power window motor, left and right front, Door lock actuators, Luggage compartment lid release solenoid/ajar switch |
| F18 | 20 | Heated seat module |
| F19 | 25 | Audio Digital Signal Processing (DSP) module |
| F20 | 15 | Data Link Connector (DLC) |
| F21 | 15 | Fog lamp relay |
| F22 | 15 | Park lamp relay |
| F23 | 15 | High beam relay |
| F24 | 20 | Horn relay |
| F25 | 10 | Demand lamp/Battery saver relay |
| F26 | 10 | Instrument Panel Cluster (IPC) |
| F27 | 20 | Ignition switch |
| F28 | 5 | Audio Control Module (ACM), Powertrain Control Module (PCM) |
| F29 | 5 | Instrument Panel Cluster (IPC) |
| F30 | 5 | Not used |
| F31 | 10 | Not used |
| F32 | 10 | Restraints Control Module (RCM) |
| F33 | 10 | Not used |
| F34 | 5 | Not used |
| F35 | 10 | DC/AC inverter module, Parking Aid Module (PAM), Rear view camera, Heated seat module, Blind spot monitoring sensor, left and right rear |
| F36 | 5 | Passive anti-theft transceiver |
| F37 | 10 | In-Vehicle temperature/humidity sensor |
| F38 | 20 | Subwoofer amplifier, Audio amplifier |
| F39 | 20 | Audio Control Module (ACM) |
| F40 | 20 | Not used |
| F41 | 15 | Master window control switch, Door lock switch, driver and passenger, Window control switch passenger, Roof opening panel switch, Roof opening panel module, Overhead lighting, Auto-dimming interior mirror, Rear view camera display mirror. Cigar lighter, Traction control/Ambient lighting switch, Ambient lighting module, Ambient select switch |
| F42 | 10 | Power Steering Control Module (PSCM) |
| F43 | 10 | Rain sensor module |
| F44 | 10 | Fuel pump diode, Powertrain Control Module (PCM) |
| F45 | 5 | Defrost relay, Blower motor relay, Windshield wiper module |
| F46 | 7.5 | Occupant Classification System Module (OCSM), PAD indicator, Front Control Interface Module (FCIM) |
| F47 | 30 c.b. | Master window control switch, Window control switch, passenger side |
