Electrical short inside the harness

  1. = Solder coated wire to ground
  2. = Harness protective tape
  3. = Intermittent short

    Solder coated wire pierced through the insulation of another circuit.

  4. = Grounding foil

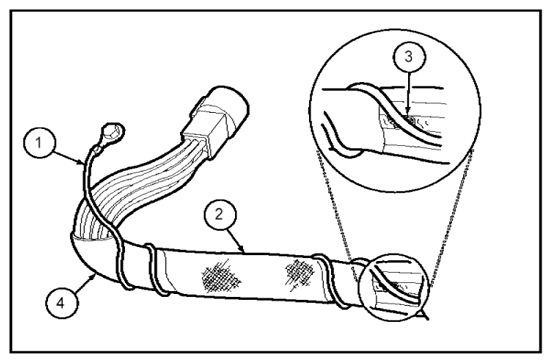

Fig 1: Identifying Electrical Short Inside Harness
G07935652Courtesy of FORD MOTOR CO.
