Removal and Installation

Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the access hole plugs.

Fig 1: Location of Access Hole Plugs
Courtesy of FORD MOTOR CO.

NOTE: If the door window regulator motor is inoperative, remove it. For additional information, refer to Window Regulator Motor .

Fig 2: Location of Glass Clamp Bolts

Courtesy of FORD MOTOR CO.

Lower the window until the glass clamp bolts are accessible through the access hole plugs, then loosen the glass clamp bolts.
- To install, tighten to 6 Nm (53 lb-in).
Tape the window in position, then lower the window regulator downward until it reaches the stops at the bottom of the regulator tracks.
Remove the door speaker. For additional information, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .
Remove the interior door handle screw and position the door handle aside.

Fig 3: Location of Interior Door Handle Screw
Courtesy of FORD MOTOR CO.
Disconnect the wiring harness retainers.

Fig 4: Location of Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Remove the wiring harness cover plate and disconnect the 2 door latch cable retainers.

Fig 5: Location of Wiring Harness Cover Plate And Door Latch Cable Retainer
Courtesy of FORD MOTOR CO.
Remove the 10 door module bolts.
- To install, tighten to 11 Nm (97 lb-in).
Fig 6: Location of Door Module Bolt
Courtesy of FORD MOTOR CO.

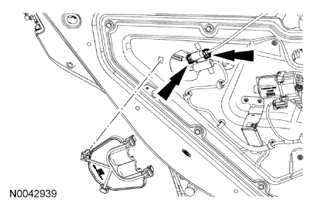

Disconnect the door latch electrical connector.

Fig 7: Location of Door Latch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the rear door module assembly. If installing a new door module, transfer parts as necessary.
To install, reverse the removal procedure.
