Removal and Installation

Lower the rear window.
Remove the rear door inner trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the inner beltline weatherstrip.

Fig 1: Location of Inner Beltline Weatherstrip
Courtesy of FORD MOTOR CO.
Remove the screw and the outer beltline weatherstrip.

Fig 2: Location of Screw And Outer Beltline Weatherstrip
Courtesy of FORD MOTOR CO.
Position the rear window glass run aside.

Fig 3: Positioning Rear Window Glass Run Aside
Courtesy of FORD MOTOR CO.
Remove the access hole plug.

Fig 4: Location of Access Hole Plug
Courtesy of FORD MOTOR CO.

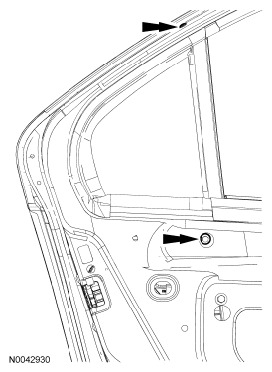

Remove the rear quarter glass window guide bolt and screw.

Fig 5: Location of Rear Quarter Glass Window Guide Bolt And Screw
Courtesy of FORD MOTOR CO.

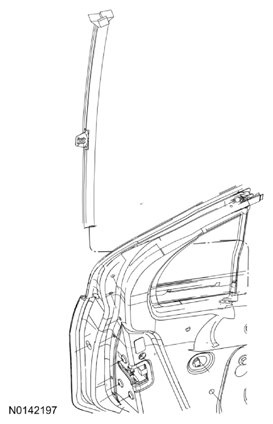

Remove the rear quarter glass window guide.

Fig 6: Identifying Rear Quarter Glass Window Guide
Courtesy of FORD MOTOR CO.

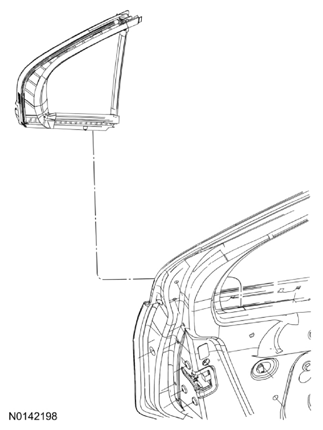

Remove the rear door fixed window glass.

Fig 7: Identifying Rear Door Fixed Window Glass
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
