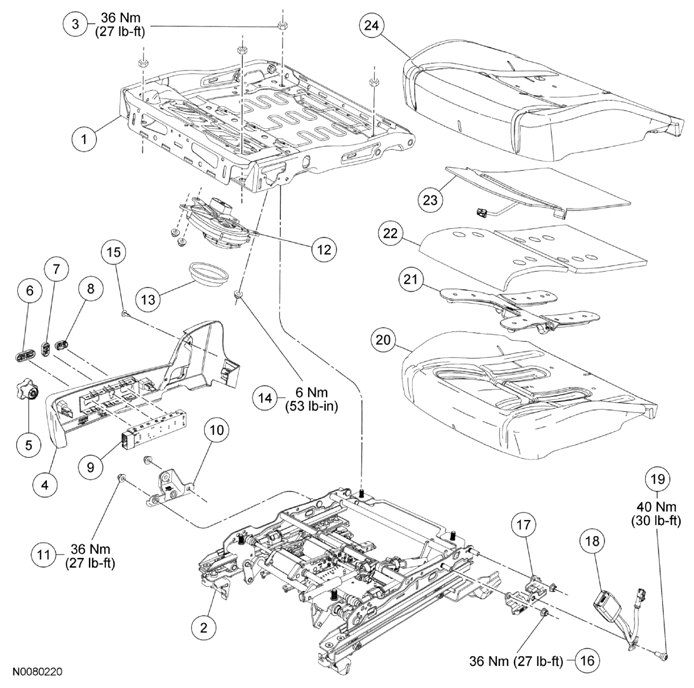

Passenger Seat Cushion
NOTE:
Power seat track shown in illustration, manual seat track similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63100 | Cushion frame |
| 2 | 61710 | Seat track |
| 3 | W520113 | Seat track-to-cushion frame nut (4 required) |
| 4 | 62186 | Cushion side shield |
| 5 | 62622 | Manual lumbar control knob (if equipped) |
| 6 | 14711 | Seat control switch knob (if equipped) |
| 7 | 14711 | Power recline switch knob (if equipped) |
| 8 | 14711 | Power lumbar switch knob (if equipped) |
| 9 | 14A701 | Seat control switch (if equipped) |
| 10 | 610D08 | Safety belt anchor bracket |
| 11 | W520113 | Nut, safety belt anchor bracket (2 required) |
| 12 | 19N550 | Cushion Thermo-Electric Device (TED) (if equipped) |
| 13 | 19E880 | Cushion TED filter (if equipped) |
| 14 | N620480 | Nut, cushion TED (3 required) (if equipped) |
| 15 | W790002 | Scrivet |
| 16 | W520113 | Nut, safety belt buckle bracket (2 required) |
| 17 | 610D08 | Safety belt buckle bracket |
| 18 | 61202 | Safety belt buckle |
| 19 | - | Bolt, safety belt buckle (part of 61202) |
| 20 | 632A22 | Cushion foam pad |
| 21 | - | Cushion manifold, climate controlled seat (part of 632A22) (if equipped) |
| 22 | - | Cushion insert (part of 632A22) (if equipped) |
| 23 | 14D698 | Cushion heater mat (if equipped) |
| 24 | 62900 | Cushion trim cover |
