Rear Seat Backrest, 40 Percent: Notes

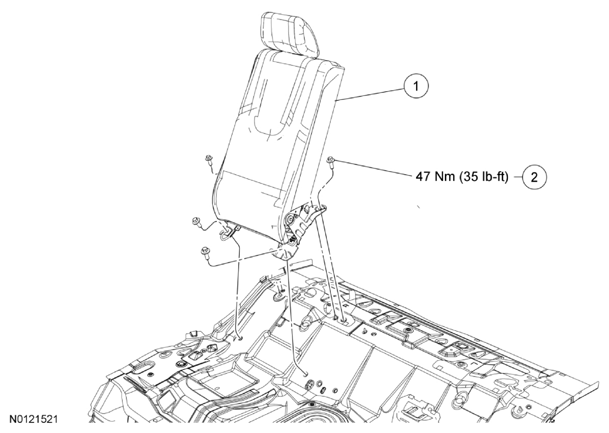

Fig 1: Exploded View Of Rear Seat Backrest, 40 Percent With Torque Specifications
G08027015Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Backrest assembly
2 W707858 Backrest-to-floor bolt (4 required)
