Section 27 (OEM Wiring Diagrams (Hybrid))
>>
Luggage Compartment
Luggage Compartment
WARNING:
This page is about a different variant/trim than selected.

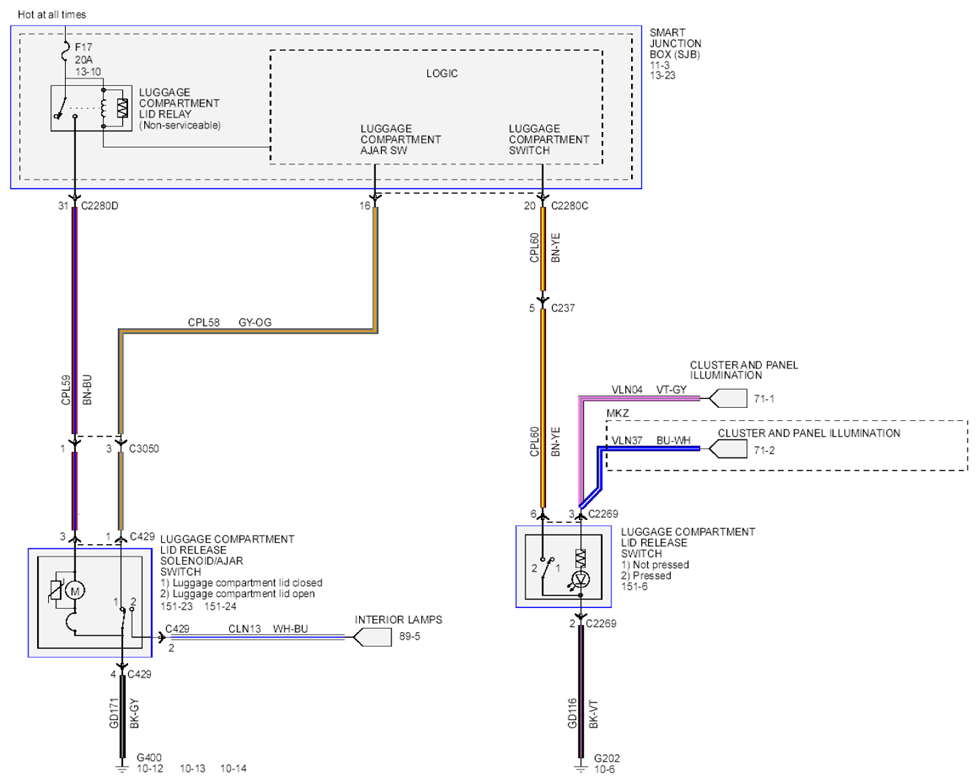

Fig 1: Luggage Compartment Wiring Diagram
Courtesy of FORD MOTOR CO.
