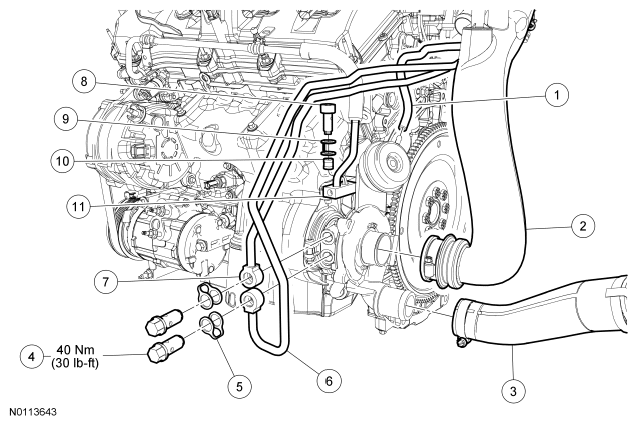

| 1 |
9E498 |
Wastegate control valve hose |
| 2 |
9R530 |
LH turbocharger intake tube |
| 3 |
6C646 |
LH Charge Air Cooler (CAC) tube |
| 4 |
6N865 |
Coolant tube banjo bolt (2 required) |
| 5 |
114002 |
Coolant tube sealing washer (2 required) |
| 6 |
8A505 |
LH turbocharger coolant inlet tube (part of 9V427) |
| 7 |
8A521 |
LH turbocharger coolant outlet tube (part of 8K579) |
| 8 |
6C712 |
Oil supply tube bolt (part of 6N660) |
| 9 |
W714850 |
Oil supply tube sealing washer (part of 6N660) |
| 10 |
6C683 |
Oil supply tube filter (part of 6N660) |
| 11 |
6N660 |
Oil supply tube |
