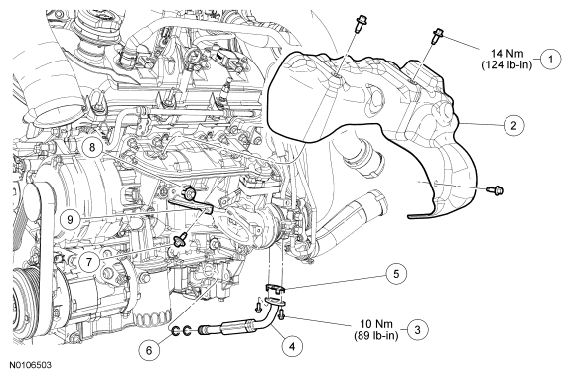

LH Turbocharger (View 1 of 3)
| Item | Part Number | Description |
|---|---|---|
| 1 | W713299 | LH exhaust manifold heat shield bolt (3 required) |
| 2 | 9Y427 | LH exhaust manifold heat shield |
| 3 | W500012 | Turbocharger oil return tube bolt (2 required) |
| 4 | 6A836 | Turbocharger oil return tube |
| 5 | 6N652 | Turbocharger oil return tube gasket |
| 6 | 8962 | Turbocharger oil return tube O-ring seal (2 required) |
| 7 | W714863 | Upper LH turbocharger bracket-to-turbocharger bolt |
| 8 | W503294 | Upper LH turbocharger bracket-to-cylinder block bolt |
| 9 | 17K375 | Upper LH turbocharger bracket |
