Instrument Panel Cluster (IPC): Notes

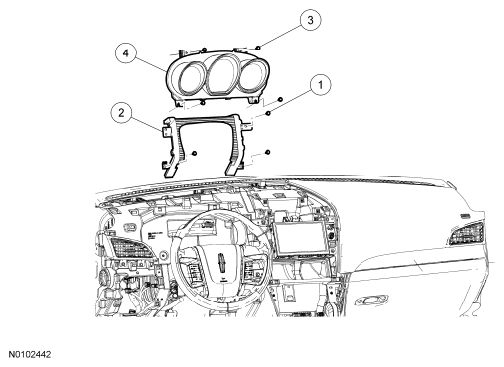

Fig 1: Identifying Instrument Panel Cluster Components
G06291081Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 Steering column reveal panel screws (4 required)
2 3R564 Steering column reveal panel
3 W707628 Instrument Panel Cluster (IPC) screws (4 required)
4 10849 IPC
