Instrument Panel Cluster (IPC): Notes
NOTE:

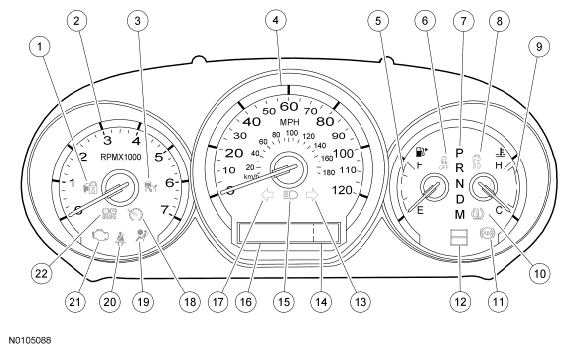

Select Shift IPC shown in illustration; non-Select Shift similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Anti-theft indicator |
| 2 | - | Tachometer |
| 3 | - | Adaptive cruise control indicator (if equipped) |
| 4 | - | Speedometer |
| 5 | - | Fuel gauge |
| 6 | - | Traction control disabled indicator |
| 7 | - | PRNDL (without Select Shift) or PRNDM (with Select Shift) |
| 8 | - | Traction control indicator |
| 9 | - | Temperature gauge |
| 10 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 11 | - | ABS warning indicator |
| 12 | - | Select Shift display area |
| 13 | - | RH turn indicator |
| 14 | - | Message center warning indicator display area |
| 15 | - | High beam indicator |
| 16 | - | Message center display area |
| 17 | - | LH turn indicator |
| 18 | - | Cruise control indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Safety belt warning indicator |
| 21 | - | Malfunction Indicator Lamp (MIL) |
| 22 | - | Brake warning indicator |
The IPC contains gauges, informational indicators, warning indicators and a message center that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IPC uses a 2-line display of basic informational items such as the odometer, trip odometer and for the message center display information.
All indicator lamps and warning indicator lamps are LEDs, which are not replaceable.
