Brake Booster: Notes

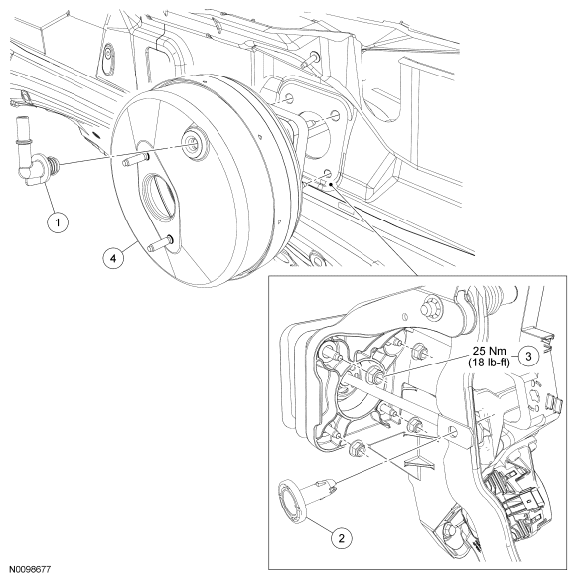

Fig 1: Brake Booster Related Replacement Components With Torque Specifications (1 Of 2)
G06261329Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9D443A Brake booster vacuum fitting
2 2L523 Booster rod clevis-locking pin
3 W520212 Brake booster nut (4 required)
4 2005 Brake booster
Fig 2: Brake Booster Related Replacement Components With Torque Specifications (2 Of 2)
G06261330Courtesy of FORD MOTOR CO.
Item Part Number Description
5 W704790 Strut upper mount nuts (4 required)
6 16A200 Strut tower brace
