Instrument Panel Cluster (IPC): Notes
NOTE:

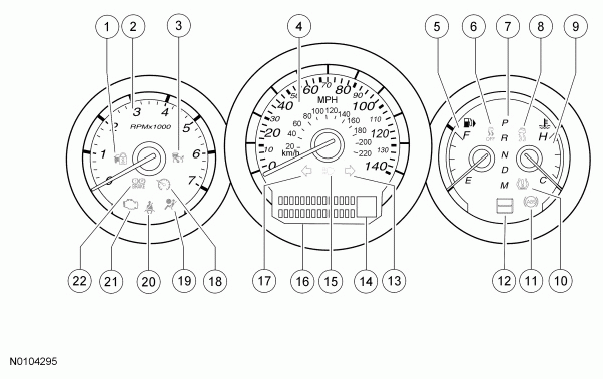

Select shift Instrument Panel Cluster (IPC) shown in illustration, non-select shift similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Anti-theft indicator |
| 2 | - | Tachometer |
| 3 | - | Adaptive cruise control indicator |
| 4 | - | Speedometer |
| 5 | - | Fuel gauge |
| 6 | - | Traction control disable indicator |
| 7 | - | PRNDL display (non-select shift) or PRNDM (select shift) |
| 8 | - | Traction control indicator |
| 9 | - | Temperature gauge |
| 10 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 11 | - | ABS warning indicator |
| 12 | - | Select Shift™ display area |
| 13 | - | RH turn indicator |
| 14 | - | High beam indicator |
| 15 | - | Message center indicator display area |
| 16 | - | Message center display area |
| 17 | - | LH turn indicator |
| 18 | - | Cruise control indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Safety belt warning indicator |
| 21 | - | Malfunction Indicator Lamp (MIL) |
| 22 | - | Brake warning indicator |
NOTE:
The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).
The Instrument Panel Cluster (IPC) has a full-function message center (identified by the 3-button message center switch). The IPC contains gauges, informational indicators and warning indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IPC uses a 2-line message center display of basic informational items such as the odometer and trip odometer. It is also used the message center display information.
All indicator lamps and warning indicator lamps are LEDs, which are not replaceable.
