Instrument Cluster Finish Panel - Navigator

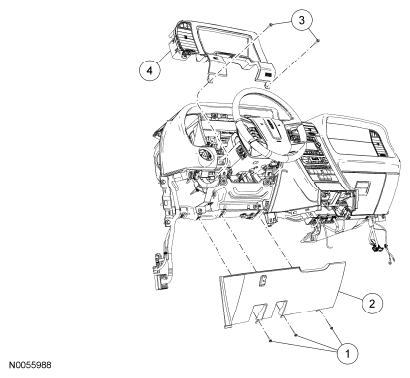

Fig 1: Exploded View Of Instrument Cluster Finish Panel Components - Navigator

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W707628	Steering column opening trim panel screws (3 required)
2	04459	Steering column opening trim panel
3	W707628	Instrument cluster finish panel screws (2 required)
4	04320	Instrument cluster finish panel

1. Lower the steering column to the lowest position.
2. Remove the 3 screws and the lower steering column cover.
   • Disconnect the electrical connector for the brake pedal switch (if equipped).
3. Remove the 2 instrument cluster finish panel screws.
NOTE: There are 2 locking tabs on the outboard register that need to be depressed before the cluster finish panel is removed.
NOTE: Cluster finish panel removed for clarity.
4. Depress the 2 locking tabs and remove the cluster finish panel.
   • Access the tabs from under the instrument panel.
   • Disconnect the electrical connectors.

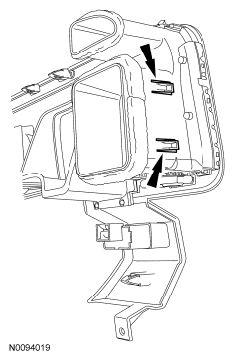

     Fig 2: Locating Cluster Finish Panel Locking Tabs

     Courtesy of FORD MOTOR CO.
5. To install, reverse the removal procedure.
   • Make sure to align the trim panel retaining clips to the retaining clip holes in the instrument panel.
