Instrument Panel Dimmer Switch: Notes

NOTE: Navigator shown in the illustration, Expedition similar.

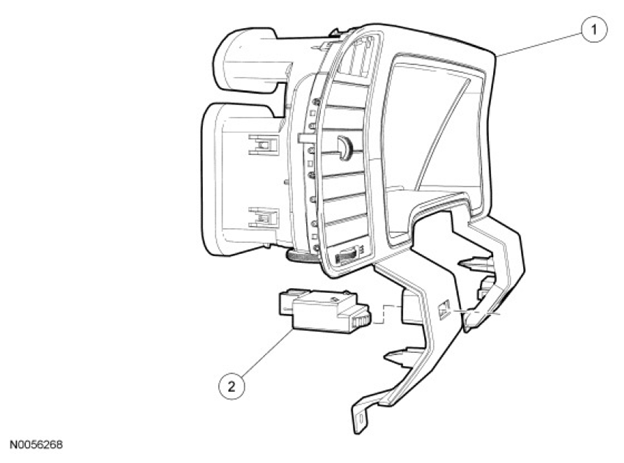

Fig 1: Locating Instrument Panel Dimmer Panel And Switch
G07456652Courtesy of FORD MOTOR CO.
INSTRUMENT PANEL DIMMER SWITCH PARTS DESCRIPTION CHART

Item Part Number Description
1 011201 Instrument panel finish panel
2 11691 Instrument panel dimmer switch
