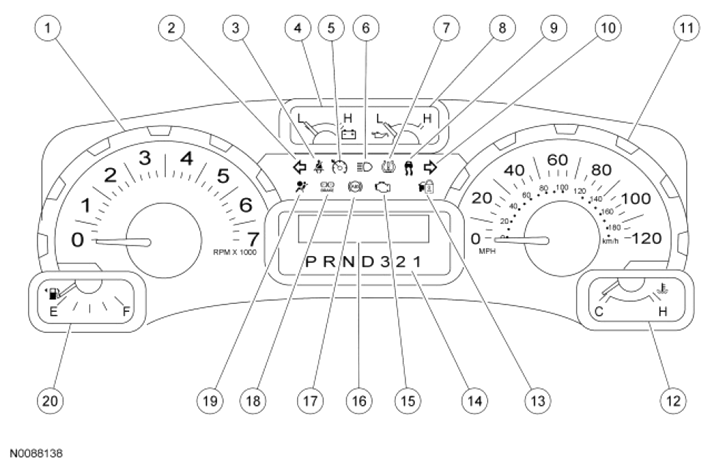

Instrument Cluster (IC): Expedition
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Safety belt warning indicator |
| 4 | - | Voltmeter |
| 5 | - | Cruise control indicator |
| 6 | - | High beam indicator |
| 7 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 8 | - | Oil pressure gauge |
| 9 | - | Traction assist indicator |
| 10 | - | RH turn indicator |
| 11 | - | Speedometer |
| 12 | - | Temperature gauge |
| 13 | - | Anti-theft indicator |
| 14 | - | PRNDL indicator |
| 15 | - | Malfunction Indicator Lamp (MIL) |
| 16 | - | Message center |
| 17 | - | ABS warning indicator |
| 18 | - | Brake warning indicator |
| 19 | - | Air bag warning indicator |
| 20 | - | Fuel gauge |
