Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left front door trim panel shown, right front door trim panel similar.

Remove the exterior mirror mounting hole cover.

Fig 1: Removing Exterior Mirror Mounting Hole Cover
Courtesy of FORD MOTOR CO.
If equipped, remove the window regulator handle.
1. Position the window regulator handle cover aside.
2. Remove the window regulator handle screw and regulator handle.

  Fig 2: Removing Window Regulator Handle Screw And Regulator Handle
  Courtesy of FORD MOTOR CO.
If equipped, remove the window control switch plate.
- Disconnect the window control switch electrical connectors and if equipped, the memory set switch electrical connector.

  Fig 3: Disconnecting Window Control Switch Electrical Connectors
  Courtesy of FORD MOTOR CO.
If equipped, remove the front door trim panel reflector or the courtesy lamp lens.

Fig 4: Removing Front Door Trim Panel Reflector Or Courtesy Lamp Lens
Courtesy of FORD MOTOR CO.
Remove the screws.

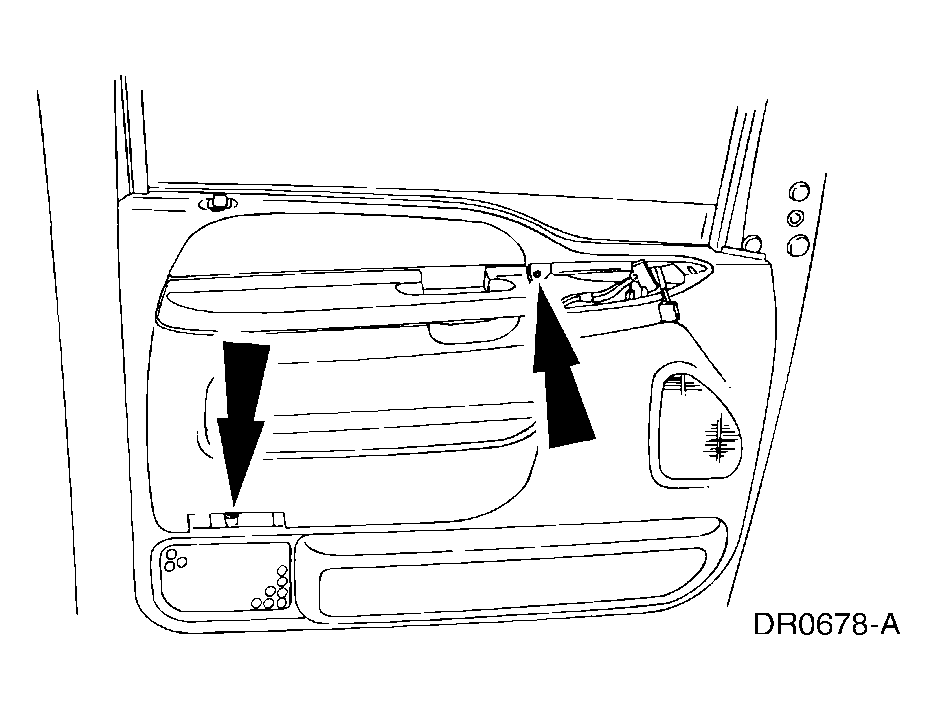

Fig 5: Removing Front Door Trim Panel Screws
Courtesy of FORD MOTOR CO.

CAUTION: Do not pull directly outward on front door trim panel, as damage will occur.

NOTE: Remove the front door trim panel by pulling it straight upward.

Lift and remove the front door trim panel.
If equipped, twist the courtesy lamp connector one half turn and remove it from the front door trim panel.

CAUTION: Insert the lower panel tabs first or they can break when installing the front door trim panel.

To install, reverse the removal procedure.
