Home >> Lincoln >> 2011 >> MKX FWD >> Repair and Diagnosis >> Brakes >> Parking Brake System - Parking Brake & Actuation >> Removal And Installation >> Parking Brake Warning Indicator Switch >> Notes

Parking Brake Warning Indicator Switch: Notes

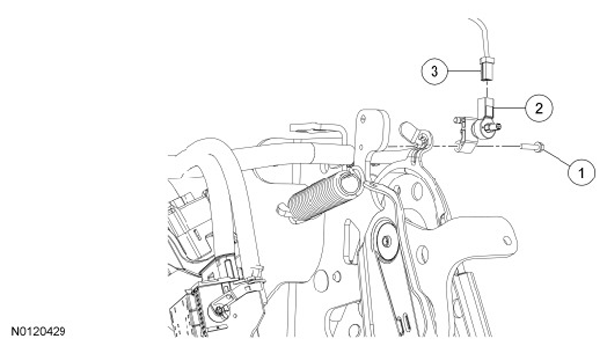

Fig 1: Identifying Parking Brake Warning Indicator Switch, Screw And Connector
G07397559Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Parking brake warning indicator switch screw (part of 15A851)
2 15A851 Parking brake warning indicator switch
3 - Electrical connector (part of 14A005)
