Parking Brake Control: Notes

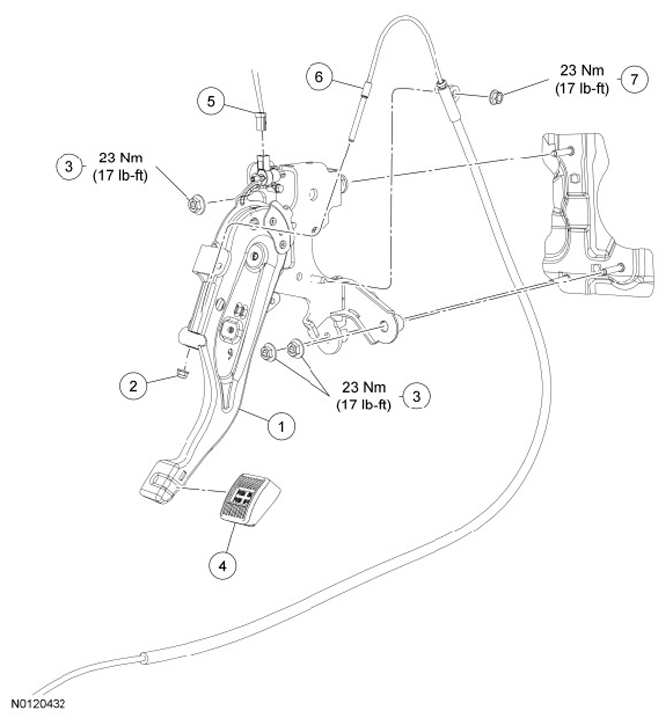

Fig 1: Exploded View Of Parking Brake Control With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	2780	Parking brake control
2	W520201	Parking brake control adjustment nut (part of 2853)
3	W707144	Parking brake control nuts (3 required)
4	2454	Parking brake control pad (also part of 2780)
5	-	Parking brake switch electrical connector (part of 14A005)
6	2853	Front parking brake cable (also part of 2780)
7	-	Front parking brake cable-to-control nut (part of 2780)
