Parking Brake Cable - Front: Notes

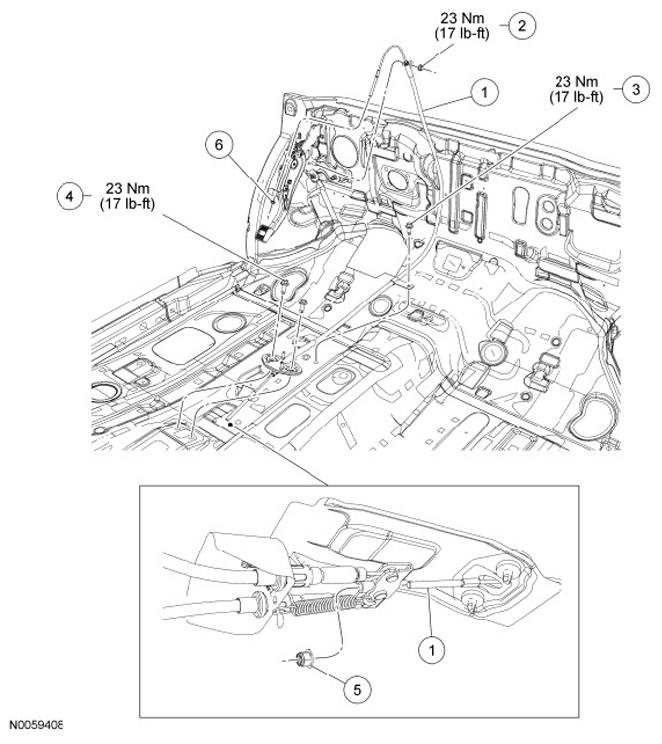

Fig 1: Parking Brake Cable Nuts And Bolts With Torque Specifications (Front)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	2853	Front parking brake cable
2	-	Front parking brake cable-to-control nut (part of 2853)
3	W708004	Front parking brake cable bracket bolt
4	W708004	Front parking brake cable floor plate bolts (2 required)
5	W520201	Parking brake cable equalizer adjustment nut (also part of 2853)
6	W520201	Parking brake control adjustment nut (also part of 2853)
