Instrument Panel Cluster (IPC): Max

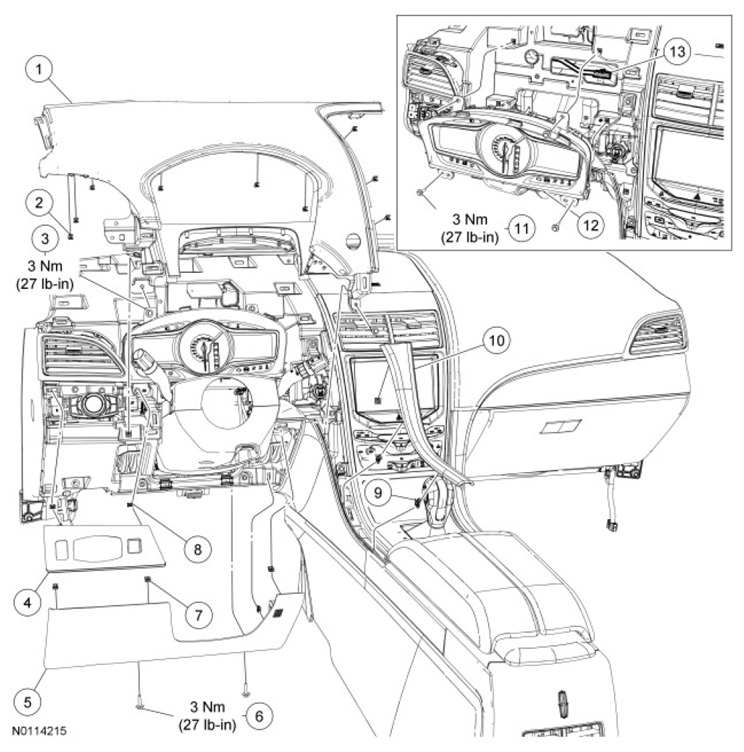

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 78044F58 | LH IPC top cover |
| 2 | W790178 | Clip (9 required) |
| 3 | W707628 | LH IPC top cover screws (2 required) |
| 4 | 78044A91 | Left finish panel |
| 5 | 7804459 | Steering column opening trim panel |
| 6 | W505153 | Steering column opening trim panel screws (2 required) |
| 7 | W790178 | Clip (6 required) |
| 8 | W790178 | Clip (4 required) |
| 9 | W712427 | Clip (3 required) |
| 10 | 78045A17 | Left side console bezel |
| 11 | W707628 | IPC screws (2 required) |
| 12 | 10849 | IPC |
| 13 | - | IPC electrical connector (part of 14401) |
