Instrument Panel Cluster (IPC): Edge

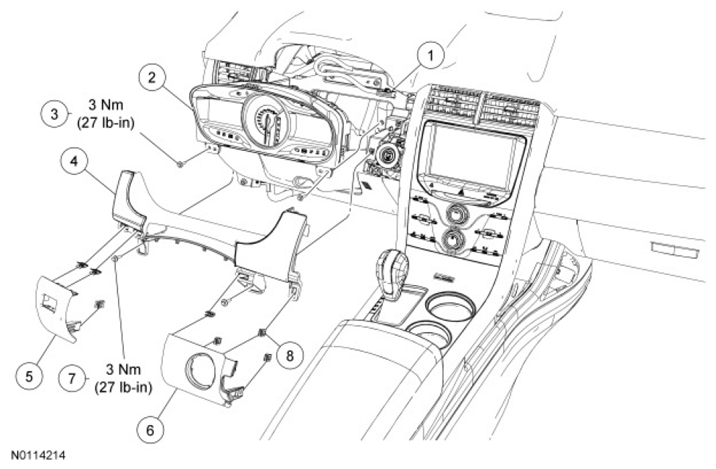

Fig 1: Instrument Panel Cluster (IPC) Replacement Components With Torque Specifications - Edge

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	IPC electrical connector (part of 14401)
2	10849	IPC
3	W707628	IPC screws (2 required)
4	78044D70	Lower IPC finish panel
5	7804338	Left finish panel
6	7804338	Right finish panel
7	W707628	Lower IPC finish panel screws (2 required)
8	W790178	Clip (7 required)
