Brake Booster: Notes

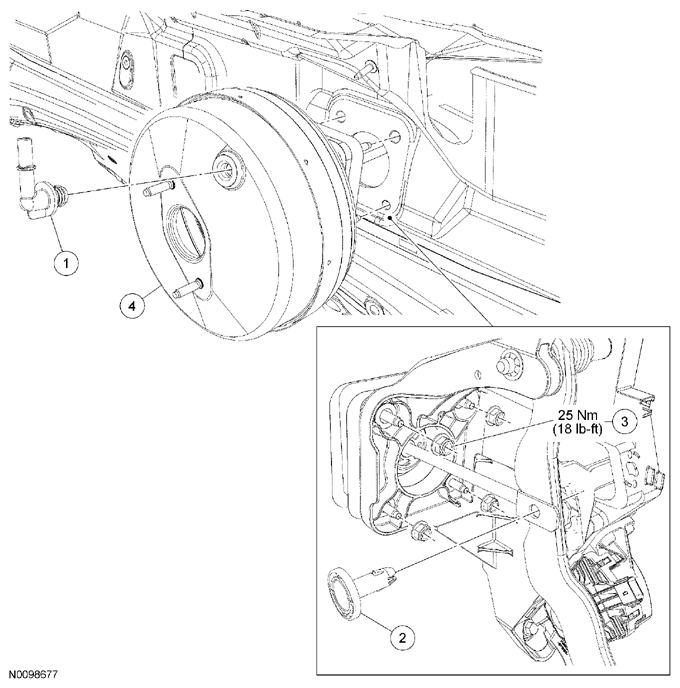

Fig 1: Brake Booster Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9D443A	Brake booster vacuum fitting
2	2L523	Booster rod clevis-locking pin
3	W520212	Brake booster nut (4 required)
4	2005	Brake booster

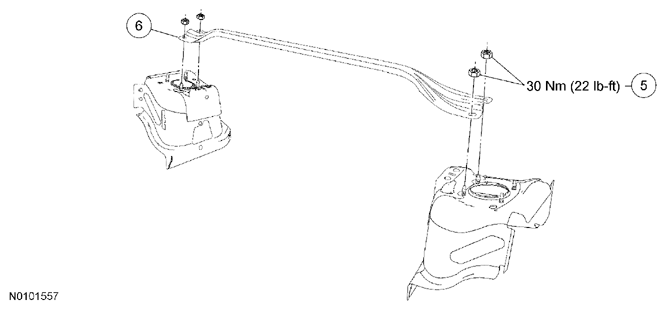

Fig 2: Strut Tower Brace And Strut Upper Mount Nuts With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	W704790	Strut upper mount nuts (4 required)
6	16A200	Strut tower brace
