Without Adaptive Headlamps

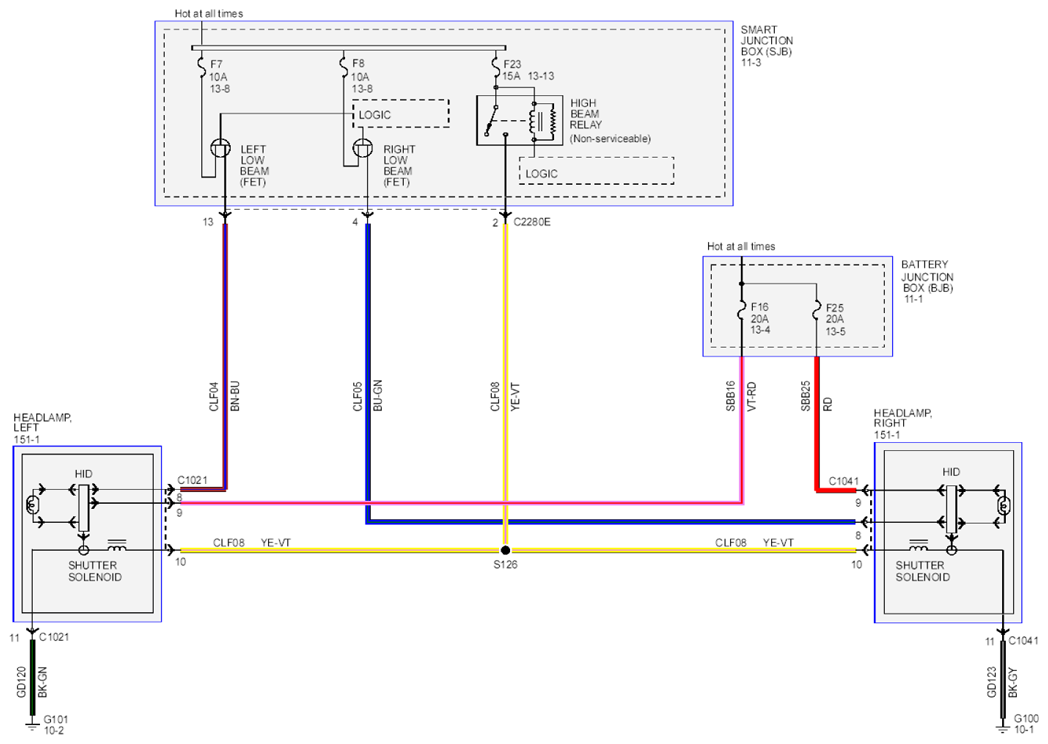

Fig 1: Headlamps And Autolamps Circuit Diagram - Without Adaptive Headlamps

G07884448

Courtesy of FORD MOTOR CO.
