Headlamps_Autolamps
>>
With Auto High Beams
With Auto High Beams

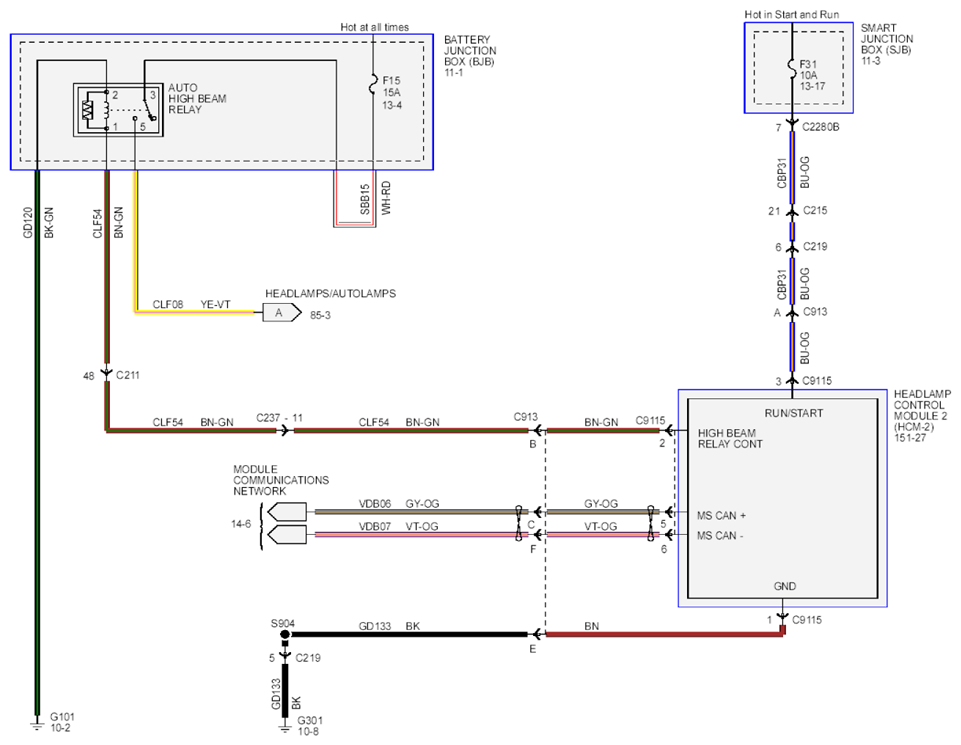

Fig 1: Headlamps And Autolamps Circuit Diagram - With Auto High Beams
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
