G102, G103, G104

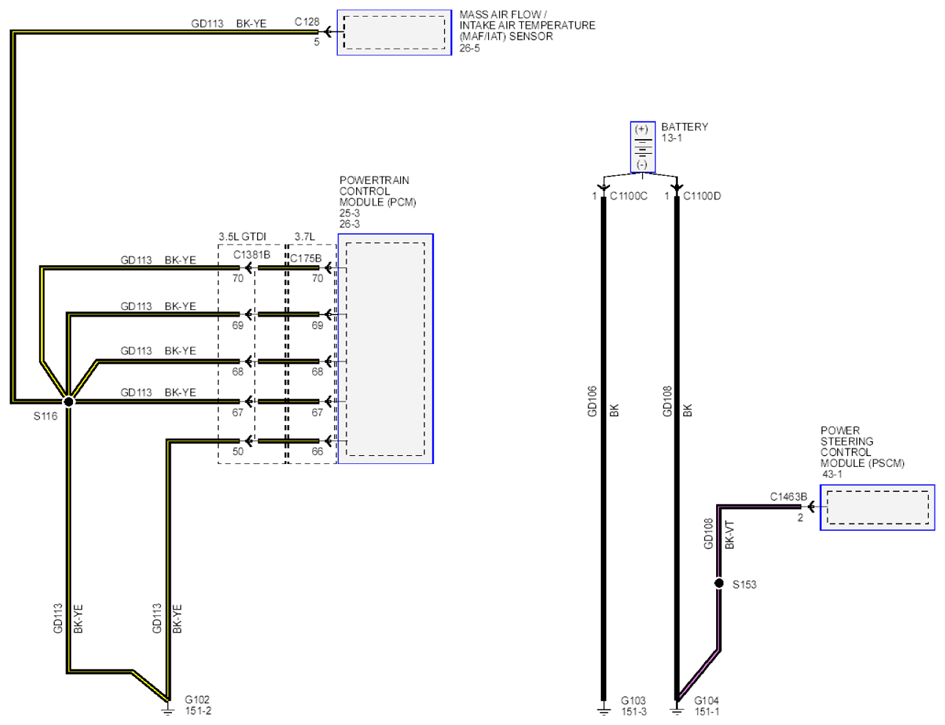

Fig 1: Ground Circuit Diagram - G102, G103 And G104

G07884350

Courtesy of FORD MOTOR CO.
