Without Auto High Beams

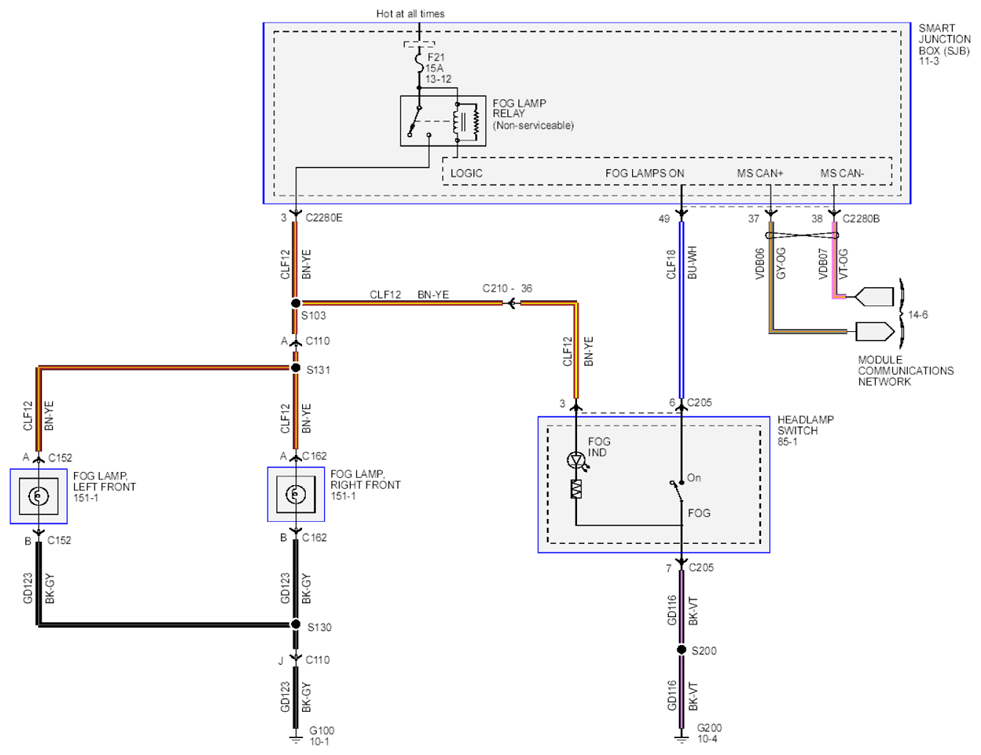

Fig 1: Fog Lamps Circuit Diagram - Without Auto High Beams

G07884451

Courtesy of FORD MOTOR CO.
