With Auto High Beams

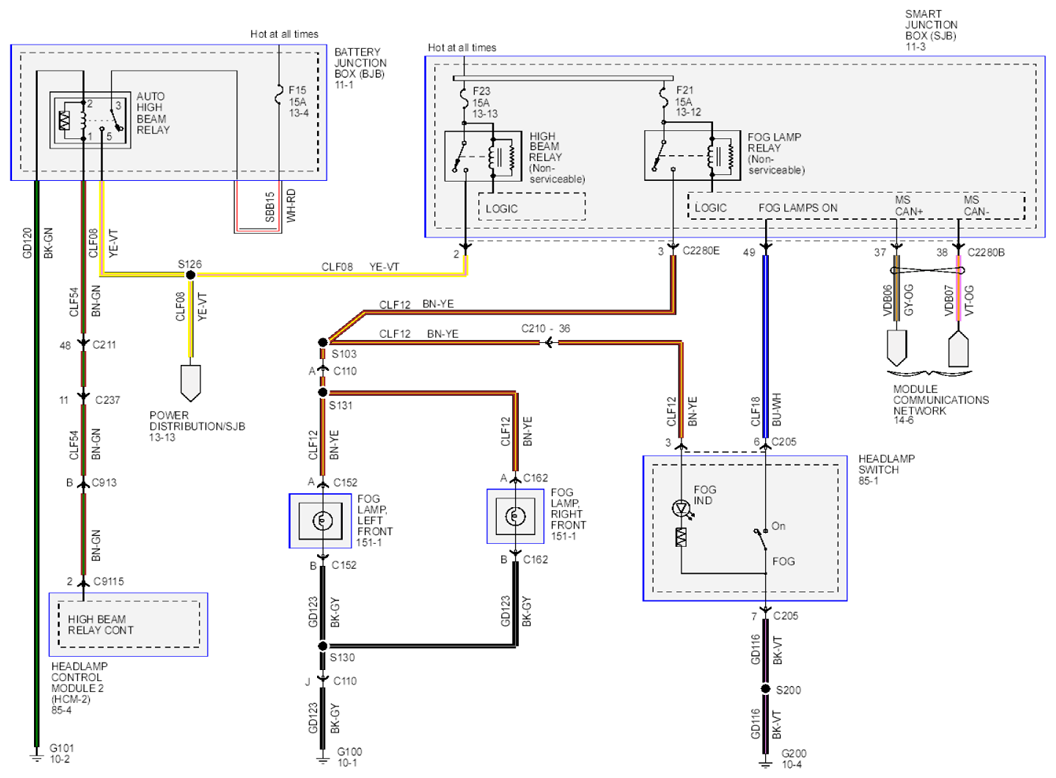

Fig 1: Fog Lamps Circuit Diagram - With Auto High Beams

G07884452

Courtesy of FORD MOTOR CO.
