Cluster and Panel Illumination

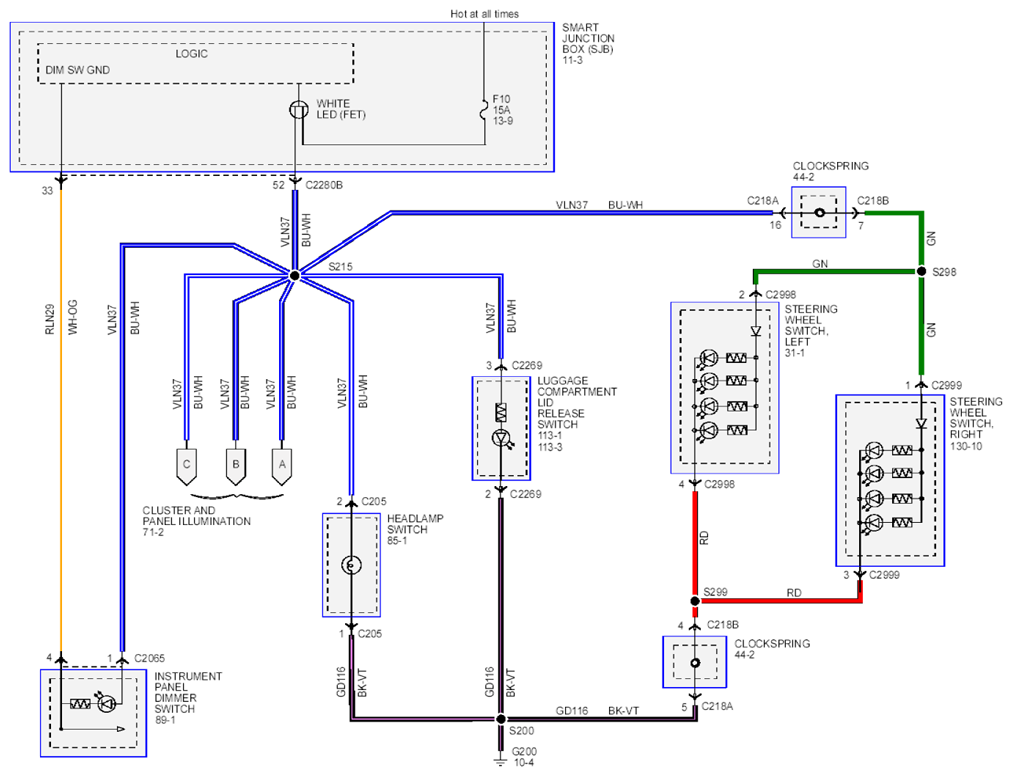

Fig 1: Cluster And Panel Illumination Circuit Diagram (1 Of 2)
G07884443Courtesy of FORD MOTOR CO.
Fig 2: Cluster And Panel Illumination Circuit Diagram (2 Of 2)
G07884444Courtesy of FORD MOTOR CO.
