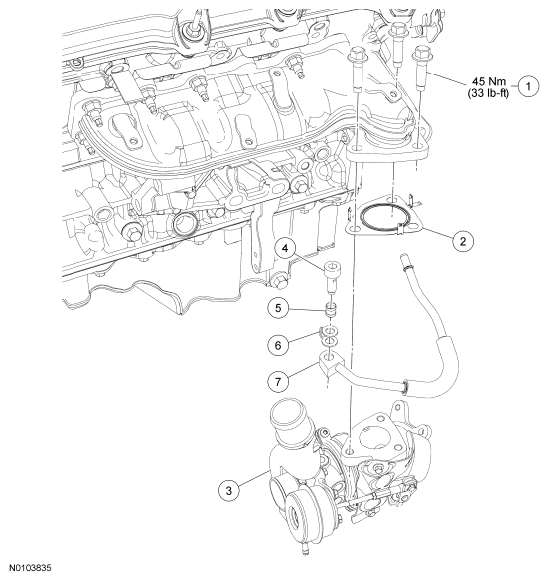

RH Turbocharger (View 6 of 6)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W712806 | Exhaust manifold-to-RH turbocharger bolt (3 required) |
| 2 | 9L461 | RH turbocharger-to-exhaust manifold gasket |
| 3 | 6K682 | RH turbocharger |
| 4 | 6C712 | Oil supply tube bolt (part of 9G440) |
| 5 | 6C683 | Oil supply tube filter (part of 9G440) |
| 6 | W714850 | Oil supply tube sealing washer (part of 9G440) |
| 7 | 9G440 | Oil supply tube |
