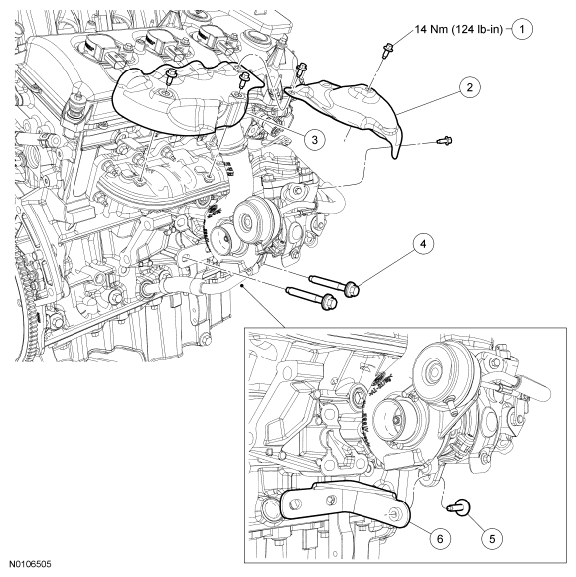

RH Turbocharger (View 5 of 6)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W713299 | RH exhaust manifold heat shield bolt (5 required) |
| 2 | 9A462 | RH exhaust manifold heat shield |
| 3 | 9N454 | RH exhaust manifold heat shield |
| 4 | W503324 | Lower RH turbocharger-to-cylinder block bracket bolt (2 required) |
| 5 | W714867 | Lower RH turbocharger-to-turbocharger bracket bolt |
| 6 | 17K377 | Lower RH turbocharger bracket |
