RH Turbocharger (View 4 of 6)

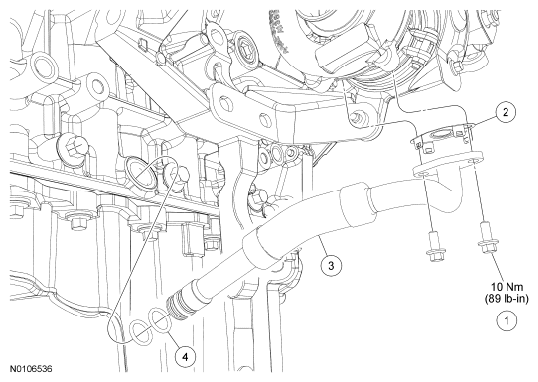

Fig 1: RH Turbocharger Replacement Components With Torque Specifications (4 Of 6)
G06261400Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W500012 RH turbocharger oil return tube bolt (2 required)
2 9T515 RH turbocharger oil return tube
3 6N652 RH turbocharger oil return tube gasket
4 8962 RH turbocharger oil return tube O-ring seal (2 required)
