Special Tool(s)
SPECIAL TOOL(S)
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
NOTE:
Refer to the appropriate ENGINE MECHANICAL - 3.5L GTDI
or ENGINE MECHANICAL - 3.7L
for the specification.

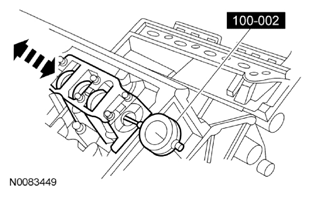

- Using the Dial Indicator Gauge with Holding Fixture, measure the camshaft end play.
- Position the camshaft to the rear of the cylinder head.
- Zero the Dial Indicator Gauge.
- Move the camshaft to the front of the cylinder head. Note and record the camshaft end play.
- If camshaft end play exceeds specifications, install a new camshaft and recheck end play.
- If camshaft end play exceeds specification after camshaft installation, install a new cylinder head.
