Cylinder Head - RH

SPECIAL TOOL(S)

G07815701
 Spring Lock Coupling Disconnect Tool
310-S039 (T90T-9550-S) or equivalent
MATERIAL

Item Specification
Motorcraft® Metal Surface Prep
ZC-31-A		 -
Motorcraft® Silicone Gasket Remover
ZC-30		 -
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.
NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.
NOTE: Early build engine cylinder heads and fuel injectors differ in design than late build engines. Although these parts are serviced in the same way, the parts are not interchangeable between early build and late build engines. The level of cylinder heads and fuel injectors can be determined by inspecting the engine code label. Early build engines are built through 09/14/2010 (0S 490 BA) and late build engines are built on or after 09/15/2010 (1S 490 BA).
  1. Remove the fuel rails. For additional information, refer to ENGINE CONTROLS - FUEL CHARGING SYSTEM & FUEL CONTROL SYSTEM - 3.5L GTDI/3.7L article.
  2. Remove the RH camshafts. For additional information, refer to CAMSHAFT  in this service information.
  3. Disconnect the RH Camshaft Position (CMP) sensor electrical connector.

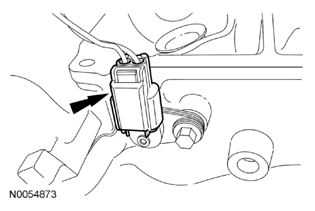

    Fig 1: Locating RH Camshaft Position (CMP) Sensor Electrical Connector
    G07815702Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the RH CMP sensor.

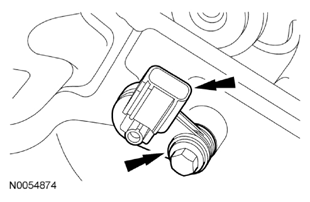

    Fig 2: Locating RH CMP Sensor And Bolt
    G07815703Courtesy of FORD MOTOR CO.
  5. Remove the bolt and the ground wire.

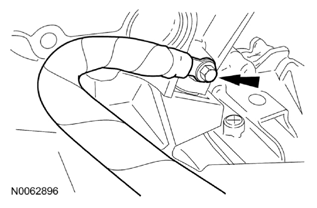

    Fig 3: Locating Ground Wire Bolt
    G07815704Courtesy of FORD MOTOR CO.

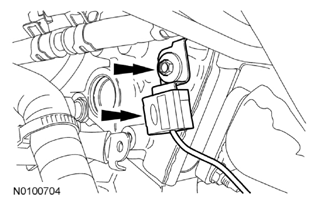

  6. Remove the bolt and the radio capacitor from the RH cylinder head.
    Fig 4: Locating Radio Capacitor And Bolt
    G07815705Courtesy of FORD MOTOR CO.

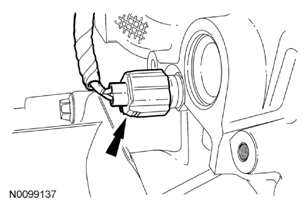

  7. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector from the rear of the RH cylinder head.
    Fig 5: Locating Cylinder Head Temperature Sensor Electrical Connector
    G07815706Courtesy of FORD MOTOR CO.
  8. Remove the 5 bolts and the 2 upper RH exhaust manifold heat shields.

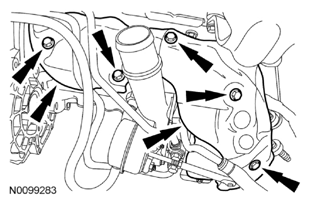

    Fig 6: Locating Upper RH Exhaust Manifold Heat Shields And Bolts
    G07815707Courtesy of FORD MOTOR CO.
  9. Disconnect the turbocharger wastegate regulating valve hose from the RH turbocharger assembly.

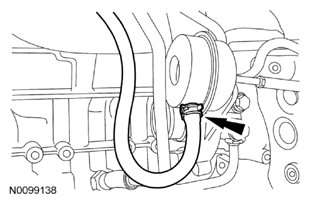

    Fig 7: Locating Turbocharger Wastegate Regulating Valve Hose Clamp
    G07815708Courtesy of FORD MOTOR CO.
  10. Remove the 2 bolts and the turbocharger oil return tube from the RH turbocharger.
    • Remove and discard the gasket.

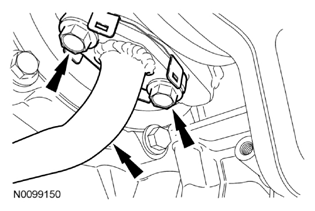

      Fig 8: Locating Turbocharger Oil Return Tube And Bolts
      G07815709Courtesy of FORD MOTOR CO.

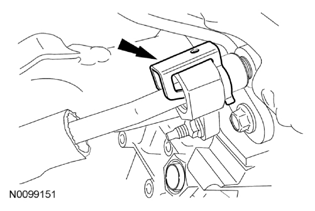

  11. Remove the oil supply tube secondary latch.
    Fig 9: Locating Oil Supply Tube Secondary Latch
    G07815710Courtesy of FORD MOTOR CO.

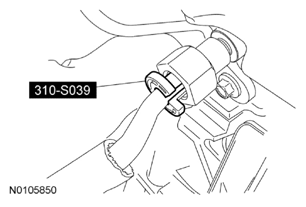

  12. Using the Spring Lock Coupling Disconnect Tool, remove the RH turbocharger oil supply tube from the quick connect fitting.
    • Inspect and if necessary, replace the quick connect fitting.
      Fig 10: Removing RH Turbocharger Oil Supply Tube From Quick Connect Fitting
      G07815711Courtesy of FORD MOTOR CO.
  13. Remove the 2 coolant tube banjo bolts and the RH turbocharger coolant tubes and sealing washers.
    • Discard the sealing washers.

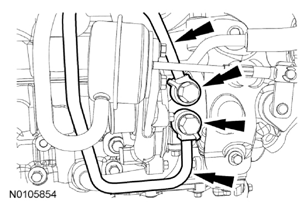

      Fig 11: Locating Coolant Tube Banjo Bolts And RH Turbocharger Coolant Tubes
      G07815712Courtesy of FORD MOTOR CO.

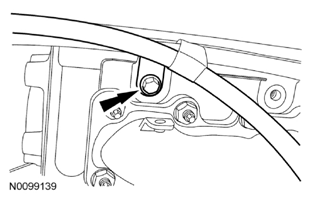

  14. Remove the coolant tube bracket-to-cylinder head bolt.
    Fig 12: Locating Coolant Tube Bracket-To-Cylinder Head Bolt
    G07815713Courtesy of FORD MOTOR CO.

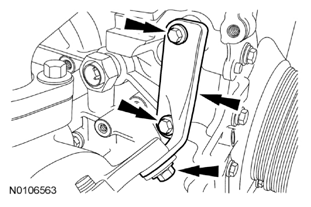

  15. Remove the 3 bolts and the upper turbocharger-to-cylinder block bracket.
    Fig 13: Locating Upper Turbocharger-To-Cylinder Block Bracket And Bolts
    G07815714Courtesy of FORD MOTOR CO.
  16. Remove the 3 exhaust manifold-to-turbocharger bolts and the turbocharger assembly.
    • Discard the gasket and bolts.

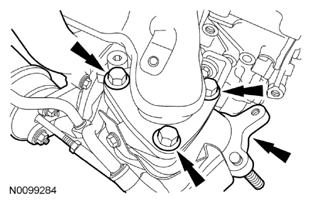

      Fig 14: Locating Exhaust Manifold-To-Turbocharger Bolts
      G07815715Courtesy of FORD MOTOR CO.
  17. Remove the RH turbocharger oil supply tube banjo bolt.
    • Discard the sealing washer.
    • Discard the oil supply tube filter.

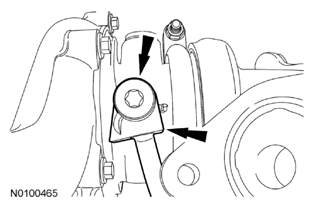

      Fig 15: Locating RH Turbocharger Oil Supply Tube Banjo Bolt And Sealing Washer
      G07815716Courtesy of FORD MOTOR CO.
  18. Remove the 8 nuts and the RH exhaust manifold.
    • Discard the nuts and exhaust manifold gaskets.
      Fig 16: Locating RH Exhaust Manifold Nuts
      G07815717Courtesy of FORD MOTOR CO.
  19. Clean and inspect the RH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.
  20. Remove and discard the 8 RH exhaust manifold studs.

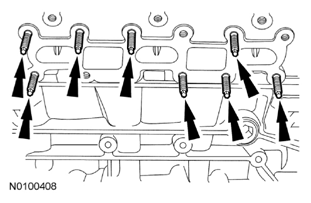

    Fig 17: Locating RH Exhaust Manifold Studs
    G07815718Courtesy of FORD MOTOR CO.
    21. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.
  21. Clean the exhaust manifold mating surface of the cylinder head with metal surface prep. Follow the directions on the packaging.
  22. Remove the LH cylinder block drain plug.
    • Allow coolant to drain from the cylinder block.

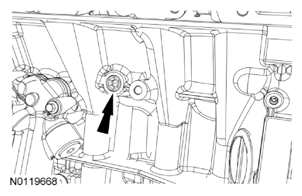

      Fig 18: Locating LH Cylinder Block Drain Plug
      G07815719Courtesy of FORD MOTOR CO.
  23. If equipped, remove the heat shield and disconnect the block heater electrical connector.
    • Remove the block heater wiring harness from the engine.
      Fig 19: Locating Block Heater Electrical Connector And Heat Shield
      G07815720Courtesy of FORD MOTOR CO.
  24. Remove the RH cylinder block drain plug or, if equipped, the block heater.
    • Allow coolant to drain from the cylinder block.

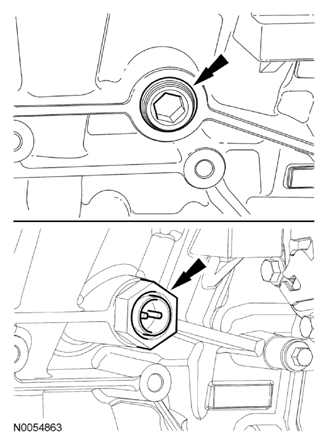

      Fig 20: Locating RH Cylinder Block Drain Plug And Block Heater
      G07815721Courtesy of FORD MOTOR CO.
    25. NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain engine comes equipped with either a composite RH timing chain guide requiring the timing chain to ride on the outer side of the guide or a stamped steel RH timing chain guide requiring the timing chain to ride on the inner side of the guide. All roller timing chain engine replacement RH timing chain guides will be the stamped steel design.
  25. Remove the bolt(s) and the RH timing chain guide.
    1. Roller timing chain stamped steel RH guide.
    2. Roller timing chain composite RH guide.
    3. Inverted tooth timing chain RH guide.

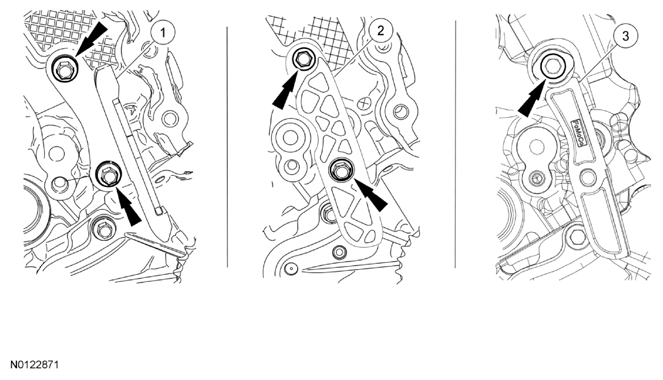

      Fig 21: Locating RH Timing Chain Guide And Bolts
      G07815722Courtesy of FORD MOTOR CO.
  26. Remove the bolts and the RH secondary timing chain tensioner.

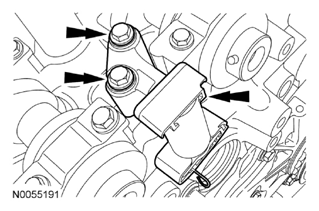

    Fig 22: Locating RH Secondary Timing Chain Tensioner And Bolts
    G07815723Courtesy of FORD MOTOR CO.

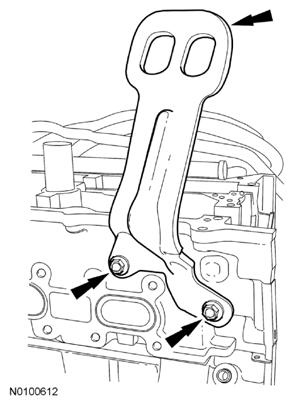

  27. Remove the 2 bolts and the RH engine lifting eye.
    Fig 23: Locating RH Engine Lifting Eye And Bolts
    G07815724Courtesy of FORD MOTOR CO.
    28. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

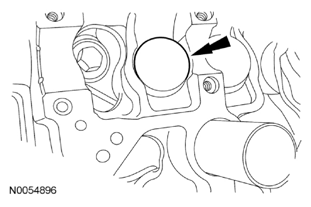

    Fig 24: Locating Valve Tappets
    G07815725Courtesy of FORD MOTOR CO.
  28. Remove the valve tappets from the cylinder head.
  29. Inspect the valve tappets. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.

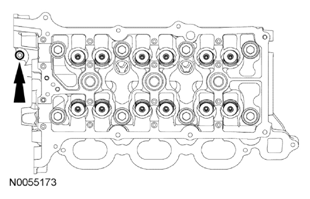

  30. Remove and discard the M6 bolt.
    Fig 25: Locating Cylinder Head M6 Bolt
    G07815726Courtesy of FORD MOTOR CO.
    31. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Aluminum surfaces are soft and may be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a torque-to-yield design and cannot be reused.
  31. Remove and discard the 8 bolts from the cylinder head.
    • Remove the cylinder head.
    • Discard the cylinder head gasket.

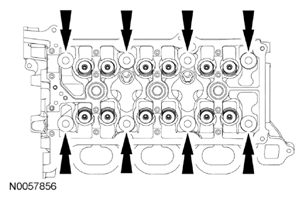

      Fig 26: Locating Cylinder Head Bolts
      G07815727Courtesy of FORD MOTOR CO.
    32. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
    NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
  32. Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.
    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
  33. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION article.
