Cylinder Head - LH

MATERIAL

Item Specification
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US);
Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada)
XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada)		 WSS-M2C946-A
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.
NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain upper LH guide differs in design than the inverted tooth upper LH guide.
NOTE: Early build engine cylinder heads and fuel injectors differ in design than late build engines. Although these parts are serviced in the same way, the parts are not interchangeable between early build and late build engines. The level of cylinder heads and fuel injectors can be determined by inspecting the engine code label. Early build engines are built through 09/14/2010 (0S 490 BA) and late build engines are built on or after 09/15/2010 (1S 490 BA).
  1. Install a new gasket, the LH cylinder head and 8 new bolts. Tighten in the sequence shown in illustration in 5 stages:
    • Stage 1: Tighten to 20 Nm (177 lb-in).
    • Stage 2: Tighten to 35 Nm (26 lb-ft).
    • Stage 3: Tighten 90 degrees.
    • Stage 4: Tighten 90 degrees.
    • Stage 5: Tighten 45 degrees.
      Fig 1: Identifying LH Cylinder Head Bolts Tightening Sequence
      G07816463Courtesy of FORD MOTOR CO.
  2. Install the cylinder head M6 bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 2: Locating Cylinder Head M6 Bolt
      G07816464Courtesy of FORD MOTOR CO.
    3. NOTE: The valve tappets must be installed in their original positions.
    NOTE: Coat the valve tappets with clean engine oil prior to installation.
    Fig 3: Locating Valve Tappets
    G07816465Courtesy of FORD MOTOR CO.
  3. Install the valve tappets.
  4. Install the LH secondary timing chain tensioner and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 4: Locating LH Secondary Timing Chain Tensioner And Bolts
      G07816466Courtesy of FORD MOTOR CO.
    5. NOTE: The engine comes equipped with either a roller primary timing chain or an inverted tooth primary timing chain. The roller timing chain upper LH guide differs in design than the inverted tooth upper LH guide.
  5. Install the upper LH primary timing chain guide and the bolt(s). Tighten to 10 Nm (89 lb-in).
    1. Roller timing chain upper LH guide.
    2. Inverted tooth timing chain upper LH guide.
      Fig 5: Locating Upper LH Primary Timing Chain Guide And Bolts
      G07816467Courtesy of FORD MOTOR CO.
  6. Install the RH cylinder block drain plug or, if equipped, the block heater.
    • Tighten the cylinder block drain plug to 10 Nm (89 lb-in) plus an additional 720 degrees.
    • Tighten the block heater to 40 Nm (30 lb-ft).
      Fig 6: Locating RH Cylinder Block Drain Plug And Block Heater
      G07816468Courtesy of FORD MOTOR CO.
  7. If equipped, install the block heater wiring harness onto the engine.
    • Connect the block heater electrical connector and install the heat shield.
      Fig 7: Locating Block Heater Electrical Connector And Heat Shield
      G07816469Courtesy of FORD MOTOR CO.
  8. Install the LH cylinder block drain plug.
    • Tighten to 16 Nm (142 lb-in) plus an additional 180 degrees.

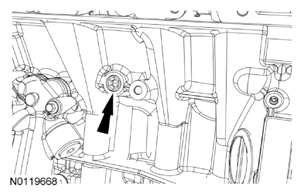

      Fig 8: Locating LH Cylinder Block Drain Plug
      G07816470Courtesy of FORD MOTOR CO.
  9. Install 8 new LH exhaust manifold studs.
    • Tighten to 12 Nm (106 lb-in).
      Fig 9: Locating LH Exhaust Manifold Studs
      G07816471Courtesy of FORD MOTOR CO.
    10. NOTE: Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
  10. Install a new gasket, LH exhaust manifold and turbocharger assembly and 8 new nuts. Tighten the nuts in 2 stages in the sequence shown in illustration:
    • Stage 1: Tighten to 15 Nm (133 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
      Fig 10: Identifying LH Exhaust Manifold Nuts Tightening Sequence
      G07816472Courtesy of FORD MOTOR CO.
  11. Install the upper turbocharger bracket-to-cylinder block and the 2 bolts.
    • Do not tighten the bolts at this time.
      Fig 11: Locating Upper LH Turbocharger Bracket-To-Cylinder Block Bracket And Bolts
      G07816473Courtesy of FORD MOTOR CO.
  12. Install the lower turbocharger-to-cylinder block bracket and the 2 bolts.
    • Do not tighten the bolts at this time.

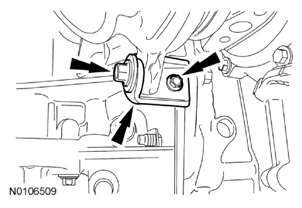

      Fig 12: Locating Lower LH Turbocharger-To-Cylinder Block Bracket And Bolts
      G07816474Courtesy of FORD MOTOR CO.
    NOTE: The next 4 steps must be performed in order or damage to the turbocharger may occur.
  13. Tighten the upper turbocharger bracket-to-turbocharger bolt.
    • Tighten to 19 Nm (168 lb-in).
      Fig 13: Locating Upper Turbocharger Bracket-To-Turbocharger Bolt
      G07816475Courtesy of FORD MOTOR CO.
  14. Tighten the upper turbocharger bracket-to-cylinder block bolt.
    • Tighten to 25 Nm (18 lb-ft).
      Fig 14: Locating Upper Turbocharger Bracket-To-Cylinder Block Bolt
      G07816476Courtesy of FORD MOTOR CO.
  15. Tighten the lower turbocharger bracket-to-turbocharger bolt.
    • Tighten to 19 Nm (168 lb-in).
      Fig 15: Locating Lower Turbocharger Bracket-To-Turbocharger Bolt
      G07816477Courtesy of FORD MOTOR CO.
  16. Tighten the lower turbocharger bracket-to-cylinder block bolt.
    • Tighten to 11 Nm (97 lb-in).
      Fig 16: Locating Lower Turbocharger Bracket-To-Cylinder Block Bolt
      G07816478Courtesy of FORD MOTOR CO.
  17. Install the oil supply tube filter, washer and bolt.
    1. Install the oil supply tube filter in the oil supply tube block.
    2. Slide the new washer onto the oil supply tube block.
    3. Install the banjo bolt into the oil supply tube block.
      Fig 17: Identifying Oil Supply Tube Filter, Washer And Bolt
      G07816479Courtesy of FORD MOTOR CO.
  18. Install the LH turbocharger oil supply tube and banjo bolt.
    • Tighten the bolt to 35 Nm (26 lb-ft).
      Fig 18: Locating LH Turbocharger Oil Supply Tube Banjo Bolt
      G07816480Courtesy of FORD MOTOR CO.
  19. Using 2 new sealing washers, install the 2 LH turbocharger coolant tubes and the banjo bolts.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 19: Locating Coolant Tube Banjo Bolts
      G07816481Courtesy of FORD MOTOR CO.
  20. If necessary, install the LH cylinder head turbocharger oil supply quick connect fitting.
    • Tighten to 16 Nm (142 lb-in).
      Fig 20: Locating LH Cylinder Head Turbocharger Oil Supply Quick Connect Fitting
      G07816482Courtesy of FORD MOTOR CO.
    21. NOTE: Listen for audible click when installing the oil supply tube into the quick connect fitting.

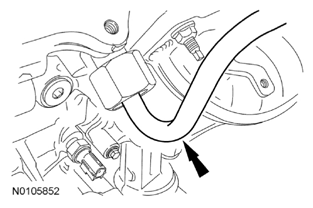

    Fig 21: Locating LH Oil Supply Tube
    G07816483Courtesy of FORD MOTOR CO.
  21. Install the LH oil supply tube into the quick connect fitting.
  22. Install the LH oil supply tube secondary latch.

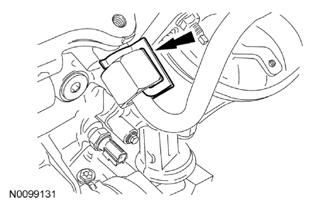

    Fig 22: Locating LH Oil Supply Tube Secondary Latch
    G07816484Courtesy of FORD MOTOR CO.
  23. Install a new gasket, turbocharger oil return tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).
      Fig 23: Locating LH Turbocharger Oil Return Tube And Bolts
      G07816485Courtesy of FORD MOTOR CO.
    24. NOTE: Make sure the turbocharger wastegate regulating valve hose does not contact the exhaust manifold heat shield.
    Fig 24: Locating Turbocharger Wastegate Regulating Valve Hose Clamp
    G07816486Courtesy of FORD MOTOR CO.
  24. Connect the turbocharger wastegate regulating valve hose to the LH turbocharger assembly.
  25. Install the LH exhaust manifold heat shield and the 3 bolts.
    • Tighten to 14 Nm (124 lb-in).
      Fig 25: Locating LH Exhaust Manifold Heat Shield And Bolts
      G07816487Courtesy of FORD MOTOR CO.
  26. Install the stud, generator and the nut and bolt.
    • Tighten the stud to 8 Nm (71 lb-in).
    • Tighten the nut and bolt to 47 Nm (35 lb-ft).
      Fig 26: Locating Nut And Bolt Of Generator
      G07816488Courtesy of FORD MOTOR CO.
  27. Connect the generator electrical connector.

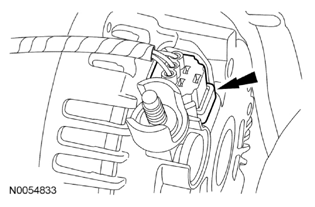

    Fig 27: Locating Generator Electrical Connector
    G07816489Courtesy of FORD MOTOR CO.
  28. Connect the generator B+ cable and install the nut.
    • Tighten to 17 Nm (150 lb-in).
      Fig 28: Locating Generator B+ Cable Nut
      G07816490Courtesy of FORD MOTOR CO.
  29. Install the LH coolant tube bracket-to-cylinder head nut.
    • Tighten to 10 Nm (89 lb-in).
      Fig 29: Locating Coolant Tube Bracket-To-Cylinder Head Nut
      G07816491Courtesy of FORD MOTOR CO.
  30. Attach the pin-type wire harness retainer to the rear of LH cylinder head.
    Fig 30: Locating LH Cylinder Head Wiring Harness Retainer
    G07816492Courtesy of FORD MOTOR CO.
  31. Install the LH Camshaft Position (CMP) sensor and the bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 31: Locating LH CMP Sensor And Bolt
      G07816493Courtesy of FORD MOTOR CO.
  32. Connect the LH CMP sensor electrical connector.
    Fig 32: Locating LH CMP Sensor Electrical Connector
    G07816494Courtesy of FORD MOTOR CO.
  33. Install the LH camshafts. For additional information, refer to CAMSHAFT  in this service information.
  34. Install the fuel rails. For additional information, refer to ENGINE CONTROLS - FUEL CHARGING SYSTEM & FUEL CONTROL SYSTEM - 3.5L GTDI/3.7L article.
