Removal and Installation

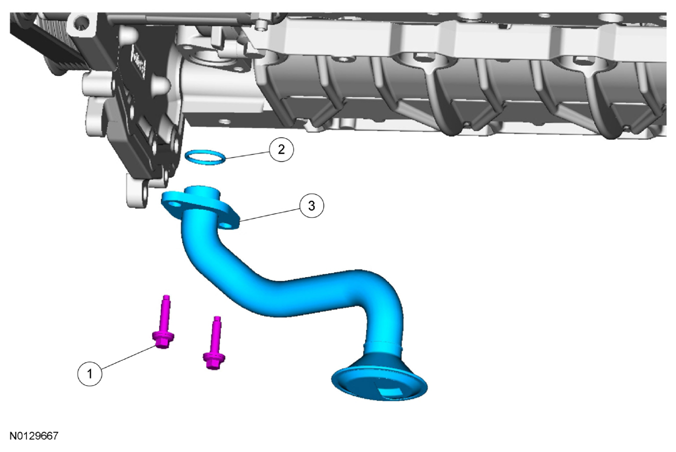

Fig 1: Identifying Oil Pump Screen And Pickup Tube Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W503278	Oil pump screen and pickup tube bolt (2 required) - 10 Nm (89 lb-in)
2	6625	O-ring seal
3	6622	Oil pump screen and pickup tube

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

Remove the oil pan. For additional information, refer to OIL PAN in this service information.
Remove the 2 bolts and the oil pump screen and pickup tube.
- Discard the O-ring seal.
- To install, tighten to 10 Nm (89 lb-in).

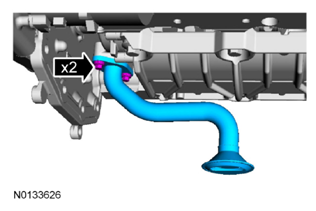

  Fig 2: Locating Oil Pump Screen And Pickup Tube Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new O-ring seal.
