Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

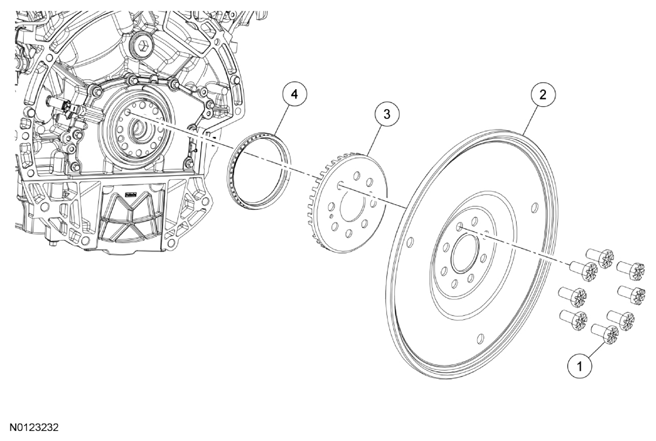

Fig 1: Exploded View Of Flexplate Or Flywheel And Crankshaft Rear Seal Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W701559	Flexplate bolt (8 required)
2	6375	Flexplate
3	12A227	Crankshaft sensor ring
4	6701	Crankshaft rear seal

1. Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
